Desk and Bed Universal Testing Machine GT-LD09

This tester is used for testing the mechanical properties of tables and desks. Can perform the horizontal static load and durability test, vertical static load and impact test.

  • standardEN 1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 6.7,6.9. EN 1725 Section 7.2, 7.3, 7.4, 7.5, 7.6, 7.7
  • certificate ISO 9001, UKAS, CE
Facebook Twitter Pinterest LinkedIn 分享

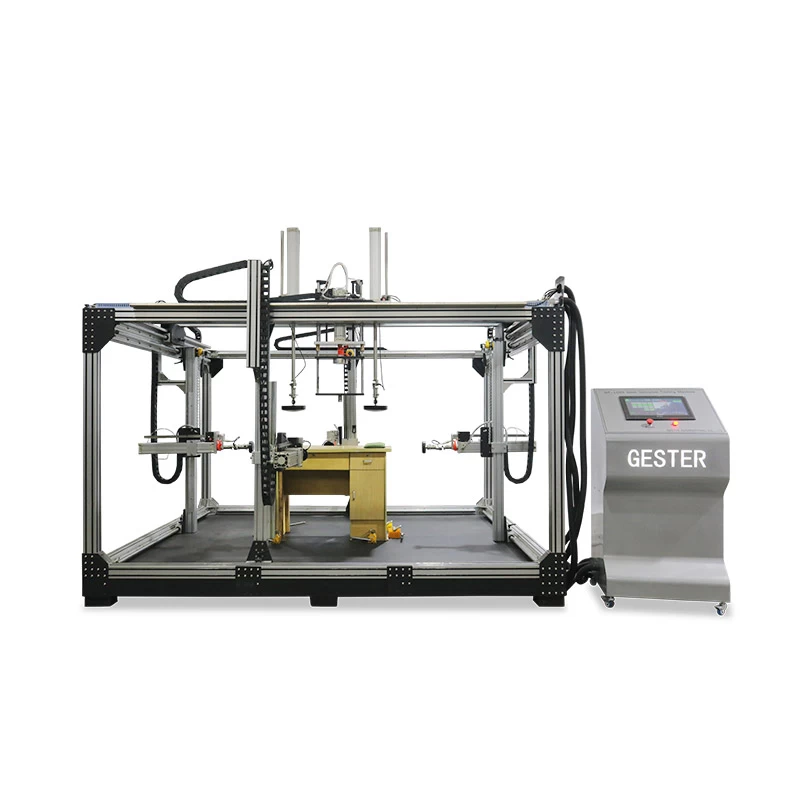

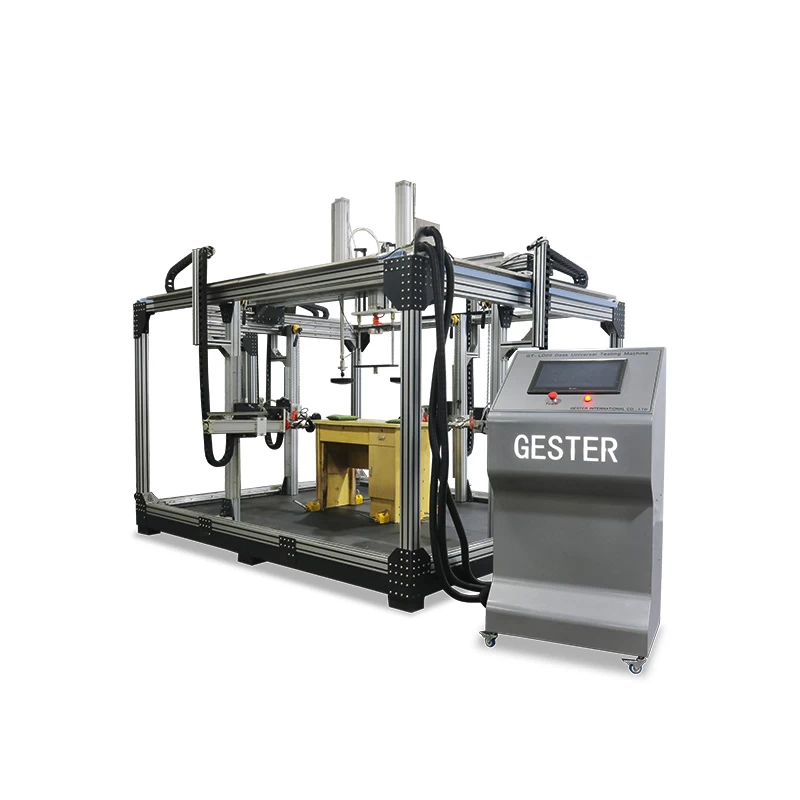

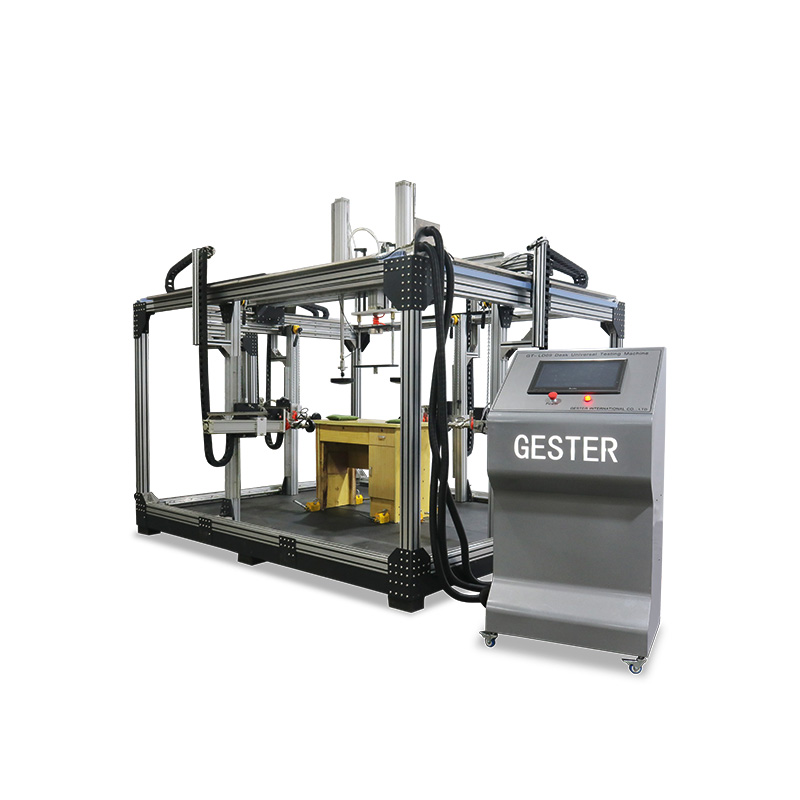

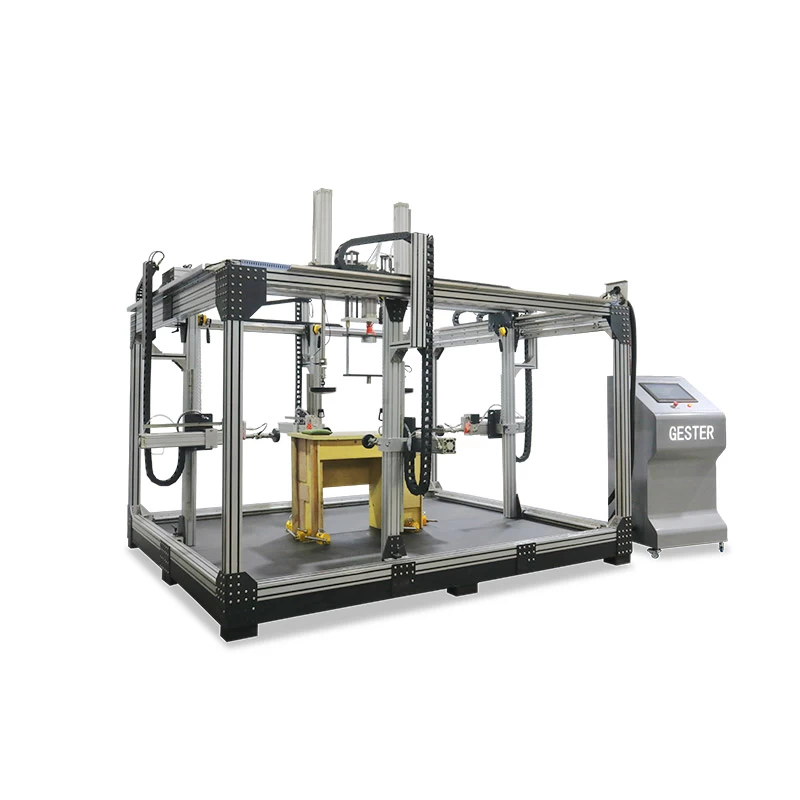

EN1730 Desk Universal Testing Machine

Applications:

This tester is used for testing the mechanical properties of bed and desks. Can perform the horizontal static load and durability test, vertical static load and impact test.





Principle:

Desk and Bed Universal Testing Machine applies the four horizontal air cylinder (with the specified force value) on the four sides of the sample. After a certain number of times of repeating loop, we check if there is any damage on the specimen structure, function and other aspects. So as to understand the product performance and defects and provide reference for improved products.


Feature:

1.Desk and Bed Universal Testing Machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
2.The frame adjustment part of the tester adopts pulley structure design. Can easily adjust the loading position to adapt to different specifications of the sample. Positioning handle makes the positioning easier and improve the efficiency.
3.The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
4.PLC controller to control the actions of the instrument; the operation is intuitive and simple.
5.Using the precision pressure regulating valve to adjust the pressure to change the loading force value; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
6.Removable loading pad, can easily change the different loading pad to meet the different test requirements.

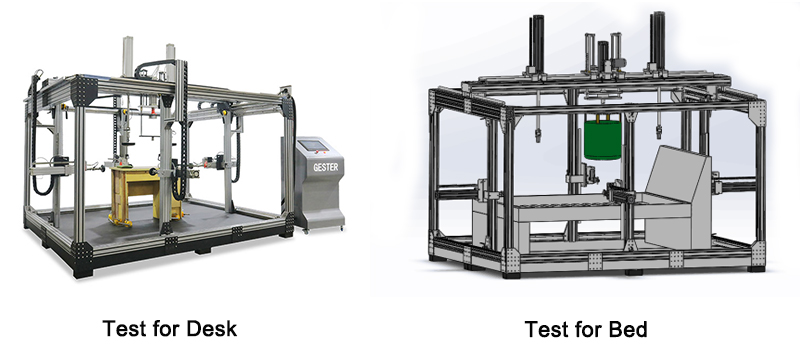

Desk and Bed Universal Testing Machine


Key Specifications for Desk and Bed

Control mode

PLC control

The Max. length of specimen

3m

Load cell

3KN

Machine Dimensions

320cm×250cm×200cm(L×W×H)

Test Standards

Desk: EN 1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 6.7,6.9

Bed: EN 1725 Section 7.2, 7.3, 7.4, 7.5, 7.6, 7.7

Testing Methods --- Desk

Standard EN 1723

1. 6.2 Horizontal static load test

2. 6.3 Vertical static load tests

3. 6.4 Horizontal durability and stiffness test

4. 6.5 Vertical durability test .

5. 6.6 Vertical impact test

6. 6.7 Deflection of table tops

7. 6.9 Drop test

Testing Methods --- Bed

Standard EN 1725

1. 7.3 Durability test

2. 7.4 Vertical impact test

3. 7.5 Durability of bed edge

4. 7.6 Vertical static load test

5. 7.7 Vertical static load test of the edge of the bed

Standard Accessories

- Horizontal loading device          4 sets

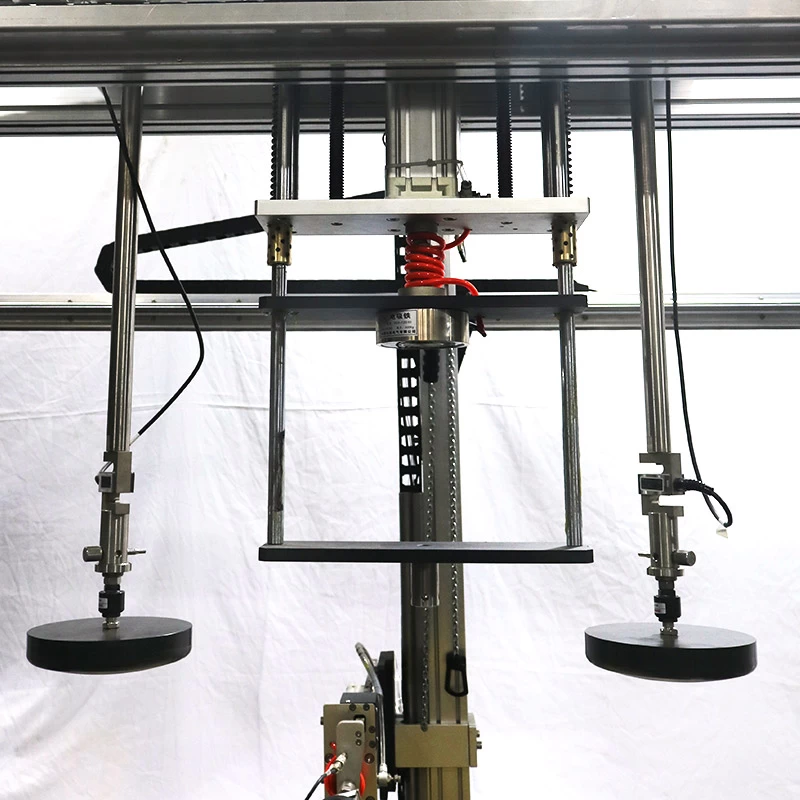

- Vertical loading device             2 set

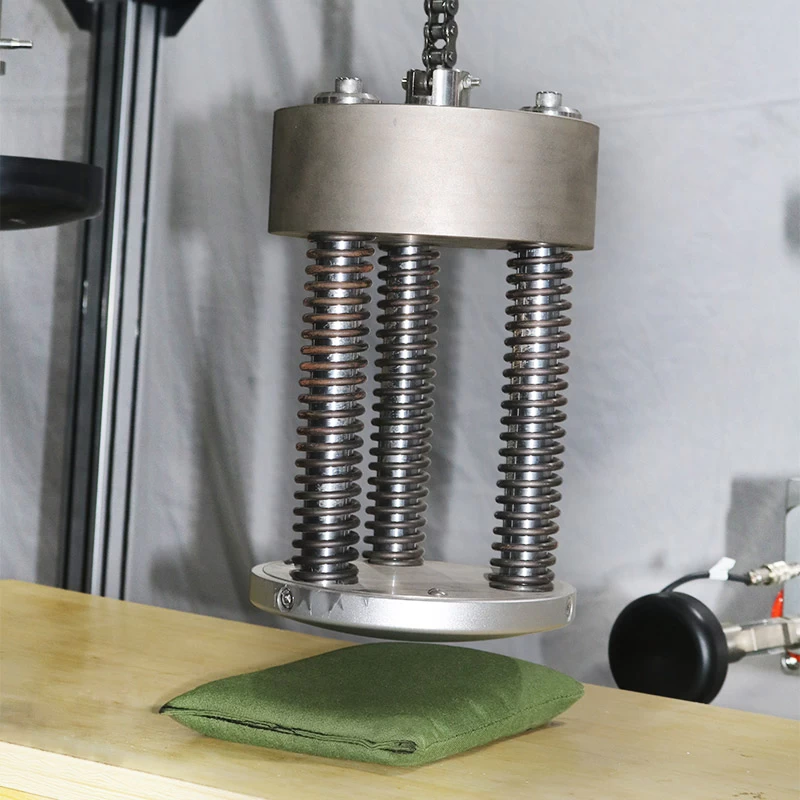

- Impact device                    1 set

- GT-LB01-5 Local loading pad       6 pcs

- Stoppers                         4 pcs

- Servo cylinder                    7 pcs

- Load cell                         6 pcs

- Electric Proportional Valve          6 pcs

- Motor                            1 set

- GT-LB01-6 Seat Impactor Devise     1 Set

- GT-LB01-3 Smaller seat loading pad  2 pcs

- GT-LB01-2 Seat loading pad         2 pcs

- English Manual

- Certificate of Quality
