Desk-top Li ion Battery Electrolyte Filling Machine
Product Specification
TOB-JK-JLB-M12 Electrolyte Injection Pump is a desk-top and corrosive-proof electrolyte filling device.
This Injection Pump is easy to be placed into a glove box and precisely controls the filling amount
of electrolytes or other lower viscosity liquids under vacuum/inert gas atmosphere. It is an ideal tool for use in battery R&D.
|
Model
|
Electrolyte Injection Pump TOB-JK-JLB-M12
|
|
Voltage
|
110V/220V, 50/60HZ
|
|
Power
|
20W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Air Pressure
|
> 60psi (0.4Mpa) ( Air compressor in not included)
|
|
Advantages
|
1 High precision of quantitative pump injection
2 Resistance to acid and alkali corrosion
|
|
Filling Volume Range
|
0 - 7ml
|
|
Increment Displayed
|
1µl for minimum
|
|
Digital Scale Accuracy
|
0.02g
|
|
Piston diameter
|
3/4 inch, about 19.05mm
|
|
Stroke
|
1 inch, about 25.4mm
|
|
Net Weight
|
25Kg
|
|
Product Dimensions
|
Injection Pump : 55*55*250mm
Control Box : 150 *200 * 250mm
|

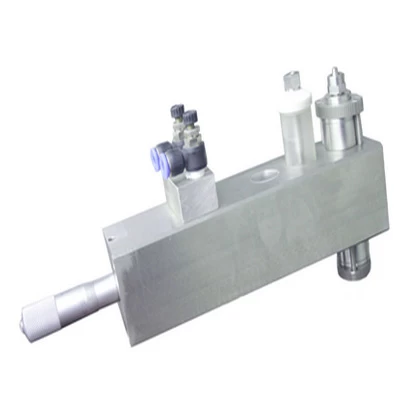

Product Image
Packing
