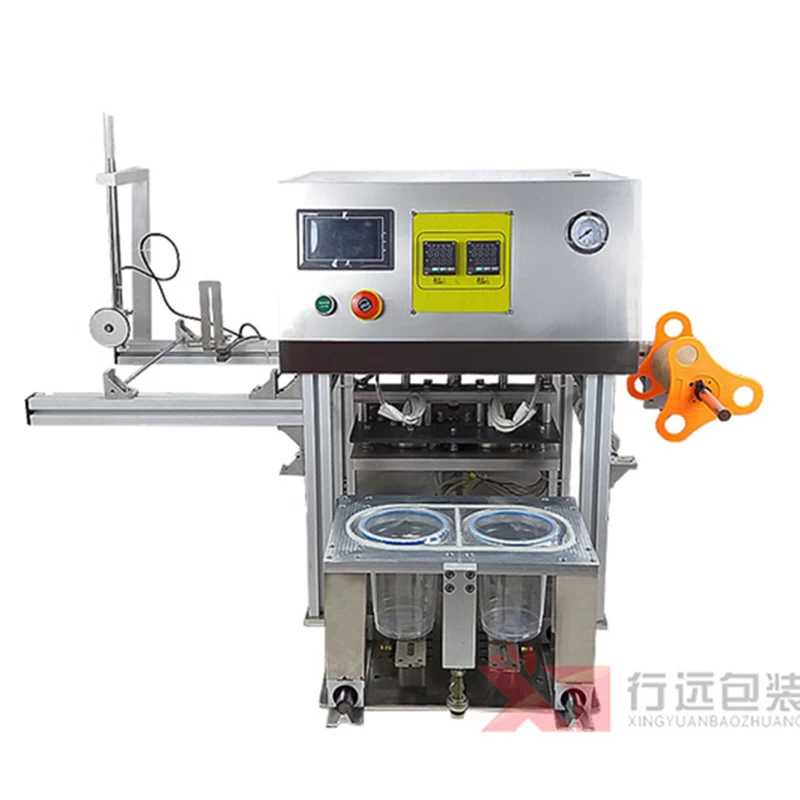

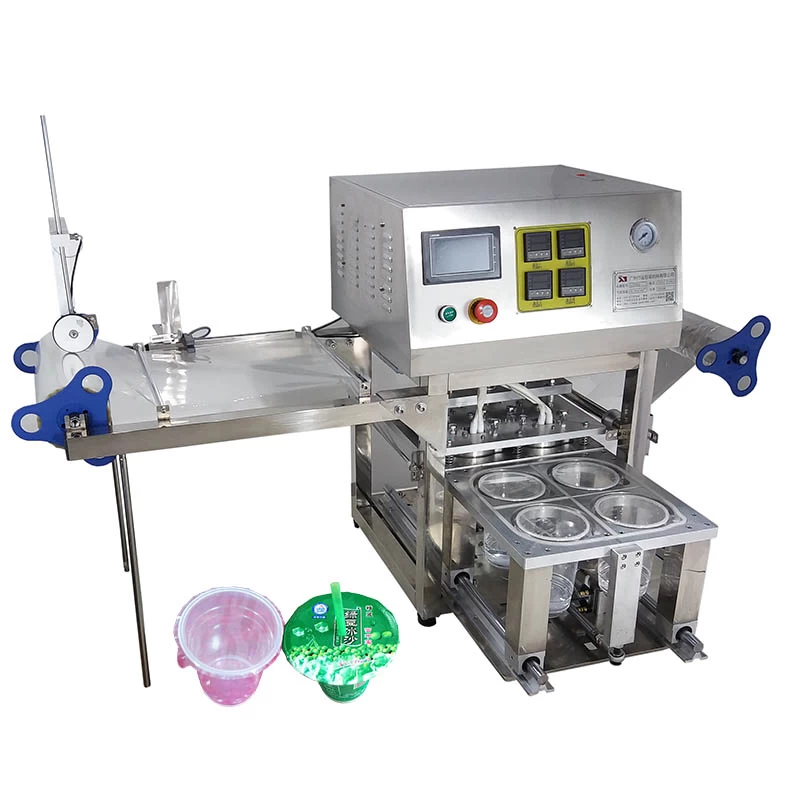

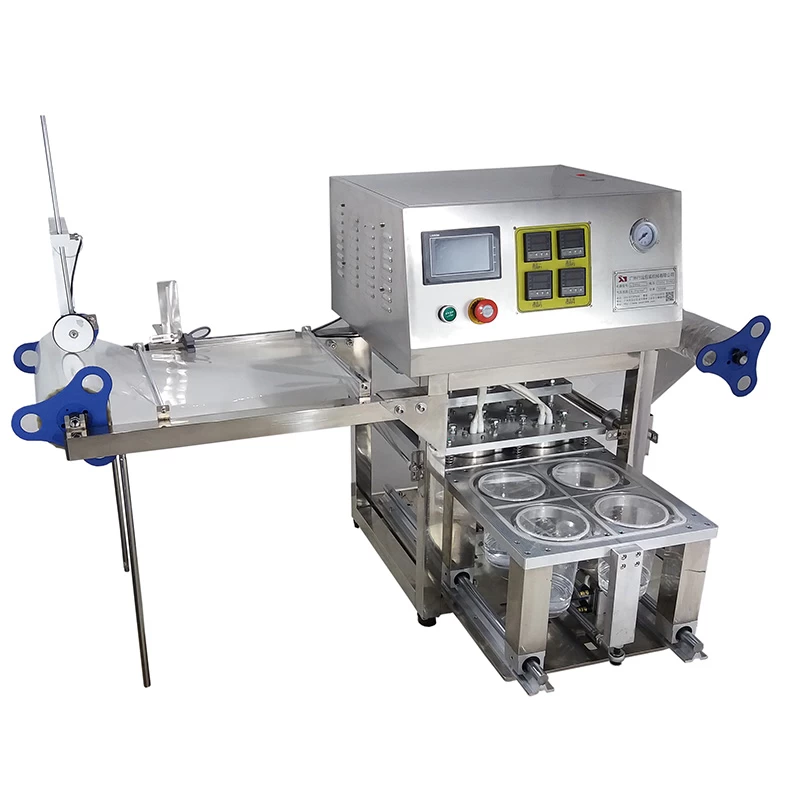

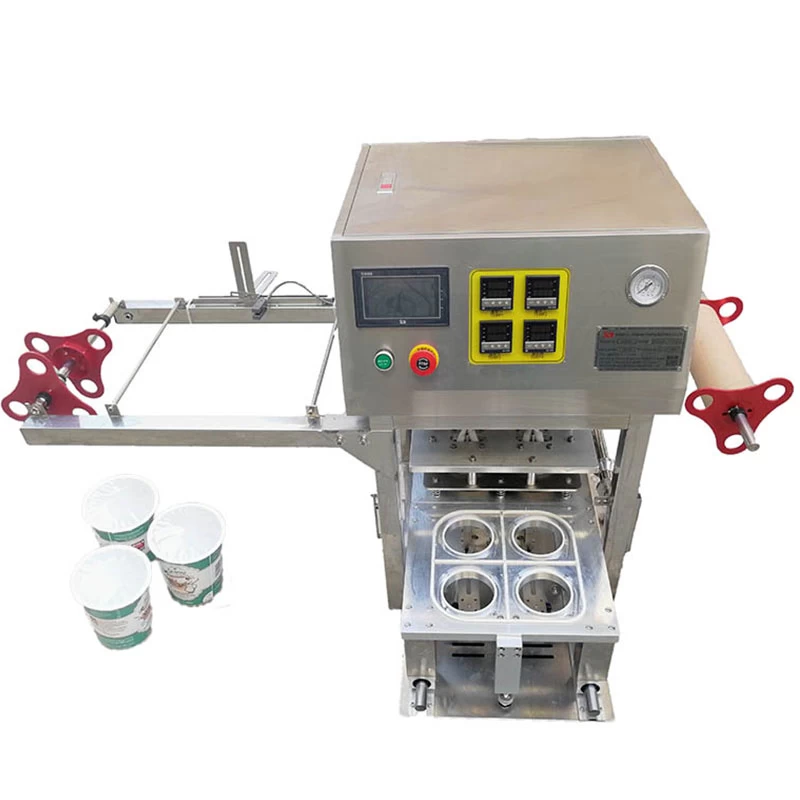

Desktop automatic multiple cup sealing machine

Desktop automatic multiple cup sealing machine support change mold for different size cup and tray.



Product Item:Desktop automatic multiple cup sealing machine

Photos:

automatic cup sealing machineplastic cup sealing machineDesktop automatic multiple cup sealing machineDesktop automatic multiple cup sealing machine



Description


What features of automatic multiple cup sealing machine ?

  1.     Special produced according to customer’s requirement.
  2.     All stainless steel construction.
  3.     Highly automation: auto cup sealing,auto rolling film,auto tracking film.
  4.    Easy operation, high sealing precision.
  5.     Screen touch control panel.
  6.     Pneumatic and heating seal.

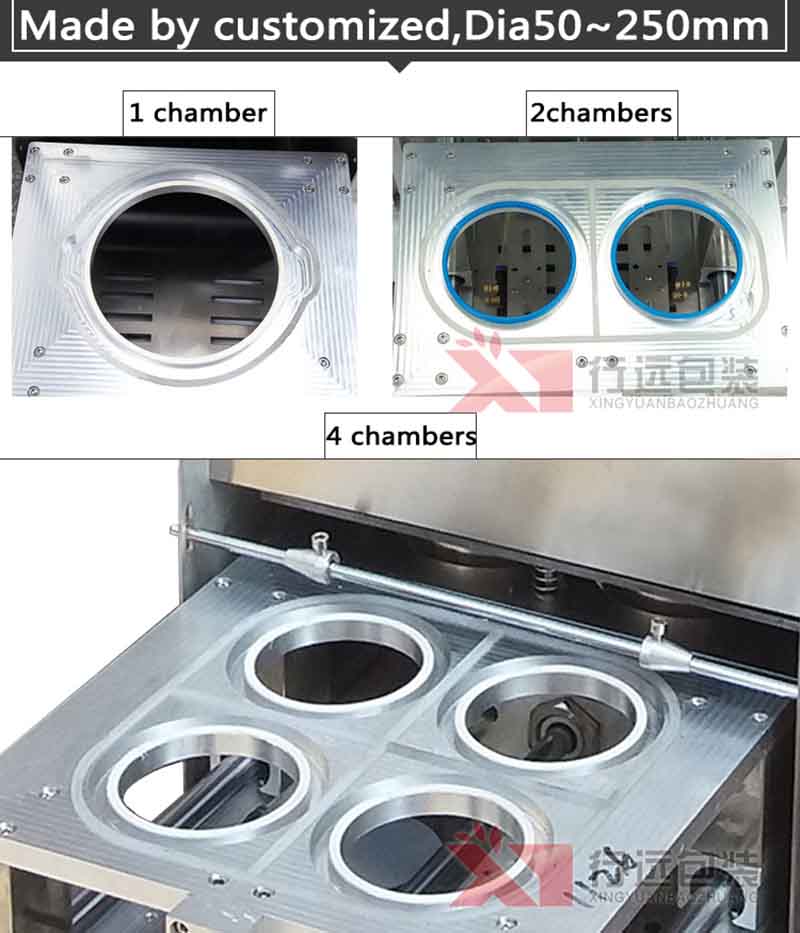

  7.     Mould exchangeable for different size.



Operation:

  1.     Take cups into the mold cavities by hand.

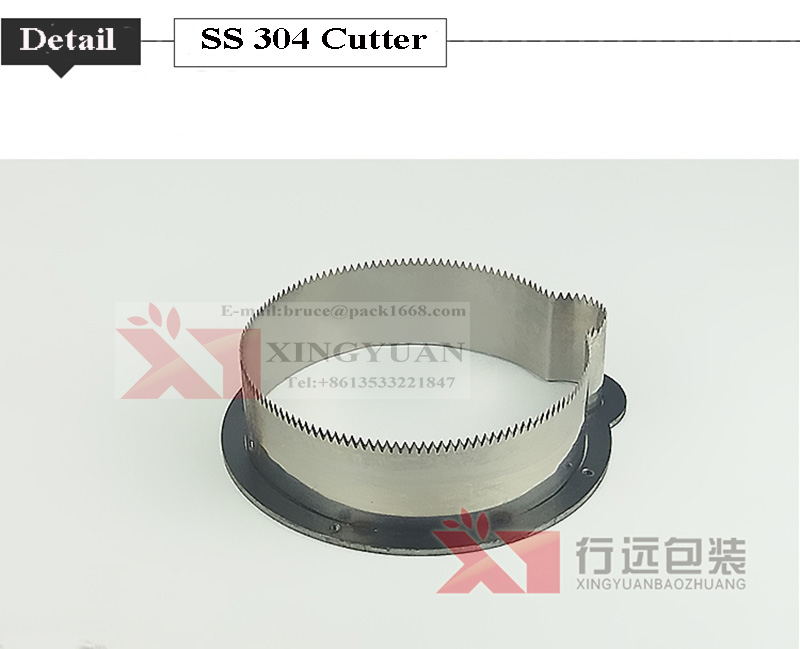

  2.     Sealing and cutting film: remove into seal automatic, film run a cycle and cutting,sealing.
  3.     Take out: Slide out sealed cup automatic.
  4.     Sealing temperature and time adjustable via control panel.



What applications of cup sealing machine ?

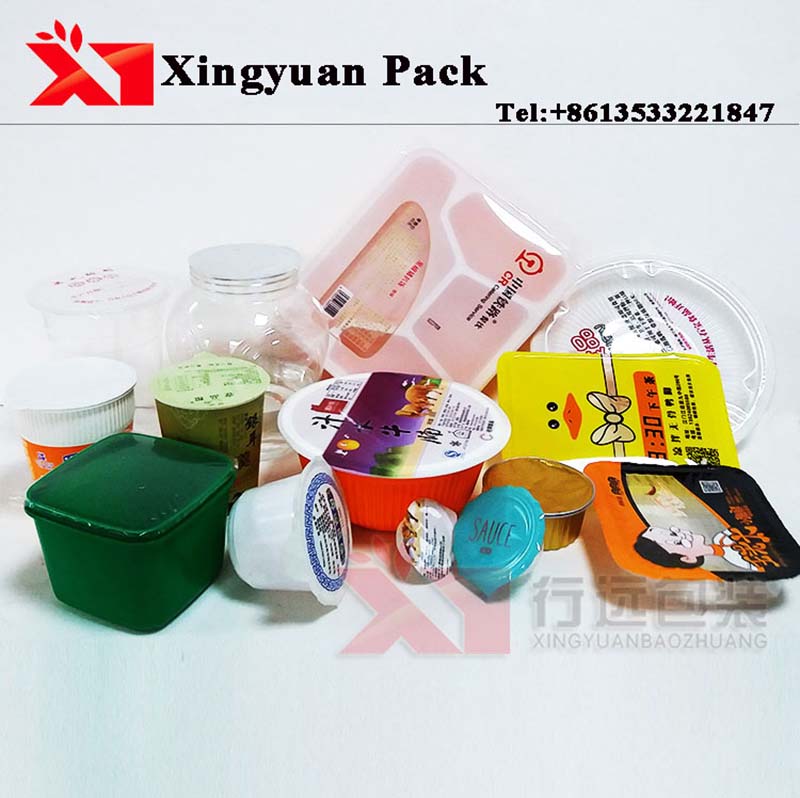

  1.    Suit for cup loaded product sealing package, such as plastic cup, glass cup, paper cups and etc.
  2.     Widely use in food industries, beverage, pharmaceutical ,cosmetic.



Options:

  1.    Stainless steel can be 201,304,316.Standard is SS201.
  2.    Film type roll or pre-cutted.
  3.    Date printer available added.



Why choose us ?

  1.    We are China leading Packing Machines Manufacturer ,over 17 years in this field.
  2.    Alibaba Assessed Gold Supplier.
  3.    100% QC inspection before shipment.
  4.    Best Quality &Best Service with Competitive Price.
  5.    Fast delivery time.


Technical parameters

Technical Specifications

Model

LD802B

Voltage(V)

AC110-220V/50-60Hz

Power(W)

500-1000W

Cup sealing size (mm)

50-250mm as customer's requested

Packing speed(cups/hour)

800-1000

Sealing materials

PP,PE,PET,PS and etc.

Seal temperature

0-300 ℃

Air pressure range

0.5-0.8Mpa

Net Weight(kg)

100kgs

Machine size(mm)

1250*850*750mm
