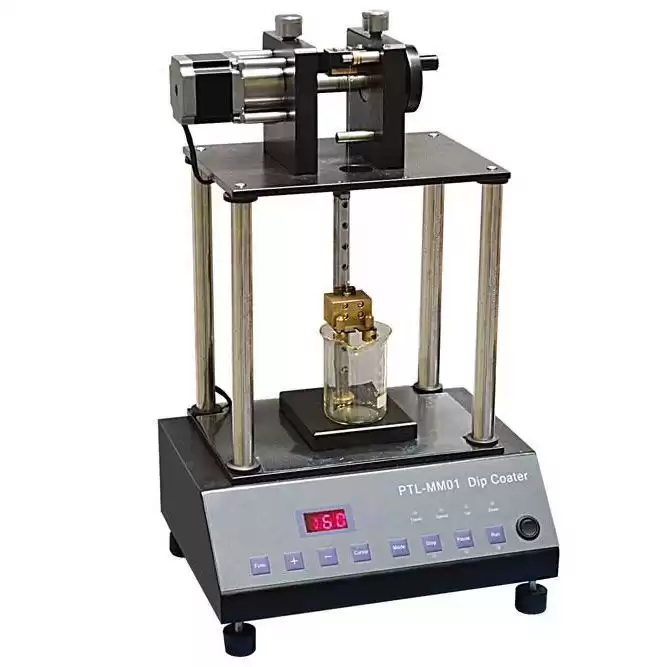

Desktop Dip Coater With Variable Speed (1-200 Mm/Min)
Specifications：
|
Dipping/Pulling
|

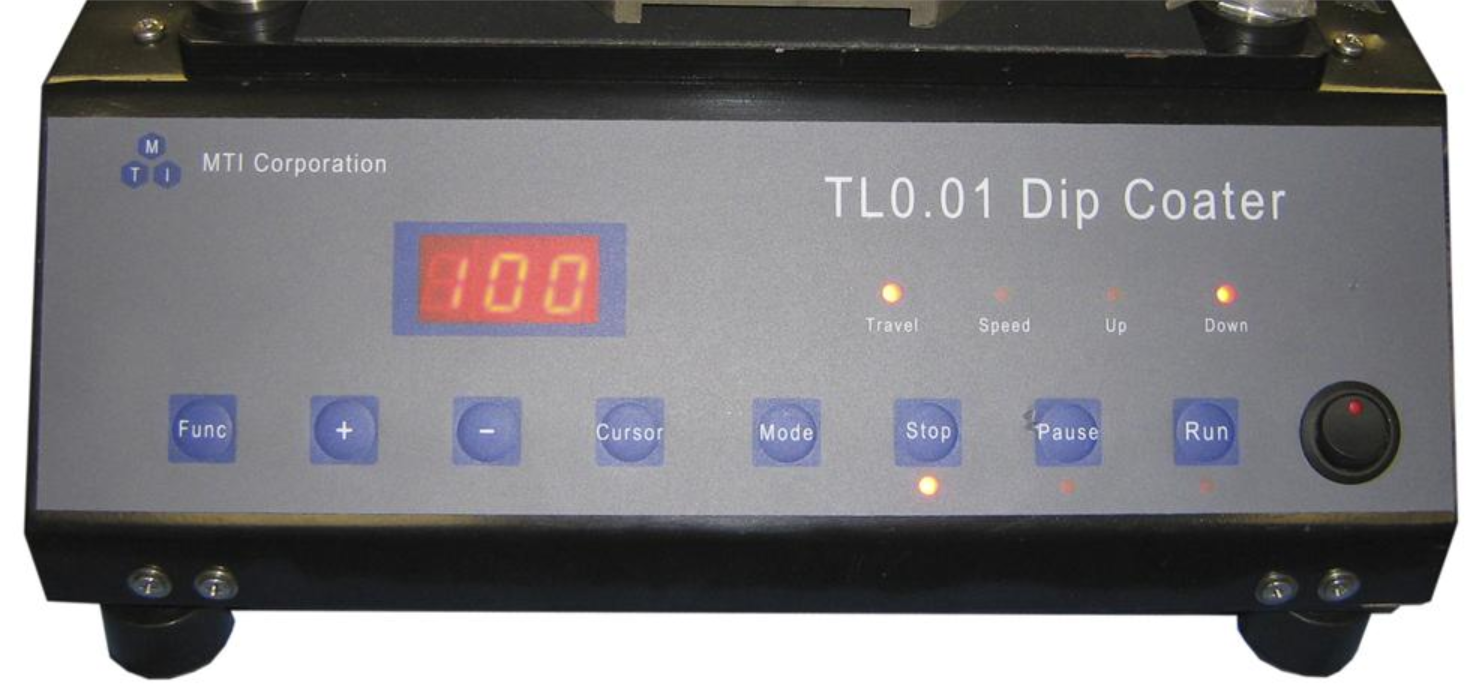

· Dipping/Pulling Speed:1-200 mm/minute Adjustable via digital panel
· Travel Distance: 0-200mm Adjustable via digital panel
|
|
Voltage
|
AC 110V/220V
|
|
Sample holder
|

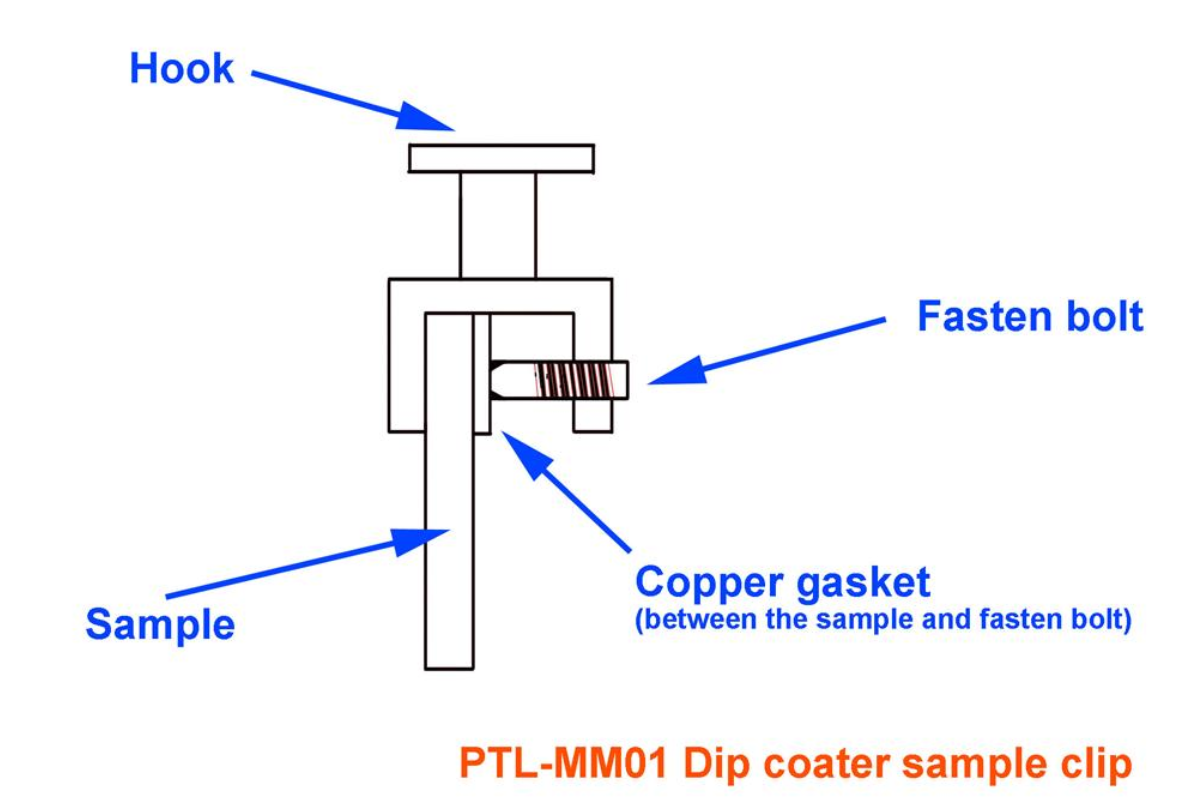

· Two screw sample clips are installed in the sample holder to carry the samples sliding up and down through one precision ball bear guide rod
· (ball bear guide rod updated from Sep. 6, 2014)
|
|
Beaker Holder
|
The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder
|
|
Solution container
|
One 150ml beaker is included
|
|
Max. Sample size
|
50mm(L) x 25mm(W) x 2.5mm(T)
|
|
Sample weight
|
Less than 250g
|
|

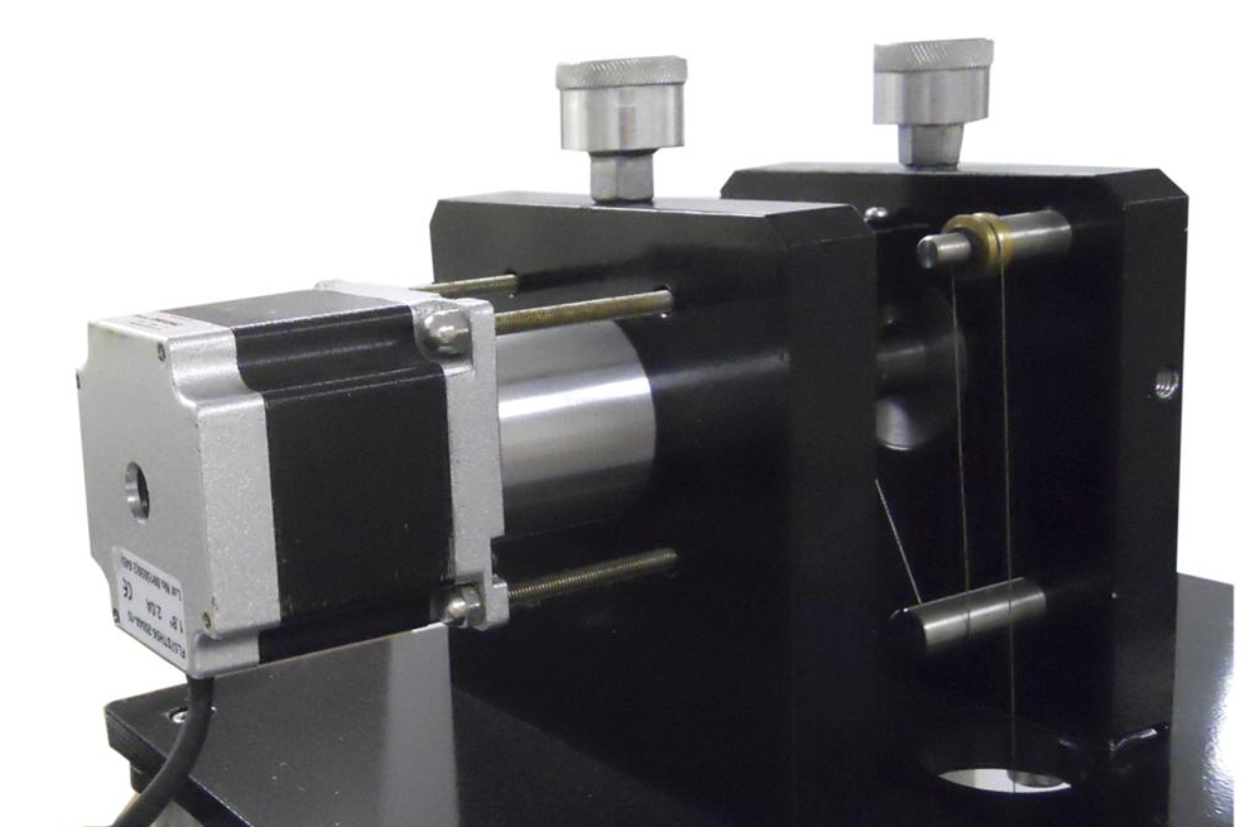

Dipping/Pulling Motor
|
DC Stepping motor
|
|
Product dimension
|
320mm(L) x 255mm(W) x 540mm(H)
|
|
Certificate
|
CE Certified
|
|
Warranty
|
One year limited with lifetime support
|
|
Application Notes
|
· In order to get better film coating, the substrate shall be treated by plasma cleaner
· Use ultrasonic processor to disperse nanopowder or homogenize solution to get better coating
|
|
Net Weight
|
45 lbs
|
|
Shipping Weight & Dimensions
|
67 lbs 40" x 23" x 26"
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
