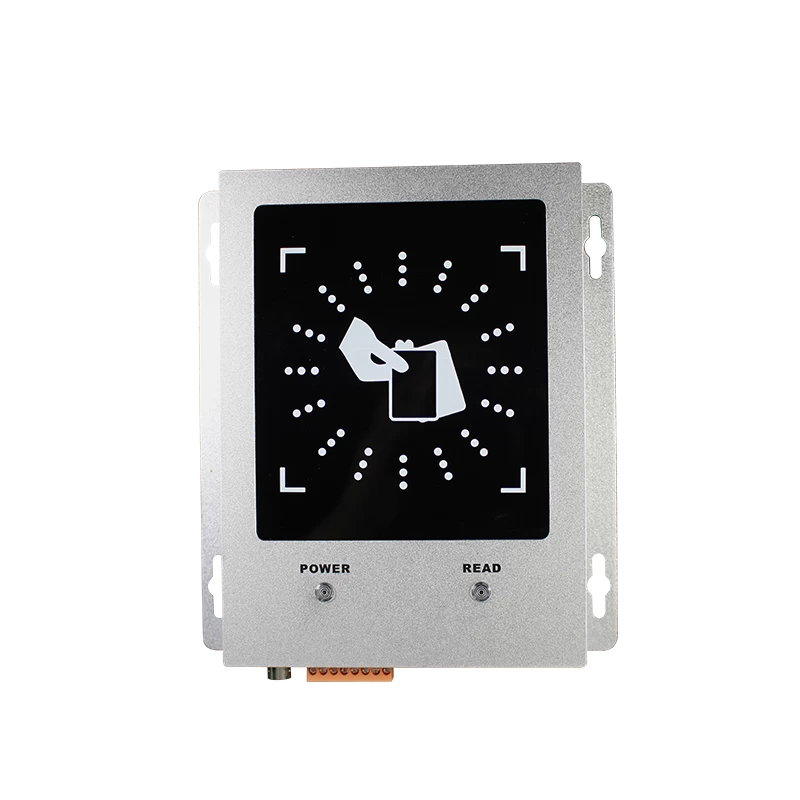

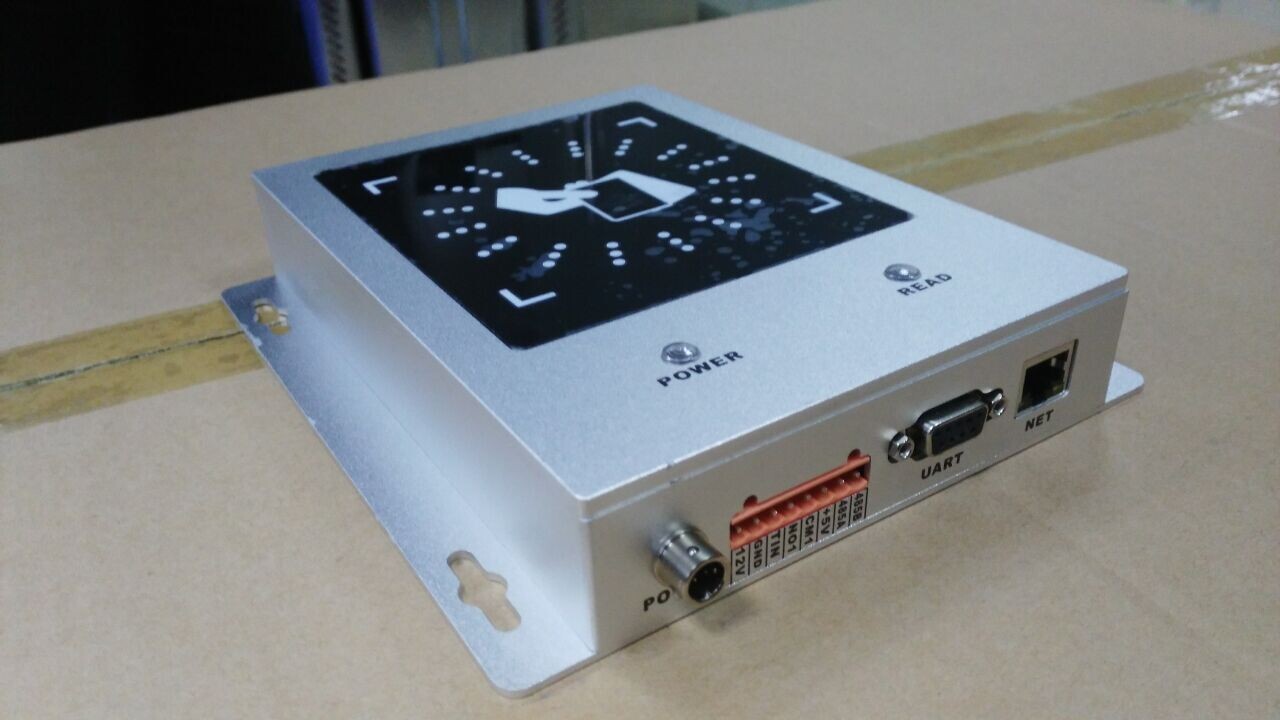

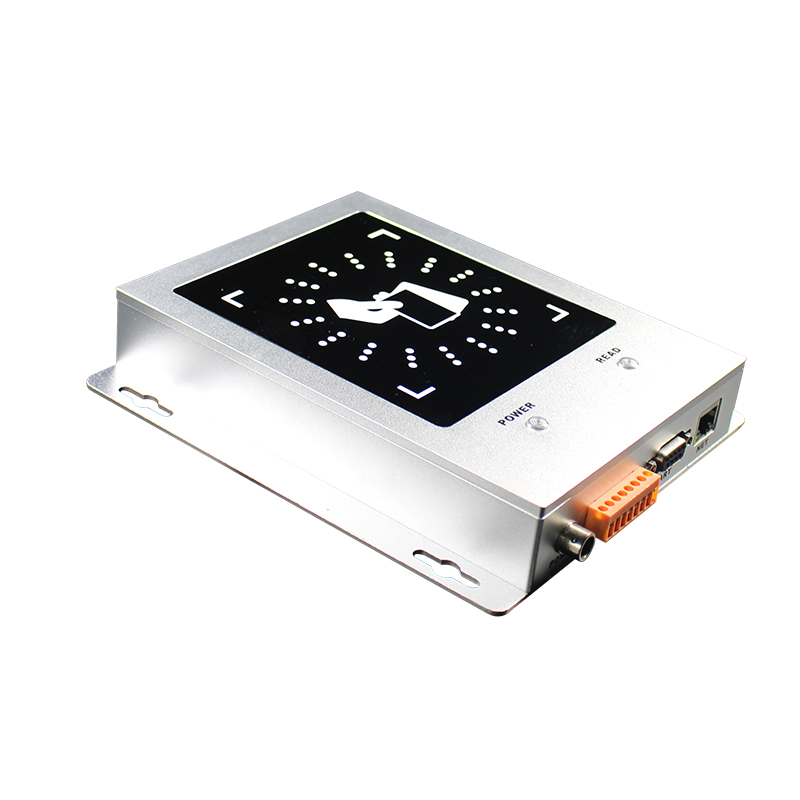

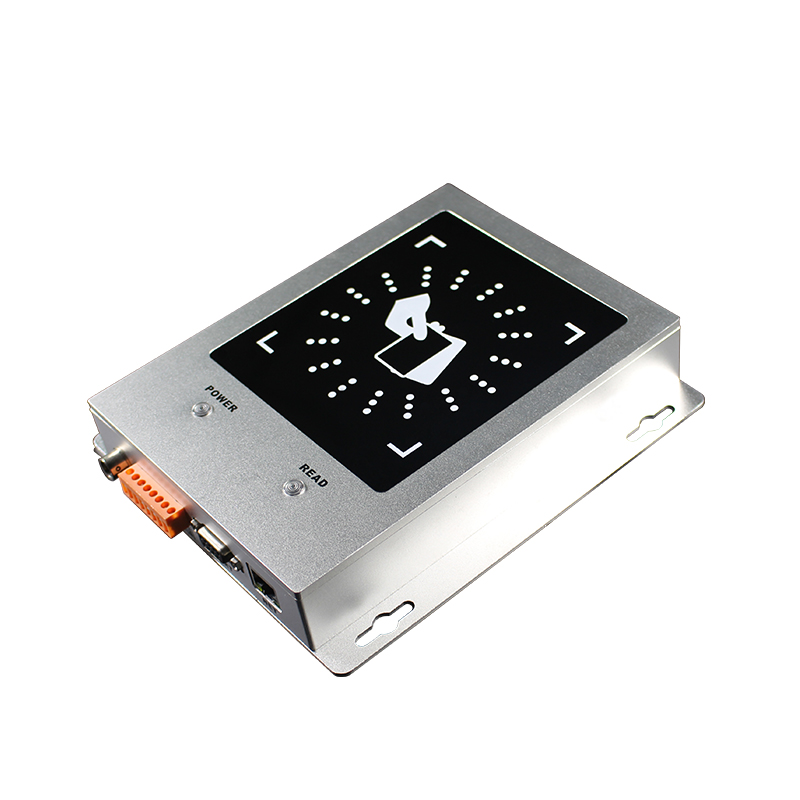

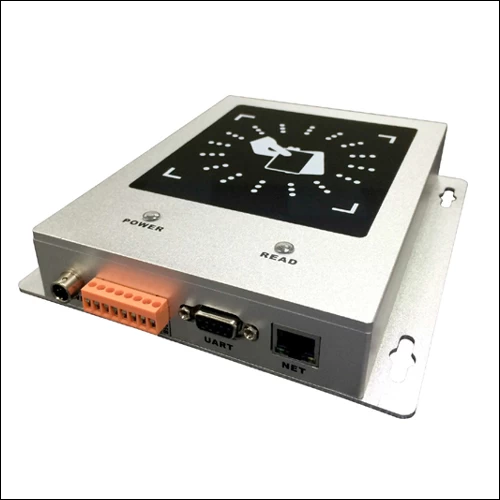

Desktop RJ45 Reader JT-8300

RFID Short range reader JT-8300 support ISO18000-6C Gen2,Provides automatic reading card and write CARDS DEMO software, It is convenient for customer to read and write CARDS.



Description:

◆Supporting ISO-18000-6C(EPC CI GEN2)

◆The appearance of aluminum casing design

◆Supporting RS485, RS232 communication interface etc.,

◆It is convenient for placing on the table, have a small size and beautiful design


Feature:

◆The design of aluminum casing

◆Supporting RS232,TCP/IP, RS485, Wiegand26\34\42 etc.,

◆Providing Demo, SDK, C+, C#, Java etc.,



Specification:


Item No.

JT-8300A

RS232,RS485,Wiegand26\34\42

JT-8300B

RS232,TCP/IP,Wiegand26\34\42

Performance parameters

Working Frequency

902~928 MHz or 865~868MHz

Antenna gain

5dBi polarization

Protocol

ISO18000-6C(EPC C1 GEN2)

Applicable tag

UHF EPC global Class 1 Gen2 tags, e.g. Alien, IMPINJ, Ti, Philips, UPM, Avery Dennison etc.,

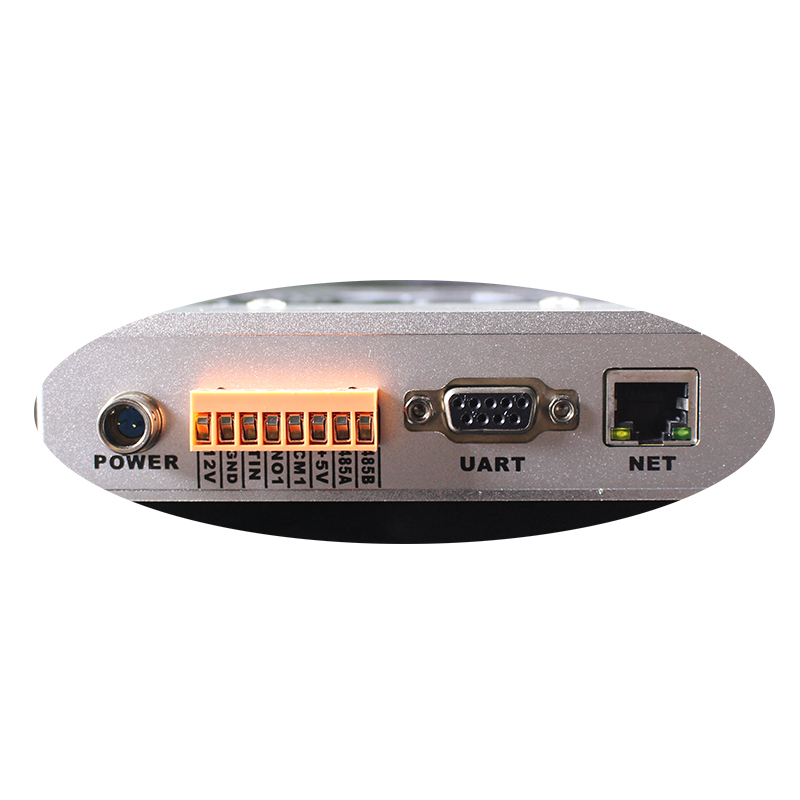

Communication port

RS232,TCP/IP,RS485,Wiegand26\34\42(customized)

Input/Output port

One-way relay output, one-way I/O input

Software & SDK

DEMO and C#, VC, VB, Java, DELPH, etc.,

Reading range

With JT-301(long range white card):80~100cm

Writing range

With JT-301(long range white card):20~40cm

Physical parameters:


Power

110~240V/50~60Hz

Adaptor

7.5~12V/3A

Output power

0~27±1dBm

Working temperature

-20℃~+75℃

Storage temperature

-40℃~+85℃

Item size

180x131x27mm

Package size

240x210x140mm

Net weight

500g

Shell material

Aluminum Alloy
