Desktop Roll to Roll Battery Electrode Continuous Coating Machine for Lab
SPECIFICATIONS
The TOB-TBJ-180C desktop continuous coating machine is a small roll to rolling coating machine for lab research, it is assembled by high high precision coating device, suitable for institutions, university and factory pilot scale battery research work.
|
Model
|
Desktop Roll to Roll Continuous Coating Machine TOB-TBJ-180C
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
3kw
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Suitable material thickness
|
Aluminum foil : 0.01-0.03mm
Copper foil : 0.006-0.020mm
|
|
Max electrode width
|
50-150mm
|
|
Coating speed
|
0-2m/min, adjustable
|
|
Max baking temperature
|
100℃,PID control mode
|
|
Coating thickness
|
0.01mm-2mm
|
|
Coating thickness accuracy
|
0.01mm
|
|
Dimension (L*W*)
|
1800* 350 * 580 mm
|
|
Weight
|
About 130kg
|

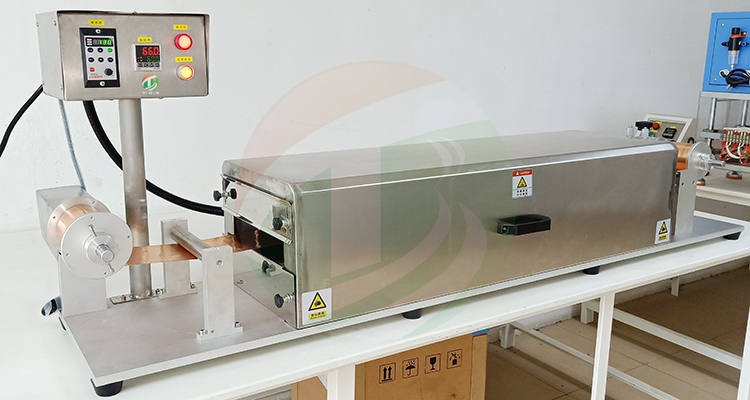

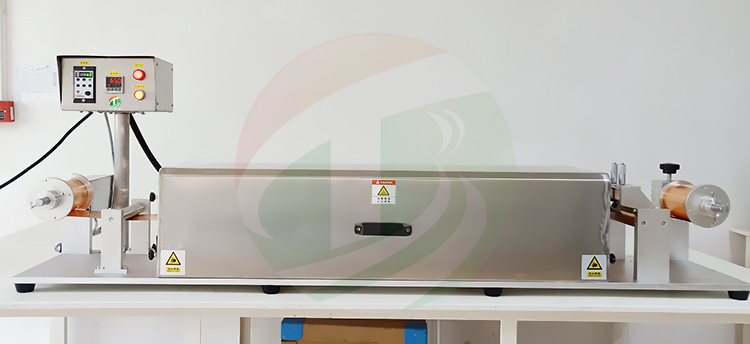

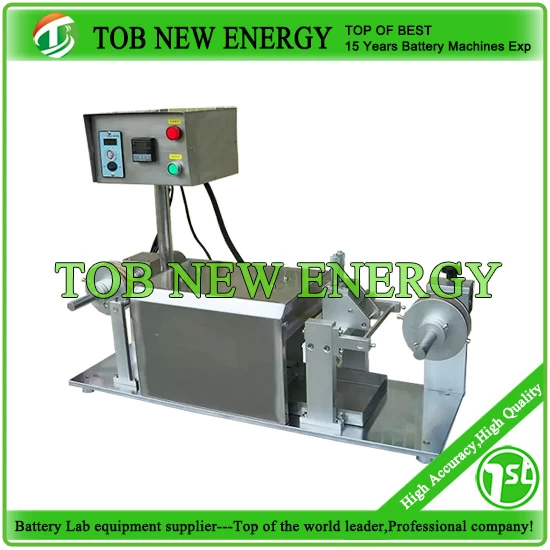

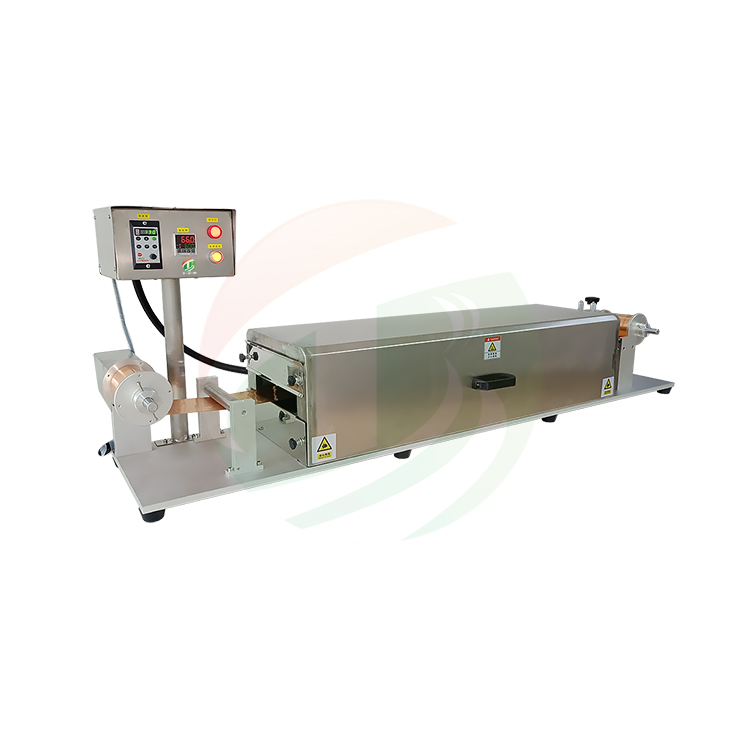

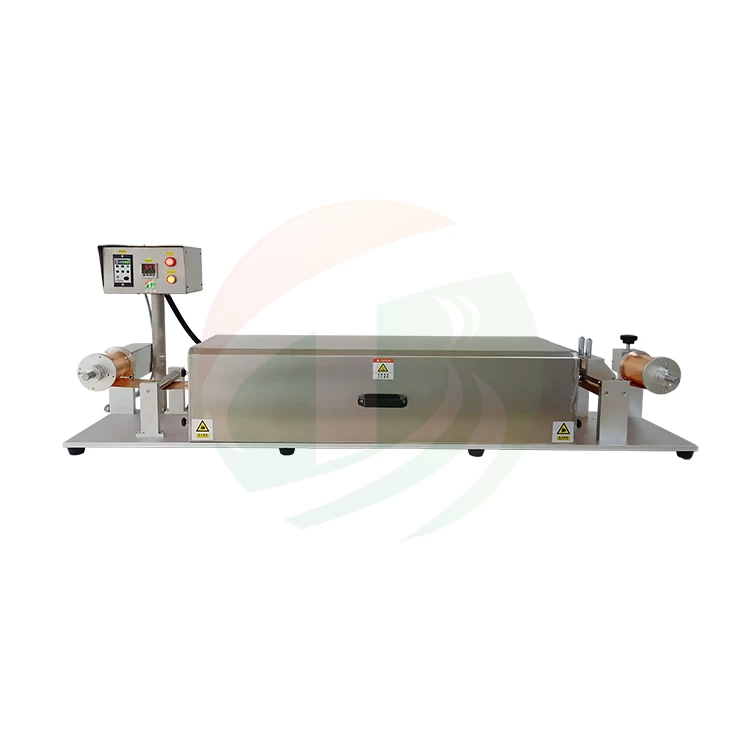

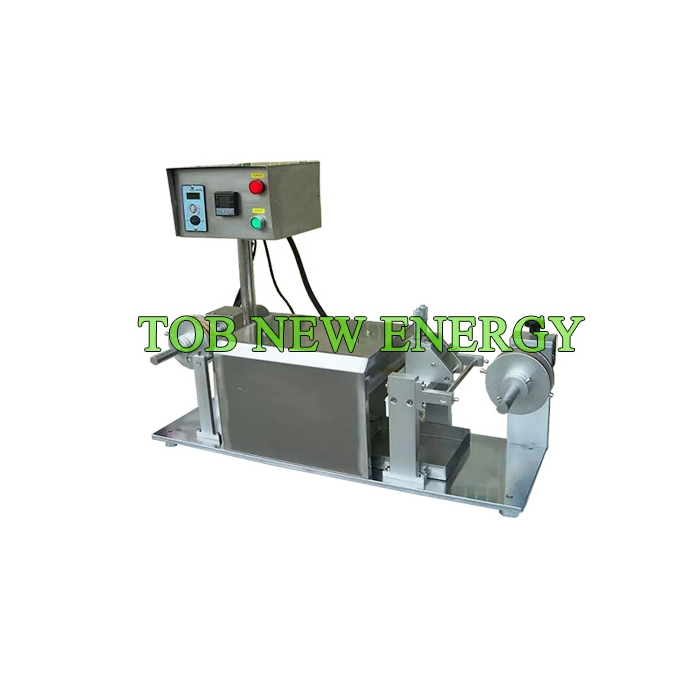

PRODUCT DISPLAY
