Desktop Semi-automatic Lithium Cylindrical 18650 26650 Battery Grooving Machine Price
Product Specification
1 TOB-GC650 Semi-auto grooving machine is and desktop grooving machine, It is used for grooving various cylindrical cell cases including CR123,18650 26650, 32650 cells with customized grooving die.
2 This machine can also be used for aluminum shell capacitor uniform automatic roll groove.
|
Model
|
Grooving Machine TOB-GC650
|
|
Source voltage
|
110V-220V AC, 50/60Hz Single Phase
|
|
Power
|
140W
|
|
Warranty
|
One year limited and lifetime support
|
|
Suitable battery model
|
18650 / 26650 / 32650, can be customized
|
|
Advantages
|
1 Customized die for other cylindrical cell types is available according to request
2 Each type of cylinder cell can only be grooved specifically by certain model of
this equipment. Please select the type of cylinder cell for the corresponding grooving die of each cylinder cell type.
|
|
Grooving depth
|
1.2-2.0mm adjustable
|
|
Grooving width
|
1.1-1.5mm
|
|
Grooving precision
|
±0.1mm
|
|
Knife life
|
>100 0000times
|
|
Air supply
|
0.5-0.7MPa
|
|
Dimension
|
600*450*350mm
|
|
Weight
|
68kg
|

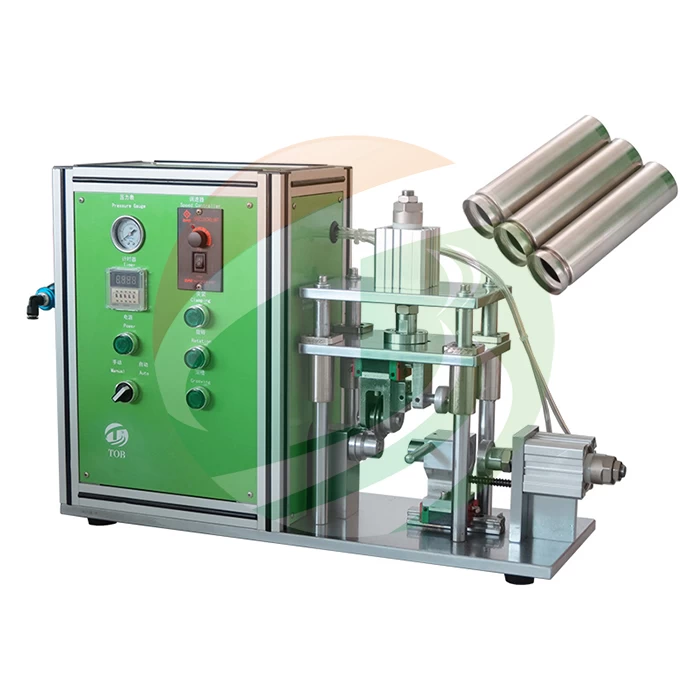

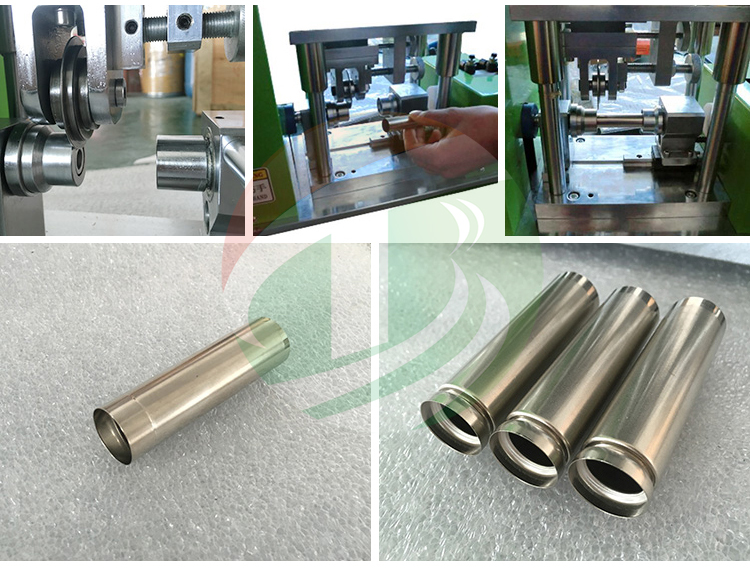

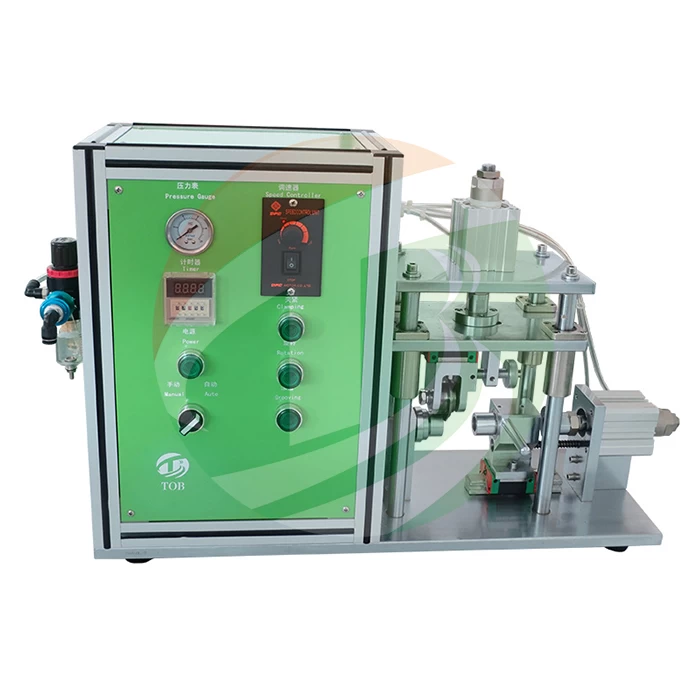

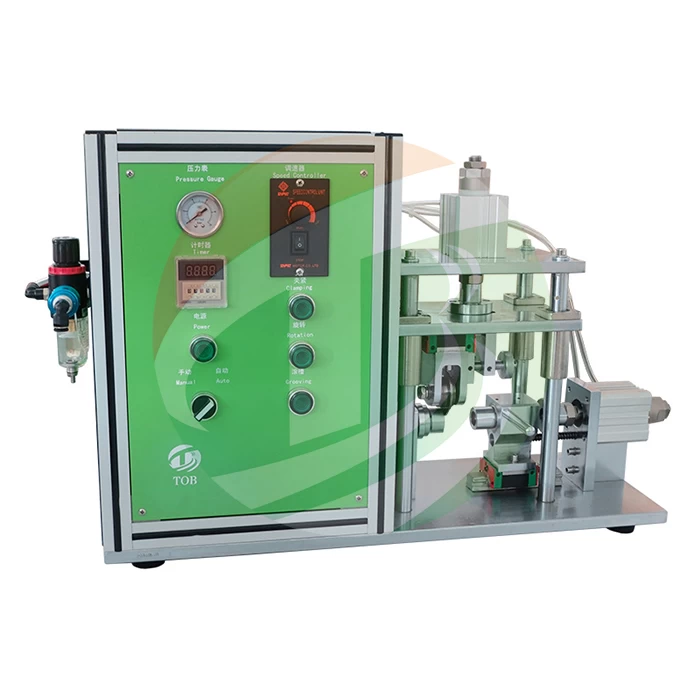

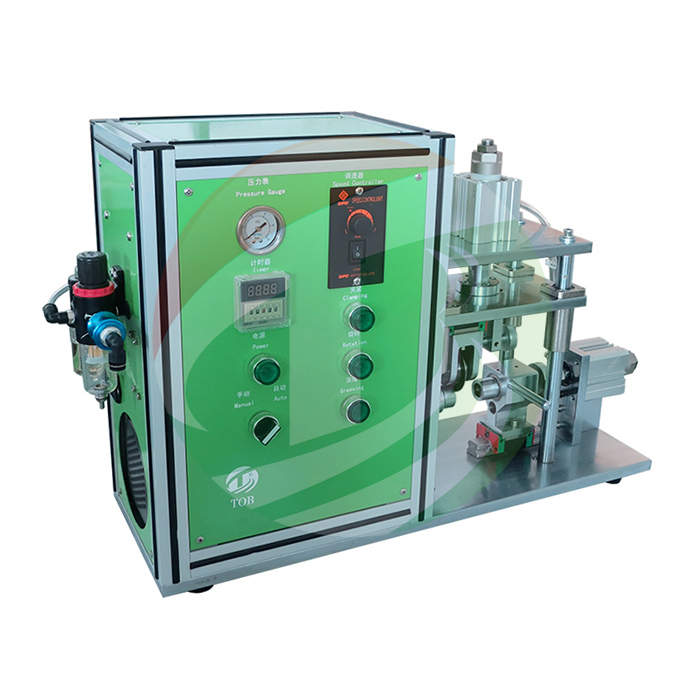

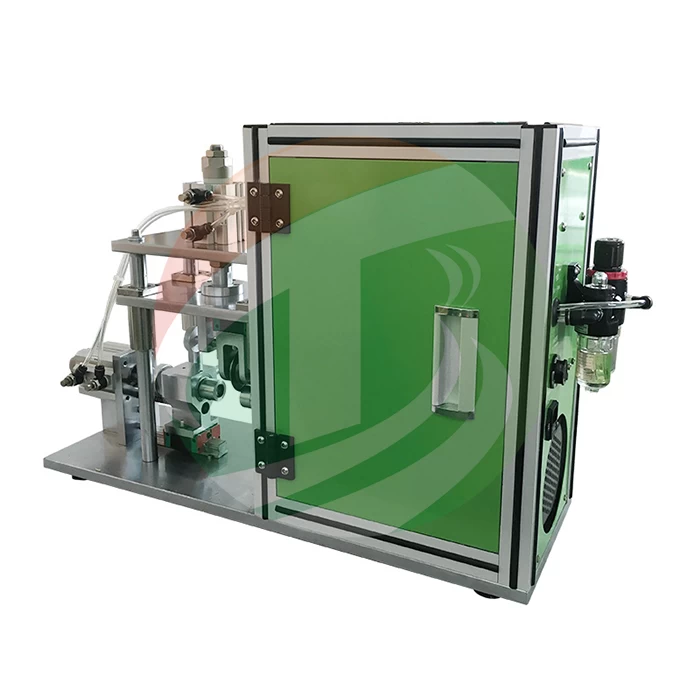

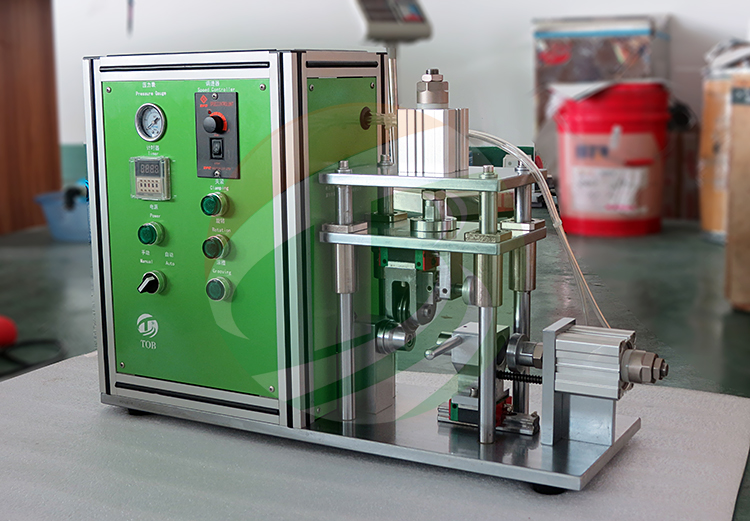

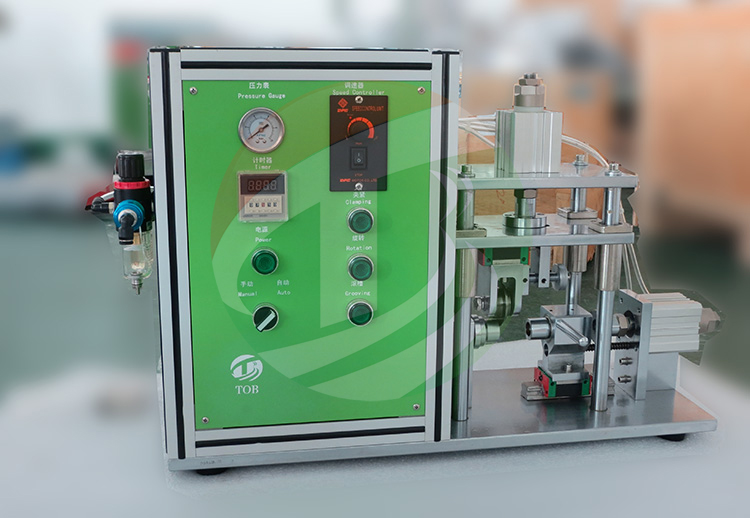

Product Image
Product Packing
