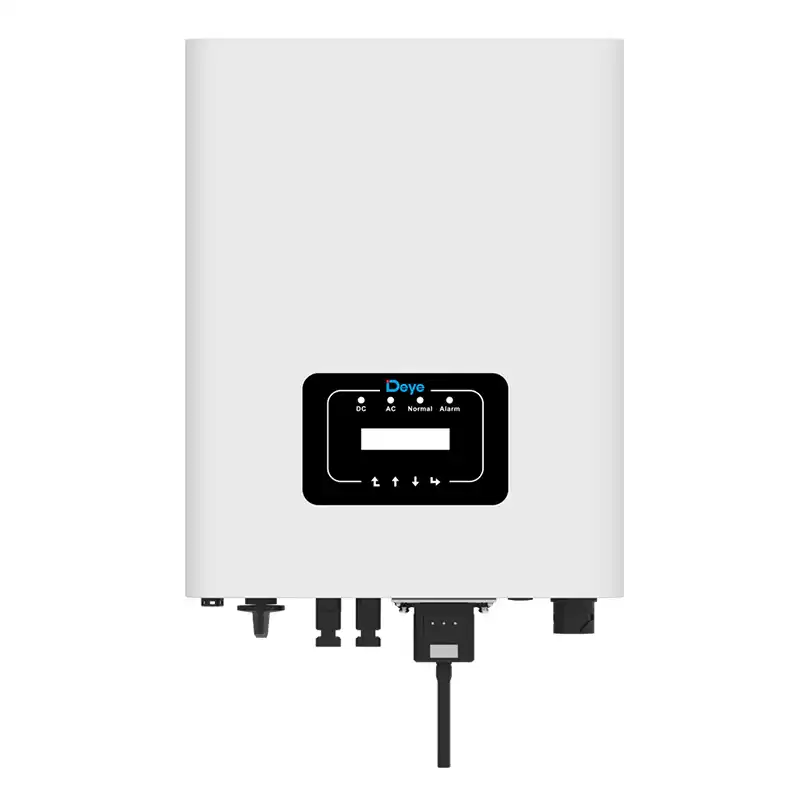

Deye SUN-4/5/6/7/8/10/12/15K-G06P3-EU-AM2 Three Phase String Inverter

1.2 MPP trackers, Max. efficiency up to 98.5%

2.Zero export application, VSG application

3.String intelligent monitoring (optional)

4.Wide output voltage range

5.Anti-PID function (Optional)



Overview

Key attributes

Industry-specific attributes

Output Type
Three Phase
Type
DC/AC Inverters
Inverter Efficiency
97.5%

Other attributes

Place of Origin
Jiangsu, China
Brand Name
Deye
Model Number
SUN-4/5/6/7/8/10/12/15K-G06P3-EU-AM2
Input Voltage
140v
Output Voltage
220/380V, 230/400V
Output Current
4-15A
Output Frequency
50/60(HZ)
Size
283*463*178
Certificate
IEC/EN
Warranty
5 years
Weight
11kg
Place of Origin
jiangsu,China
Model Number
SUN-4/5/6/7/8/10/12/15K-G06P3-EU-AM2
Output Voltage
220/380V, 230/400V
Output Type
Three Phase
Input Voltage
140v
Size
283*463*178mm
Weight
11kg
Noise (dB)
45 dB
Ingress Protection
IP65
Warranty
5 Years

Packaging & delivery

Package Type:
Wooden pallet

Supply Ability

Supply Ability
500000 Watt/Watts per Day

Product details

Product Description

specification
item
value
Place of Origin
China

Jiangsu
Brand Name
Deye
Model Number
SUN-4/5/6/7/8/10/12/15K-G06P3-EU-AM2
Input Voltage
140v
Output Voltage
220/380V, 230/400V
Output Current
4-15A
Output Frequency
50/60(HZ)
Output Type
Three Phase
Size
283*463*178
Type
DC/AC Inverters
Inverter Efficiency
97.5%
Certificate
IEC/EN
Warranty
5 years
Weight
11kg
Place of Origin
jiangsu,China
Model Number
SUN-4/5/6/7/8/10/12/15K-G06P3-EU-AM2
Output Voltage
220/380V, 230/400V
Output Type
Three Phase
Input Voltage
140v
Size
283*463*178mm
Weight
11kg
Noise (dB)
45 dB
Ingress Protection
IP65
Warranty
5 Years
