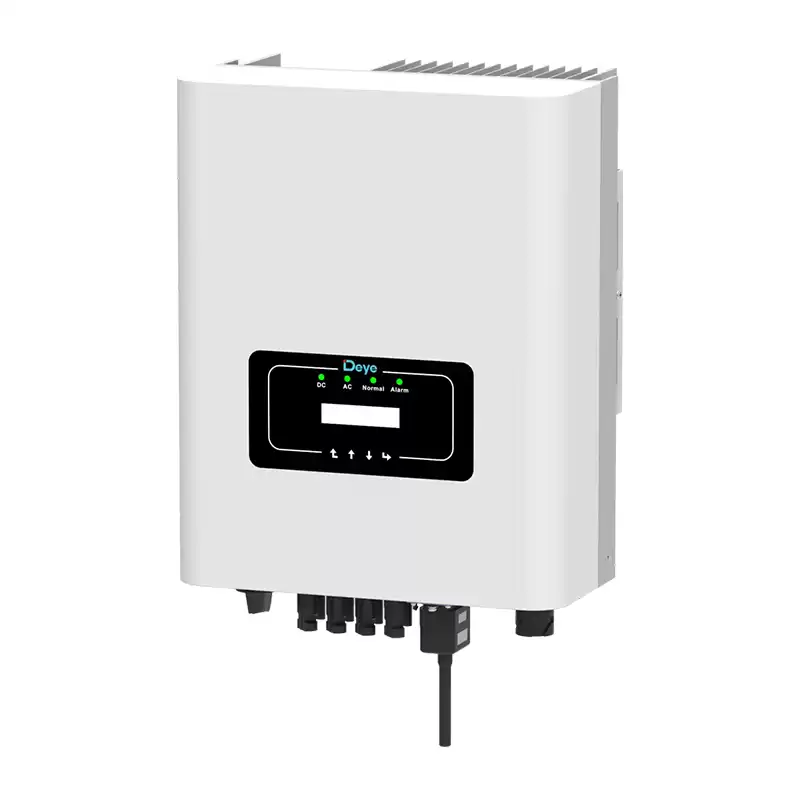

Deye SUN-7/7.5/8/9/10/10.5K-G Single Phase String Inverter

1.2 MPP trackers, Max. efficiency up to 97.7%

2.Zero export application, VSG application

3.String intelligent monitoring (optional)

4.Wide output voltage range

5.Anti-PID function (Optional)

6.Low start-up voltage of 80V



Basic Info.

Model NO.
SUN-7/7.5/8/9/10/10.5K-G
Brand
Deye
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Square Wave Inverter
Transport Package
Carton
Specification
7-10.5KW
Trademark
Deye
Origin
China
HS Code
8504403090
Production Capacity
2000 PCS/Week

Product Description


Deye Sun-7/7.5/8/9/10/10.5K-G 7-10.5kw Single Phase 2 MPPT String Inverter
Model SUN-7K-G SUN-7.5K-G SUN-8K-G SUN-9K-G SUN-10K-G SUN-10.5K-G
Input Size
Max. DC Input Power(kW) 9.1 9.8 10.4 11.7 13 13.7
Max. DC Input Voltage (V) 550
Start-up DC Input Voltage(V) 80
MPPT Operating Range(V)  70~500
Max. DC Input Current(A) 13+26 26+26
Max. Short Circuit Current (A) 19.5+39 39+39
Number of MPPT/Strings per MPPT 2/1+2 2 / 2+2




Deye Sun-7/7.5/8/9/10/10.5K-G 7-10.5kw Single Phase 2 MPPT String InverterDeye Sun-7/7.5/8/9/10/10.5K-G 7-10.5kw Single Phase 2 MPPT String Inverter

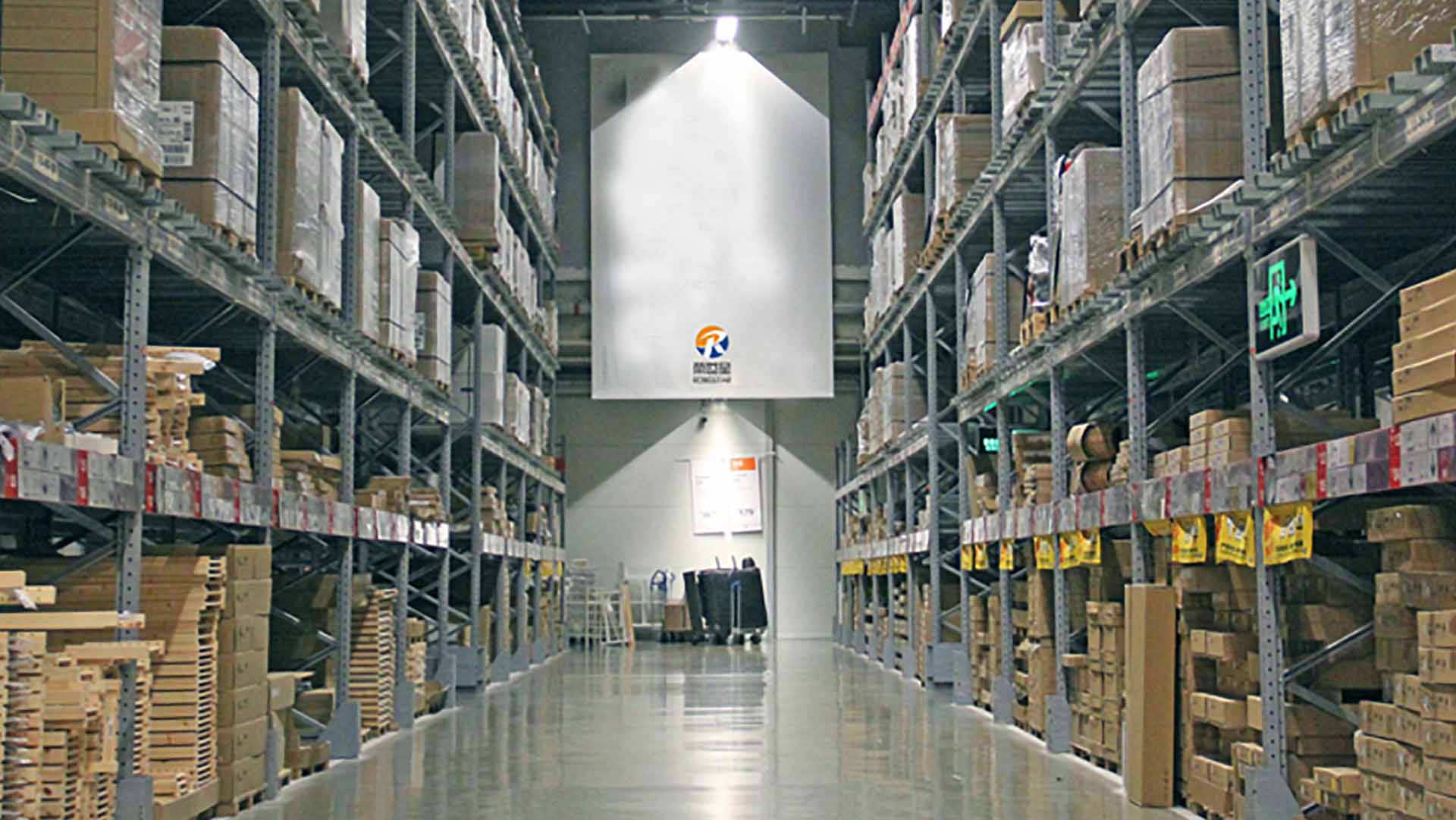

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
