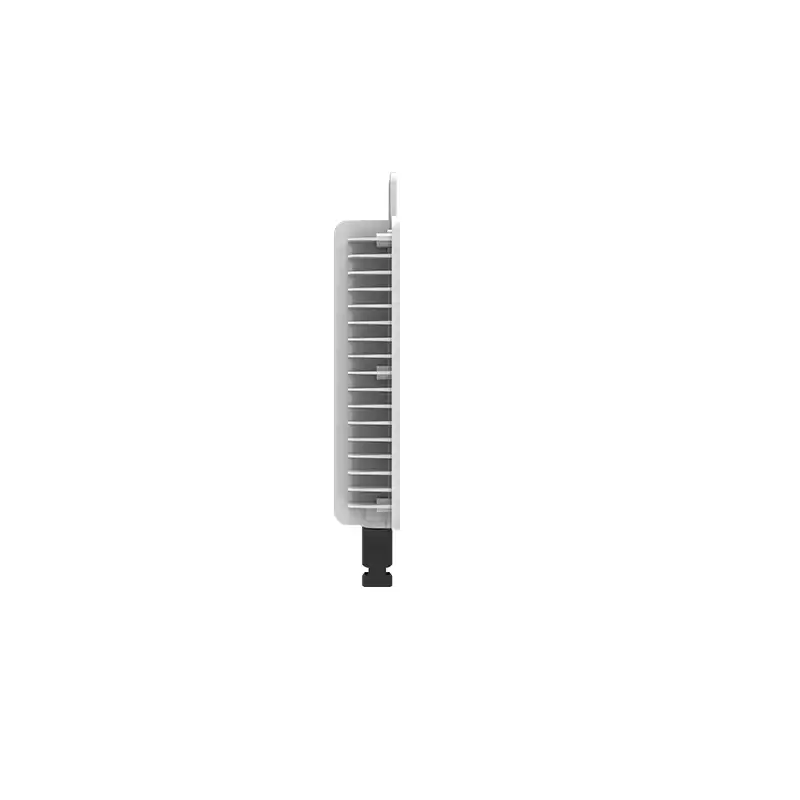

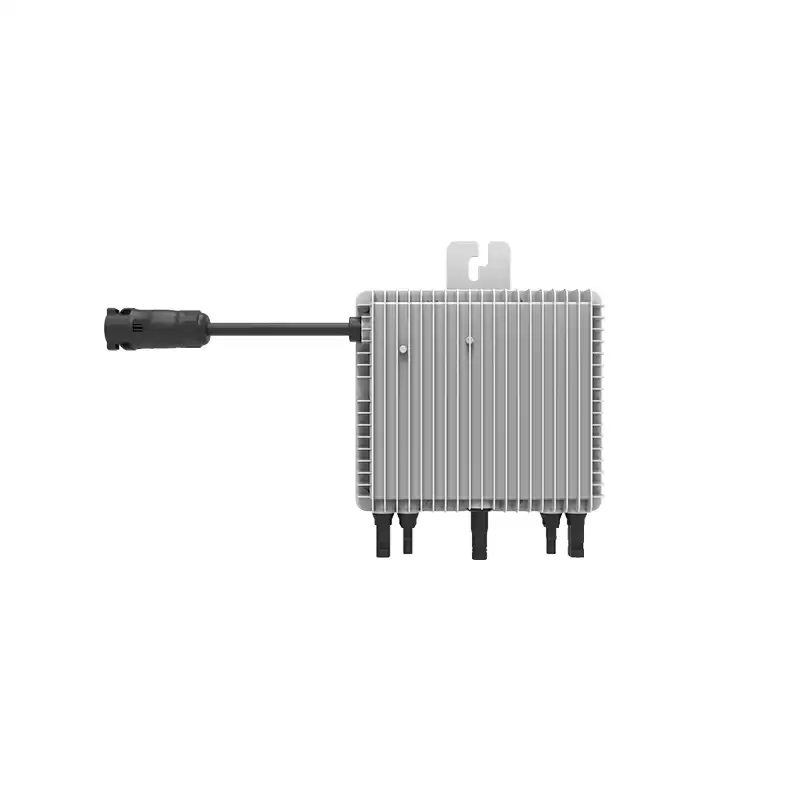

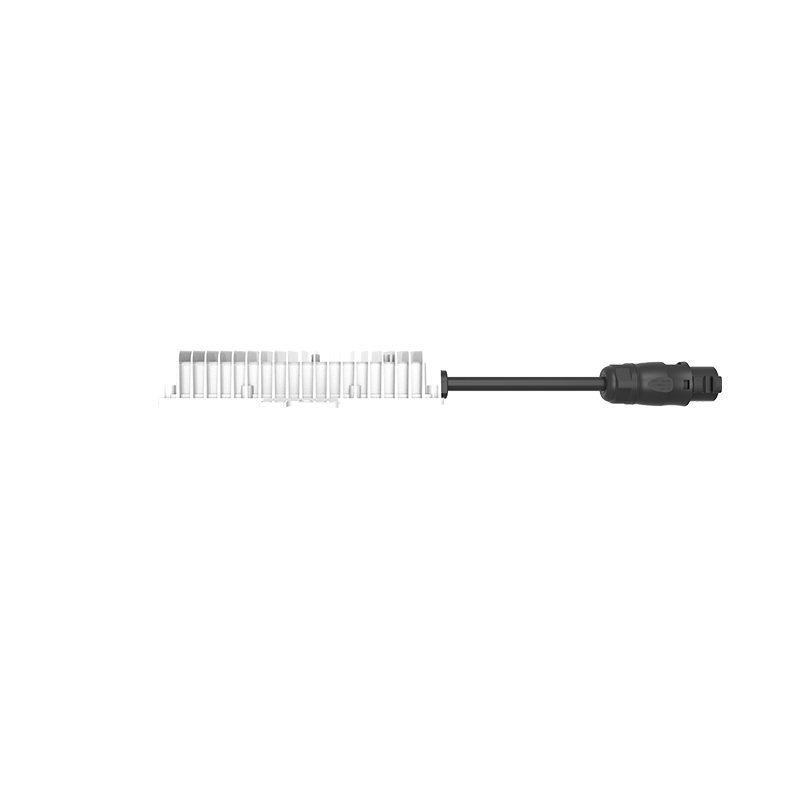

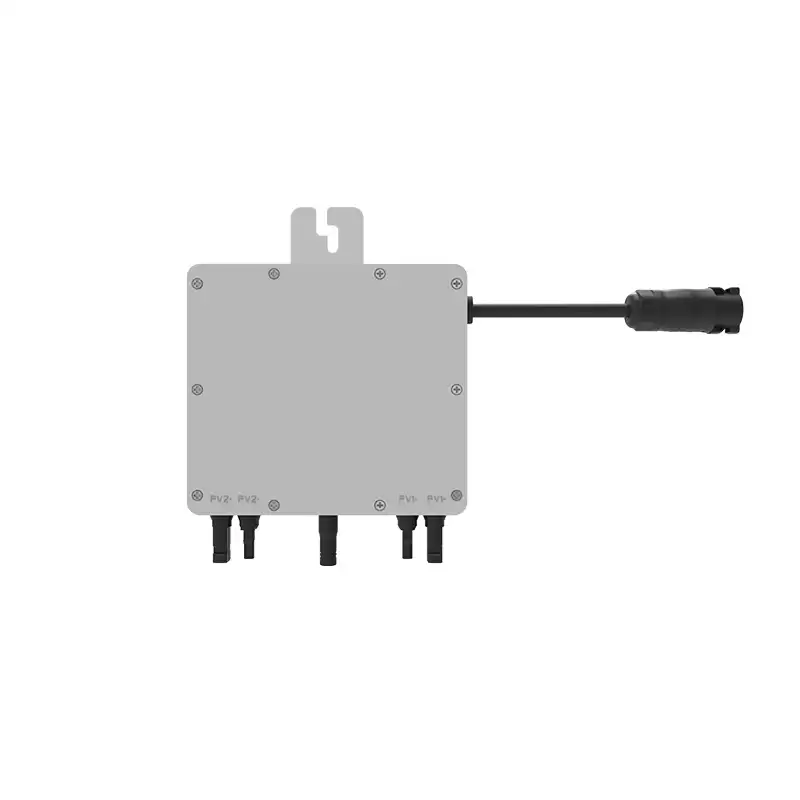

Deye SUN-M(60-100)G3-EUQ0 Single Phase Mirco Inverter

1.IP67 protectioan degree, 10 years warranty;

2.2 MPP trackers, module level monitoring;

3.WIFI communication;

4.Rapid shutdown function.

Facebook Twitter Pinterest LinkedIn 分享
Overview

Key attributes

Industry-specific attributes

System Energy
1KW, Other, 600W, 800W
Output Type
Single
Type
DC/AC Inverters
Inverter Efficiency
96.5%

Other attributes

Place of Origin
Fujian, China
Brand Name
Deye
Model Number
SUN-M60/80/100G3-EU-Q0
Input Voltage
60V
Output Voltage
600/800/1000V
Output Current
2.8A / 3.7A / 4.6A
Output Frequency
50/60Hz
Size
190W*212H*40D mm
Certificate
CE/IEC
Warranty
15 Years
Weight
2.8kg
Maximum InputDCVoltage (V)
60
Max.Input Current(A)
2x13
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1
Maximum Units per Branch
8/6/5
MPPT Efficiency
>99%
Ambient Temperature Range
-40-65℃, >45℃ Derating
Cooling
Free Cooling
Enclosure Environmental Rating
IP67
Communication
WIFI

Packaging & delivery

Package Type:
Carton packaging / Wooden box packaging

Supply Ability

Supply Ability
200000 Piece/Pieces per Month

Product details：

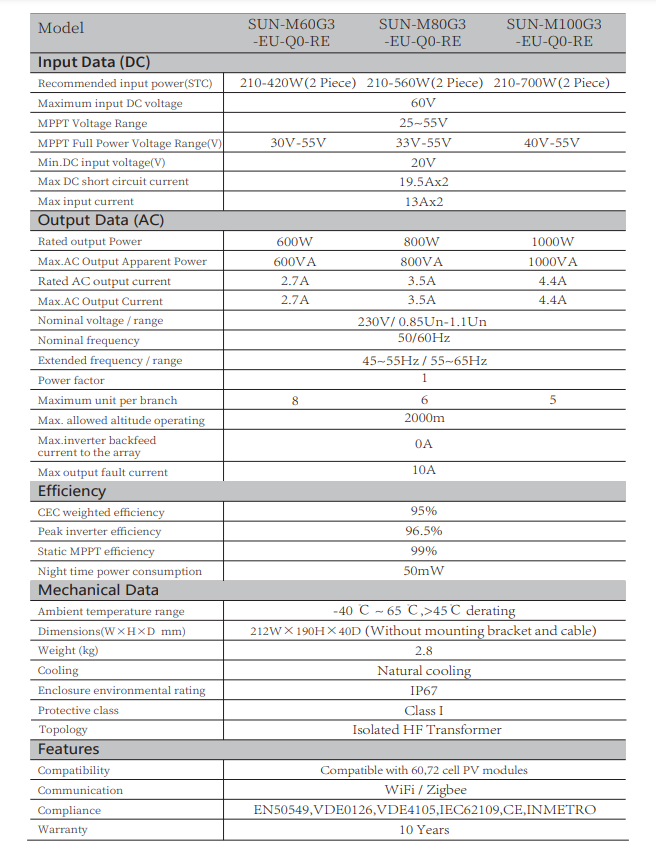

Products Description
Network and System Protection Device
SUN-MI-RELAY-01
AC Intput Data (Inverter)

Nominal Voltage
220V/230V
Nominal Frequency
50Hz
Max AC Current
12A
Nominal AC Current
12A
Matching Inverter
MicroInverter
AC Output Data(Grid)

Nominal Voltage
220V/230V
Nominal Frequency
50Hz
Max AC Current
12A
Nominal AC Current
12A
General Data

Ambient Temperature Range
-40-65℃
Humidity
0%-100% RH
Cabinet Size (WxHxD mm)
111×95×37.7 (Excluding Connectors and Brackets)
Weight (kg)
0.34
Enclosure Environmental Rating
IP67
Communication
Wireless/WIFI
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, VDE-AR-N 4105
Warranty
15 Years

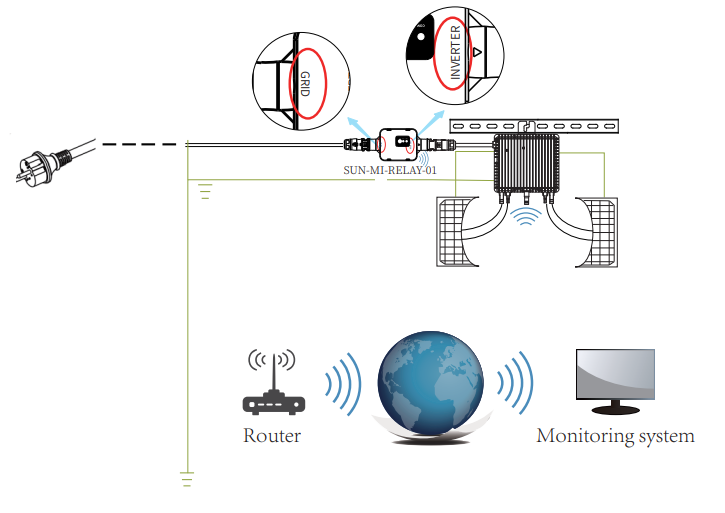

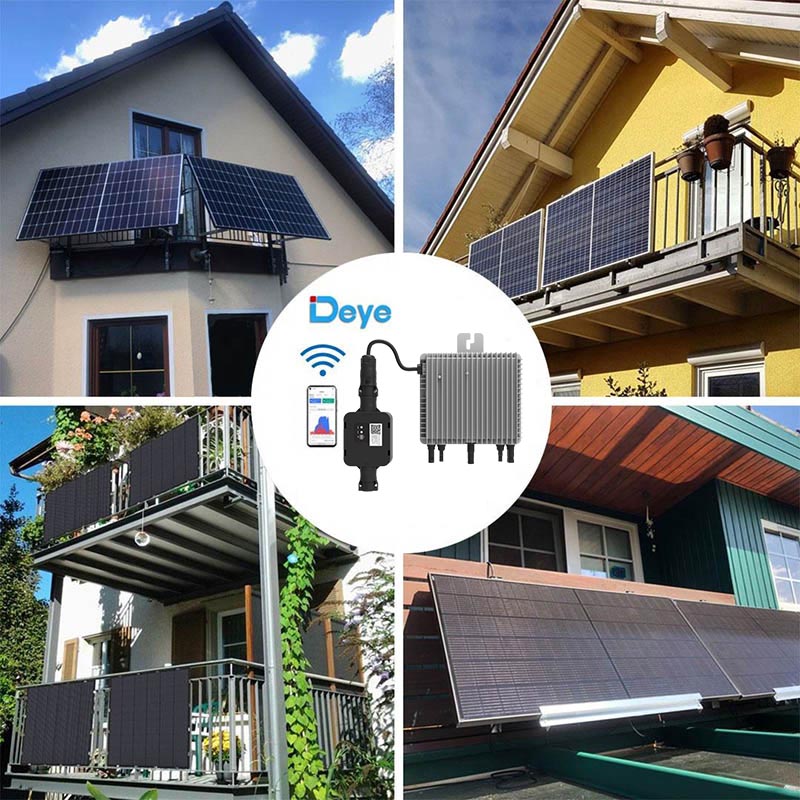

Product Application
Deye SUN-M60/80/100G3-EU-Q0 Smart Mppt Ip65 Pv System Grid Tie Plug And Play Micro Inverter Apsystems

At Rongstar Energy we are proud to play an important part in the global solar energy development. We have years-long experience in the distribution and supply chain of solar panels, inverters, energy storage systems, mounting structures, cables and other components for photovoltaics. Utilizing the strength of our parent company - DJS Group, we have more advantages in global sourcing, supply chain,localized warehousing, technical service for global customers.Our company has much experience in solar projects EPC,O&M and solar plants investment. Our expertise are both globally and locally, means we understand the breadth of challenges that solar installers face, from which we can help save the customers’ time and money.
