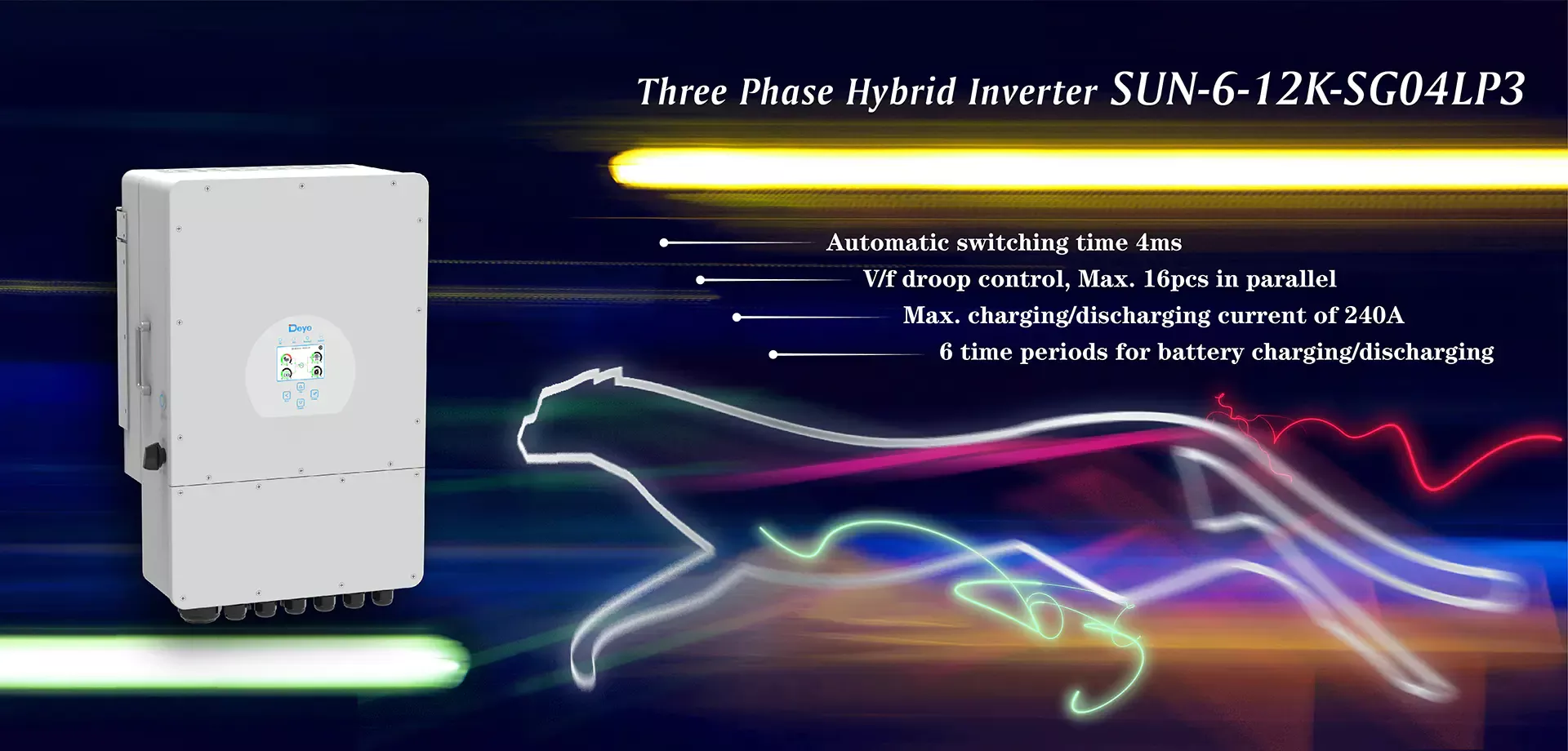

With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment.

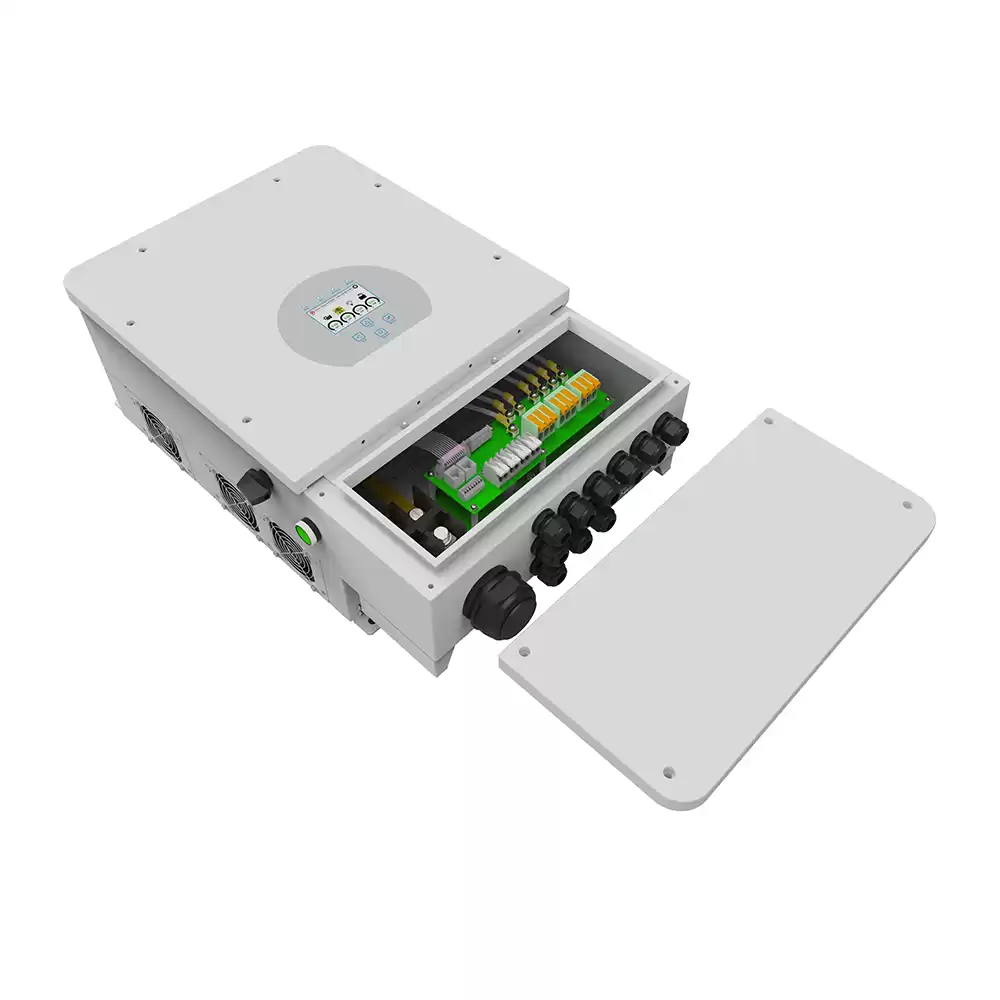

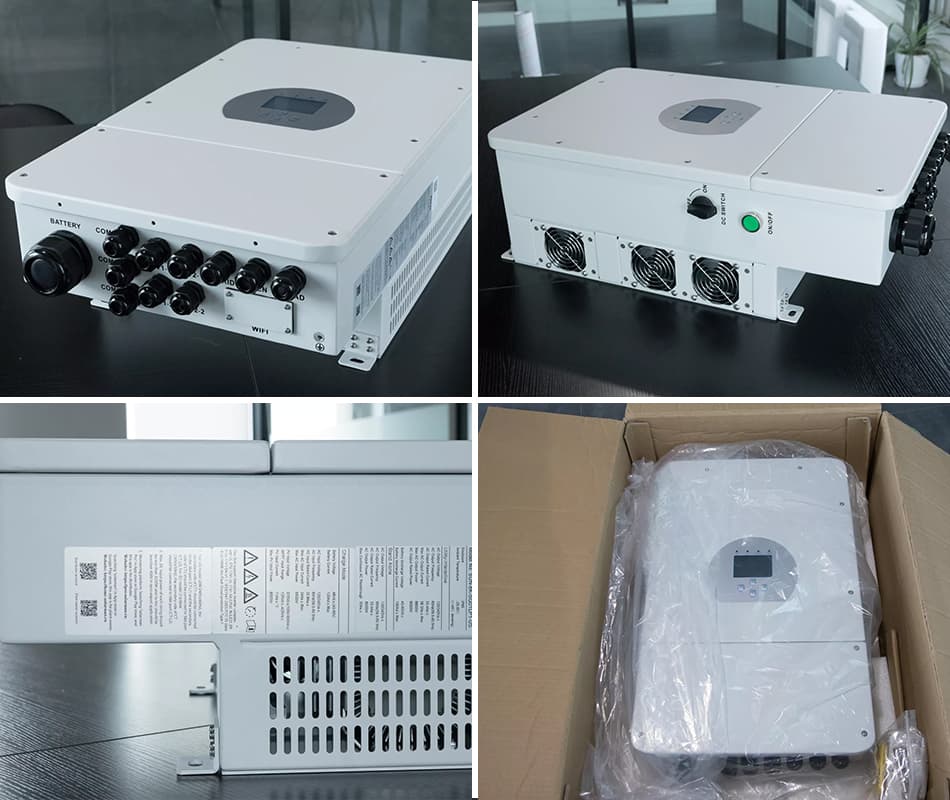

Supports three phase unbalanced output, extending the application scenarios, equipped with CAN port (x2) BMS and parallel function inverter, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

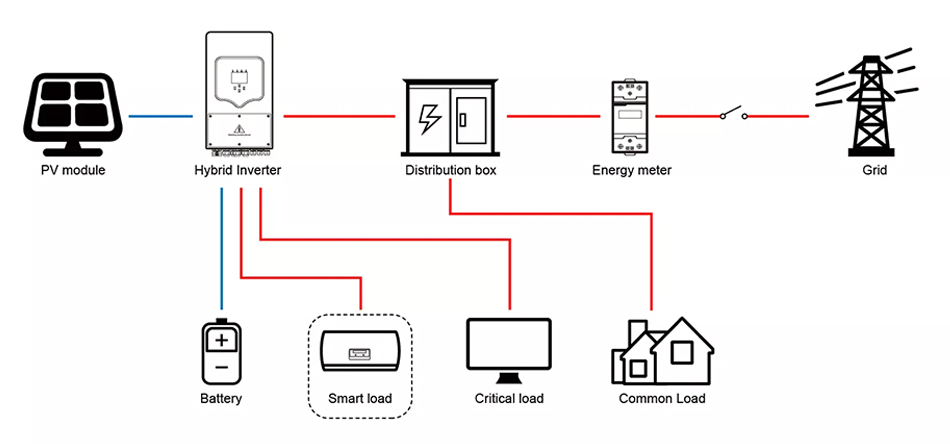

Hybrid Inverter Block Diagram
Technical Data:
| Model |
SUN-8K-SG04LP3 |
SUN-10K-SG04LP3 |
SUN-12K-SG04LP3 |
| Battery Input Data |
| Battery Type |
Lead-acid or Li-lon |
| Battery Voltage Range (V) |
40~60V |
| Max. Charging Current (A) |
190A |
210A |
240A |
| Max. Discharging Current (A) |
190A |
210A |
240A |
| Charging Curve |
3 Stages / Equalization |
| External Temperature Sensor |
Optional |
| Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
| PV String Input Data |
| Max. DC Input Power (W) |
10400W |
13000W |
15600W |
| PV Input Voltage (V) |
550V (150V~800V) |
| MPPT Range (V) |
200V-650V |
| Start-up Voltage (V) |
160V |
| PV Input Current (A) |
13A+13A |
26A+13A |
26A+13A |
| No.of MPPT Trackers |
2 |
| No.of Strings Per MPPT Tracker |
1+1 |
2+1 |
2+1 |
| AC Output Data |
| Rated AC Output and UPS Power (W) |
8000W |
10000W |
12000W |
| Max. AC Output Power (W) |
8800W |
11000W |
12000W |
| Peak Power (off grid) |
2 times of rated power, 10 S |
| AC Output Rated Current (A) |
12A |
15A |
18A |
| Max. AC Current (A) |
18A |
23A |
27A |
| Max. Continuous AC Passthrough (A) |
50A |
| Output Frequency and Voltage |
50/60Hz; 230/400Vac (Three phase) |
| Grid Type |
Current Harmonic Distortion |
| Current Harmonic Distortion |
THD<3% (Linear load<1.5%) |
| Efficiency |
| Max. Efficiency |
97.60% |
| Euro Efficiency |
97.00% |
| MPPT Efficiency |
99.90% |
| Protection |
| PV Input Lightning Protection |
Integrated |
| Anti-islanding Protection |
Integrated |
| PV String Input Reverse Polarity Protection |
Integrated |
| Insulation Resistor Detection |
Integrated |
| Residual Current Monitoring Unit |
Integrated |
| Output Over Current Protection |
Integrated |
| Output Shorted Protection |
Integrated |
| Output Over Voltage Protection |
Integrated |
| Surge protection |
DC Type II / AC Type II |
| Certififications and Standards |
| Grid Regulation |
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 |
| Safety EMC / Standard |
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 |
| General Data |
| Operating Temperature Range (℃ ) |
-25~60℃ , >45℃ Derating |
| Cooling |
Smart cooling |
| Noise (dB) |
<30 dB |
| Communication with BMS |
RS485; CAN |
| Weight (kg) |
36.8 |
| Size (mm) |
422W×658H×281D |
| Protection Degree |
IP65 |
| Installation Style |
Wall-mounted |
| Warranty |
5 years |

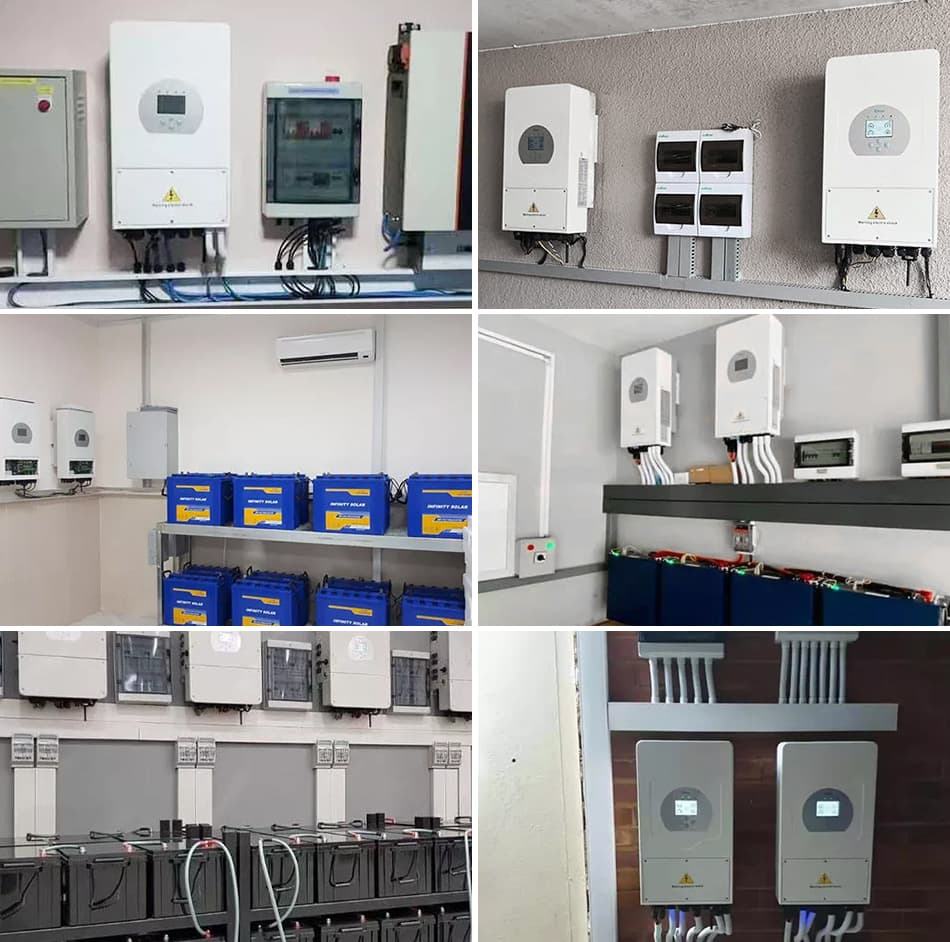

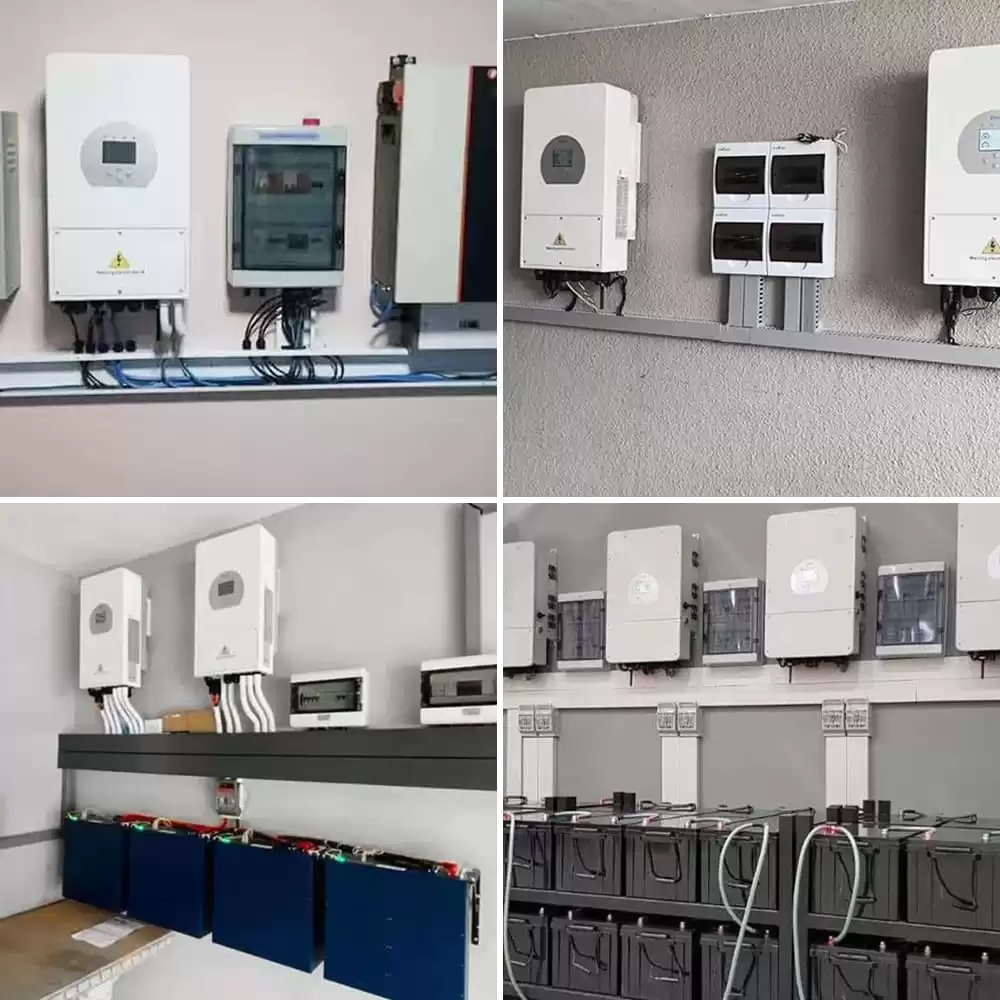

Key Features / Advantages:
*48V low voltage battery, transformer isolation design*6 time periods for battery charging/discharging
*Max. charging/discharging current of 240A
*Frequency droop control, Max.16pcs parallel
*DC couple and AC couple to retrofit existing solar system*Support storing energy from diesel generator
*Supports three phase unbalanced output Inverter
*Unique Smart Load application and Grid peak shaving function

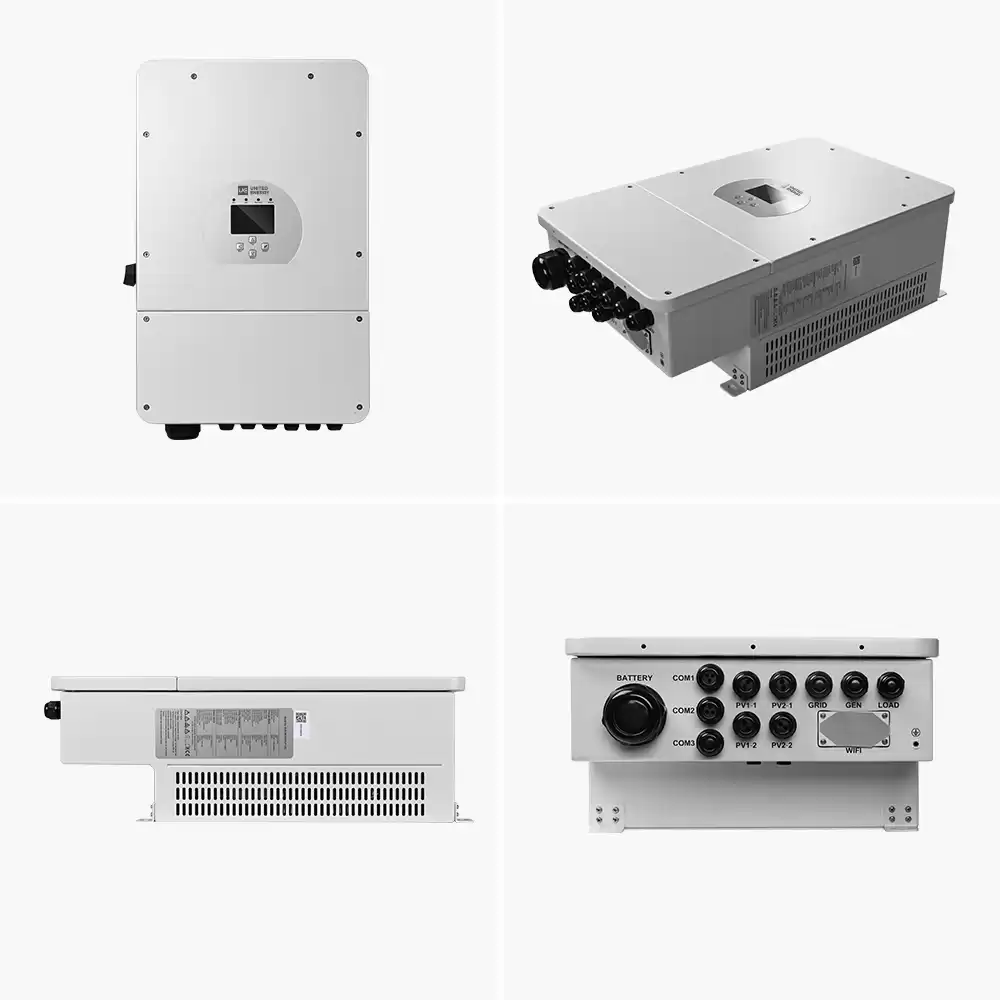

Inverter Dimension: 422W×658H×281D
