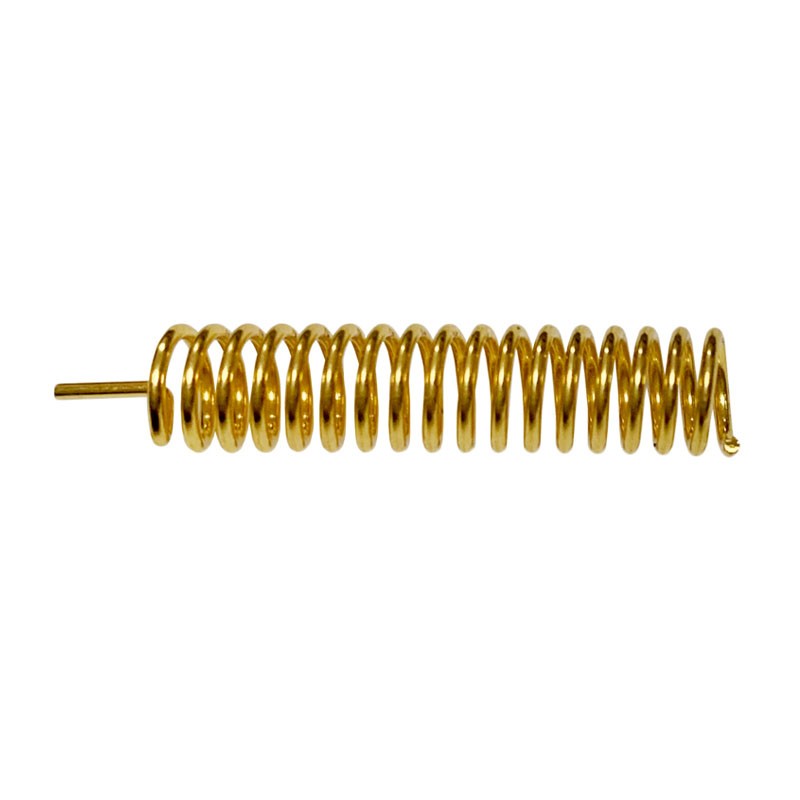

Diameter6.5 Custom Length 433MHz 315MHz 50W Coil Helix Spring Antenna for Wireless Moudules
Features：
- Radiation Pattern of Antenna;
- Polarization of Antenna;
- Intensity of Radiation;
- Effective Aperture;
- Gain & Directivity;
- Bandwidth;
- Power Gain & Radiation Efficiency;
- Effective Length;
- Input Impedance.

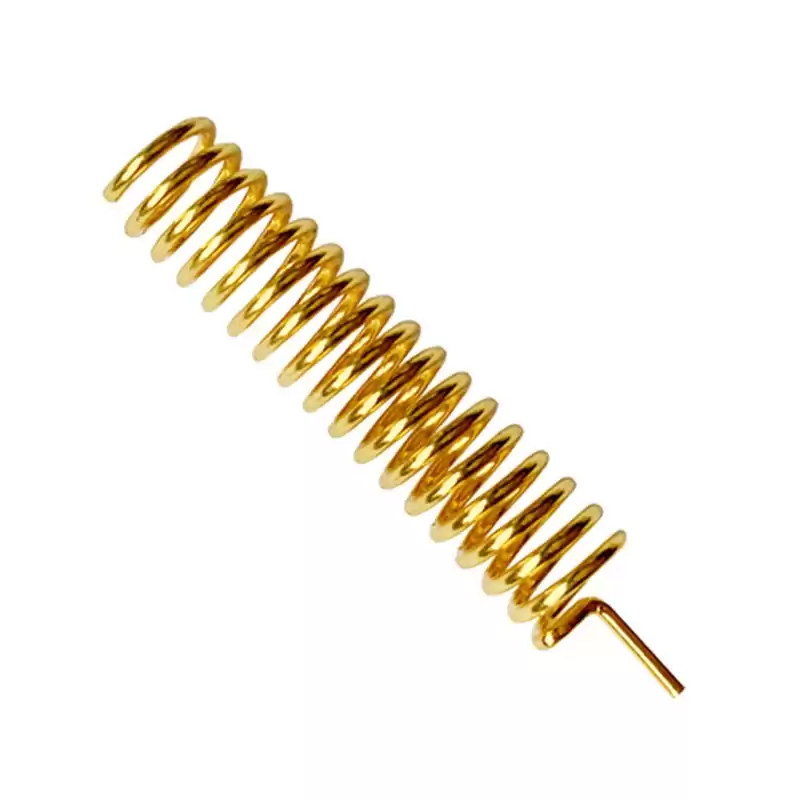

Diameter6.5 Custom Length 433MHz 315MHz 50W Coil Helix Spring Antenna for Wireless Moudules
The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.
Specifications
| ELECTRICAL DATA | |
| Frequency Range(MHz) | 433MHz |
| VSWR | ≤2.0 |
| Gain(dBi) | 2.15dBi |
| Input Impedance(Ω) | 50 |
| Cable Type | / |
| Connector Type | / |
| Mounting | Solder |
| Material | Copper |
| Storage Temperature | -45℃ to +75℃ |
 Operating Temperature |
-45℃ to +75℃ |
Applications
- Antenna Gain
- Aperture
- Directivity and bandwidth
- Polarization
- Effective length
- Polar diagram
433MHz Coil Antenna
433MHz Spring Antenna
Coil Spring Antenna
433MHz Module Antenna
433MHz Coil Helix Spring Antenna
433MHz Helix Spring Antenna
