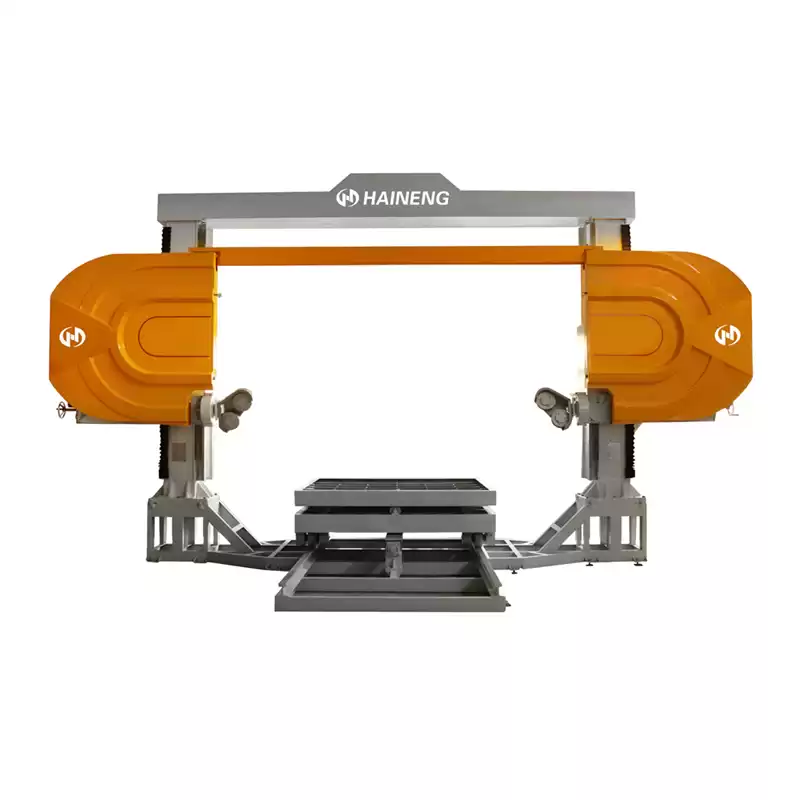

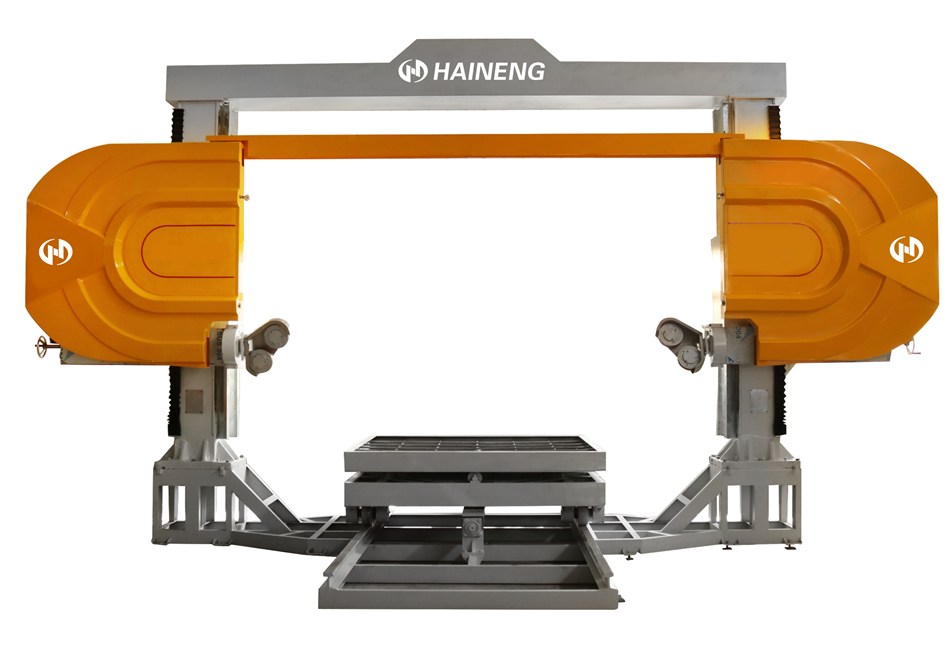

Product Introduction

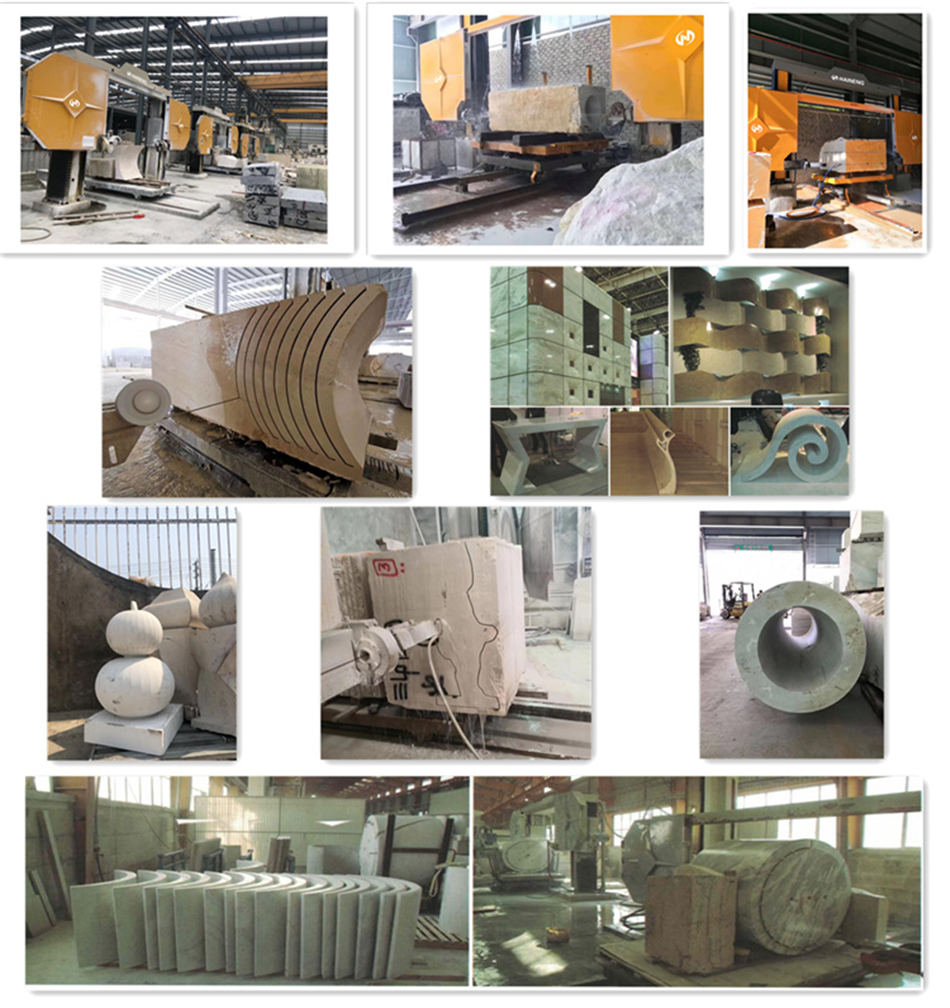

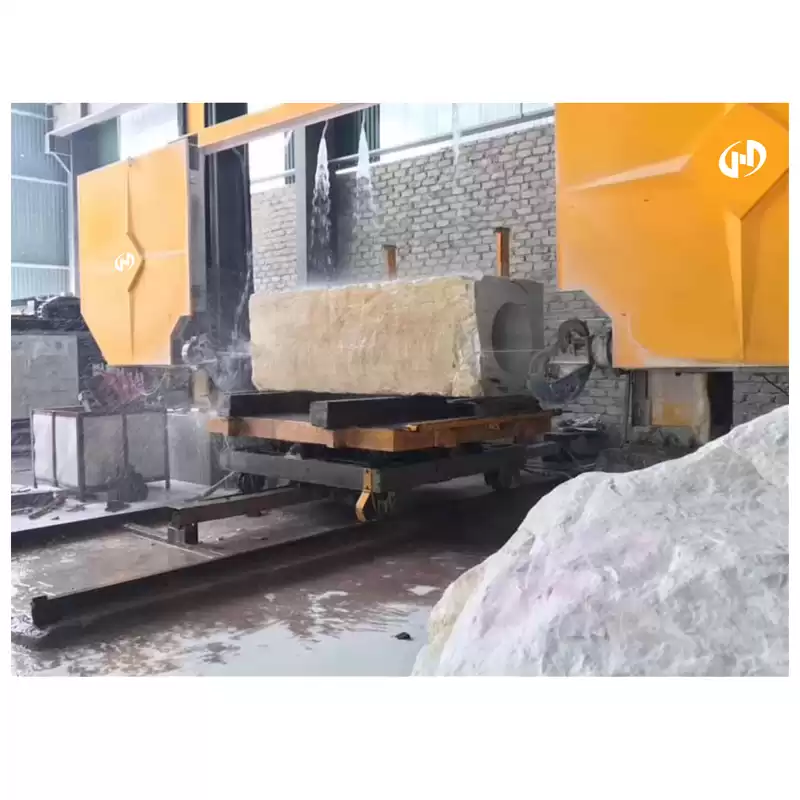

Diamond Bead Wire Saw adopts CNC control system, man-machine integration operation interface, supplemented by super high precision servo motor drive, lifting is controlled by four independent guide rail, flywheel around walking up and down the track, stable equilibrium.The flywheel adopts tensioning force balance method, improve the service life of emerald beads rope.The Z axis Y speed can be adjusted according to the texture of stone material, improve the cutting precision of the aliens.In high speed moving parts adopt imported high quality spare parts, and cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of granite, marble plate cutting profile processing.
Technical Parameters
|
Diamond Bead Wire Saw
|
|
TYPE
|
unit
|
FRT-2500
|
|
Beaded rope diameter
|
mm
|
￠7.6-￠10.8
|
|
Beaded string length
|
mm
|
15700
|
|
Max.working dimensions(L*W*H)
|
mm
|
2500x2500x1500
|
|
Table size(L*W)
|
mm
|
2500x1300
|
|
Main motor power
|
kw
|
7.5
|
|
Gross power
|
kw
|
15
|
|
Water consumption
|
m3/h
|
4
|
|
Trolley dimension(L*W*H)
|
mm
|
6700x5850x4200
|
|
The total weight
|
kg
|
5000
|
