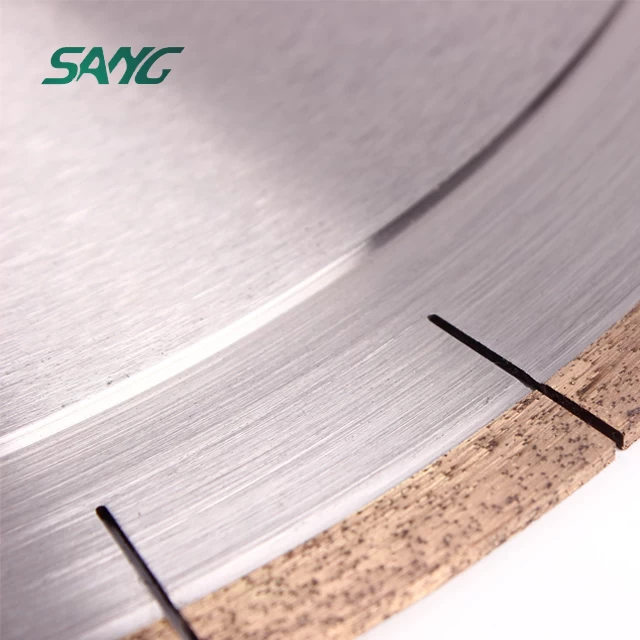

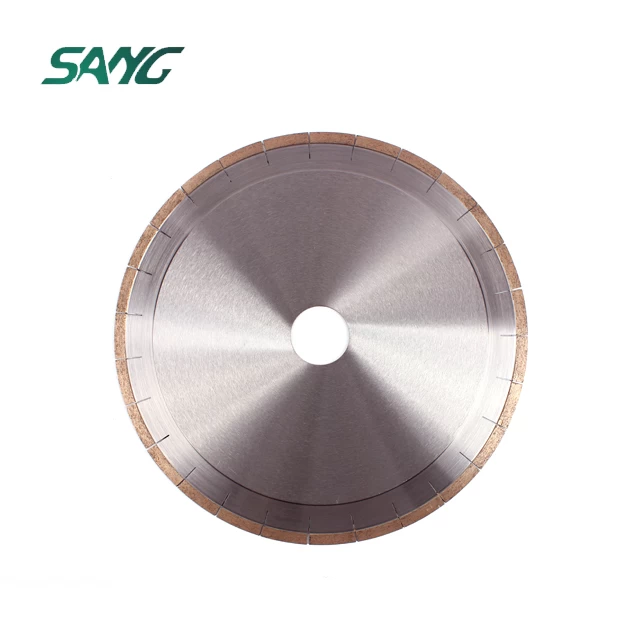

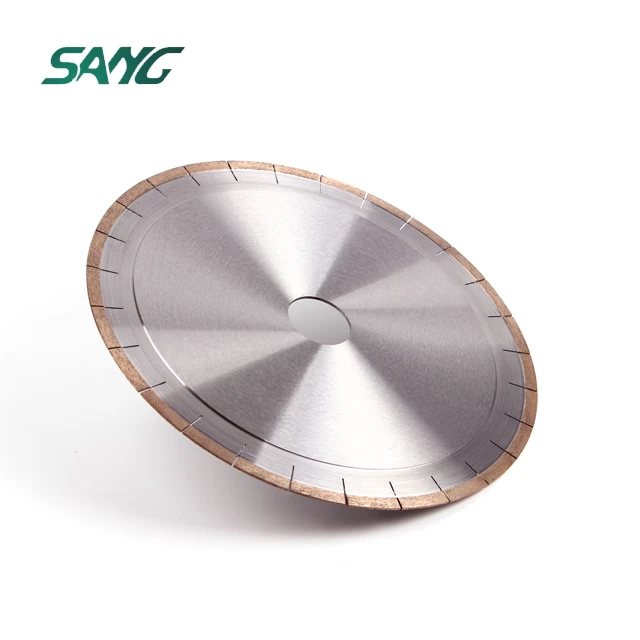

Diamond Blades for Marble
More sizes for your reference:
|
Item No.
|
Diameter(mm)
|
Steel Core Thickness(mm)
|
Segment Dimension(mm)
|
Segment No.
|
|
SGS-SGM300
|
φ300
|
2.2
|
40*3.2*8(10)
|
22
|
|
SGS-SGM350
|
φ350
|
2.4
|
40*3.4*8(10)
|
25
|
|
SGS-SGM400
|
φ400
|
2.6
|
40*3.6*8(10)
|
29
|
|
SGS-SGM450
|
φ450
|
2.8/3.0
|
40*4.0*8(10)
|
32
|
|
SGS-SGM500
|
φ500
|
3.0/3.2
|
40*4.2*8(10)
|
36
|
|
SGS-SGM600
|
φ600
|
3.6/3.8
|
40*4.8*8(10)
|
42
|
|
SGS-SGM700
|
φ700
|
4
|
40*5.2*8(10)
|
42
|
|
SGS-SGM800
|
φ800
|
4.5
|
40*6.0*(10)
|
46/57
|
|
High efficiency with long lifespan
|
|
Suitable thickness of segment to avoid blade stopping in stone
|
|
Item No.
|
Diameter
(mm)
|
Steel Core Thickness(mm)
|
Segment Dimension (mm)
|
Segment No.
|
|
SGS-SGM900
|
900
|
5.0
|
24×7.5×8(10,12)
|
64
|
|
SGS-SGM1000
|
1000
|
5.0
|
24×7.5×8(10,12)
|
70
|
|
SGS-SGM1200
|
1200
|
5.5
|
24×8.5×8(10,12)
|
80
|
|
SGS-SGM1300
|
1300
|
6.0
|
24×8.5×8(10,12)
|
88
|
|
SGS-SGM1400
|
1400
|
6.5
|
24×9.0×8(10,12)
|
92
|
|
SGS-SGM1600
|
1600
|
7.2
|
24×9.5×8(10,12)
|
108
|
|
SGS-SGM1800
|
1800
|
7.5
|
24×10.0×8(10,12)
|
120
|
|
SGS-SGM2000
|
2000
|
8.0
|
24×10.5×8(10,12)
|
128
|
|
SGS-SGM2200
|
2200
|
9.0
|
24×11.0×8(10,12)
|
132
|
|
SGS-SGM2500
|
2500
|
9.0
|
24×11.0×8(10,12)
|
140
|
|
SGS-SGM3000
|
3000
|
9.5
|
24×12.0×8(10,12)
|
160
|
|
|
|
|
|
|
|
Other specifications on request available.
|
|
|
customized specification is available.
