Diamond Cutter Blades Segmented Type Cutting Saw Blades
Segmented type diamond saw blade is the most popular cutter blade, because it can cut faster in dry cutting process than other diamond saw blades. From 4 inches to 14 inches in diameter, segmented saw blade is universally used in hand cutting machine and big bridge cutting machine. For same type of segmented saw blades, there are different kinds of quality in the saw blades market. And we prefer to manufacture good quality and durable saw blades for our buyers who always return back to purchase more after trying our products. Some users of segmented saw blades worry about teeth-dropping problem which happens frequently after using the product for some period of time. To solve this, we have similar better designs for your choices.
Specifications choices:
|
Diameter (mm / inches)
|
Segment thickness
|
Segment width
|
Bore size
|
|
105
|
4"
|
1.8
|
10
|
20/22.23
|
|
115
|
4.5"
|
2.0.
|
10
|
20/22.23
|
|
125
|
5"
|
2.2
|
12
|
22.23
|
|
150
|
6"
|
2.2
|
12
|
22.23
|
|
180
|
7"
|
2.2
|
12
|
25.4/22.23
|
|
230
|
9"
|
2.4
|
12
|
25.4/22.23
|
|
250
|
10"
|
2.6
|
10
|
25.4
|
|
300
|
12"
|
2.8
|
12
|
25.4
|
|
350
|
14"
|
3.0.
|
12
|
25.4
|
Packages:
Plastic case or paper case for each piece; And 10 pieces in one paper case.
Features:
1. Various regular sizes in stock for fast shipping;
2. Customized appearance designs, including direction, specifications, brand, color painted, etc.
3. Free samples available;
4. Other stone tools to ship together;
5. Short lead time with the advanced manufacturing equipment;
6. Experienced sales team members to provide professional and considerate service;
Diamond cutting blades are used to cut cured concrete, green concrete,
asphalt, brick, block, marble, granite, ceramic tile, or just about
anything with an aggregate base.The cutting blade consists of a
diamond-impregnated segment attached to a steel core.

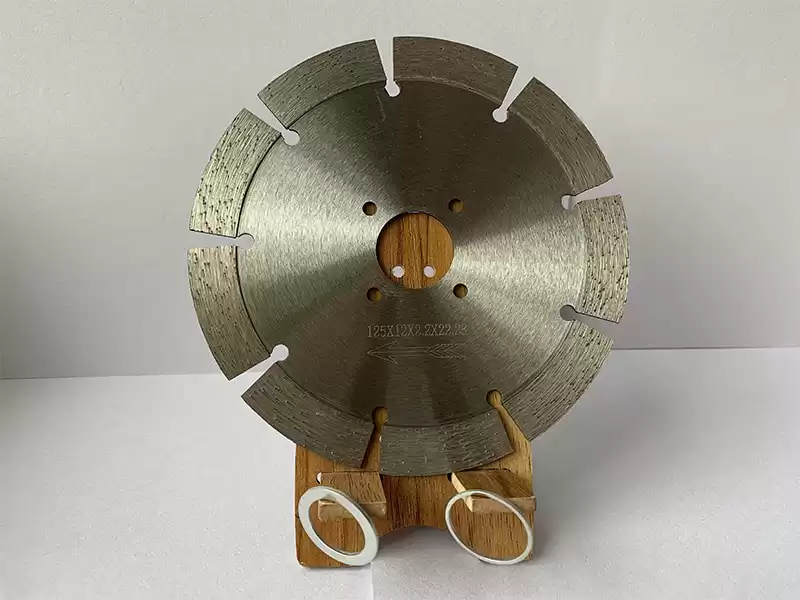

Photos:
Quartz is a very difficult material to cut, and due
to its density, it can only be cut with a quartz diamond blade suitable
for hard materials. The quartz diamond blade contains a very high
concentration of diamonds with a soft bond similar to glass and marble
blades.
