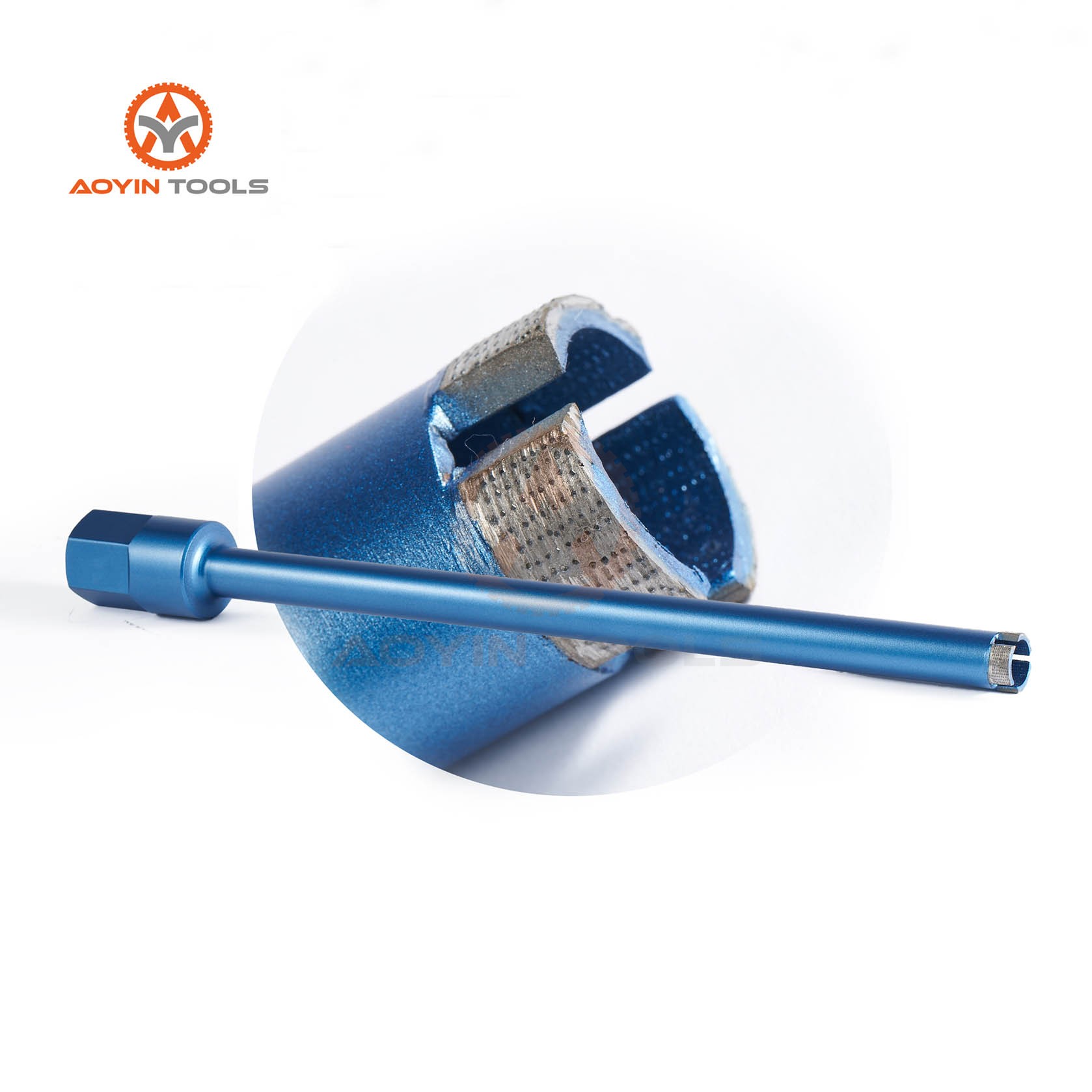

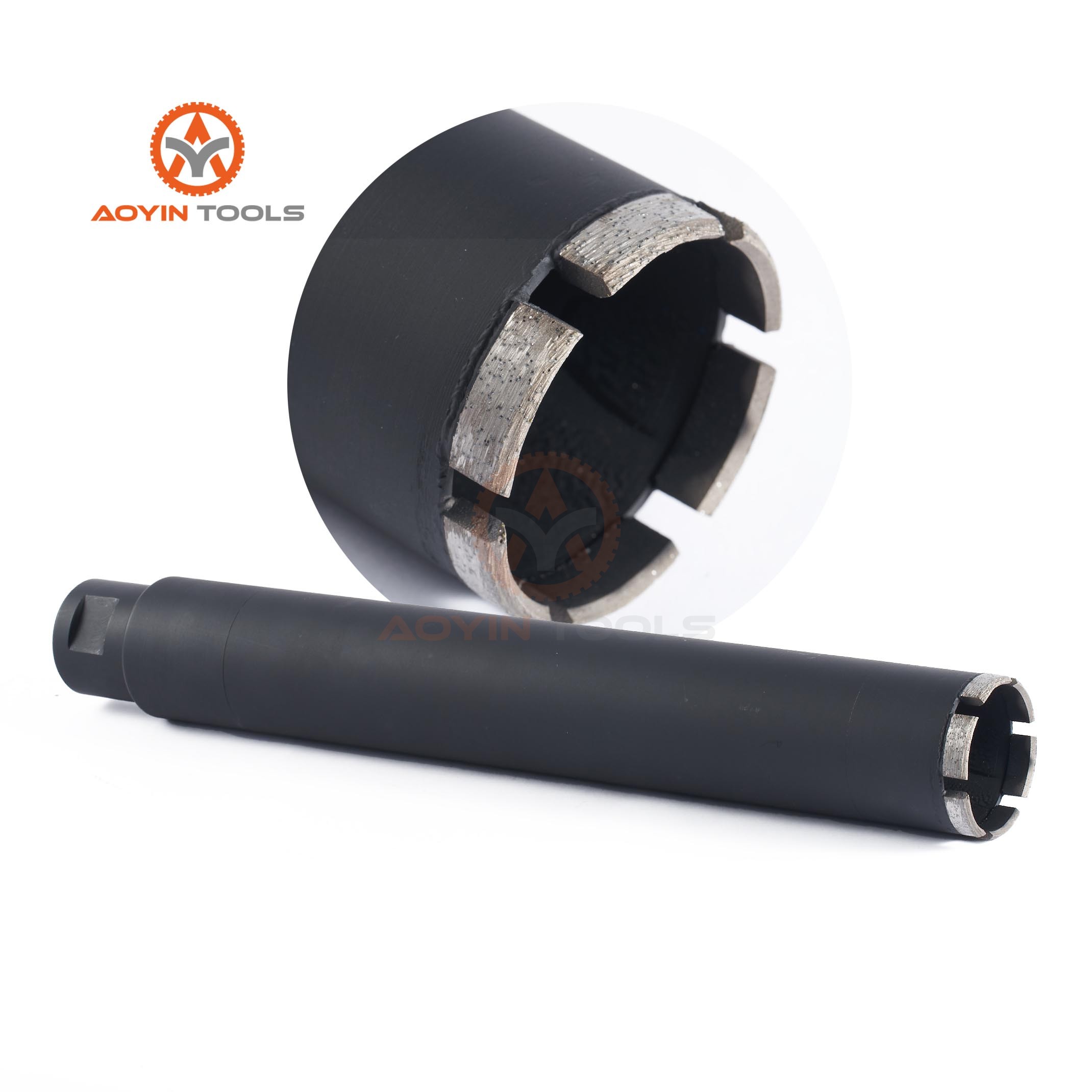

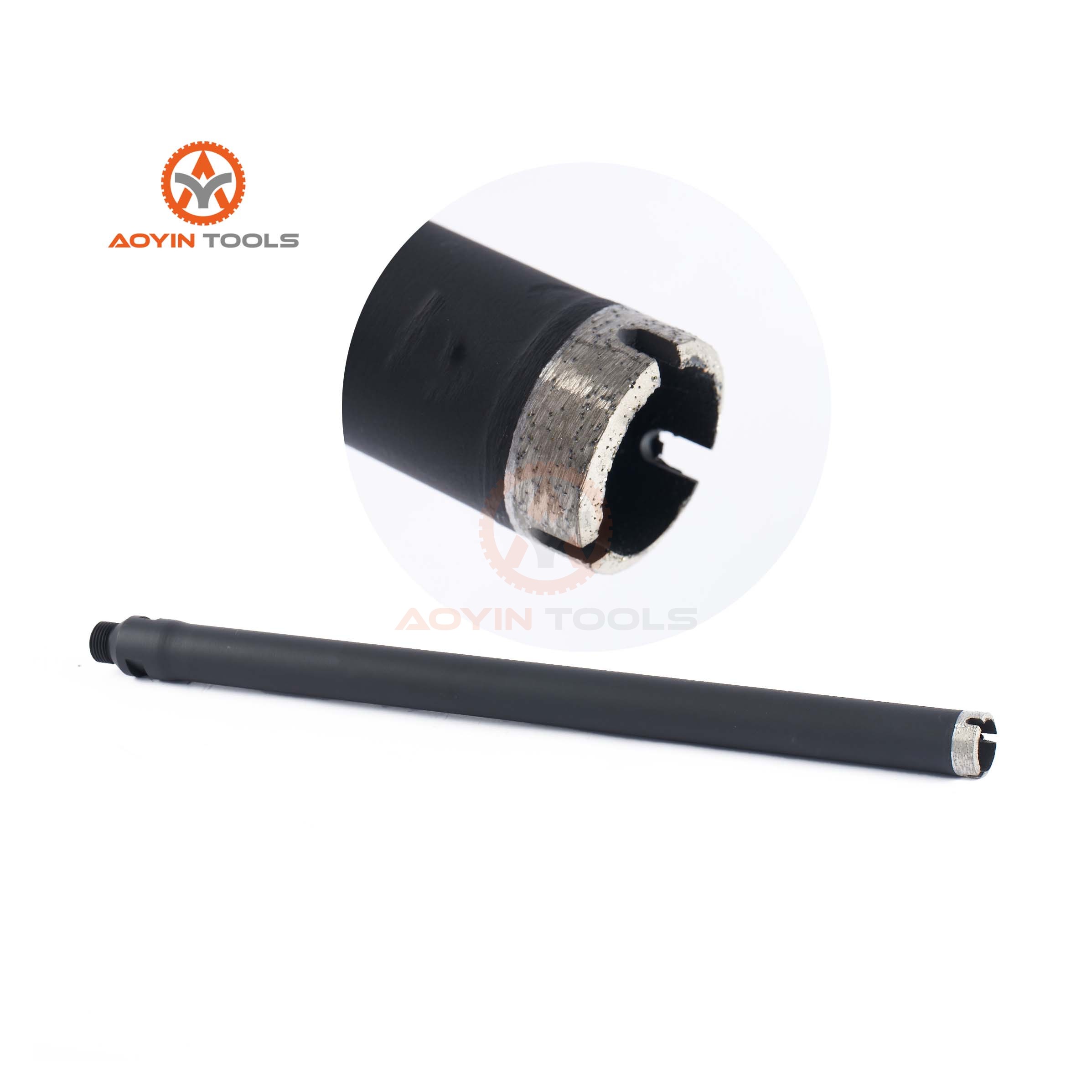

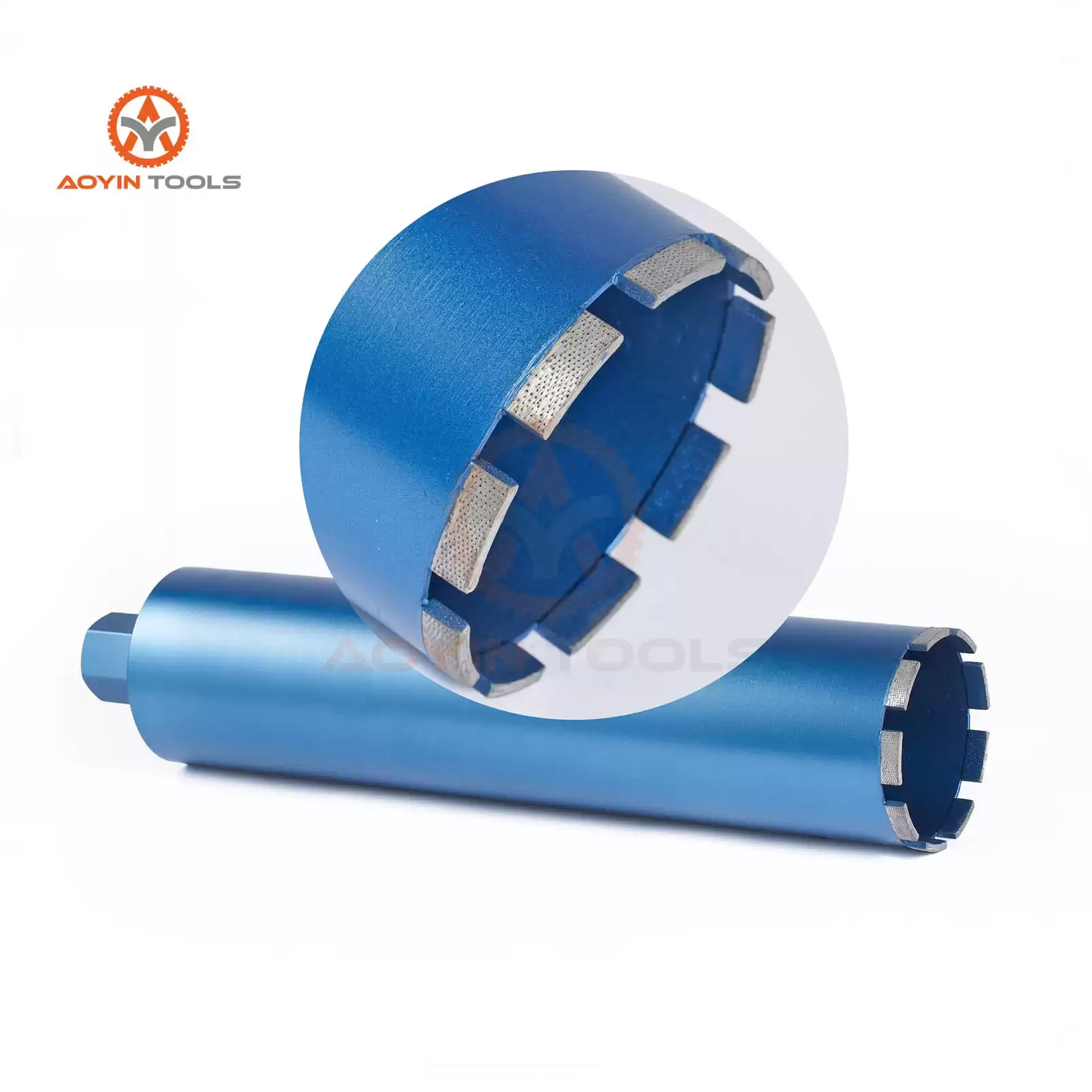

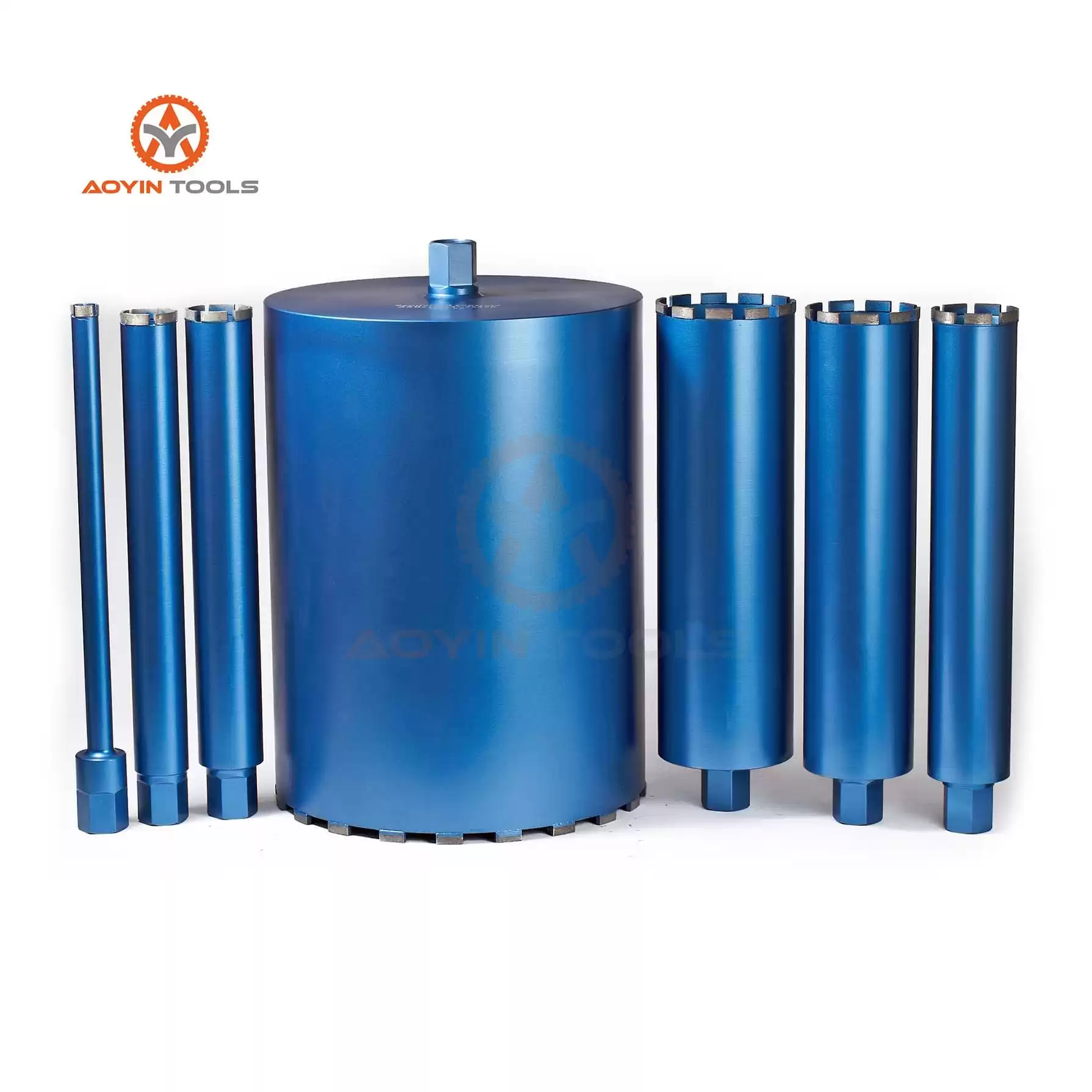

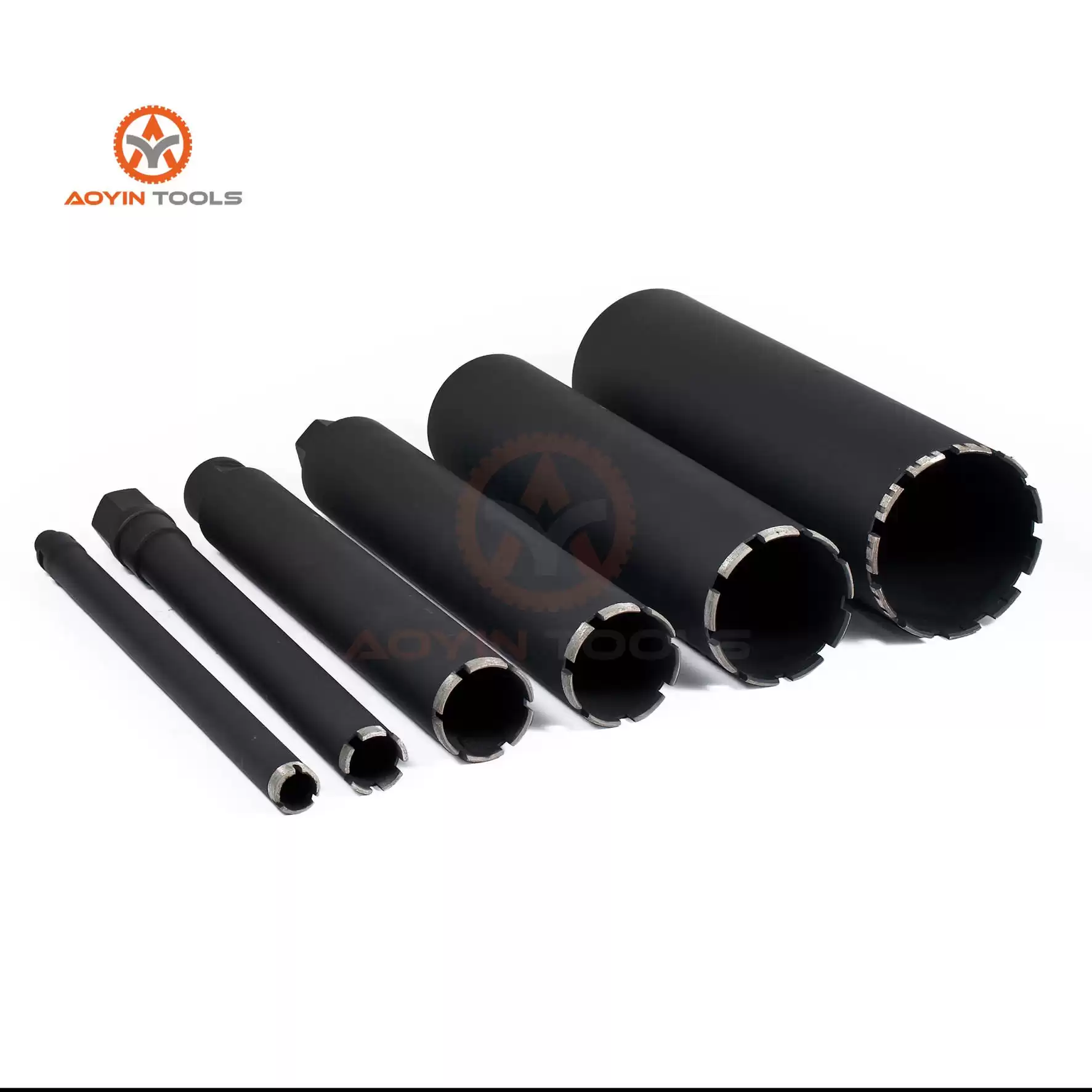

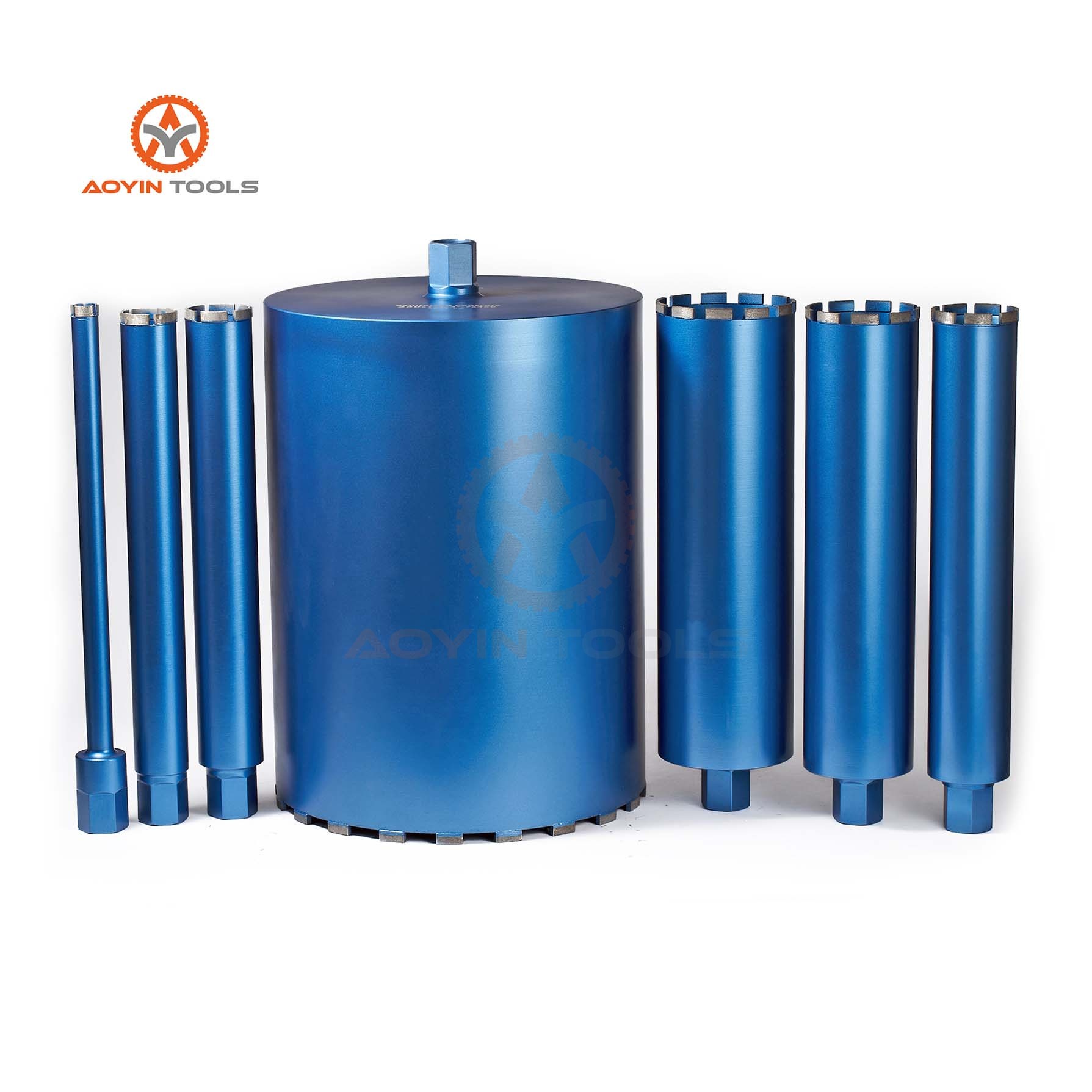

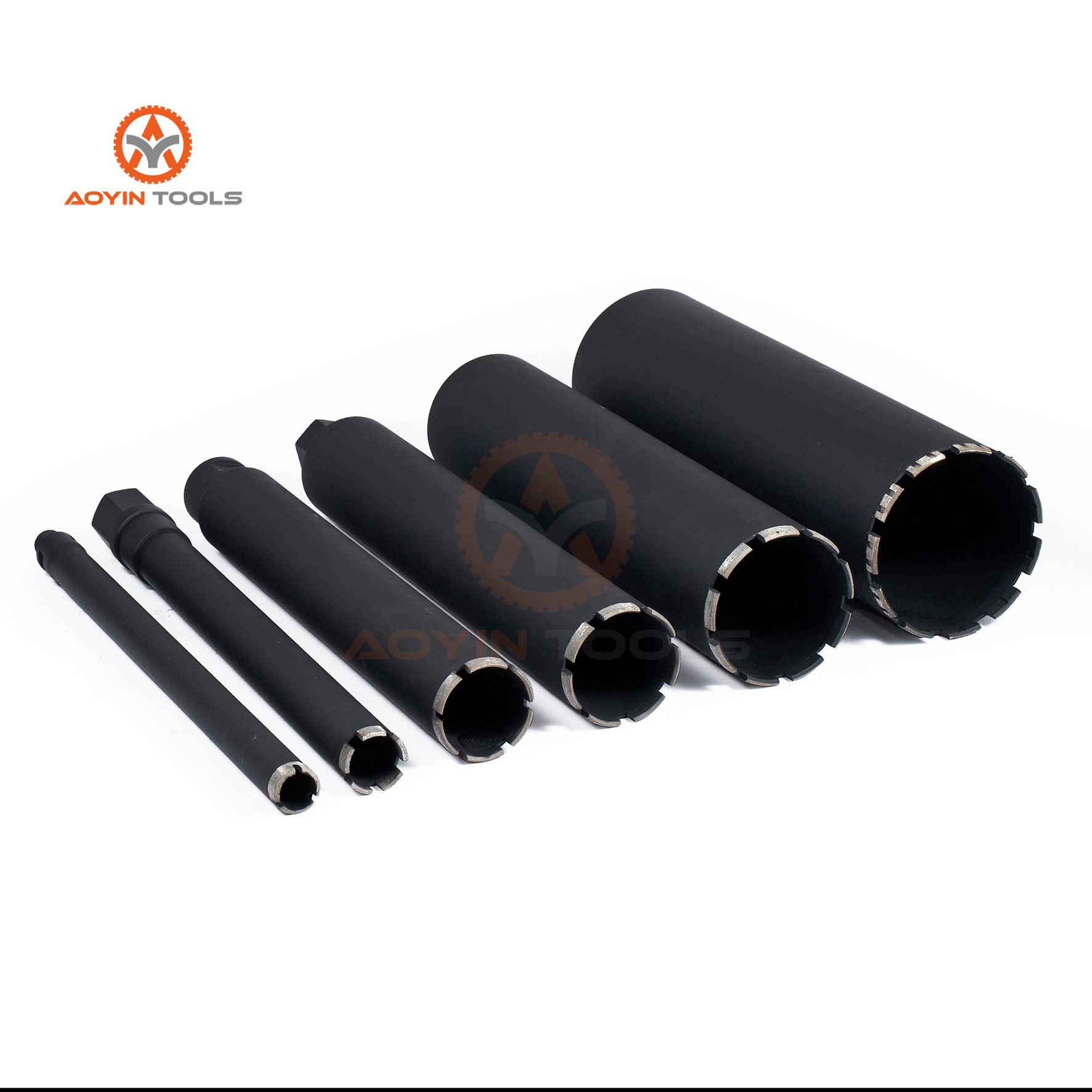

Diamond Segmented Core Bits with Ordered Arrangement for Reinforced Concrete
Product Description:
The Core Bits are precision-engineered tools tailored for high-performance drilling in reinforced concrete. With a focus on durability and efficiency, these bits are essential for any construction or infrastructure project requiring consistent and reliable drilling capabilities.
Product Parameters:
- Connection Type：1-1/4UNV (Custom threads available upon request ）
- Power Range：1.5-3.5Kw machines

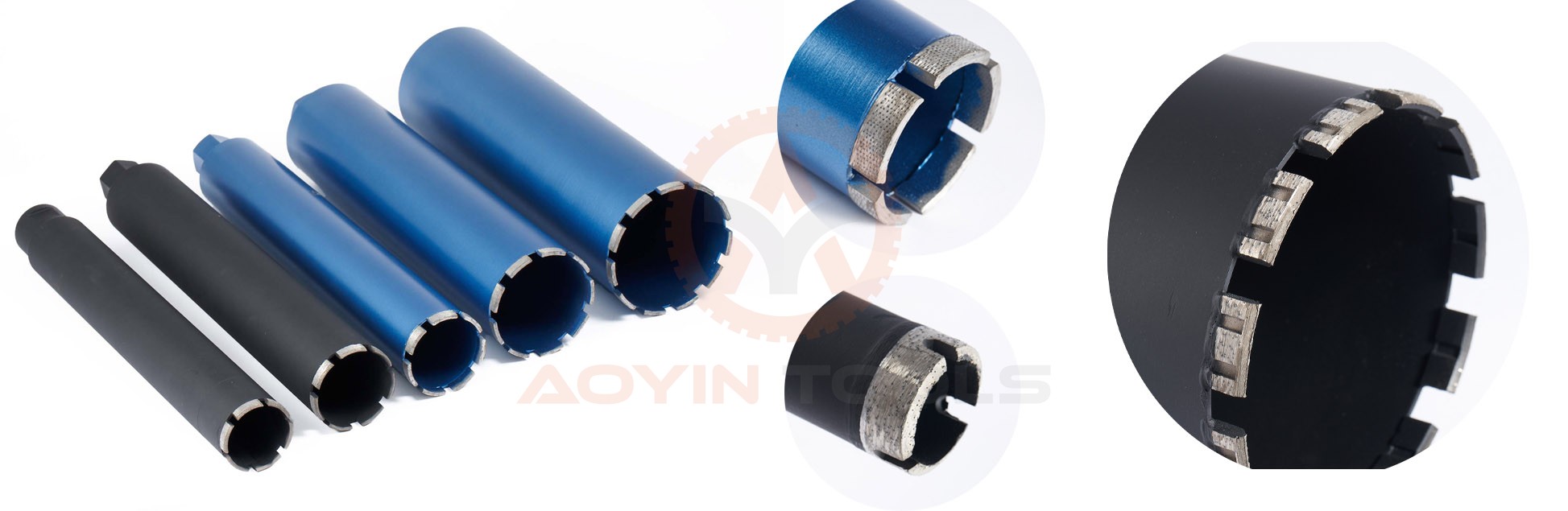

- Segment Design ： Diamond segments in an ordered array for optimal performance
| DIAMETER |
SEGMENT DIMENSION |
USEFUL LENGTH |
CONNECTION |
| L |
T |
W |
N |
| 36 |
16 |
3.7 |
12 |
4 |
350/400/450/500 (VARIOUS CONNECTION UPON REQUEST) |
1-1/4 UNV (VARIOUS CONNECTION UPON REQUEST) |
| 38 |
16 |
3.7 |
12 |
5 |
| 40 |
16 |
3.7 |
12 |
5 |
| 42 |
24 |
3.7 |
12 |
5 |
| 47 |
24 |
3.7 |
12 |
4 |
| 51 |
24 |
3.7 |
12 |
5 |
| 63 |
24 |
3.7 |
12 |
6 |
| 68 |
24 |
3.7 |
12 |
6 |
| 78 |
24 |
3.7 |
12 |
7 |
| 82 |
24 |
3.7 |
12 |
7 |
| 92 |
24 |
3.7 |
12 |
8 |
| 102 |
24 |
3.7 |
12 |
9 |
| 108 |
24 |
3.7 |
12 |
9 |
| 112 |
24 |
3.7 |
12 |
9 |
| 122 |
24 |
4.0 |
12 |
10 |
| 127 |
24 |
4.0 |
12 |
11 |
| 132 |
24 |
4.0 |
12 |
11 |
| 152 |
24 |
4.5 |
12 |
12 |
| 162 |
24 |
4.5 |
12 |
12 |
| 172 |
24 |
4.5 |
12 |
12 |
| 182 |
24 |
4.5 |
12 |
13 |
| 202 |
24 |
4.5 |
12 |
15 |
| 212 |
24 |
4.5 |
12 |
16 |
| 225 |
24 |
4.5 |
12 |
16 |
| 250 |
24 |
4.5 |
12 |
16 |
| 300 |
24 |
5.0 |
12 |
17 |
| 350 |
24 |
5.0 |
12 |
20 |
Product Highlights:
1. Versatile Application: Our diamond core drill bits are suitable for drilling all kinds of hardness levels in reinforced concrete, making them versatile tools for construction projects.
2. Enhanced Durability: The laser welding technology ensures superior bonding strength, eliminating the risk of segment fall-off during drilling operations, resulting in long-lasting performance.
3. Exceptional Drilling Speed: These core bits offer an extremely fast drilling speed, allowing you to complete your drilling tasks efficiently and save valuable time.
4. Vibration-Free Operation: The design of our core bits ensures minimal vibration during drilling, providing a smoother drilling experience and reducing operator fatigue.

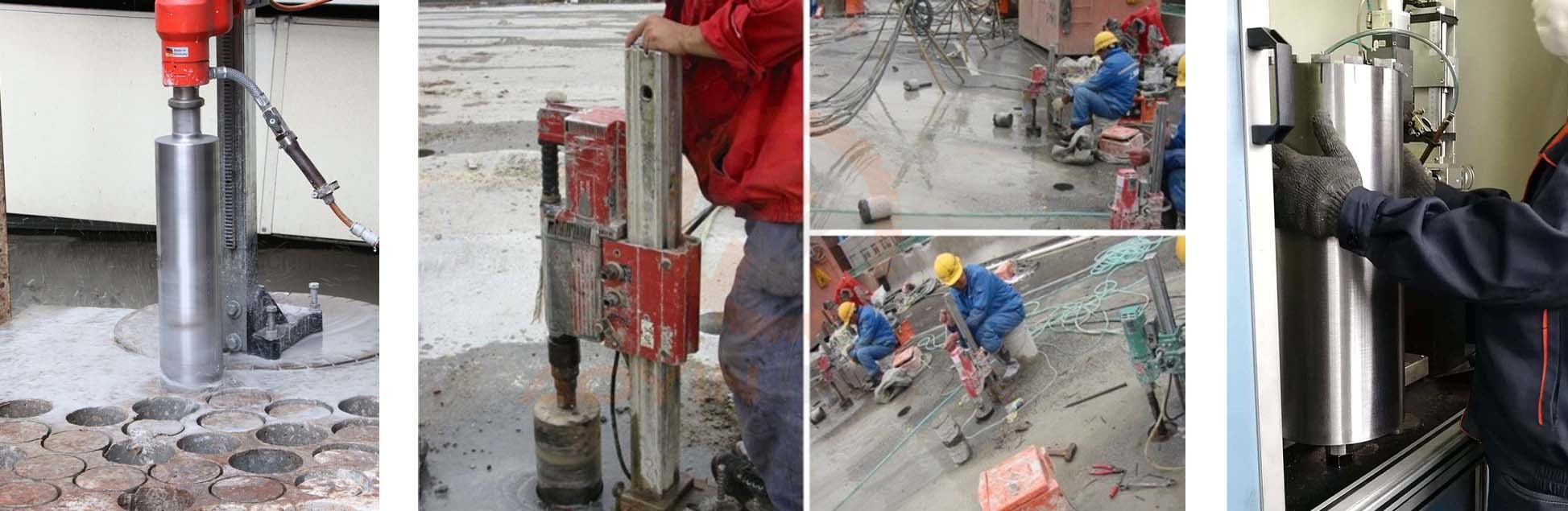

Application Areas:
The diamond core drill bits for construction reinforced concrete are widely used in the construction industry for a variety of applications. They are ideal for drilling holes in reinforced concrete structures, such as walls, floors, columns, and beams. These core bits are essential tools for contractors, builders, and construction professionals who require precise and efficient drilling in reinforced concrete materials.
Company Service Advantage:
As a leading provider of cutting solutions, we are committed to customer satisfaction and excellent service. Our team of experts is dedicated to providing personalized assistance and guidance to help you select the right products for your specific drilling needs. We offer efficient and reliable shipping services to ensure timely delivery of your orders. Additionally, our comprehensive after-sales support aims to address any inquiries or concerns you may have, ensuring your satisfaction with our products.
FAQ - Frequently Asked Questions:
-
Q1：What machines are these core bits compatible with?
Our core bits are compatible with machines ranging from 1.5-3.5Kw. For other specifications, please contact us for customization options.
Q2：Can I customize the thread connection?
Yes, we offer a variety of thread connections beyond the standard 1-1/4UNV. Customization is available upon request.
Q3：How do I ensure the longevity of these core bits?
Regular maintenance and proper use according to the specified power range and material type will help extend the life of your core bits.
Q4：What makes these core bits ideal for reinforced concrete?
The diamond segments are arranged in an ordered array, optimizing the bit for efficient and precise drilling in reinforced concrete.
