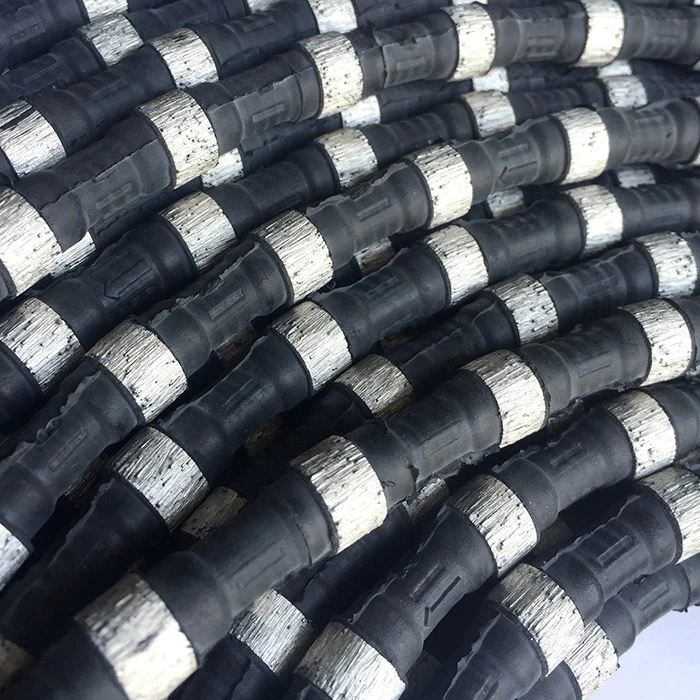

Diamond wire for concrete cutting

This diamond wire recently developed by ChinShine, is designed for fast and precise cutting jobs in heavily reinforced concrete. Top quality diamond mix cobalt makes the diamond beads provide higher cutting speed and longer life than wires from the competitors.


  • Related NameDiamond cutting wire, Concrete diamond wire
  • AdvantageSharp, Long life, Factory Price
  • OEM Custom Made ServiceYes
  • Welding MethodSintering/Hot Press

Diamond wire for concrete cutting

ChinShine concrete diamond wires use injected synthetic rubber,strong springs and the best diaond beads for the assembly. The concrete diamond wire is very flexible and durable, making it easy to use, as well as minimising the risk of uneven wear to the diamond beads. ChinShine diamond wire saw for concrete have at least 40 diamond beads per meter. More beads, resulting in higher speed and increased the diamond wire cutting life. Also, the distance between the beads is smaller, making for a more even cut.


The diamond wire is widely used in the building construction , make cutting for houses、bridges、big post、cement pipes and under water buildings,having the following advantage features.

1. Cut and backout large area and unequal reinforced concrete

2. Cutting direction to be at will

3. Work under water and structure space

4. Low vibration, low noise, no dust

5. Control cutting at a far distance, keep safe cutting


Diamond Wire For Reinforced Concrete Cutting

Specification

Beads/meter

Coating

Product No.

Hardness

Wire Speed (m/s)

Cutting Speed (m2/h)

Life

(m2/m)

φ10.5mm

φ11mm

φ11.5mm

40

Rubber

+

Spring

CSB121-A

Soft

22-25

2-5

5-7

CSR082-B

Middle

20-22

1.5-3

2-4

CSR072-C

Hard

18-20

0.5-2

1-3



Product Tags diamond wire cutting concrete          diamond wire saw for concrete          diamond wire cutting reinforced concrete          concrete diamond          diamond concrete          wire in concrete          concrete wire          diamond wire          wire diamond
