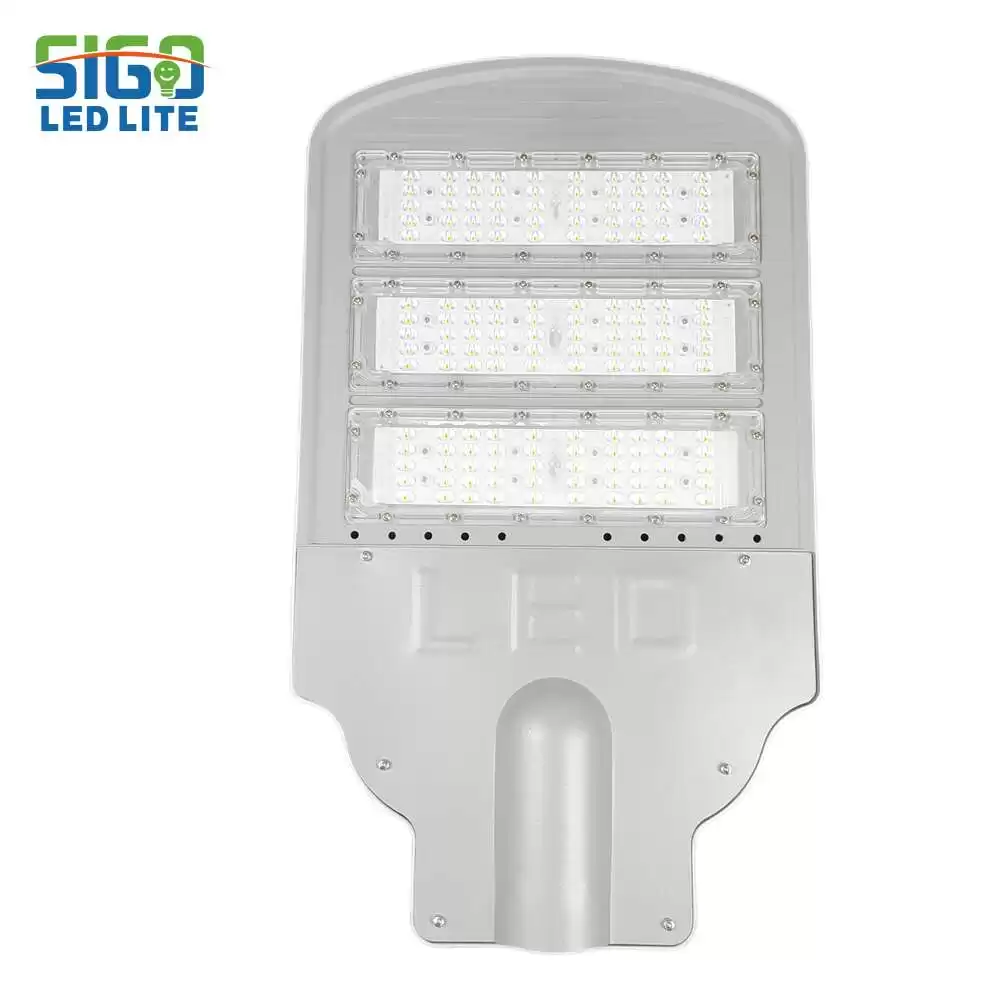

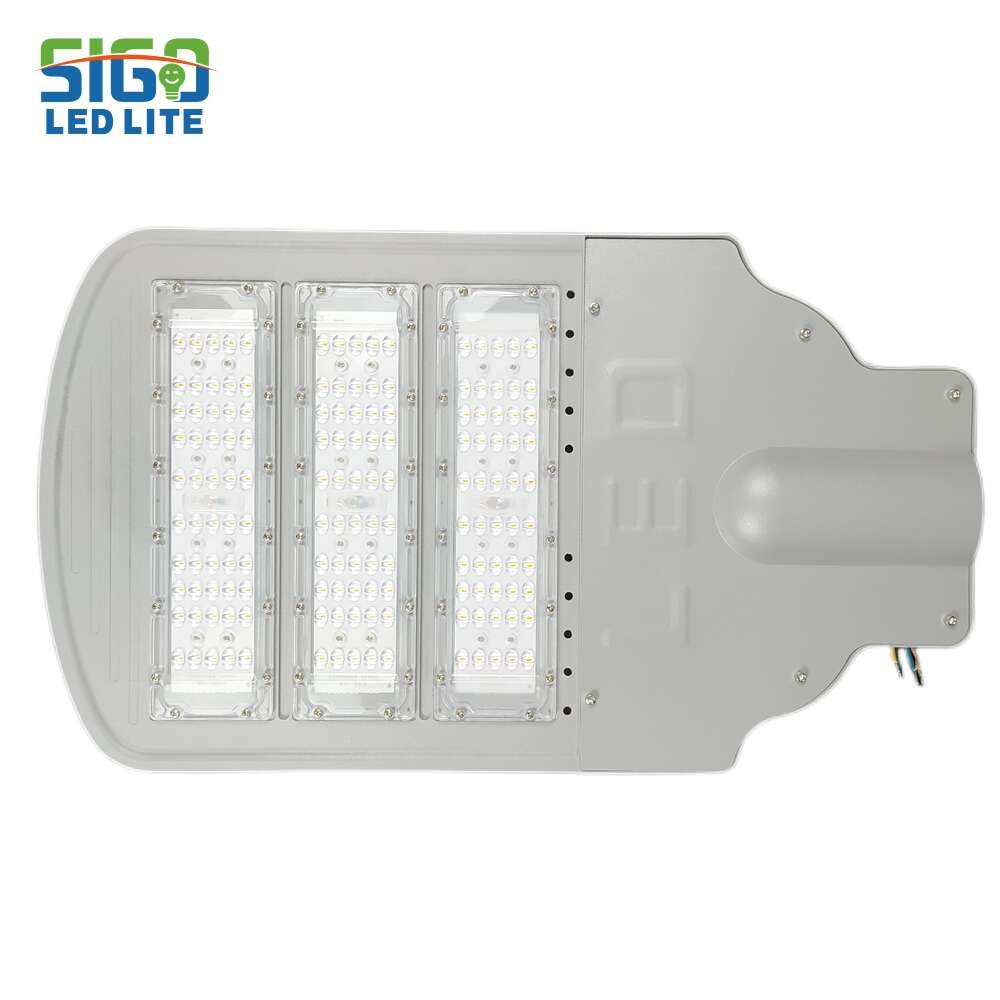

Die-casting Aluminium IP65 100W Outdoor LED Module Street Lights

The waterproof  IP65 LED modular street lights fit all weather conditions like thunderstorm, snowstorm, sandstorm. High efficiency led module street light 100W is widely used in lighting places such as urban roads, industrial areas, residential areas, sidewalks, parking lots, schools and other outdoor areas, etc.



Die-casting Aluminium IP65 100W Outdoor LED Module Street Lights

Features of high efficiency led module street light 100w

-Lamp Body: Die-casting aluminum body for anti-rust & anti-corrosion & heat dissipate better. 50,000hrs long lifespan and lower maintenance costs.

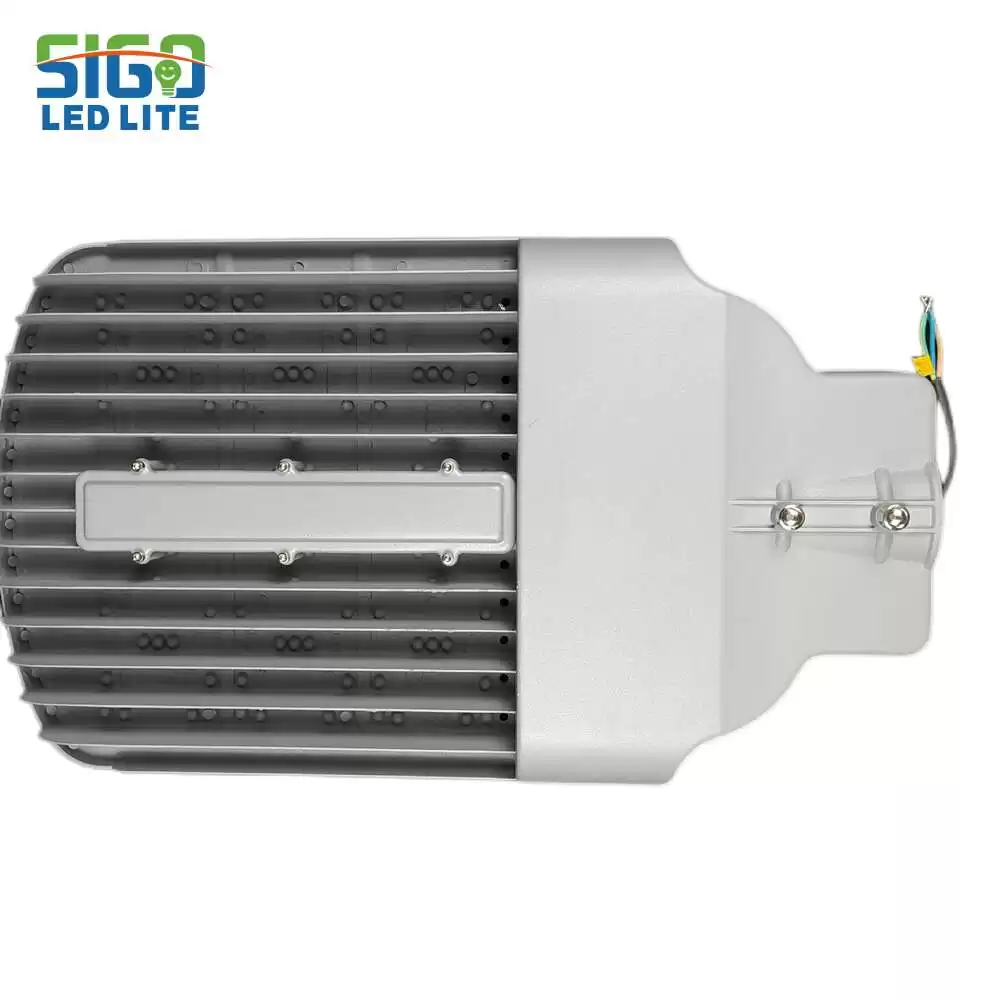

-Heat Sink: Aluminum heat sink. On the back of LED modular street lights, the thickened strip design, increasing the air convection to achieving the best heat dissipation effect.

-Lamp Beads: SMD 3030 lamp beads, high brightness, rainproof and anti-static ability, no radiation and no strobe.

-IP65 Waterproof: Heat resistant and aging resistant silicone ring seals are used at the joints of each part of the

IP65 modular street lamp body, effectively protect the power supply, suitable for outdoor wet locations.

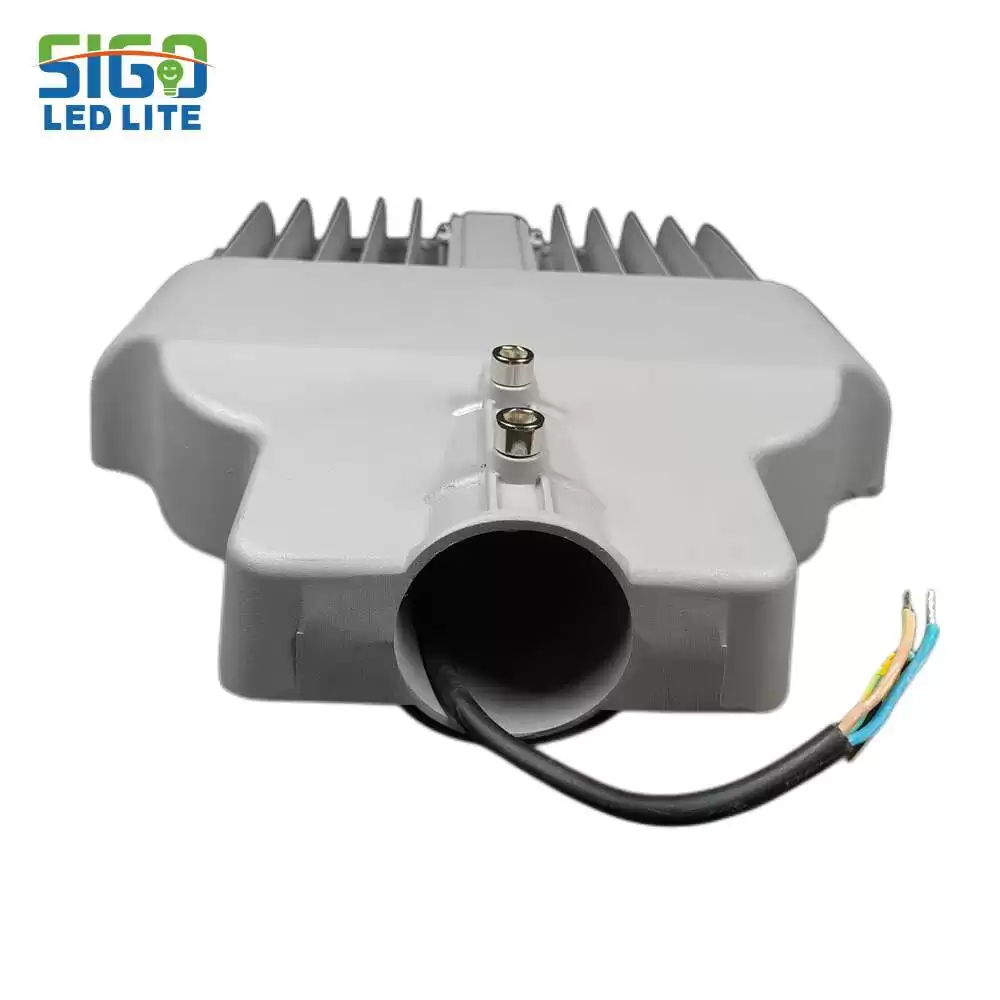

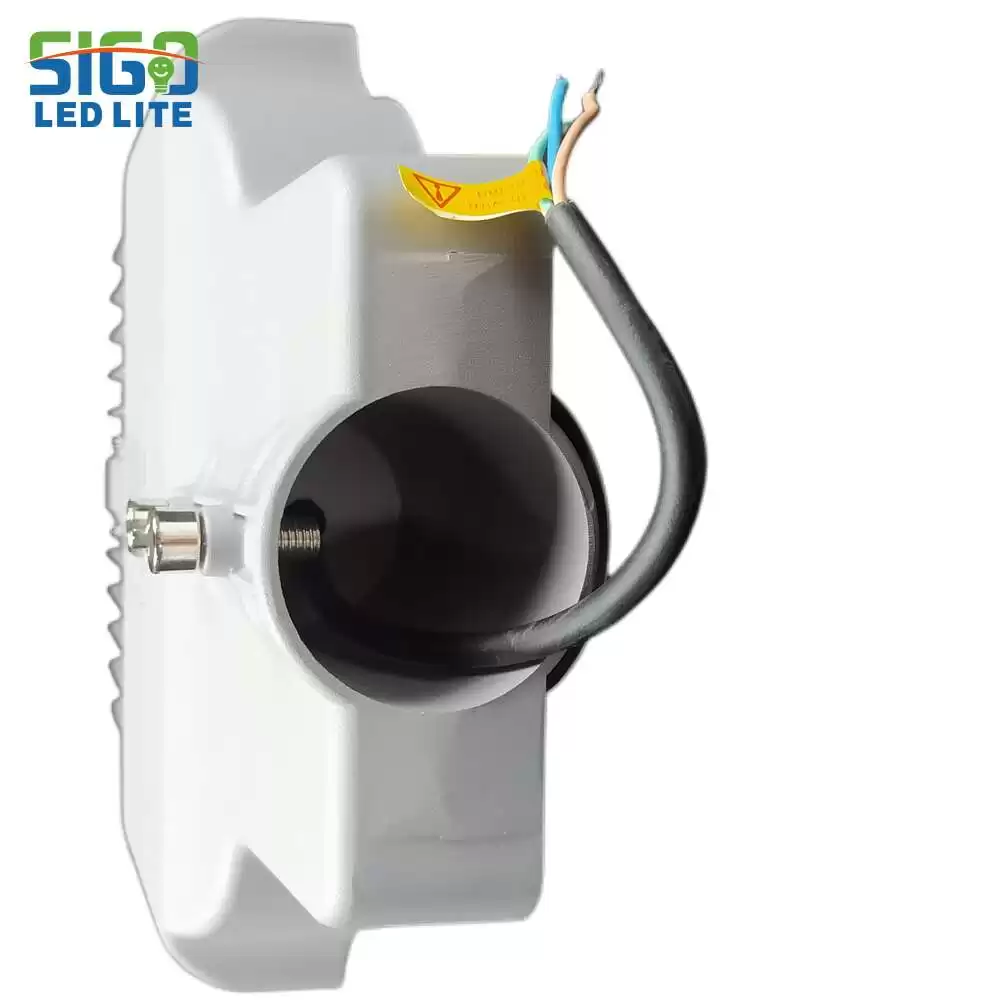

-φ60mm Installation Diameter: Easy and fast installation and removal

-Installation Method: Pole-mounted, wall-mounted

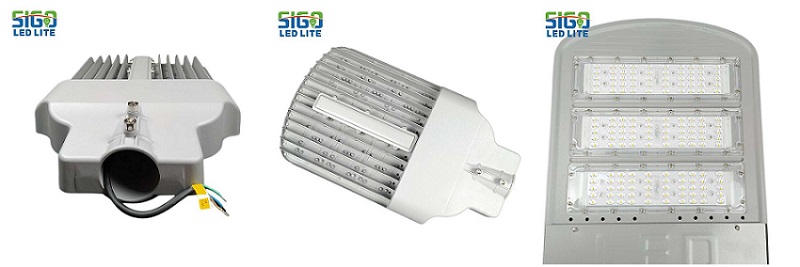

IP65 LED Modular Street Lights



Specification of IP65 LED modular street lights


Specification

 LED Parking lot Lighting

Input Volt.:

100-277V 50/60HZ

Rated Power:

100W

CCT

6000K

Power Factor

RF0.95

LED Chip

SMD 3030

Lamp Body Material

Aluminum

IP grade

IP65

Operation Condition

-30~+80

Warranty

2 Year

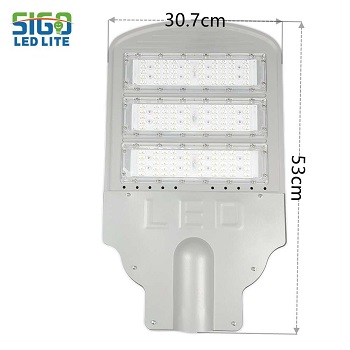

Size of Lamp

530*307*60MM (±5mm)

Installation Diameter

φ60mm

Housing Material

Die-casting Aluminium

lifespan

50000 Hours

Item Weight

N.W.:2.92KGS (±0.1kg)

G.W.:3.38KGS (±0.1kg)

Package

One piece in one carton

540*330*115MM (±5mm)

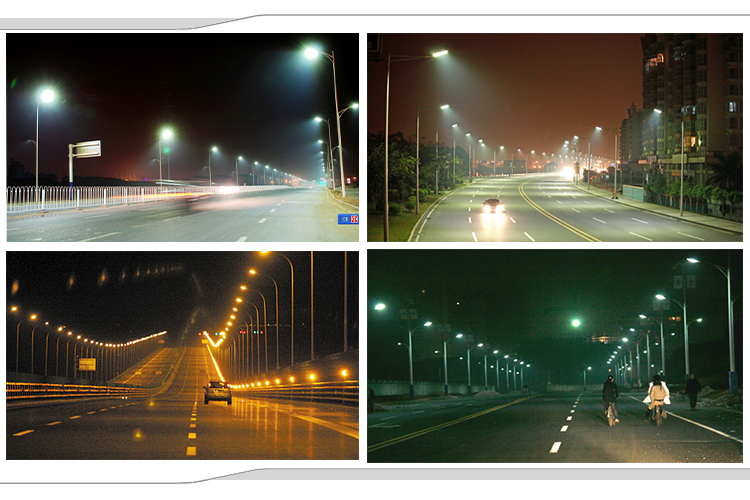

Application of high power modules for street and outdoor lighting

-Tunnel, underpass lights

-Gymnasium, stadium lighting

-Gas station, garage lighting

-Park, garden lights

-Workshop, factory lighting

-Warehouses, storage lighting

-Courtyard, square lighting

-Road, highway lighting

-Station, dock lighting, etc.



Outdoor Waterproof LED Module Street Lights


FAQ:

1.Are you a manufacturer?

-Yes, we have been producing and exporting lighting for 12 years

2.Can I have a sample order of led street lights?

-Yes, we welcome sample orders to test and check the quality, if needed. Mixed samples are acceptable.

3.Can I put my own logo on the lamp?

-Yes, kindly inform us and confirm the design before production. By the way, the logo can be on the label or laser printed. We can also do OEM

4.I have a street/high way, what's your suggestion?

-Please give me the below information:

-A: the wide of the street.

-B: the arrangement and the height of light pole.

-C: the requirement of illumination.
