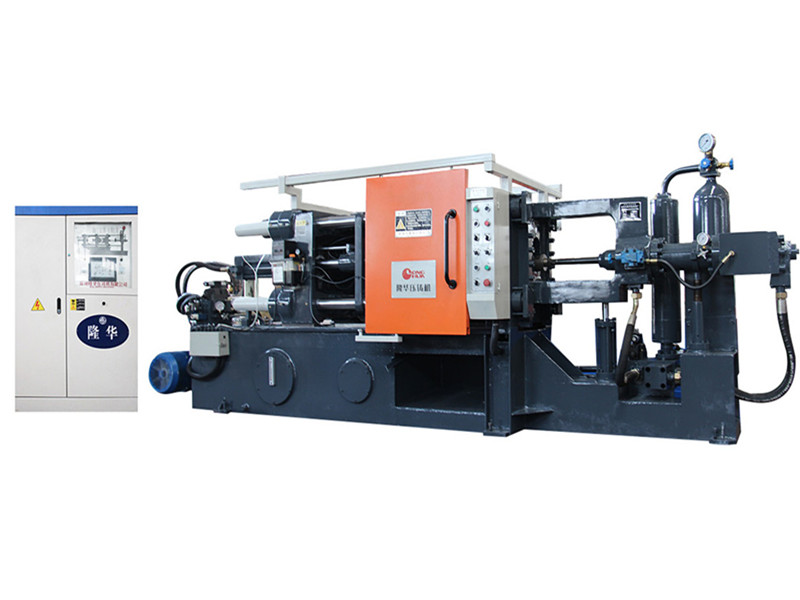

Die Casting Machine Aluminium

Die-casting machines are applicable to manufacture of automobile and motorcycle parts，electric escalator handrail steps, industrial road railway air agricultural machinery, streetlights shells,pot light shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products.

Facebook Twitter Pinterest LinkedIn 分享

Description

The product description

Our machine have computer control system with computer screen display, it is very easy to operate.Long Hua die-casting machines are applicable to manufacture of automobile and motorcycle parts .Our machine have been exported to all over the countries.The most advanced pre - injection circuit is adopted to improve the injection speed and efficiency.Reduce the build up time of the system.

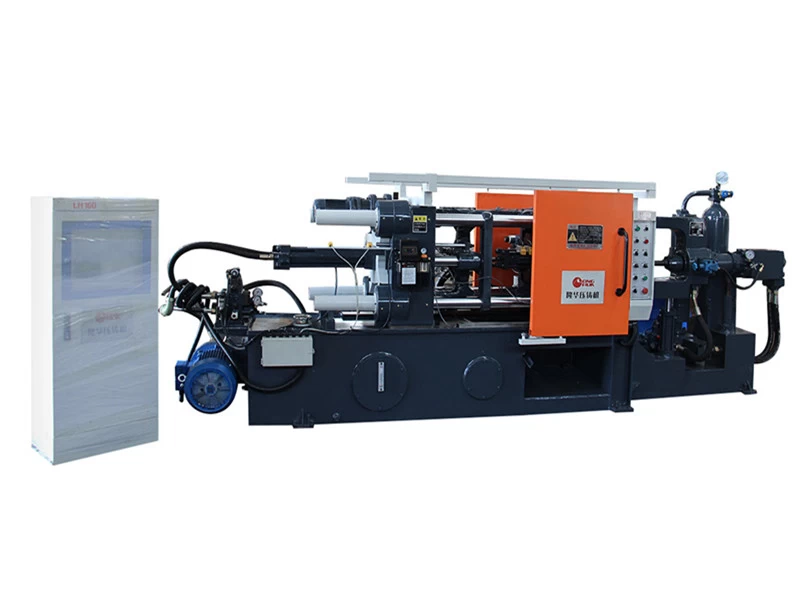

magnesium alloy die casting machine

Product parameters

LH series of standard parameter table (160 d)

ITEMS	Unit	Specification
HYDRAULIC WORKING PRESSURE	MPa	7
CLAMPING FORCE	KN	1600
SPACE BETWEEN TIE BARS	mm	440*440
Tie Bar Diameter	mm	￠80
DIE OPENING STROKE	mm	350
INJECTION FORCE(intensify)	KN	220
Plunger launch distance	mm	120
Injection position	mm	0 -- 140
PLUNGER DIAMETER	mm	￠40----￠60
INJECTION STROKE	mm	320
Casting pressure (intensify)	MPa	143/92/64
Casting Fiange Protrusion	mm	10
Casting Fiange Diameter	mm	110
MAX CASTING AREA UNDER 40Mpa	CM²	390
lnjection Weight(Al)	Kg	1.8
Die Height(Min--Max)	mm	200～550
EJECTOR FORCE	KN	100
EJECTOR STROKE	mm	80
Motor Capacity	Kw	11
Machine Dimensions (LWH)	m	51.41.6
Referential Machine Weight For Uplifting	T	4.8
Oil Tank Capacity	L	300

WE reserve the right to make any technical improvement without further notice

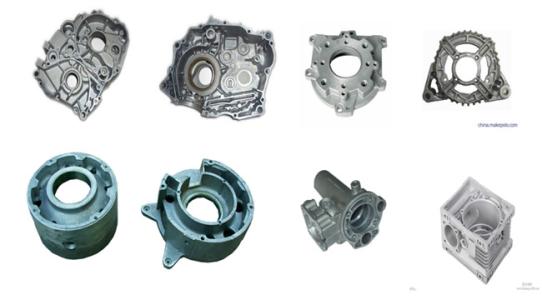

Related die casting products:
