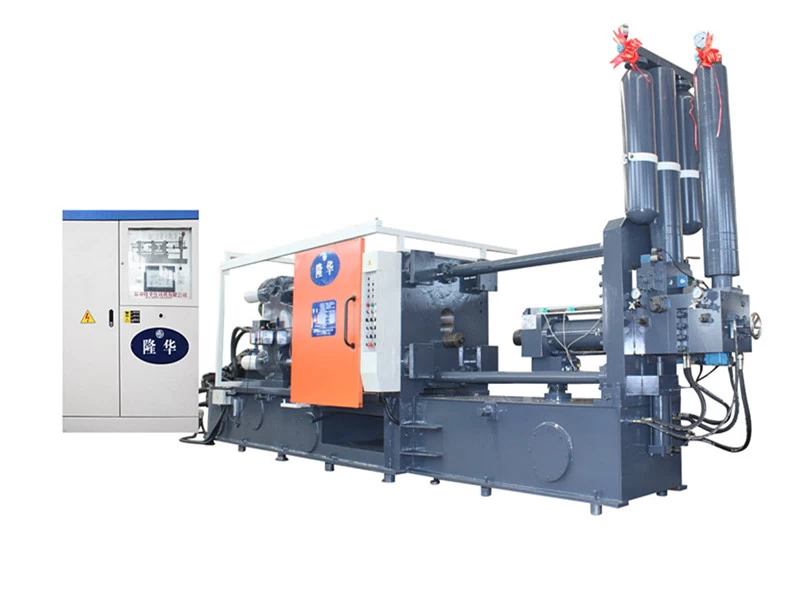

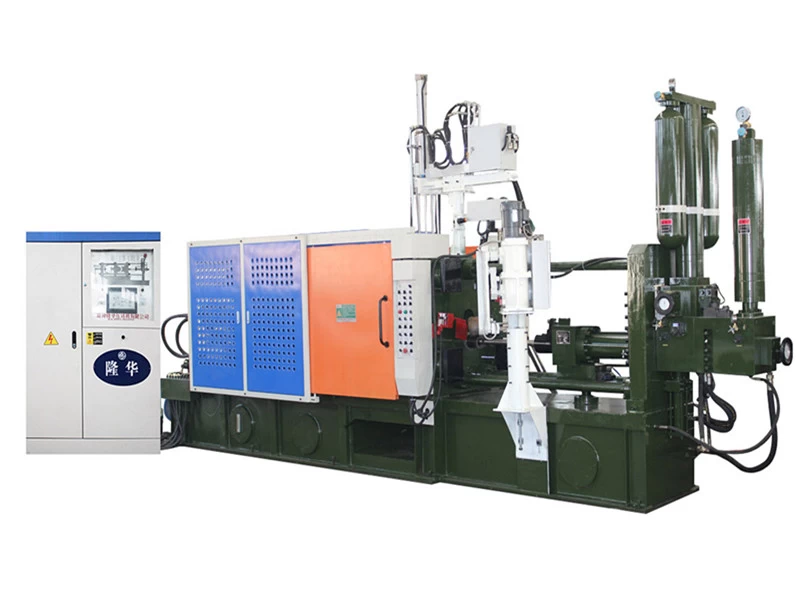

The product description
According to the specific needs of customers, combined with our experience, we design and manufacture professiona ldie casting machines for customers.Mitsubishi, omron touch screen integrated control, so that the set of higher stability, alarm content prompt can be quickly troubleshooting.
Product parameters
LH series of standard parameter table (400T)
|
ITEMS
|
Unit
|
Specification
|
|
HYDRAULIC WORKING PRESSURE
|
MPa
|
14
|
|
CLAMPING FORCE
|
KN
|
4000
|
|
SPACE BETWEEN TIE BARS
|
mm
|
620*620
|
|
Tie Bar Diameter
|
mm
|
￠125
|
|
DIE OPENING STROKE
|
mm
|
450
|
|
INJECTION FORCE(intensify)
|
KN
|
415
|
|
Plunger launch distance
|
mm
|
200
|
|
Injectionposition
|
mm
|
0 -- 175
|
|
PLUNGER DIAMETER
|
mm
|
￠60----￠80
|
|
INJECTION STROKE
|
mm
|
500
|
|
Casting pressure (intensify)
|
MPa
|
141/104/80
|
Casting Fiange Protrusion
|
mm
|
12
|
Casting Fiange Diameter
|
mm
|
130
|
|
MAX CASTING AREA UNDER 40Mpa
|
CM2
|
1008
|
|
lnjection Weight(Al)
|
Kg
|
5
|
|
Die Height(Min--Max)
|
mm
|
300～750
|
|
EJECTOR FORCE
|
KN
|
180
|
|
EJECTOR STROKE
|
mm
|
140
|
|
Motor Capacity
|
Kw
|
18.5
|
|
Machine Dimensions (L*W*H)
|
m
|
7.3*2*2.8
|
|
Referential Machine Weight For Uplifting
|
T
|
16.5
|
|
Oil Tank Capacity
|
L
|
10
|
WE reserve the right to make any technical improvement without further notice
Related products:
The product description

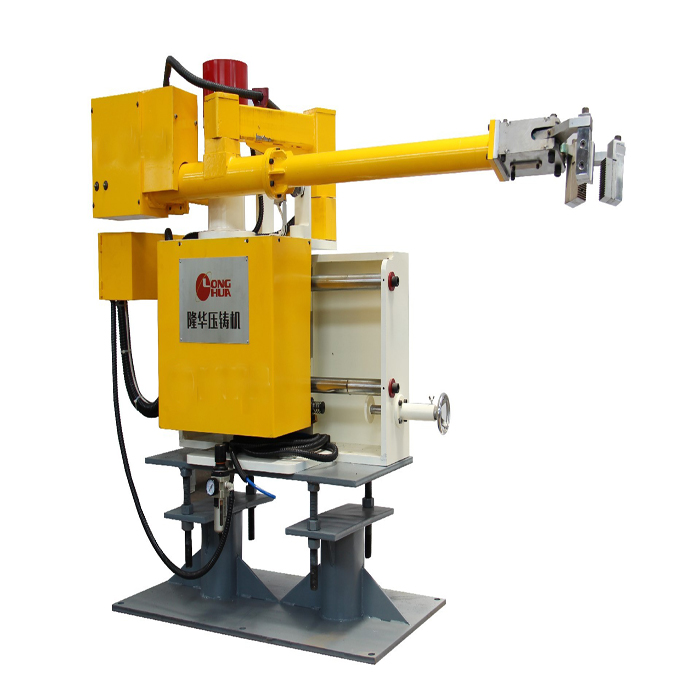

This product is fully automatic parts picker, it has the following characteristics
