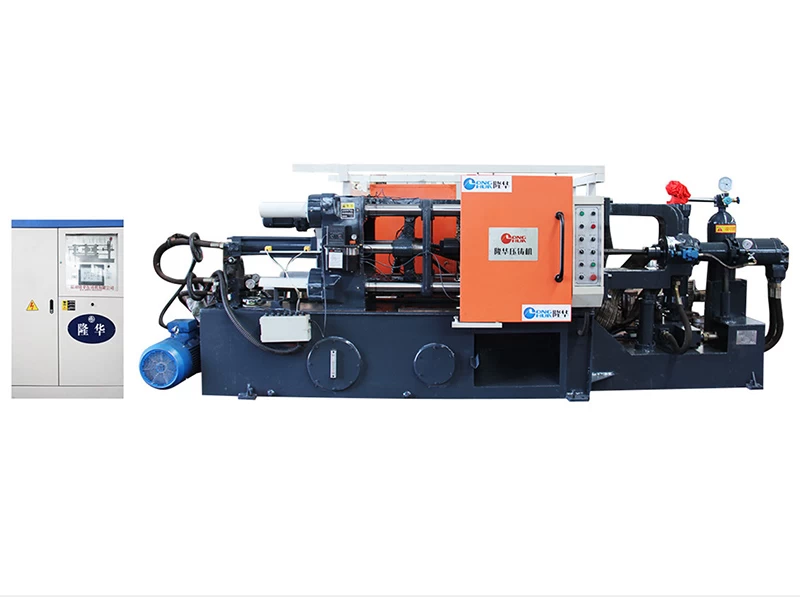

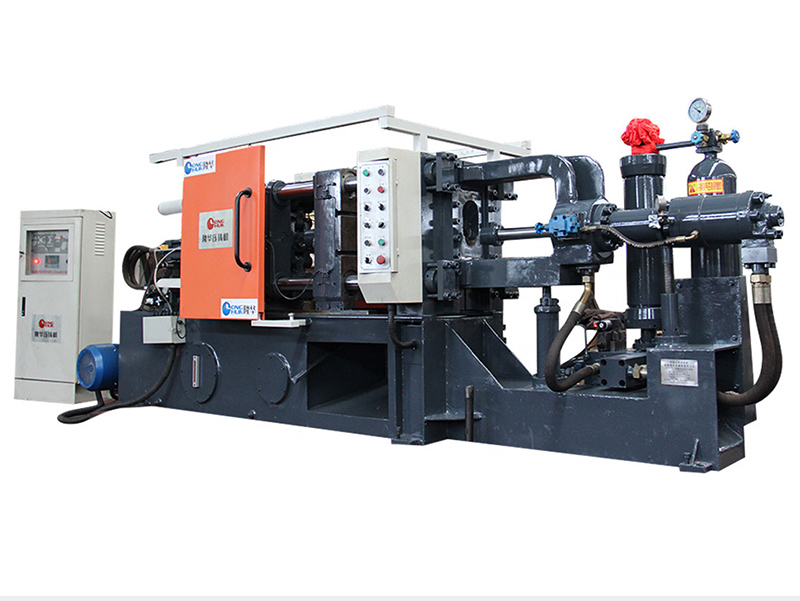

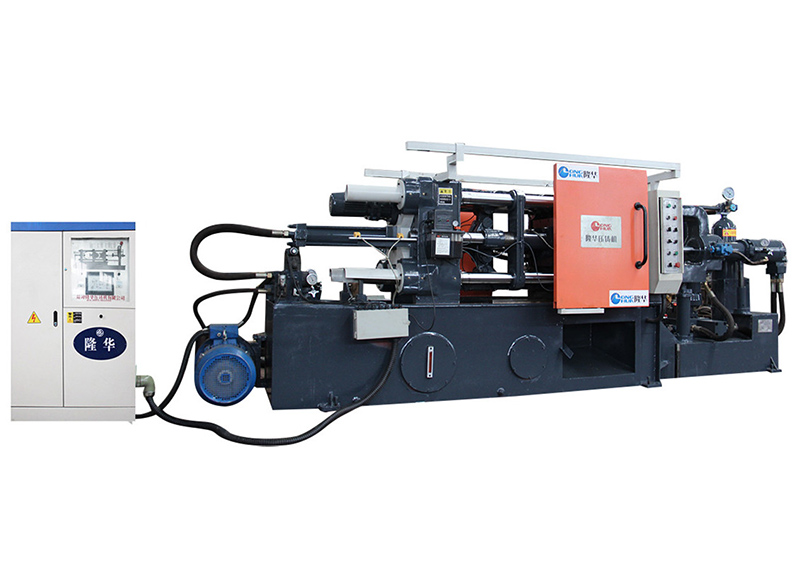

Die casting machines manufacturer Longhua Brand die casting machines
Thedie casting machine has a stable high performance injection system.
1.Die casting machine adopts unique injection system with vibration force, which makes injection more powerful and greatly improves product quality stability.
2.The injection and supercharging energy accumulator of the die casting machine are independently separated, and the injection is independently adjusted to ensure the stability of injection pressure.
3.The casting machine adopts a four-tie rod structure, which is more stable and reliable.
4.The maximum air injection velocity of the die casting machine is ≥8M/s, and the pressurized building time is ≤20ms.
5.Low speed segment: it can be precisely controlled to avoid the problem of air entrapment.
6.High speed break: high speed can be reached quickly, and filling time and casting forming effect can be effectively controlled.
7.Supercharging section: the supercharging speed can be changed according to the process to enhance casting density without causing deformation.
LH SERIES OF STANDARD PARAMETER TABLE (LH-140T)
|
ITEMS
|
UNIT
|
SPECIFICATION
|
|
HYDRAULIC WORKING PRESSURE
|
MPA
|
7
|
|
CLAMPING FORCE
|
KN
|
1400
|
|
SPACE BETWEEN TIE BARS
|
MM
|
420*420
|
|
TIE BAR DIAMETER
|
MM
|
￠80
|
|
DIE OPENING STROKE
|
MM
|
350
|
|
INJECTION FORCE(INTENSIFY)
|
KN
|
180
|
|
PLUNGER LAUNCH DISTANCE
|
MM
|
120
|
|
INJECTION POSITION
|
MM
|
0 -- 140
|
|
PLUNGER DIAMETER
|
MM
|
￠40----￠60
|
|
INJECTION STROKE
|
MM
|
320
|
|
CASTING PRESSURE (INTENSIFY)
|
MPA
|
143/92/64
|
|
CASTING FIANGE PROTRUSION
|
MM
|
10
|
|
CASTING FIANGE DIAMETER
|
MM
|
110
|
|
MAX CASTING AREA UNDER 40MPA
|
CM2
|
375
|
|
LNJECTION WEIGHT(AL)
|
KG
|
1.6
|
|
DIE HEIGHT(MIN--MAX)
|
MM
|
200～500
|
|
EJECTOR FORCE
|
KN
|
100
|
|
EJECTOR STROKE
|
MM
|
80
|
|
MOTOR CAPACITY
|
KW
|
11
|
|
MACHINE DIMENSIONS (L*W*H)
|
M
|
4.5*1.2*1.5
|
|
REFERENTIAL MACHINE WEIGHT FOR UPLIFTING
|
T
|
4.7
|
|
OIL TANK CAPACITY
|
L
|
300
|
PS：WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE

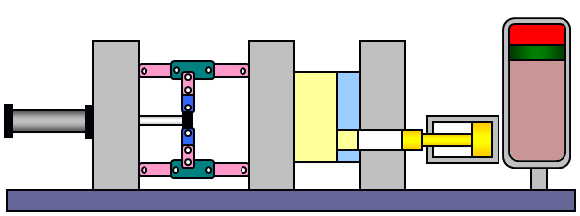

Working principle diagram of die casting machine
\
