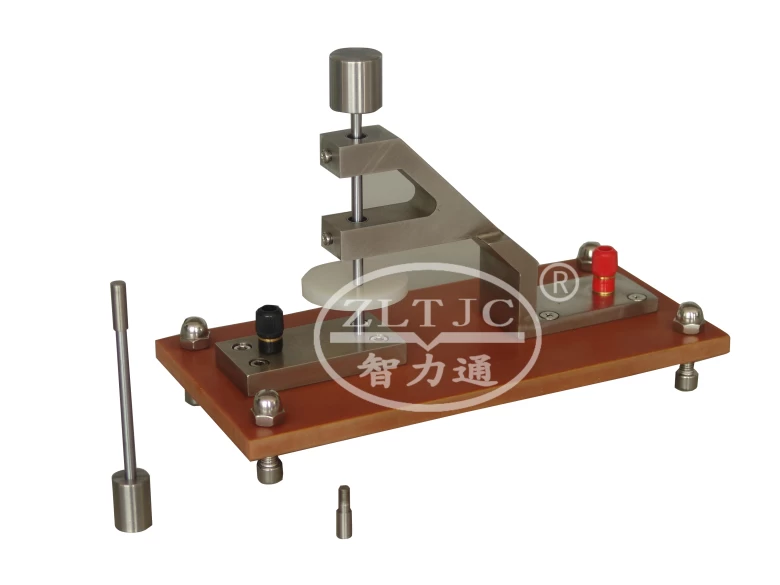

Dielectric Strength Test Instrument
Product details: Model ZLT-KQ.

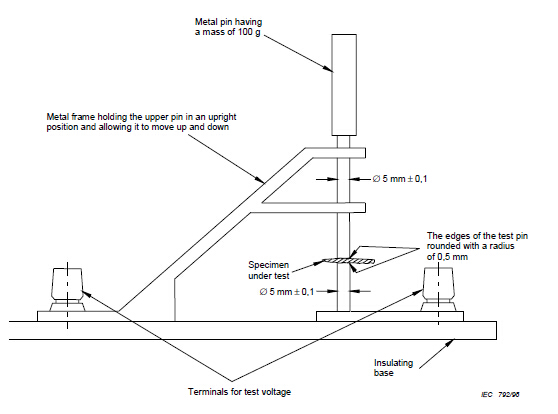

To test the surge strength according to IEC60065 figure 6 and UL1310 clause 40.2, with upper metal pin having a 5 mm diameter ,mass of 100 g and a 6.35 mm diameter, mass of 50 g, lower metal pin and frame holder.
