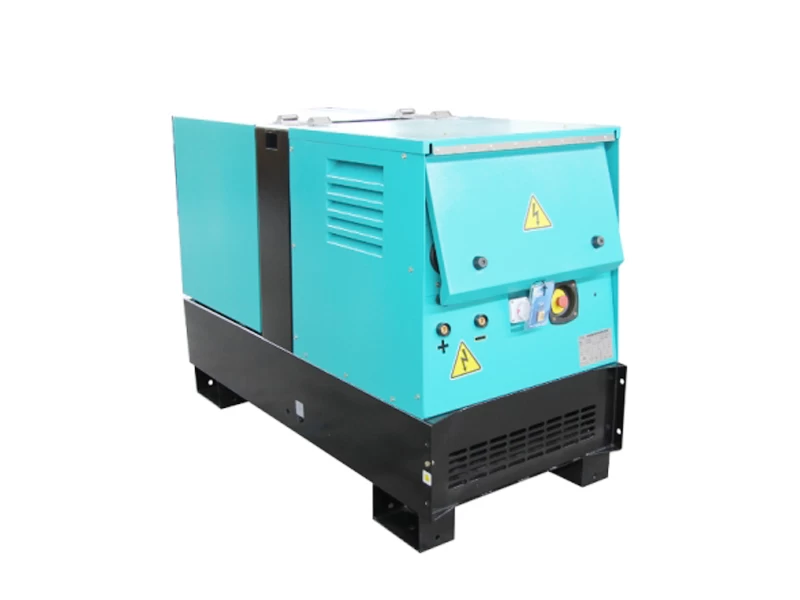

Characteristics of diesel electric welding machine
1、using intermediate frequency permanent magnet generator, MCU control technology, strong power, small volume and light weight.
2、The machine adopts frame structure optimization, mature operation, convenient maintenance.
3、power generation, electric welding machine and the second one, can separate power or electric welding, and can be used at the same time, easy to use the auxiliary power supply. The maximum is 6Kw.
4、the welding power with manual arc welding function, also has the cellulose and improve welding arc welding function.
5、using digital technology to make the control circuit more simple, more reliable, and the control circuit and the power circuit adopts modular design and installation, simple assembly and maintenance. Then, the whole structure is more compact
|
Item/Model
|
DSP160KM5
|
DSP200MM5
|
DSP250MM5
|
DSP250MT5
|
DSP315KT5
|
DSP400KT5
|
DSP500KT5
|
DSP630PT5
|
|
DC Welding Power
|
|
Rated Output(Kw)
|
4.2
|
5.6
|
7.5
|
7.5
|
10.3
|
14.4
|
20
|
27.7
|
|
Rated Current(A)
|
160
|
200
|
250
|
250
|
315
|
400
|
500
|
630
|
|
Rated Voltage(V)
|
26.4
|
28
|
30
|
30
|
32.6
|
36
|
40
|
44
|
|
Welding Current Range(A)
|
30~160
|
29~200
|
20~250
|
20~250
|
20~315
|
40~400
|
40~500
|
50~630
|
|
Rated Duty Cycle
|
60%
|
60%
|
60%
|
60%
|
60%
|
60%
|
60%
|
60%
|
|
Applicable Eletrode(mm)
|
1.6~2.5
|
1.6~3.2
|
2.0~4.0
|
2.0~4.0
|
2.5~5.0
|
3.2~6.0
|
5.0~8.0
|
5.0~8.0
|
|
Welding Efficiency
|
80%
|
80%
|
85%
|
85%
|
85%
|
85%
|
85%
|
85%
|
|
Power Factor
|
0.73
|
0.73
|
0.73
|
0.93
|
0.93
|
0.93
|
0.93
|
0.93
|
|
AC Power Source
|
|
Frequency(Hz)
|
50/60
|
|
Rated Output(KVA)
|
9.0
|
10.0
|
13.0
|
13.0
|
20.0
|
25
|
38
|
45
|
|
Rated Voltage(V)
|
100/110/120/200/220/230/240
|
380~440
|
|
No Of Phase
|
1-phase,2wire
|
3-phase,4wire
|
|
Power Factor
|
0.8(lagging)
|
|
Diesel Engine
|
|
Model
|
D1105-E2BG
|
S4L2
|
S4L2
|
S4L2
|
V2203-E2BG
|
V2003-T-E2BG
|
V3300-T-E2BG2
|
1103A-33TG1
|
|
Type
|
4-cycle,vertical,watercooledwithradiator
|
|
Rated Output(Kw)
|
9.5
|
14
|
14
|
14
|
20.1
|
22.5
|
32.1
|
46.5
|
|
Rated Speed(min-1)
|
1500
|
1500
|
1500
|
1500
|
1500
|
1500
|
1500
|
1500
|
|
Displacement(L)
|
1.123
|
1.758
|
1.758
|
1.758
|
2.197
|
1.999
|
3.318
|
3.3
|
|
Fuel Consumption(L/h)
|
2.48
|
4.5
|
4.5
|
4.5
|
5
|
5.6
|
8.1
|
10.7
|
|
Fuel Tank Capacity(L)
|
18
|
24
|
24
|
24
|
36
|
48
|
54
|
65
|
|
Dimensions(mm)
|
1750*800*1170
|
1860*800*1170
|
1860*800*1170
|
1860*800*1170
|
1860*900*1200
|
1860*900*1200
|
1950*1000*1370
|
2200*1000*1410
|
|
Weight(Kg)
|
710
|
800
|
800
|
800
|
800
|
830
|
850
|
1250
|
