Diesel Forklift A-series 10 ton

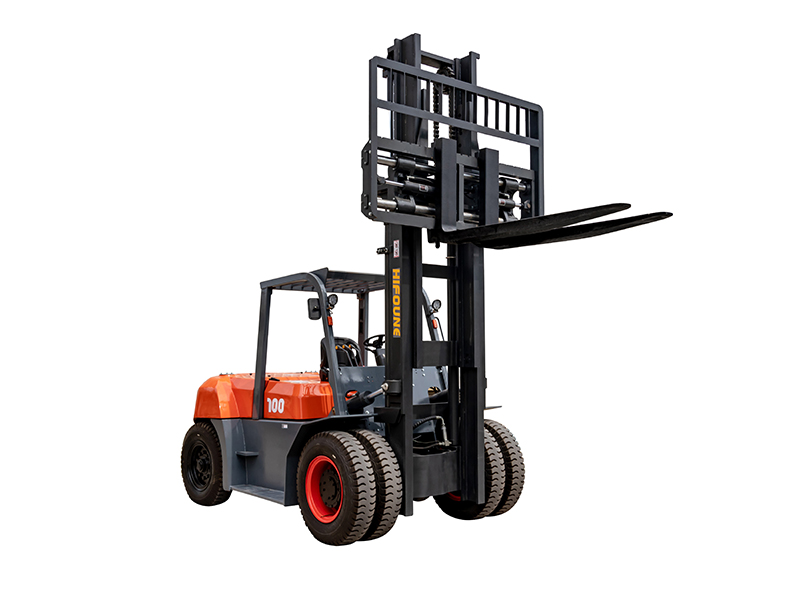

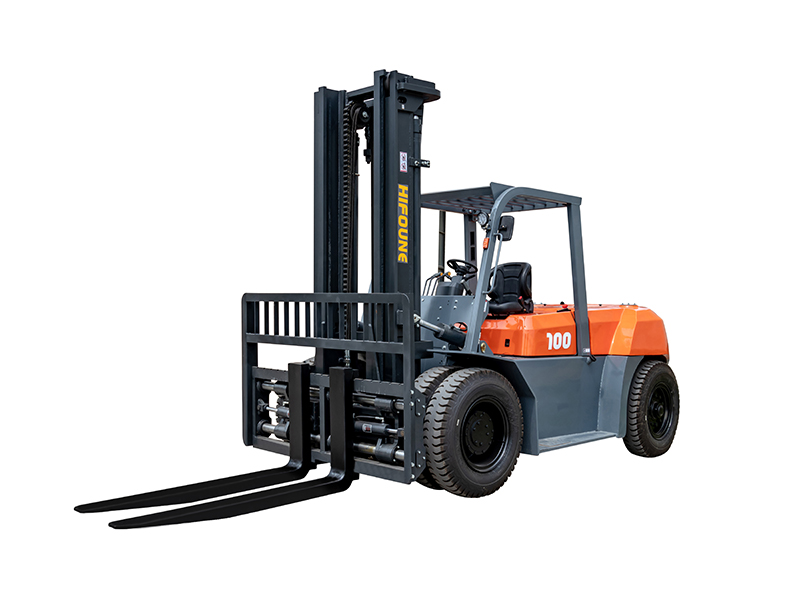

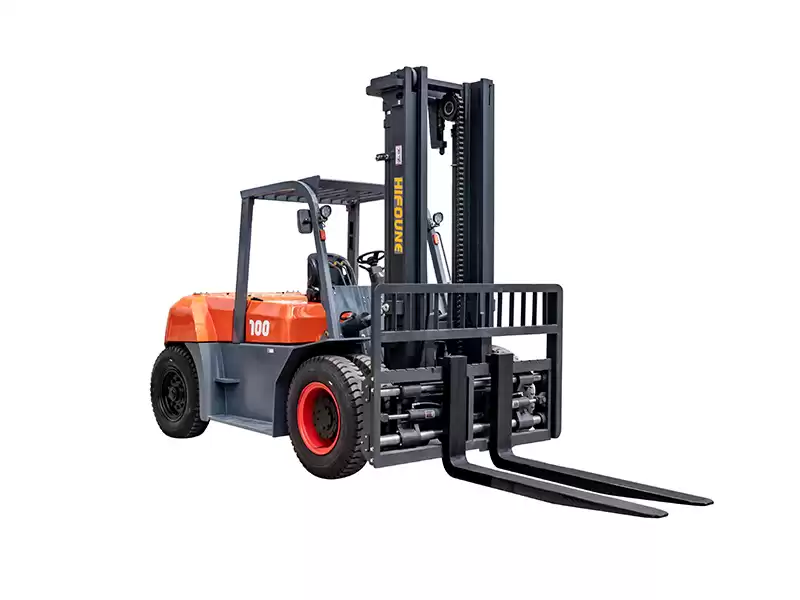

Hifoune FD100T is a forklift at 10ton capacity which uses diesel engine, choosable engine such as xinchai isuzu, mitsubish etc, color customizable, please contact us for more information.




Model UNIT FD100T FD120T
Specifications Power Unit
Diesel Diesel
Operator Type
Driver/seat Driver/seat
Transimission Bo× Type
Electronic hydraulic transmission Electronic hydraulic transmission
Rated Capacity kg 10000 12000
Load Center mm 600 600
Ma×.Lifting Height mm 3000 3000
Tire Type
Pneumatic Tyre Pneumatic Tyre
Tire Number  Front
4 4
Rear 2 2
Tire Size  Front
9.00×20-14PR 10.00×20-14PR
Rear
9.00×20-14PR 10.00×20-14PR
Performance Lifting Speed Loaded mm/s 380 380
Unloaded 410 410
Lowering Speed  Loaded mm/s 450 450
Unloaded 400 400
Travelling Speed  Loaded km/h 26 26
Unloaded 30 30
Ma×.Gradeability (Loaded) % 20 20
Ma×.Drawbar Pull (Loaded) kg 5850 6000
Mast Tilting Angle (Fwd/Bwd) deg 6/12 6/12
Free Lifting Height mm 180 180
Turning Radius mm 3900 4000
Dimensions Overall Length (with fork) mm 5480 5600
Overall Width mm 2160 2160
Overhead Guard Height mm 2560 2560
Fork Size (L×W×T) mm 1220×175×80 1220×180×80
Mast Height (Fork lowered) mm 2850 2850
Battery (Voltage/Capacity) V/Ah 2×12/80 2×12/80
Truck Weight kg 12500 13000
Fuel Tank Capacity L 143 143
Engine Brand
ISUZU CHAOCHAI ISUZU
Model
6BG1 6102 6BG1
Rated Power kw/rpm 82.3/2000 80.8/250 82.3/2000
Rated torque n-m/rpm 418/1500 354/1650 418/1500
Number Of Cylinder
6 6 6
Displacement
6.49 5.78 6.49


Products features

In these 4 to 5.5 tonnes powered forklifts, the tough six-cylinder engine’s precombustion chamber allows each cylinder to work at peak efficiency regardless of load and speed and contributes to the truck’s exceptionally low noise, vibrations, emissions and economy. The rotary fuel pump allows easy maintenance while protecting the engine.

The compact, smooth lines of each model ensure that they are easy to manoeuvre in confined spaces whilst ensuring good visibility. The excellence of the range is further boosted by a wide array of options that enable you to fine tune each truck to your work requirements.


Our Factory

    Our company is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.

We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

Certifications

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compatible with TCM forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
