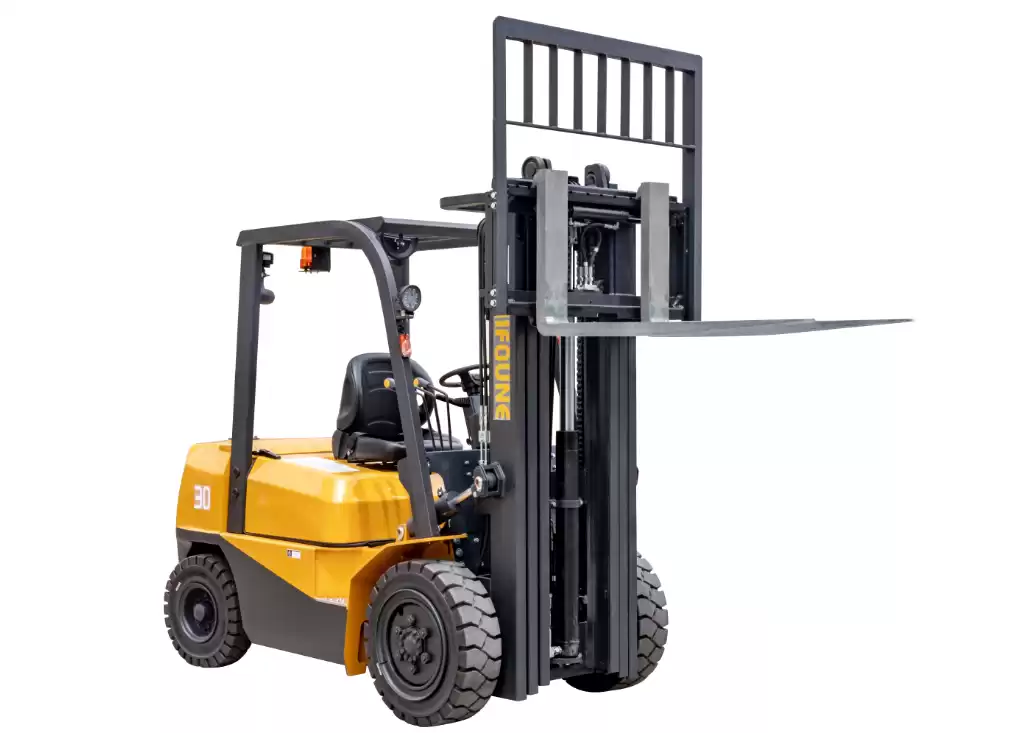

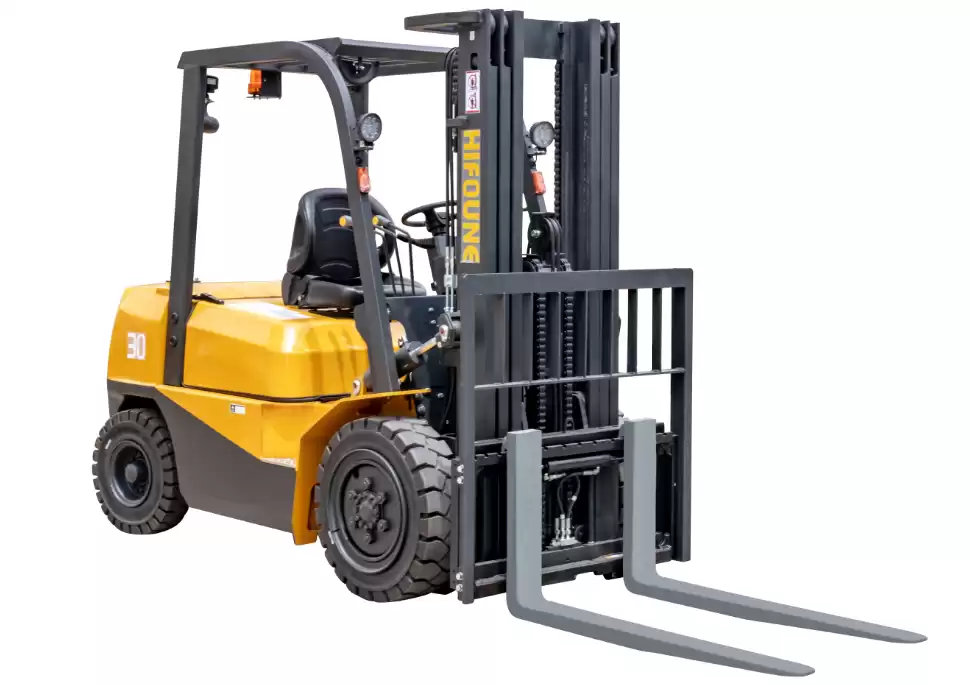

Diesel Forklift A-series 3.0 ton

Hifoune FD30T is a forklift at 3.0ton capacity which uses diesel engine, choosable engine such as xinchai isuzu,etc, color customizable, please contact us for more information.



new diesel 3 ton forklift truck

Model UNIT FD20T FD25T FD30T
Specifications Power Unit Diesel
Operator Type Driver/Seat
Transimission Bo× Type Electronic hydraulic transmission
Rated Capacity kg 2000 2500 3000
Load Center mm 500 500 500
Max.Lifting Height mm 3000 3000 3000
Tire Type Pneumatic Tire
Tire Number  Front 2 2 2
Rear 2 2 2
Tire Size  Front 7.00-12-12PR 7.00-12-12PR 28×9-15-14PR
Rear 6.0-9-10PR 6.0-9-10PR 6.5-10-10PR
Performance Lifting Speed Loaded mm/s 560 550 480
Unloaded 580 580 500
Lowering Speed  Loaded mm/s 480 480 420
Unloaded 450 450 400
Travelling Speed  Loaded km/h 20 20 20
Unloaded 21 21 21
Max.Gradeability (Loaded) % 20 20 20
Max.Drawbar Pull (Loaded) kn 14 14 17
Mast Tilting Angle (Fwd/Bwd) deg 6/12 6/12 6/12
Free Lifting Height mm 140 140 150
Turning Radius mm 2150 2210 2395
Dimensions Overall Length (with fork) mm 3640 3660 3800
Overall Width mm 1150 1150 1240
Overhead Guard Height mm 2125 2125 2145
Fork Size (L×W×T) mm 1220×122×40 1220×122×40 1220×125×45
Mast Height (Fork lowered) mm 2090 2090 2140
Battery (Voltage/Capacity) V/Ah 12/90 12/90 12/90
Truck Weight kg 3440 3765 4250
Fuel Tank Capacity L 70 70 70
Engine Optional
Engine Brand  XINCHAI MITSUBISHI ISUZU
Model C490 S4S C240
Rated Power kw/rpm 40/2650 35.3/2250 35.4/2500
Rated torque n-m/rpm 160/1600-2000 177/1700 137.7/1800
Number Of Cylinder 4 4 4
Displacement 2.67 3.331 2.37

Product Features


Small ton internal combustion forklift
Character:
1.new diesel 3 ton forklift truck has Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design

Our Factory


    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.



    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

Certifications

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.



Product Tags Diesel Forklift 3.0 ton          Forklift powered by Chinese engine          small capacity forklift          2 stage forklift          Diesel power Engine Forklift          warehouse lifting equipment forklift
