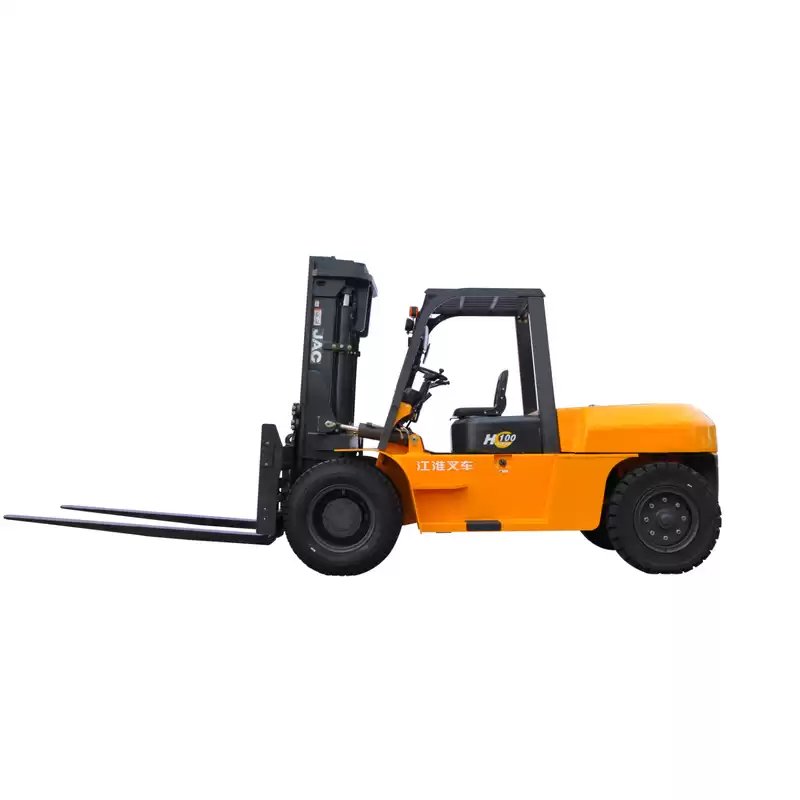

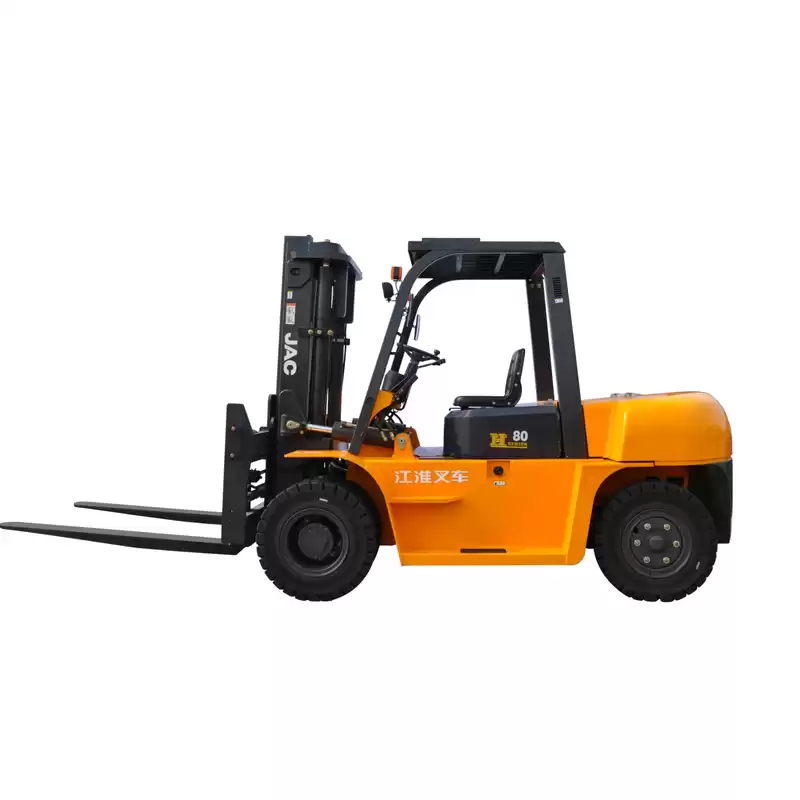

Diesel Forklift Truck 6 ton to 10 ton
Counterbalanced forklift with Diesel Engine, loading capacity over 5 tons, Chinese engine, Isuzu engine engine for option
1. Features
Save hyperbolic main drive axle so that the
smooth engagement, drive low noise, high rigidity gear mesh, and long service
life.
The hood with built-in heat-insulating and
sound-absorbing material, and the rubber parts in the gap are filled and
sealed, which absorbs the vibration well, reduces the noise and effectively
protects the driver's operating environment.
Adopt drum-type double-cylinder brake,
which is sensitive, safe and reliable.
Scientific ergonomic design effectively increases
the operating space and minimizes operator fatigue.
2. Specification
|
Model
|
CPCD60
|
CPCD70
|
CPCD80
|
CPCD100
|
|
1
|
Feture
|
Power Type
|
|
Diesel
|
Diesel
|
Diesel
|
Diesel
|
|
2
|
Load Capcity
|
kg
|
6000
|
7000
|
800
|
10000
|
|
3
|
Load center
|
mm
|
600
|
600
|
600
|
600
|
|
4
|
Lift height
|
mm
|
3000
|
3000
|
3000
|
3000
|
|
5
|
Free lift height
|
mm
|
205
|
160
|
170
|
160
|
|
6
|
Forkk size
|
L*W*H
|
mm
|
1520×150×75
|
1520×150×75
|
1520×150×75
|
1520×150×75
|
|
7
|
Mast tilt
|
FR/RR
|
。
|
6/12
|
6/13
|
6/12
|
6/12
|
|
8
|
Min turning Radius
|
mm
|
3300
|
3370
|
3370
|
3950
|
|
9
|
Min Right angle stacking aisle width
|
mm
|
4930
|
5000
|
5028
|
5708
|
|
10
|
Min right angle aisle width
|
mm
|
2960
|
3100
|
3100
|
3540
|
|
11
|
Min ground clearance
|
mm
|
210
|
235
|
235
|
225
|
|
12
|
Height of overhead guard
|
mm
|
2450
|
2450
|
2450
|
2560
|
|
13
|
Overhang
|
mm
|
590
|
590
|
618
|
718
|
|
14
|
Performance
|
Max driving speed
|
Full load
|
km/h
|
26
|
26
|
26
|
26
|
|
15
|
Max Lifting speed
|
Full load
|
mm/s
|
370
|
370
|
370
|
370
|
|
16
|
Max drawbar pull
|
Full load
|
KN
|
53
|
53
|
53
|
60
|
|
17
|
Gradeabiity
|
%
|
15
|
15
|
15
|
15
|
|
18
|
Dimension
|
Overall length
|
Without forks
|
mm
|
3470
|
3688
|
3688
|
4258
|
|
19
|
Over width
|
mm
|
1995
|
1995
|
1995
|
2245
|
|
20
|
Height mast lifted(with backrest）
|
mm
|
3930
|
3930
|
3930
|
4325
|
|
21
|
Height mast lowered
|
mm
|
2500
|
2500
|
2500
|
2845
|
|
22
|
Chassis
|
Tyre
|
Front
|
|
8.15-15-14PR
|
8.15-15-14PR
|
8.15-15-18PR
|
9.00-20-14PR
|
|
23
|
Rear
|
|
8.15-15-14PR
|
8.15-15-14PR
|
8.15-15-18PR
|
9.00-20-15PR
|
|
24
|
Wheelbase
|
mm
|
2250
|
2250
|
2250
|
2800
|
|
25
|
Tread
|
FR/RR
|
mm
|
1470/1700
|
1470/1700
|
1470/1700
|
1600/1700
|
|
26
|
Self weight
|
Without load
|
Kg
|
8640
|
9460
|
10460
|
12980
|
|
27
|
Drive
|
Battery
|
Voltage / Capacity
|
V/Ah
|
24/160
|
24/160
|
24/160
|
24/160
|
|
28
|
Engine
|
Model
|
|
CA6110/125-JHG10
|
CA6110/125-JHG10
|
CA6110/125-JHG10
|
CA6110/125-JHG10
|
|
29
|
Rated Power
|
kw/r.p.m
|
83/2200
|
83/2200
|
83/2200
|
83/2200
|
|
30
|
Rated Torque
|
Nm/r.p.m
|
432/1300
|
432/1300
|
432/1300
|
432/1300
|
|
31
|
Bore * sTROKE
|
mm
|
110×125
|
110×125
|
110×125
|
110×125
|
|
32
|
No.of Cylinder
|
|
6
|
6
|
6
|
6
|
|
33
|
Displacement
|
L
|
7.127
|
7.127
|
7.127
|
7.127
|
|
34
|
Fuel tank capacity
|
L
|
110
|
110
|
110
|
120
|
|
35
|
Transmission
|
|
2/2manual shift
|
2/2manual shift
|
2/2manual shift
|
2/2manual shift
|
|
36
|
Operating Pressure
|
Mpa
|
19.5
|
19.5
|
19.5
|
19.5
|
|
37
|
Supplement
|
Tire type (FR/RR)
|
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
Pneumatic
|
|
38
|
Numbers of wheels
|
pcs
|
4/2
|
4/2
|
4/2
|
4/2
|
|
39
|
lowering speed (full load)
|
mm/s
|
540
|
540
|
540
|
540
|
|
40
|
Lowering speed ( unload)
|
mm/s
|
470
|
470
|
470
|
470
|
|
41
|
Axle load distribution (full load) (FR/RR)
|
kg
|
7776/864
|
8514/946
|
9414/1046
|
11682/1298
|
|
42
|
Axle load distribution (unload) (FR/RR)
|
kg
|
3456/5184
|
3784/5676
|
4184/6276
|
5192/7788
|
