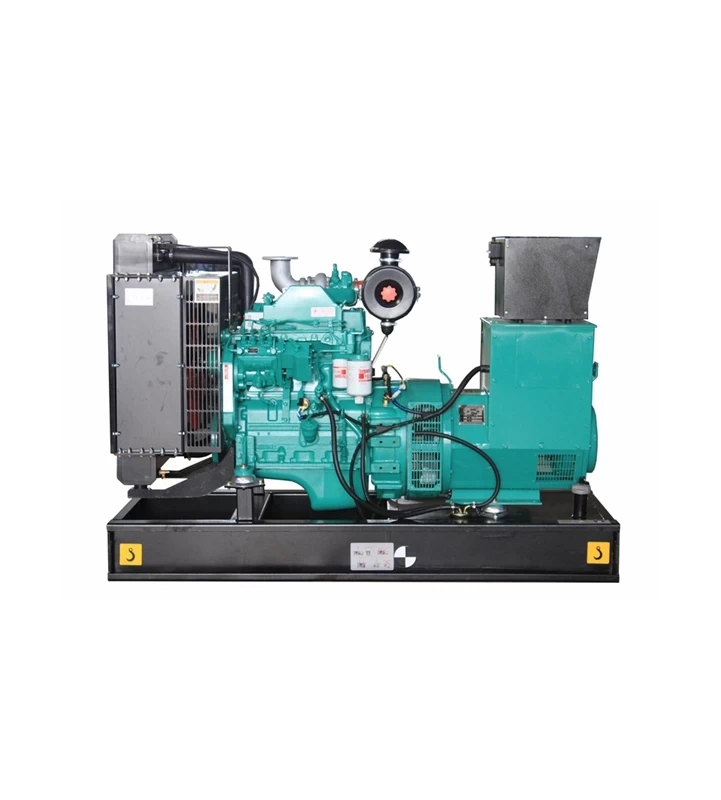

4BTA3.9-G2 series 40-44KW Cummins diesel generator set
General feature:
●Cummins 4BTA3.9-G2, Heavy duty diesel engine, 4 stroke, 1500RPM, Liquid cooled
●AOSIF AA-40-4/40KW, 12 Leads brushless alternator. IP23 drip-proof protection, Insulation class H. Electronic Automatic voltage regulation
●Delixi breaker, Main line circuit breaker, 3pole, set mounted, wired and maximum output rated for complete generator protection
●Deepsea 6120, Digital auto-start/stop control panel. All genset parameter, alarms and control functions. CE listed
●Deepsea 6120, ADVANCED Digital auto-start/stop control panel with Remote monitoring/control. All genset parameter, alarms and control functions.
●AOSIF TANK, Incorporated metallic fuel tank with electronic level sensing, single wall. Daily autonomy: 8 hours base fuel tank
50 HERTZ, 3 PHASES, 0.8PF, 1500 RPM
Genset Open Version Genset Soundproof Version
Open Type (Standard Configuration)
|
Soundproof Type
|
Overall Size: 1900×750 ×1270mm(L*W*H)
|
Overall size: 2250×1050×1550mm(L*W*H)
|
Weight: 800kg
|
Weight: 1100kg
|
|
Voltage
|
Power ESP
kWe/kVA
|
Power PRP
kWe/kVA
|
Standby Amps
|
|
480/277
|
40 / 50
|
44/ 55
|
60
|
|
440/254
|
40 / 50
|
44/ 55
|
66
|
|
380/220
|
40 / 50
|
44/ 55
|
76
|
|
240/120
|
40 / 50
|
44/ 55
|
120
|
|
230/115
|
32 / 40
|
44/ 55
|
100
|
|
220/127
|
40 / 50
|
44/ 55
|
131
|
|
208/120
|
37 / 46
|
44/ 55
|
128
|
|
480/277
|
40 / 50
|
44/ 55
|
60
|
FULLY PACKAGED 3 PHASE 50 KVA AOSIF GENERATOR SET INCLUDES STANDARD:
●Open skid version
●DSE6120 Auto Start control feature included for automatic start/stop with ATS/AMF
●Brand-new engine.Power by Stamford.12 lead reconnectable Alternator, brushless, single bearing, IP23 drip proof protection, Insulation class H/H, AVR SR7, +/- 1.0% regulation
●12V charging alternator and 12V electrical starter motor
●12V Varta Brand,high capacity sealed maintenance free battery c/w battery cables.
●9dB(A) Industrial silencer ready to install
●Dry type Air filter, Fuel filter and Oil filter spin-on elements installed
●Mechanically welded chassis with anti-vibration isolators
●Each unit prototype and individually factory load bank tested prior to shipping in ISO9001 Quality Controlled facilities
●User guide, commissioning and maintenance manual. Wiring diagrams included. (English, Spanish or French)
●The generator accepts 100% rated load in one step as per NFPA110 and meets ISO8528-5 class G-3 for transient response
●Many options available: ATS,Synchronization System,External daily fuel tank,Silent Canopy,Trailer,Auto Fuel Pump,Fuel and Water Separator,Lub Oil Heater,Coolant Heater,Fuel Drain Pump, Remote annunciators and More
●Compliant with：ISO9001,ISO14001,CE,ISO8528.
Cummins engine:
Cummins is the world's leading power equipment manufacturer, who focuses on the design and manufacture of engines and related technologies, and has become the world's largest engine manufacturer in the industry. The product includes diesel engines (Displacement from 19 to 95 liters) , designing, manufacturing and offering multiple power solutions, and providing 6,500 after-sales service support agencies worldwide.
Generator Detail
Our Sales Promises
● AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly factory tested before shipment.
● Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours, whichever comes first.
● Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
● All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
