The 1771-OM has an ON-state maximum voltage loss of 1.6V at 2A with 2mA per output leakage current at 220V AC in the OFF state and the module draws 225mA at 5V DC (+5%) backplane current from the I/O chassis.
|
|
1771-OM Description:
|

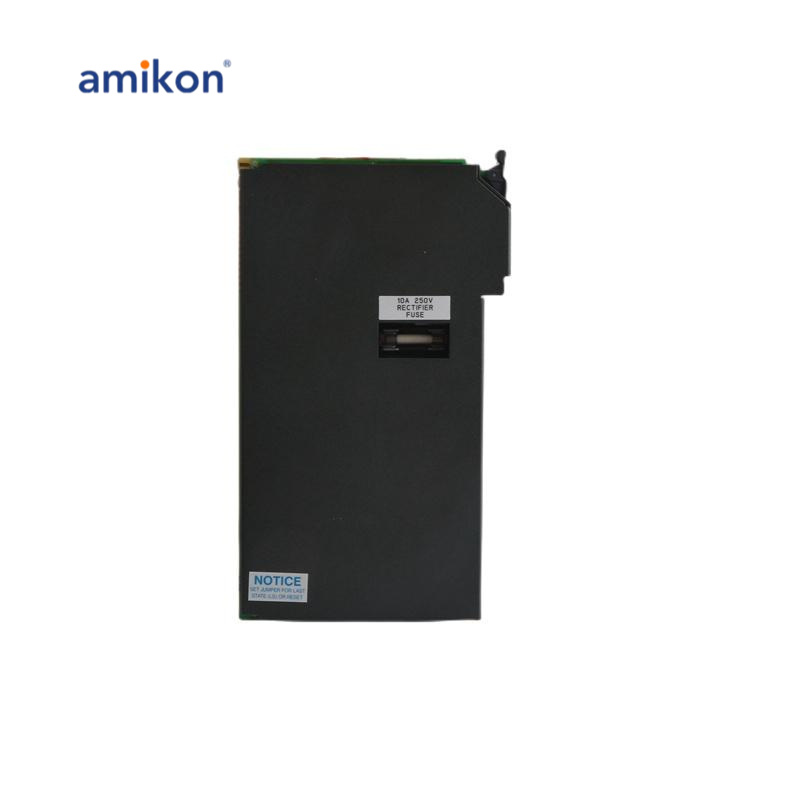

The 1771-OM is an Digital AC Output Module.
|
|
The 1771-OM PLC 5 Digital AC Output Module by is an output module with 8 fused AC Triac outputs located on any slot of the 1771 I/O chassis.
|
|
At 220V AC and 60Hz, the minimum current required by the module to remain ON is 60mA, and at any value below this, the Triac output, it will not operate.
|
|
