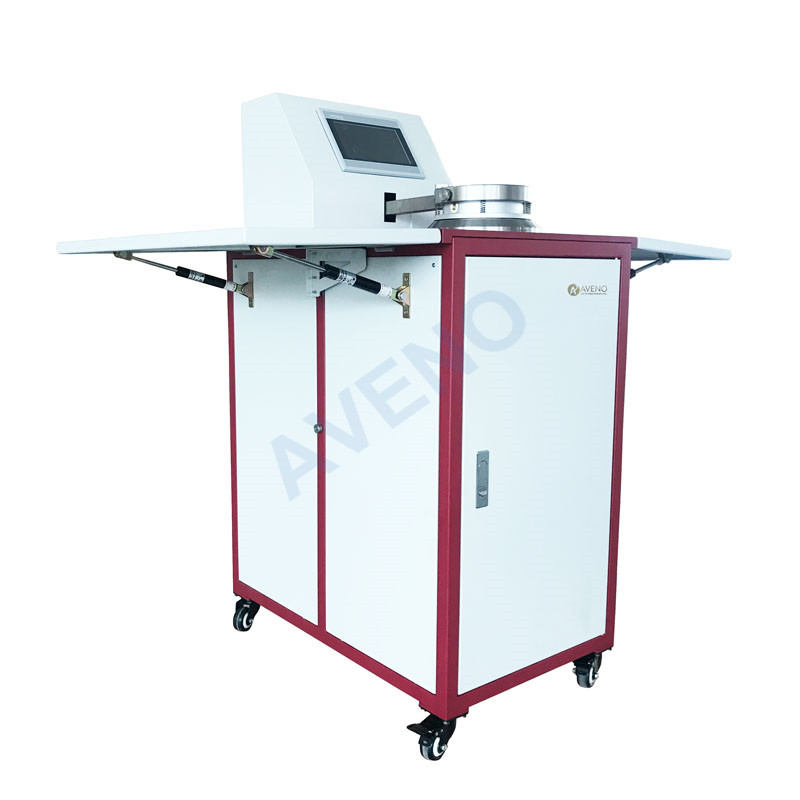

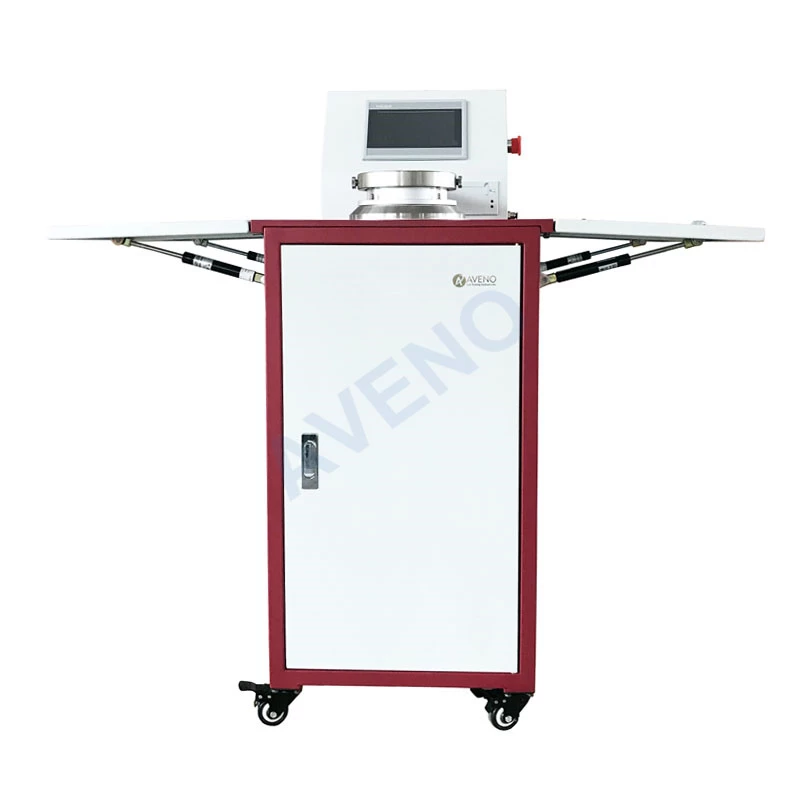

AG18A-Digital Air Permeability Tester
Application Of Digital Air Permeability Tester
Digital Air Permeability Tester is used for the determination of the air permeability of a variety of fabrics,such as industrial fabrics, non-woven fabrics and other breathable materials.
Feature Of Digital Air Permeability Tester
-
Use high-precision pressure and differential pressure sensor detection to ensure accurate data.
-
Micro-computer processing, test results are displayed directly, no need to manually check the table calculation.
-
The test unit can be switched freely according to the needs. (Build in mm/s、m3/m2.min、cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s)
-

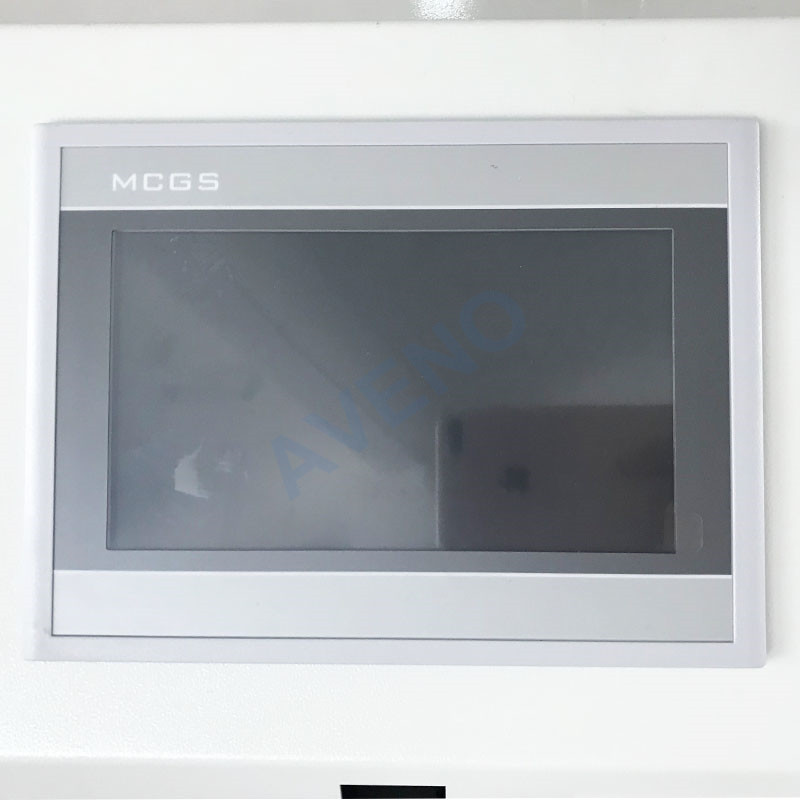

color touch screen control, with high definition.
-
can be operated online with the computer host computer, automatically draw real-time test data curve, easy to observe.
-
Manually change the nozzle.
Standards Of Digital Air Permeability Tester
GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737, DIN 53887, JIS L1096.
Key Specification Of Digital Air Permeability Tester
|
Model
|
AG18A Digital Air
Permeability Tester
|
|
Nozzle
|
Manually change nozzle
|
|
Test pressure
|
1～4000Pa
|
|
Permeability
range
|
1～9999mm/s, ≤±2％
|
|
Fabric
thickness range
|
≤12mm
|
|

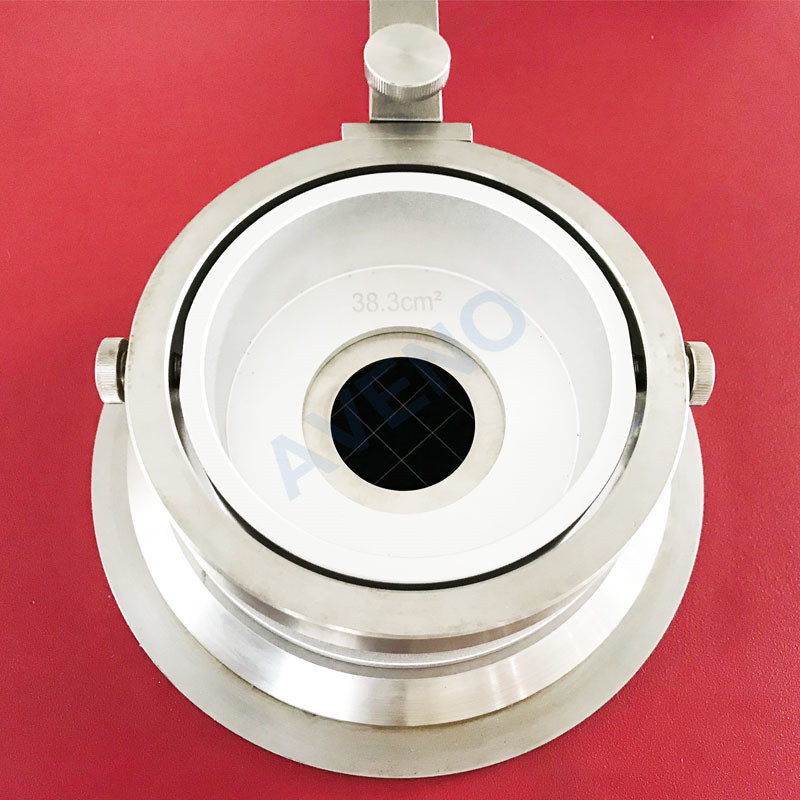

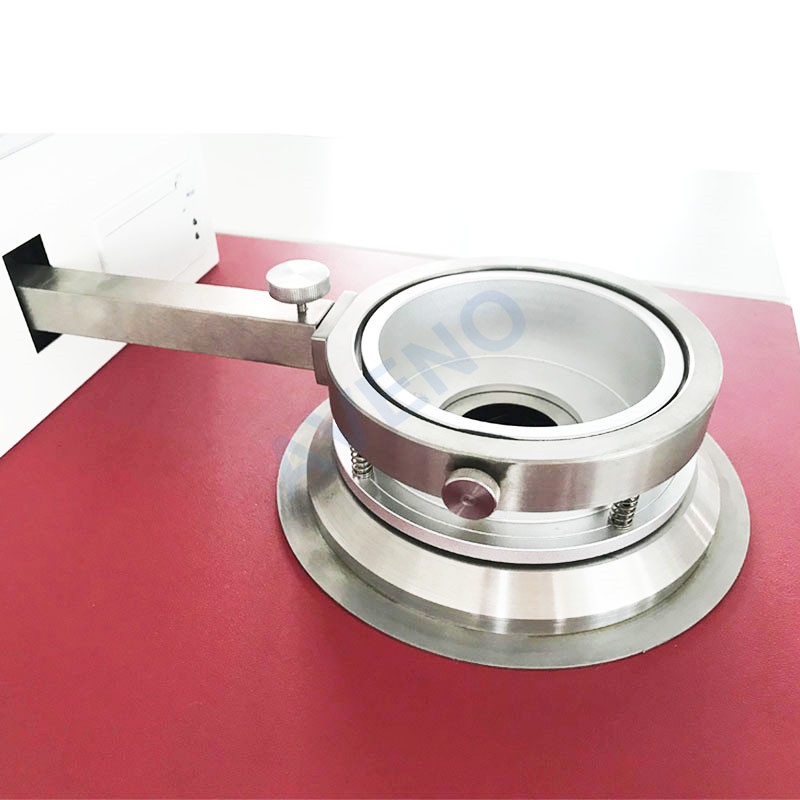

Test area
|
5cm2, 20cm2, 50cm2,
100cm2,
Ф50mm(≈19.6cm2), Ф70mm(≈38.5cm2)
|
|
Nozzle
NO.
|
0
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|
Nozzle Dia. (mm)
|
0.8
|
1.2
|
2
|
3
|
4
|
6
|
8
|
10
|
12
|
16
|
20
|
|
Printer
|
Thermosensitive micro
printer
|
|
Power
|
AC220V, 50/60HZ
|
|
Dimension
|
107×67×108cm
|
|
Weight
|
75kg
|
Accessories Of Digital Air Permeability Tester
|
Standard
Accessories
|
Operate
software
|
1set
|
|

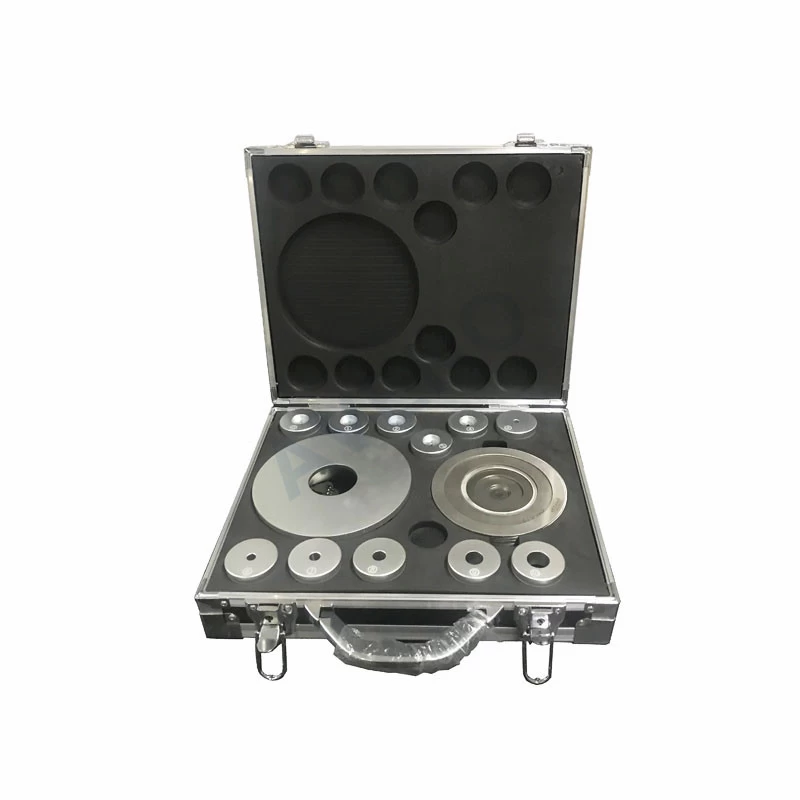

Calibration
plate
|
1set
|
|
Nozzle
|
1set
|
|
PC cable
|
1pc
|
|
Power line
|
1pc
|
