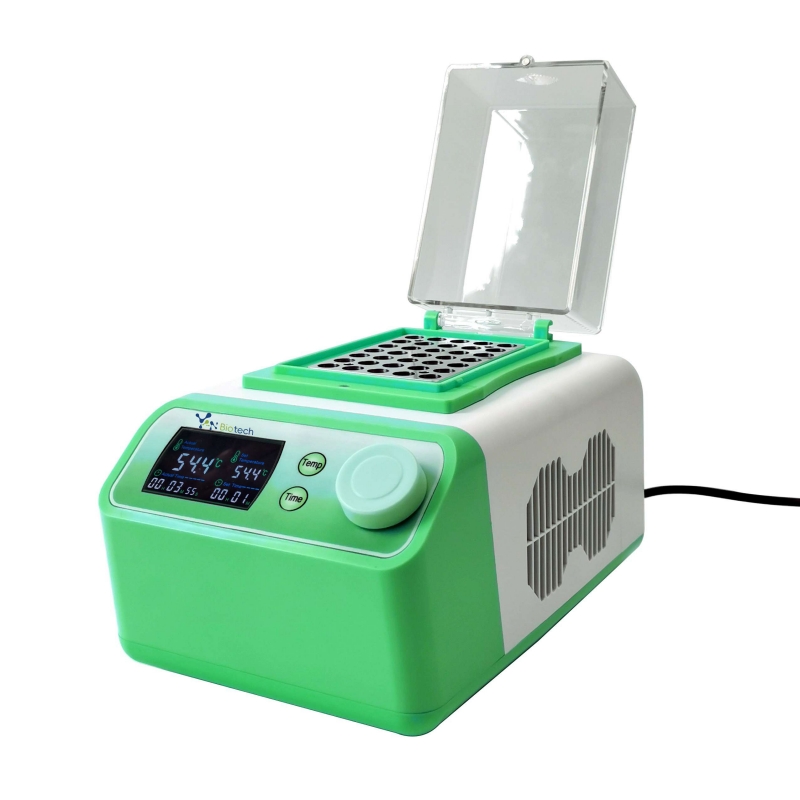

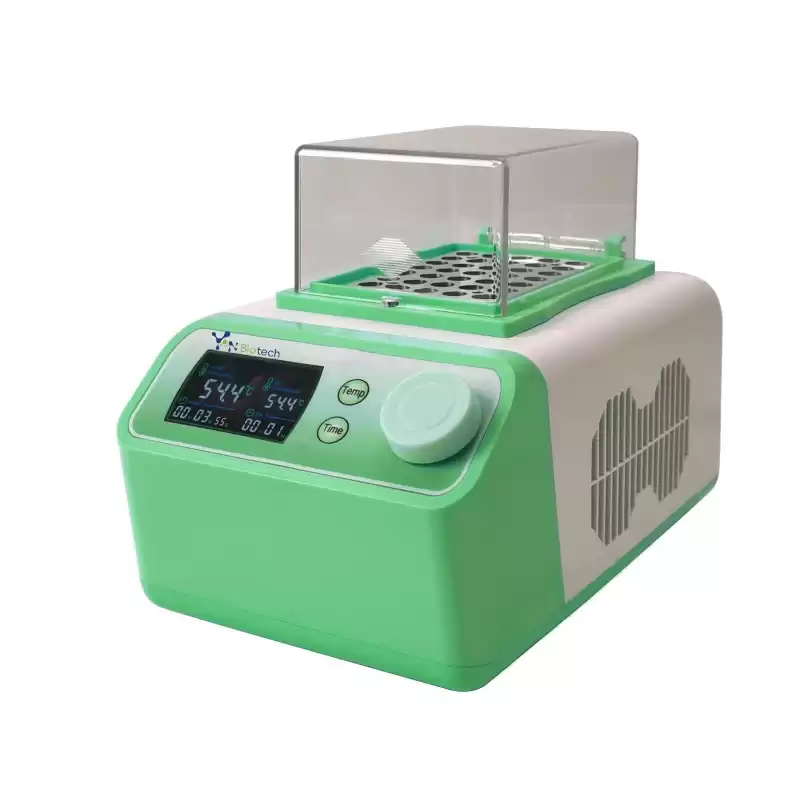

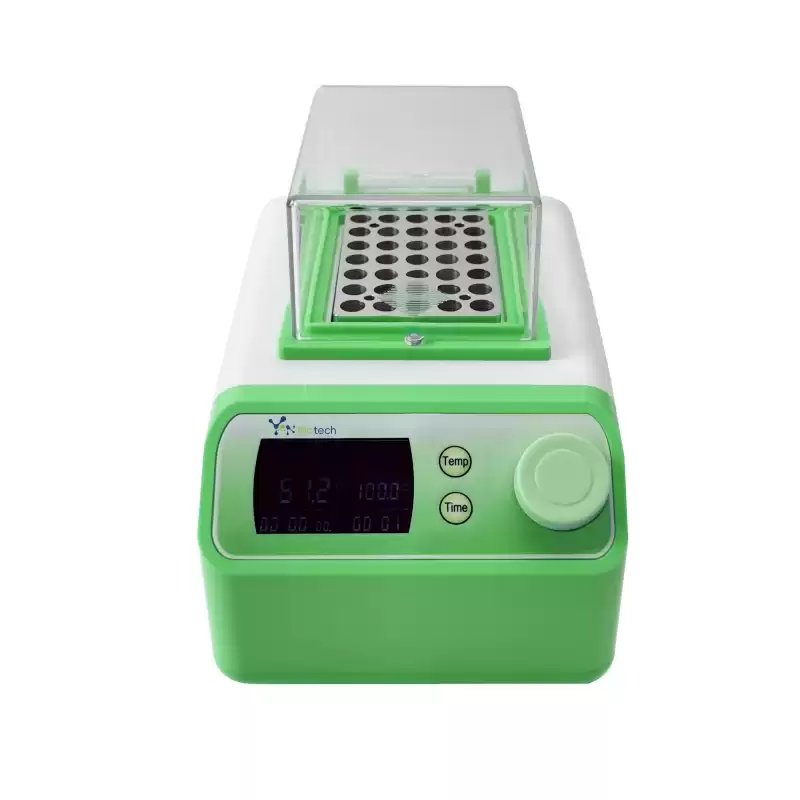

Product Introduction
A dry bath incubator is a lab instrument used to heat samples at a precise temperature for various biological, chemical, and clinical applications. Unlike water baths, dry baths use metal blocks with wells to hold test tubes, microcentrifuge tubes, or PCR tubes, providing a stable and uniform heating environment.
Product Specifications
| Product Name |
Dry Bath with Heating Function |
Dry Bath with Heating, Cooling Function |
Dry Bath with Cooling, Heating, Programmable Function |
Dry Bath with Cooling, Heating, Shaking Function |
| Cat. No. |
YB-DBH |
YB-DBHC |
YB-DBHCP |
YB-DBHCS |
| Programmable |
|
|
Yes |
|
| Horizontal Amplitude |
|
|
|
3mm |
| Speed Range |
|
|
|
200-1500rpm |
| Temperature Control Range |
+5℃-100℃ |
0℃-100℃ |
0℃-100℃ |
20℃-100℃ |
| Temperature Setting Range |
+5℃-100℃ |
0℃-100℃ |
0℃-100℃ |
0℃-100℃ |
| Time Setting |
1min-99h59min |
1min-99h59min |
1min-99h59min |
1min-99h59min |
| Speed Range |
40-200rpm |
|
|
|
| Module Temperature Stability 40-100℃ |
≤±0.5 ℃ |
≤±0.5 ℃ |
≤±0.5 ℃ |
≤±0.5 ℃ |
| Module Temperature Uniformity ＜40℃ |
≤±0.3 ℃ |
≤±0.3 ℃ |
≤±0.3 ℃ |
≤±0.3 ℃ |
| Module Temperature Uniformity ＞40℃ |
≤±0.5 ℃ |
≤±0.5 ℃ |
≤±0.5 ℃ |
≤±0.5 ℃ |
| Temperature Display Accuracy |
+0.1℃ |
+0.1℃ |
+0.1℃ |
+0.1℃ |
| Lifting Speed of Heating and Cooling |
≤15 min
(20 ℃-100 ℃) |
≤15 min
(20 ℃-100 ℃) |
≤15 min
(20 ℃-100 ℃) |
≤12 min
(20 ℃-100 ℃) |
| Sample Processing Capacity |
1 Standard Module |
1 Standard Module |
1 Standard Module |
1 Standard Module |
| Input Power |
AC100 V/AC220 V
50 Hz/60 Hz |
AC100 V/AC220 V
50 Hz/60 Hz |
AC100 V/AC220 V
50 Hz/60 Hz |
AC100 V/AC240 V
50 Hz/60 Hz |
| Power |
150W |
150W |
150W |
200W |
| Fuse |
250V/3A |
250V/3A |
250V/3A |
250V/3A |
| Dimension |
175×278×197 mm |
175×278×197 mm |
175×278×197 mm |
178×278×244 mm |
| Net Weight |
2.2kg |
3.3kg |
3.3kg |
16k |
Key Features
Precise Temperature Control: 10° Angle tray are suitable for different application enviroment.
Interchangeable Heating Blocks: Different block sizes accommodate various tube types.
Compact & Low Maintenance: No need for water, reducing contamination risks.
Module Parameter
| Module |
YB-DBH |
| Standard Module |
1.5 mLx 35 |
| Optional Module A |
0.5 mL X 54 |
| Optional Module B |
0.2 mL X 96 |
| Optional Module C |
2.0 mL X 35 |
| Optional Module D |
0.2 mL X 32+1.5 mL X 25 |
| Optional Module E |
5 mL X 24 |
| Optional Module F |
15 mL X 12 (high lid) |
| Optional Module G |
50 mL X 6 (high lid) |
| Optional Module H |
0.2 mL X 96 ( ELISA plate) |
| Optional Module I |
0.2 mL X 32+0.5 mL X 10+1.5 mL X 15 |
| Optional Module J |
10mL X 15 |
| Dimensions(mm) |
175x278x197 |
| Weight(kg) |
2.2 |
Applications
🔬 Molecular Biology: Incubating DNA, RNA, or enzymes.
🧪 Clinical & Medical Labs: Heating serum, blood samples, or reagents.
🦠 Microbiology: Culturing or activating bacteria.
⚗️ Chemical Reactions: Conducting temperature-sensitive processes.
