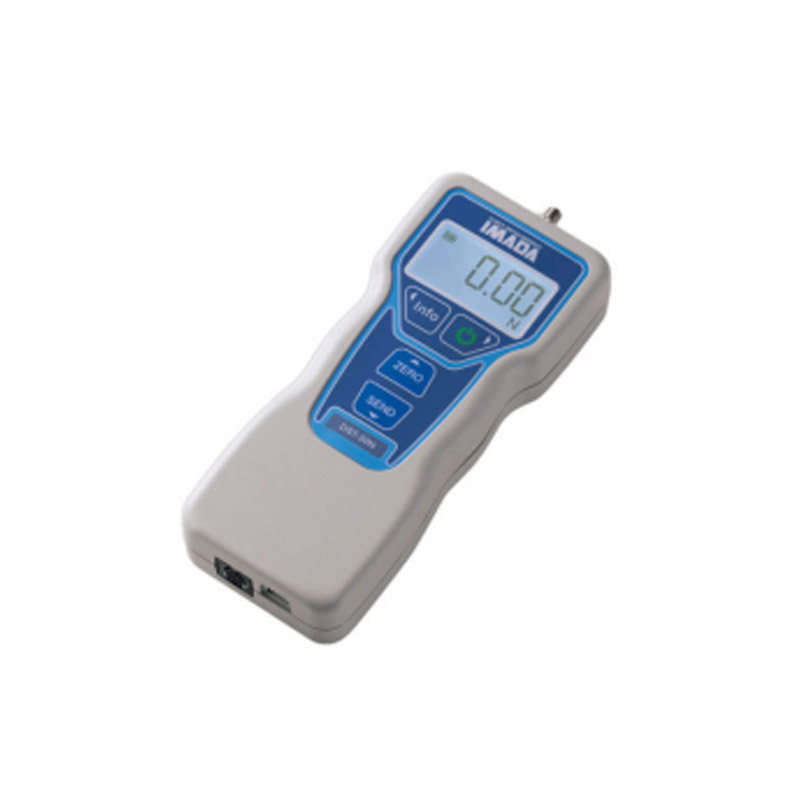

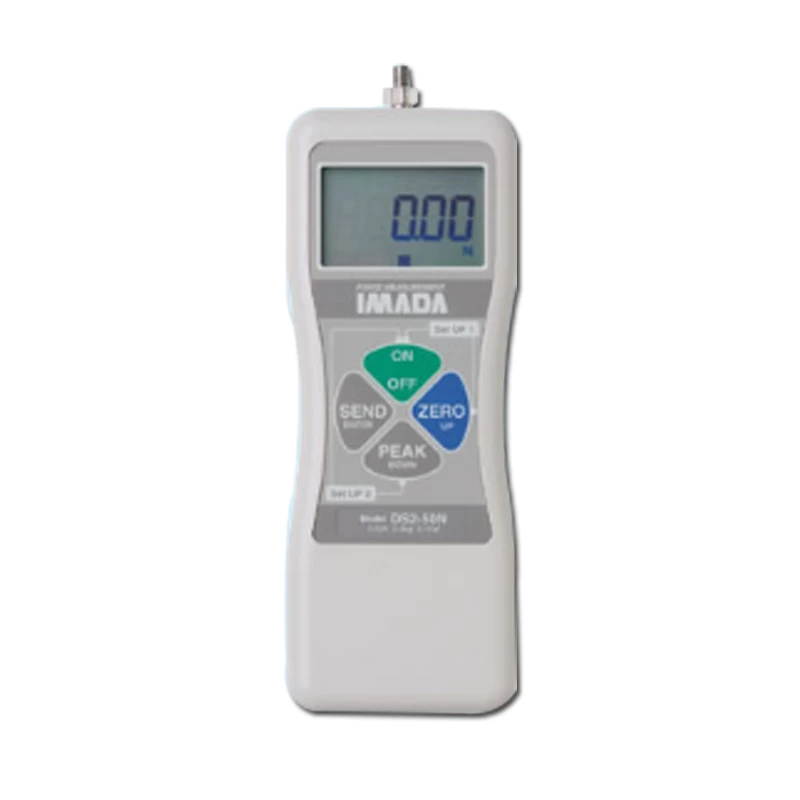

Digital Force Gauge GT-IMADA

Model

DST series

Accuracy

±0.2% F.S. ±1 digit

Unit of measurement

N/kfg/lbf

Display

4-digit LCD

Sampling rate

1000 data / sec. (max)

Display update

10 times / sec.

Safe overload rating

Approx. 200%F.S.

Function

Peak hold/Comparator/Display reverse/Damping(2 levels)

Power

Nicd rechargeable batteries and external AC adapter

Battery life

Approx. 10 hours(Approx.10-hour charge)

Operating temperature

0 to +40 degree Celcius

Operating humidity

20 to 80% RH

Weight (approx.)

460g

Output

Digital (RS232C), Mitutoyo Digimatic, analog (+/-1VF.S.)

Model

Capacity

Display

Resolution

Thread

DST-2N

2N (200gf)

2.000N (200.0gf)

0.001N (0.1gf)

M6

DST-5N

5N (500gf)

5.000N (500.0gf)

0.001N (0.1gf)

DST-20N

20N (2kgf)

20.00N (2.000kgf)

0.01N (0.001kgf)

DST-50N

50N (5kgf)

50.00N (5.000kgf)

0.01N (0.001kgf)

DST-200N

200N (20kgf)

200.0N (10.00kgf)

0.1N (0.01kgf)

DST-500N

500N (50kgf)

500.0N (51.00kgf)

0.1N (0.01kgf)

DST-1000N

1000N (100kgf)

1000N (100.0kgf)

1N (0.1kgf)
