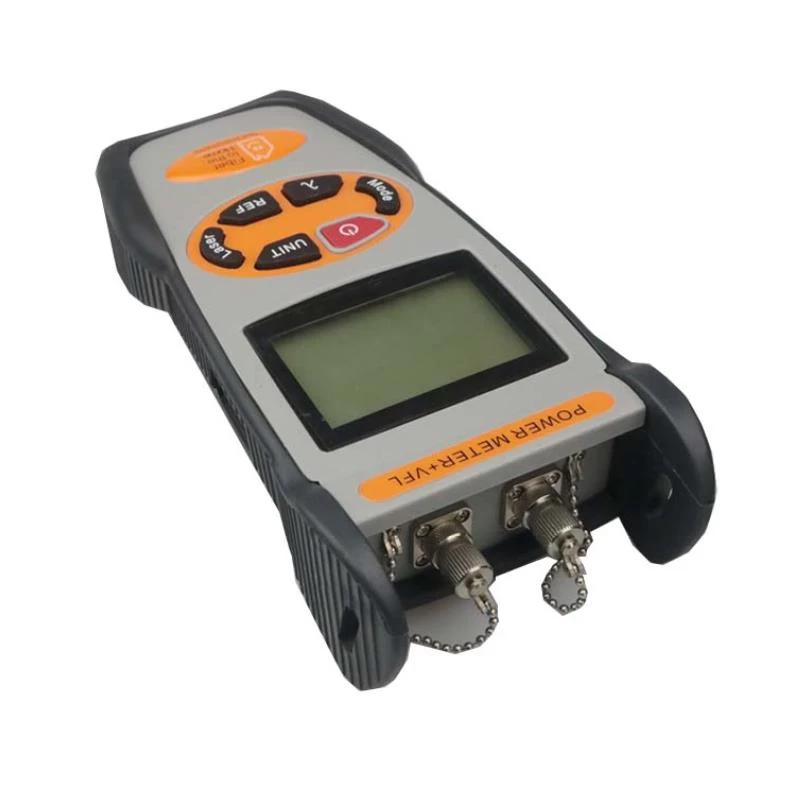

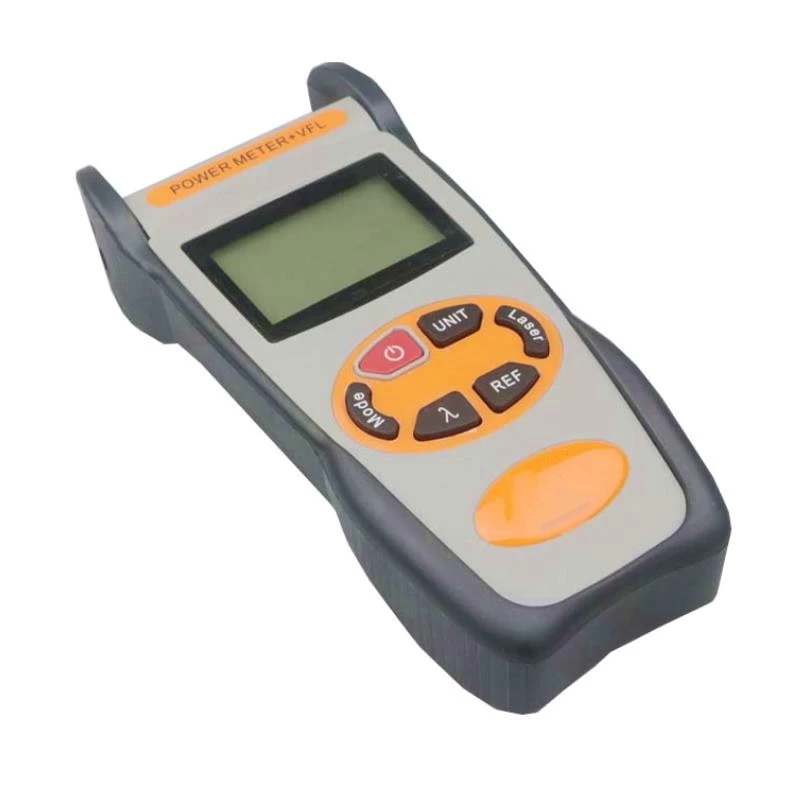

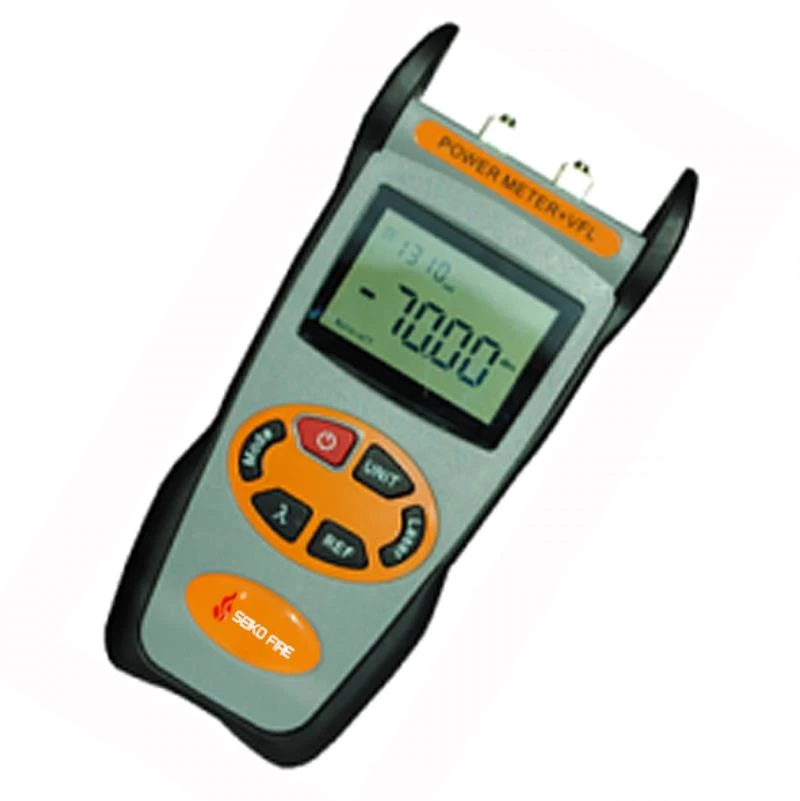

Digital Mini Power meter +VFL S403

All in one power meter and VFL function.

Most compact in Size, ideal for field operation.

With wavelength memory function, boot will display the last shutdown wavelength set.

Facebook Twitter Pinterest LinkedIn 分享

Introduction

S403 power meter + VFL is an ideal tester used in quickly mechanical splicing and FTTx networks.

Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and fiber faults tracing visually.


Specifications

Type

S403

Operating wavelength

(Power Meter Module)

1310, 1490, 1550, 850, 1300, 1625

Detector Type

InGaAs

Output power (VFL module)

1mw (according to the customer’s requirements)

Power Measurement Range

-70~+6dBm

Uncertainty

±0.5dB

Resolution

0.01

Operation Temperature

-10~+60 ℃

Storage Temperature

-25~+70 ℃

Auto-off function

Yes, Auto-off after 10minutes idle time

Battery Life @ OPM

240 hours

Battery Life @ VFL

60 hours (1mw)

Power Supply

3pcs AA Batteries

Weight(g)

285

Size(mm)

200 X90 X50
