Product Name: Digital Persona U.are.U 4500 Fingerprint Scanner Module for OEM Developers
Description:

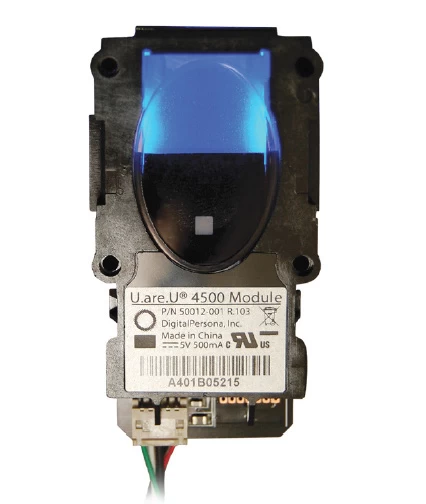

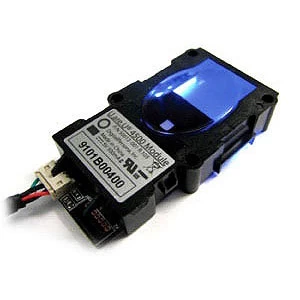

The U.are.U 4500 OEM Fingerprint Module is a small form-factor Portable USB Fingerprint Reader designed for integration into OEM equipment where fingerprint verificaiton or identification is needed. It works seamlessly with Crossmatch U.are.U developer Windows SDK or Linux SDK. Digital Persona U.are.U 4500 Fingerprint Scanner Module is sealed from dust and includes convenient mounting features. The on-based electronics automatically control calibration, encryption, and data transfer over the USB interface.
The user simply places a finger on the reader window, and the reader quickly and automatically captures and encrypts the fingerprint image before sending it to the FingerJet matching engine for verification.
The URU4500 Reader is a end product which embedded with U.are.U 4500 OEM USB Fingerprint Reader Module, it featuring an elegant, sleek design with a soft, cool blue glow and, of course, the unsurpassed performance DigitalPersona is known for. Made for power-users and shared environments, the Digital Persona 4500 is the natural choice for those that want and need the very perfect.
Features:
．Rugged Sensor
．Small form factor
．Latent print rejection
．Blue LED (in idle mode)
．Excellent image Quality
．Encrypted fingerprint data
．Counterfeit finger rejection
．Works well with dry, moist, or rough fingerprints
．Compatible with Windows® 7, CE, XP Professional, Linux and Android 4.X
Specification:
|
Fingerprint Sensor
|
Scanning area: 14.6 mm (nom. width at center) 18.1 mm (nom. length)
, 8-bit grayscale (256 levels of gray)
|
|
Image resolution
|
512 dpi (average x,y over the field)
|
|
USB interface
|
USB 1.1 and 2.0
|
|
Supply Voltage
|
5.0V ±5% supplied by USB
|
|
Storage Humidity
|
20% - 80% non-condensing
|
|
Operating Temperature
|
0 - 40°C
|
|
Weight
|
16 grams
|
|
Dimensions
|
60.2 mm x 32.4 mm x 11 mm
|
|
Standards/ Compliance
|
RoHS, WEEE, UL, WHQL
|
|
Compatibility
|
Windows SDK, Linux SDK
|
