Product Name: Digital Personal USB Biometric Fingerprint Scanner U.are.U 4500
Description:

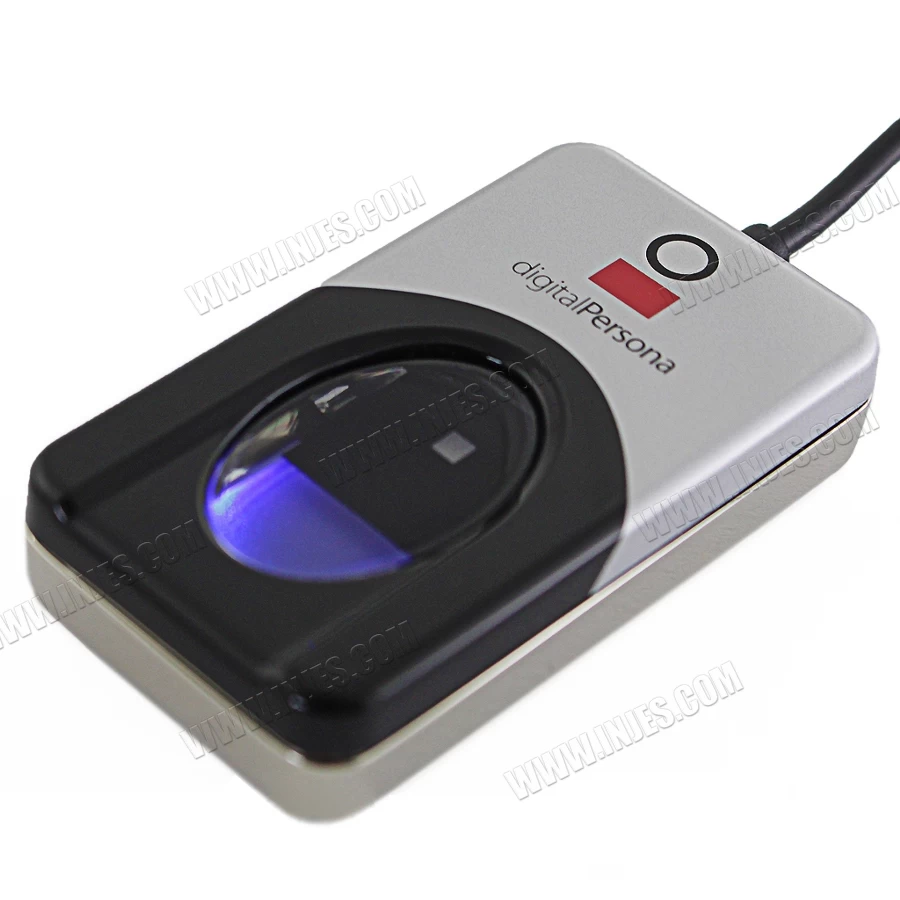

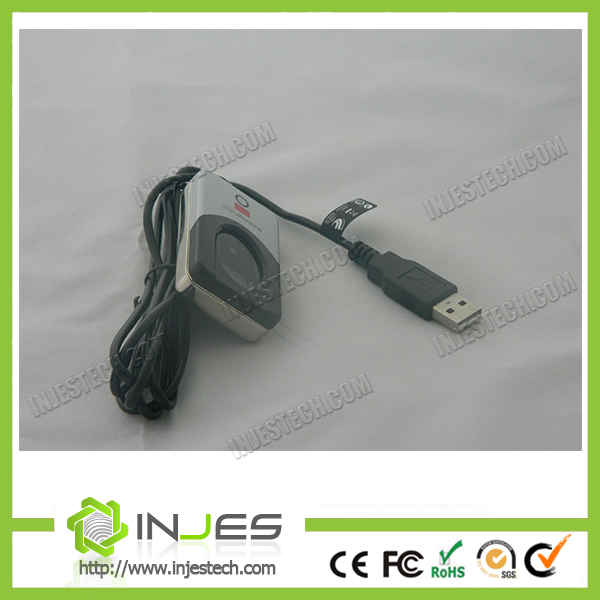

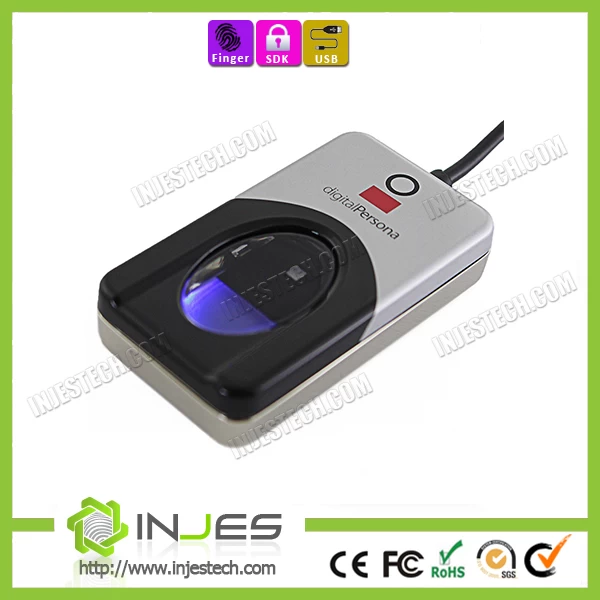

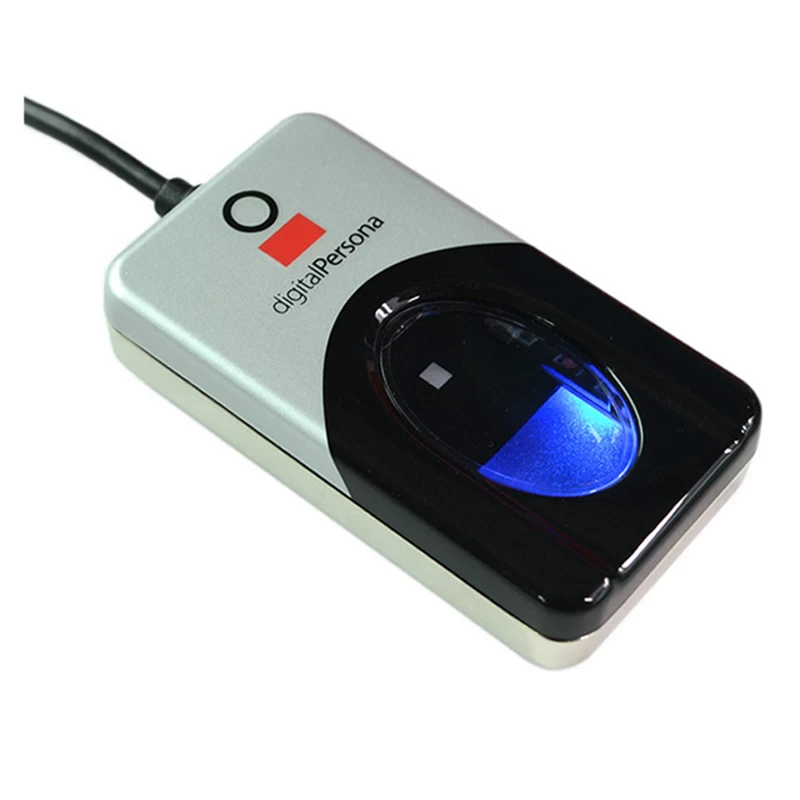

The Digital Persona U.are.U 4500 is a USB fingerprint reader featuring an elegant, sleek design with a soft, cool blue glow and, of course, the unsurpassed performance Crossmatch is known for. Made for power-users and shared environments, the fingerscanner UrU 4500 is the natural choice for those who want and need the very best.
Features:
．Blue LED
．Small form factor
．Excellent image quality
．Superior ESD resistance
．Encrypted fingerprint data
．Latent print rejection
．Counterfeit finger rejection
．Rotation invariant
．Works well with dry, moist or rough fingerprints
．Compatible with Windows 7, Vista, XP Professional and Windows Server 2000,2003, 2008
Specifications:
|
Pixel Resolution
|
512 dpi (average x,y over the field)
|
|
Scan capture area
|
14.6 mm (nom. width at center), 18.1 mm (nom. length)
|
|
8-bit gray scale
|
256 levels of gray
|
|
Reader size (approximate)
|
65 mm x 36 mm x 15.56 mm
|
|
USB port
|
Compatible with USB 1.0, 1.1 and 2.0 (Full Speed)
|
|
Supply Voltage
|
5.0V ±5% supplied by USB
|
|
Supply Current
|
scanning 100 mA (Typical), idle mode 120 mA (Typical),
suspend mode 0.5 mA (Maximum)
|
|
ESD Susceptibility
|
15 kv, mounted in case
|
|
Temperature, Operating
|
0°C - 40° C
|
|
Humidity, Operating
|
20% - 80% non-condensing
|
|
Temperature, Storage
|
-10° - 60° C
|
|
Scan data
|
8-bit grayscale
|
|
Standards Compliance
|
FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL
|
