Digital Programmable Heating Cooling Dry Bath Laboratory Dry Bath Incubator

Programmable (Heating & Cooling)



Facebook Twitter Pinterest LinkedIn 分享

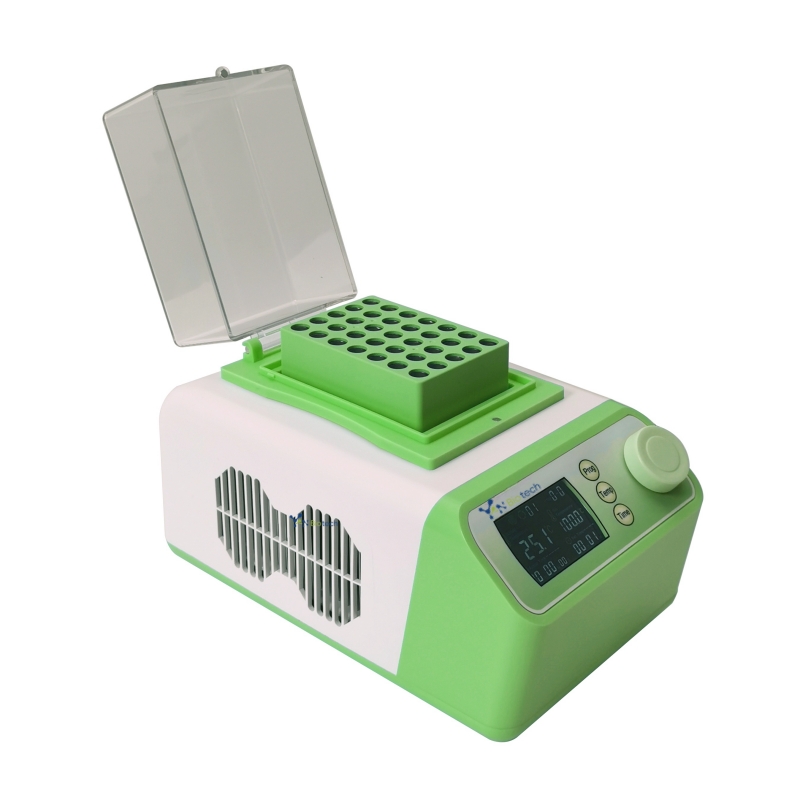

Product Introduction

Yanbiotech Series programmable heating & cooling dry bath incubator offers precise, automated temperature control for laboratory applications that require specific heating and cooling cycles. These instruments are widely used in molecular biology, clinical diagnostics, and chemical analysis.

Product Specifications

Product Name Dry Bath with Heating Function Dry Bath with Heating, Cooling Function Dry Bath with Cooling, Heating, Programmable Function Dry Bath with Cooling, Heating, Shaking Function
Cat. No. YB-DBH YB-DBHC YB-DBHCP YB-DBHCS
Programmable     Yes
Horizontal Amplitude       3mm
Speed Range       200-1500rpm
Temperature Control Range +5℃-100℃ 0℃-100℃ 0℃-100℃ 20℃-100℃
Temperature Setting Range +5℃-100℃ 0℃-100℃ 0℃-100℃ 0℃-100℃
Time Setting 1min-99h59min 1min-99h59min 1min-99h59min 1min-99h59min
Speed Range 40-200rpm
Module Temperature Stability 40-100℃ ≤±0.5 ℃ ≤±0.5 ℃ ≤±0.5 ℃ ≤±0.5 ℃
Module Temperature Uniformity ＜40℃ ≤±0.3 ℃ ≤±0.3 ℃ ≤±0.3 ℃ ≤±0.3 ℃
Module Temperature Uniformity ＞40℃ ≤±0.5 ℃ ≤±0.5 ℃ ≤±0.5 ℃ ≤±0.5 ℃
Temperature Display Accuracy +0.1℃ +0.1℃ +0.1℃ +0.1℃
Lifting Speed of Heating and Cooling ≤15 min
(20 ℃-100 ℃)		 ≤15 min
(20 ℃-100 ℃)		 ≤15 min
(20 ℃-100 ℃)		 ≤12 min
(20 ℃-100 ℃)
Sample Processing Capacity 1 Standard Module 1 Standard Module 1 Standard Module 1 Standard Module
Input Power AC100 V/AC220 V
50 Hz/60 Hz		 AC100 V/AC220 V
50 Hz/60 Hz		 AC100 V/AC220 V
50 Hz/60 Hz		 AC100 V/AC240 V
50 Hz/60 Hz
Power 150W 150W 150W 200W
Fuse 250V/3A 250V/3A 250V/3A 250V/3A
Dimension 175×278×197 mm 175×278×197 mm 175×278×197 mm 178×278×244 mm
Net Weight 2.2kg 3.3kg 3.3kg 16k



Key Features

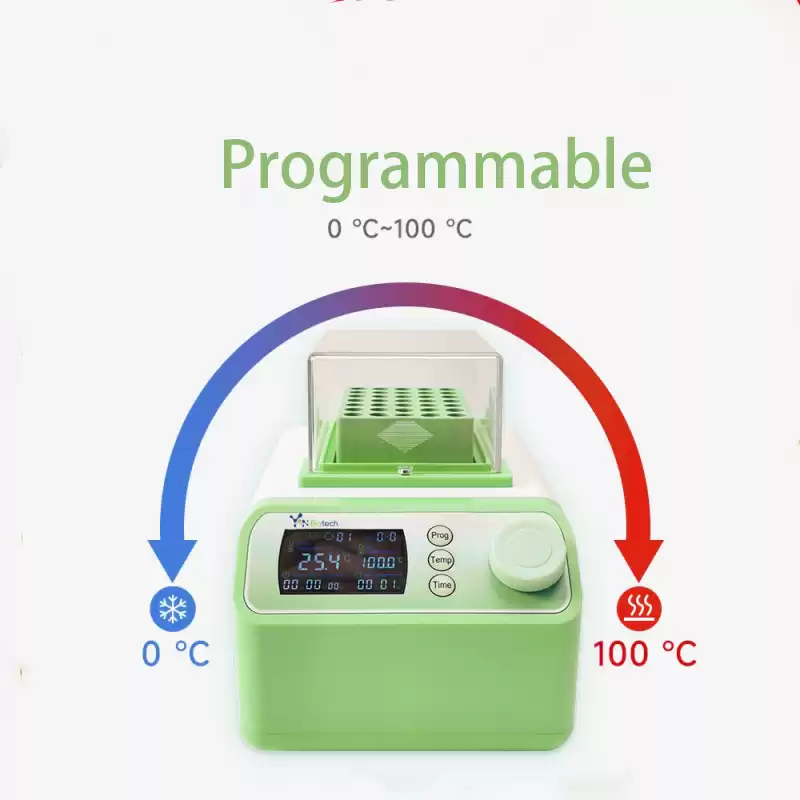

Programmable Dry Bath

Programmable Temperature Cycles: Set multiple temperature steps for time-dependent experiments.

Precise Temperature Control: 10° Angle tray are suitable for different application enviroment.

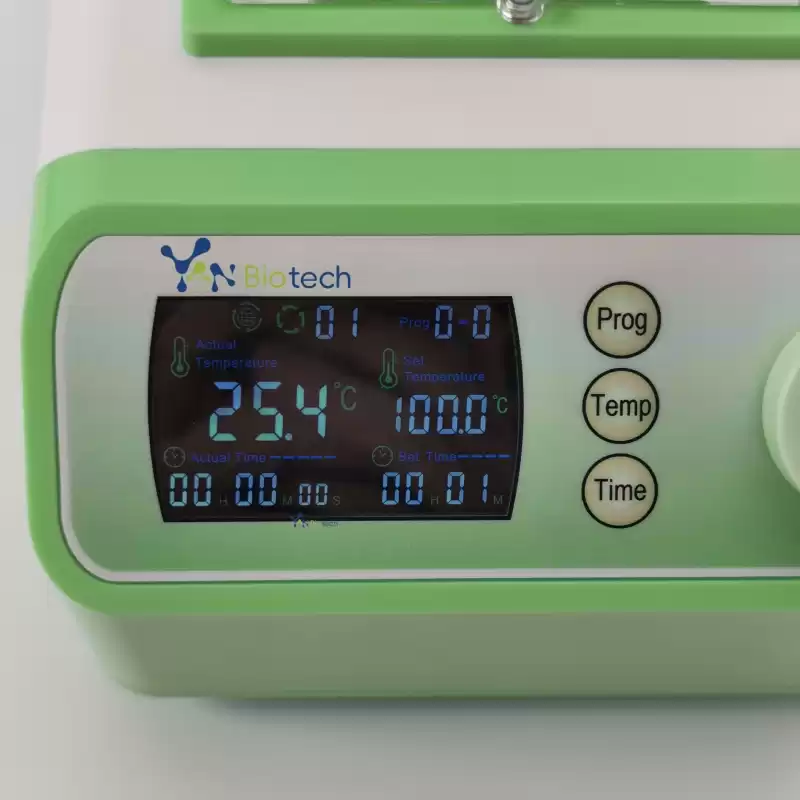

Digital Interface & Memory Storage: Save and recall temperature programs for repeatability.

Interchangeable Heating Blocks: Different block sizes accommodate various tube types.

Compact & Low Maintenance: No need for water, reducing contamination risks.



Module Parameter

Module YB-DBHC
Standard Module 1.5 mLx 35
Optional Module A 0.5 mL X 54
Optional Module B 0.2 mL X 96
Optional Module C 2.0 mL X 35
Optional Module D 0.2 mL X 32+1.5 mL X 25
Optional Module E 5 mL X 24
Optional Module F 15 mL X 12 (high lid)
Optional Module G 50 mL X 6 (high lid)
Optional Module H 0.2 mL X 96 ( ELISA plate)
Optional Module I 0.2 mL X 32+0.5 mL X 10+1.5 mL X 15
Optional Module J 10mL X 15
Dimensions(mm) 175x278x197
Weight(kg) 3.3


Applications

🔬 PCR & qPCR Sample Prep: Precise heating/cooling for DNA/RNA work.

🧪 Enzyme Kinetics Studies: Automated temperature shifts for reaction optimization.

🦠 Microbiology & Cell Studies: Controlled incubation conditions.

⚗️ Chemical & Drug Development: Temperature-sensitive chemical reactions.

🩺 Clinical Diagnostics: Sample preservation and processing at defined temperature cycles.
