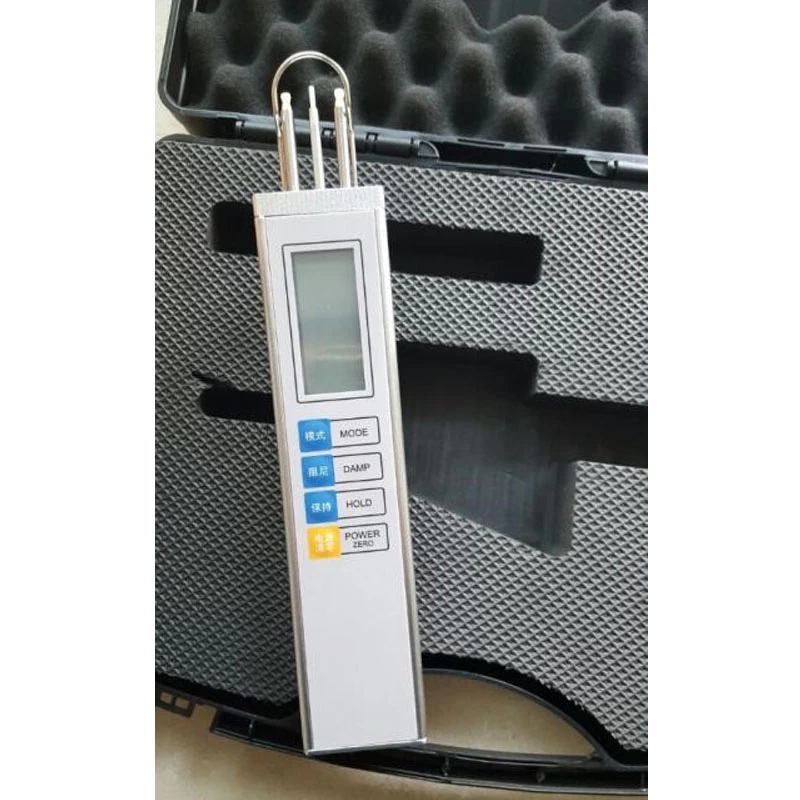

AY08-Digital Tension Meter
Application Of Digital Tension Meter
Digital Tension Meter is used to measure the dynamic tension of various flexible yarn material. It is equipped with a digital display device and a movable clamping device that can be carried around for inspection.
It also can be used for the static and dynamic tension detection of various products such as wool, hemp, silk, chemical fiber and metal wire drawing, glass fiber and optical fiber, which provides a reliable basis for improving yarn quality and product performance.
Features Of Digital Tension Meter
-
High measurement accuracy, good stability, small size, simple operation;
-
Zero automatic tracking, full automatic calibration;
-
Overload protection, low voltage display;
-
Can display the max., min., average, etc. in each test.
Key Specification Of Digital Tension Meter
|
Model
|
AY08 Digital Tension Meter
|
|
Measuring
range
|
0~200cN
|
|
Minimum
resolution
|
1cN
|
|
Display
|
LCD of 3
digits
|
|
Power
Supply
|
9V DC
|
|
Dimensions
|
282×48×52mm (L×W×H)
|
