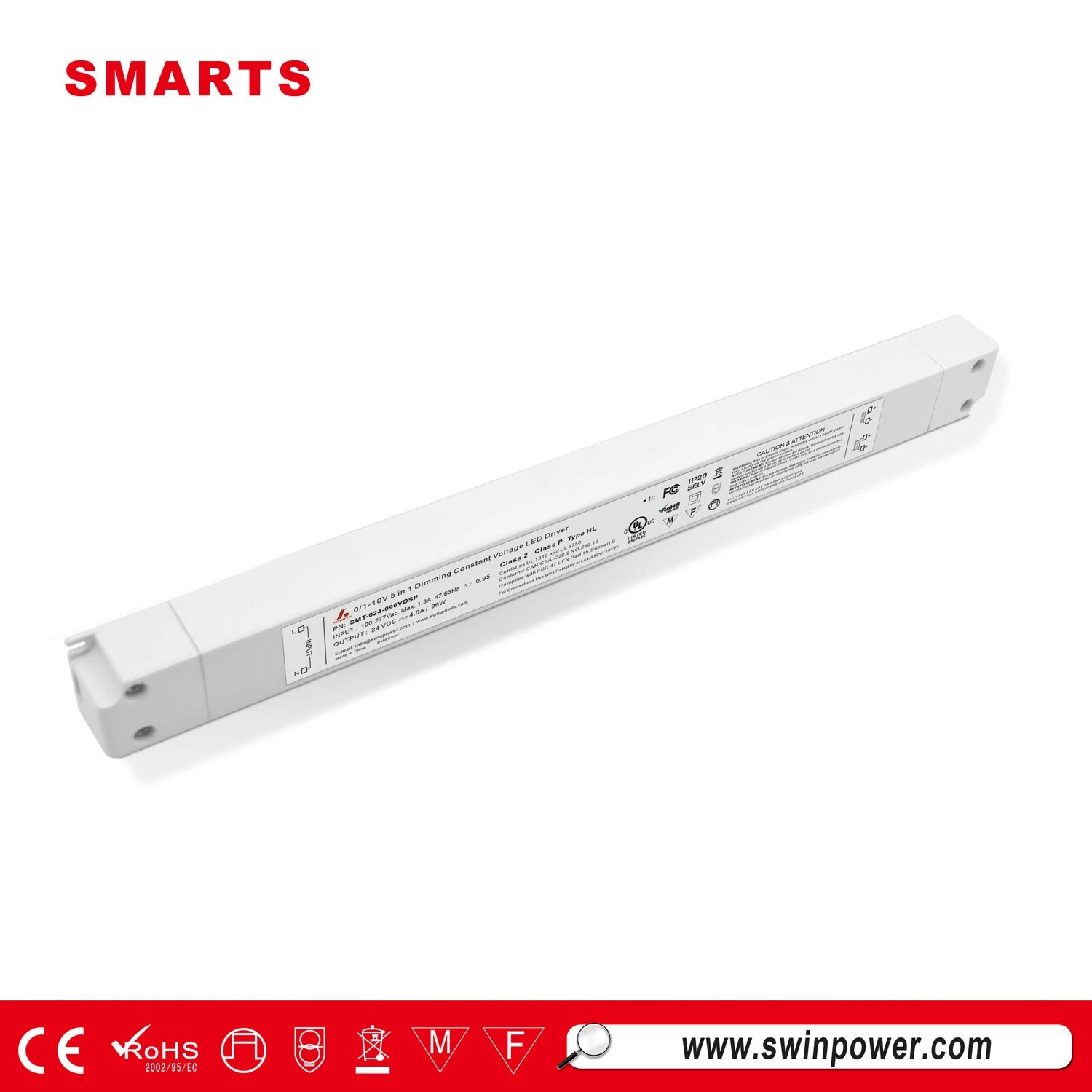

Dimmable 12v 24v led power supply 8.33a 4.0a 100w led driver transformer for led strip
Led drive transformer output of 100W with an output current of 4000mA Aitions and climates, and comes with 7 years warranty. It features in built protection to prevent it from over heating.
- CertificationUL, Class 2 certificate
- Size330mm*30mm*22mm
- Dimming mode0-10v dimming
- Input Voltage100-277VAC
- Output Voltage12V
- Working ModeConstant voltage
- Output Current8.33A

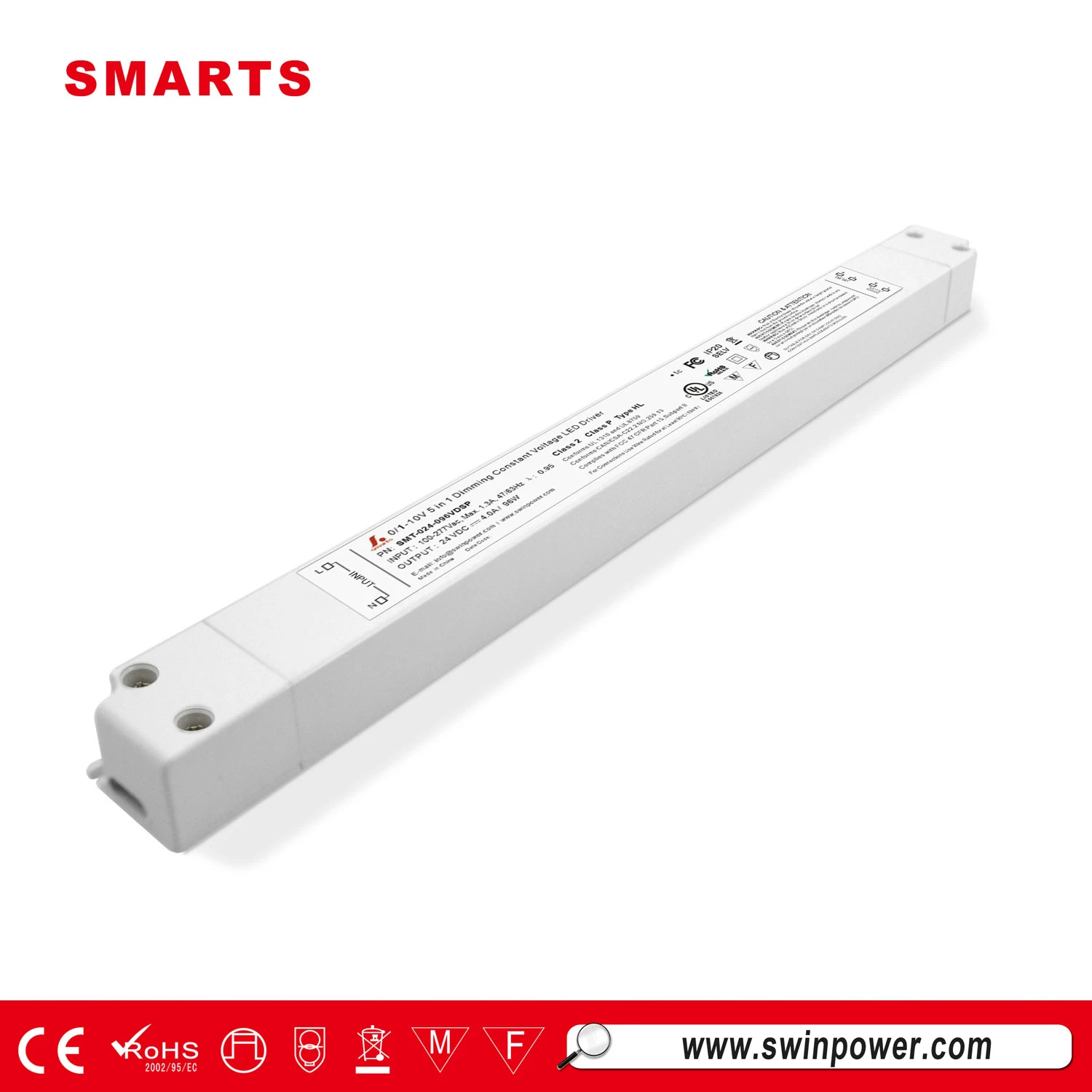

Dimmable 12v 24v led power supply 8.33a 4.0a 100w led driver transformer for led strip
This dimmable 12v led power supply provides regulated power to your LED circuit with a sophisticated dimming function. This small and compact unit ensures reliable performance from a single LED or an LED string and is suitable for applications.
Specification
|
model |
SMT-012-100VDSP |
SMT-024-096VDSP |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W (class 2) |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.96/277V |
||
|
Full Load Efficiency（Typ.） |
85%@120VAC 87%@277VAC |
85%@120VAC 88%@277VAC |
|
|
AC Current（Typ.） |
1.10A/100VAC / 0.43A/277VAC |
||
|
Inrush Current（Typ.） |
11A,50%,1.04ms@120V ; 27A,50%,960us@277V |
||
|
THD(Typ. ) @ full load |
<10%@120VAC <15%@277VAC |
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 +UL1310,CAN/CSA-C22.2 No.250.13 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.4Kg |
|
|
Size |
330*32*23mm (L*W*H) |
||
|
packing |
50PCS/CTN Carton size:350*330*145mm
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |
 |
|

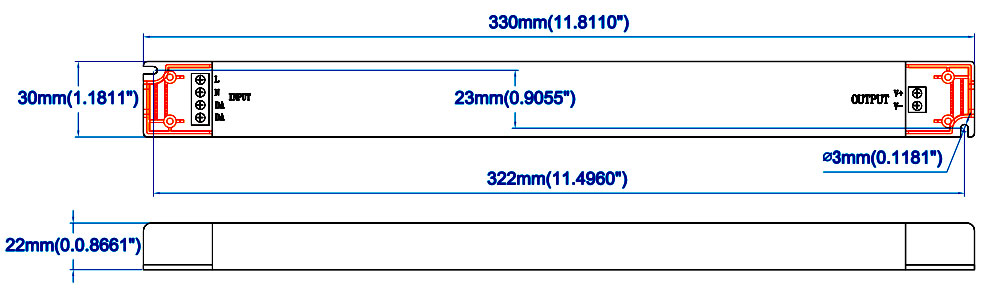

Mechanical Specification

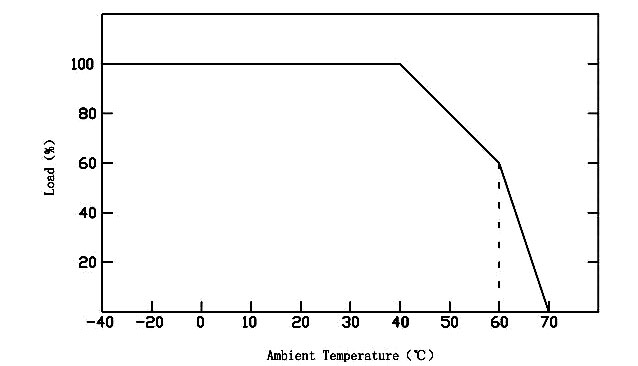

Derating Curve

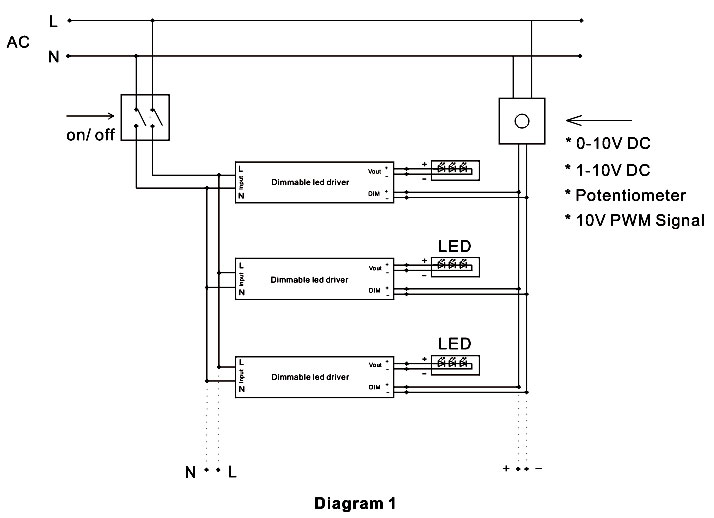

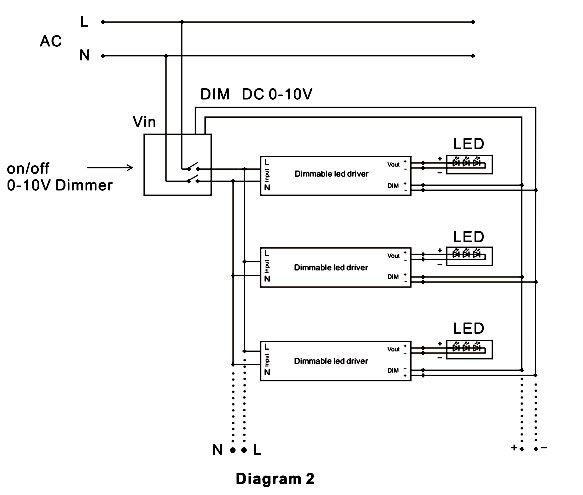

Connecting Diagram
