Dimmable constant voltage 0 10v led driver 36 watt 24v

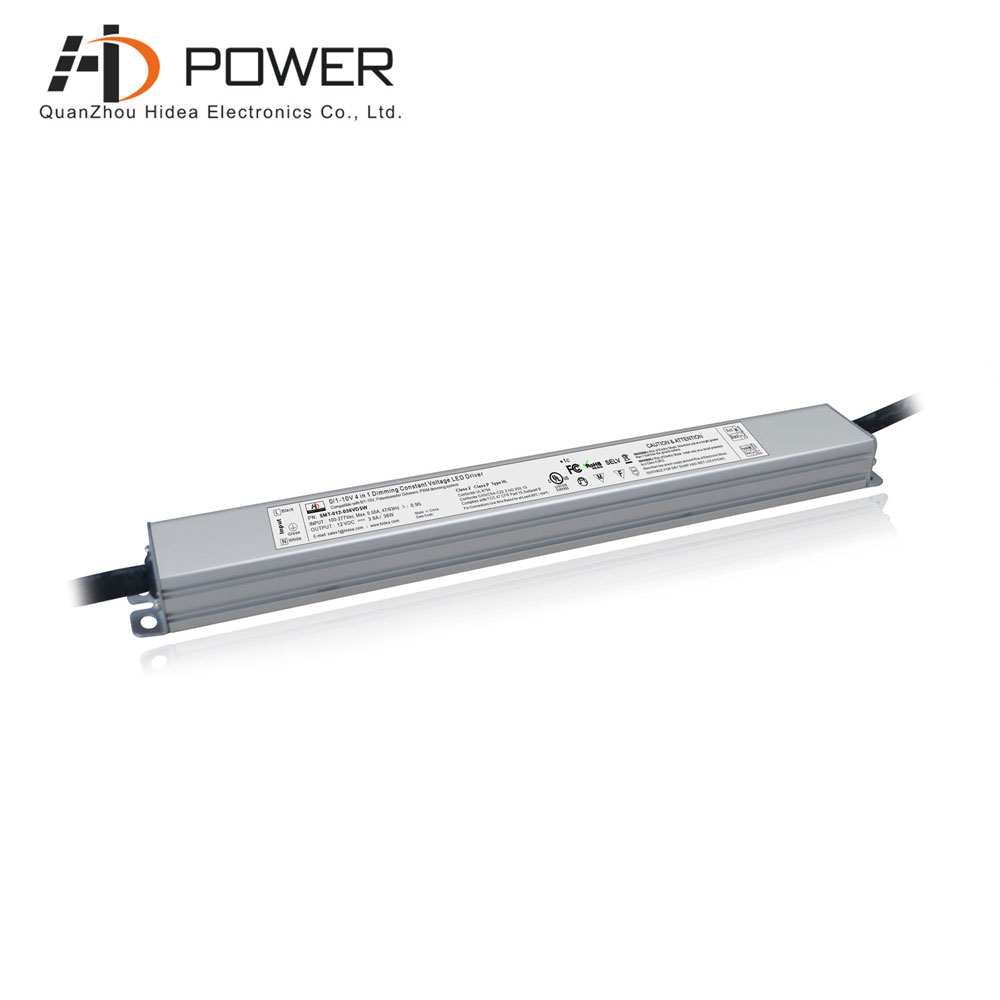

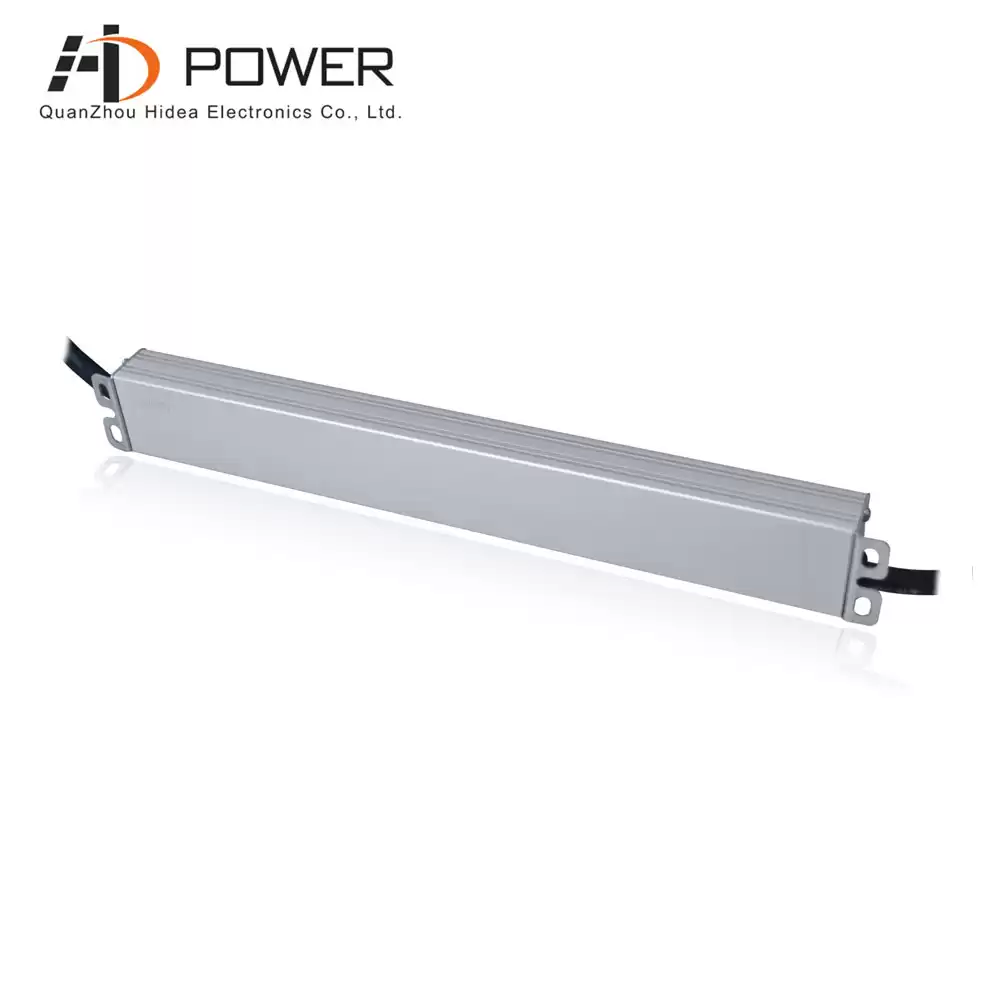

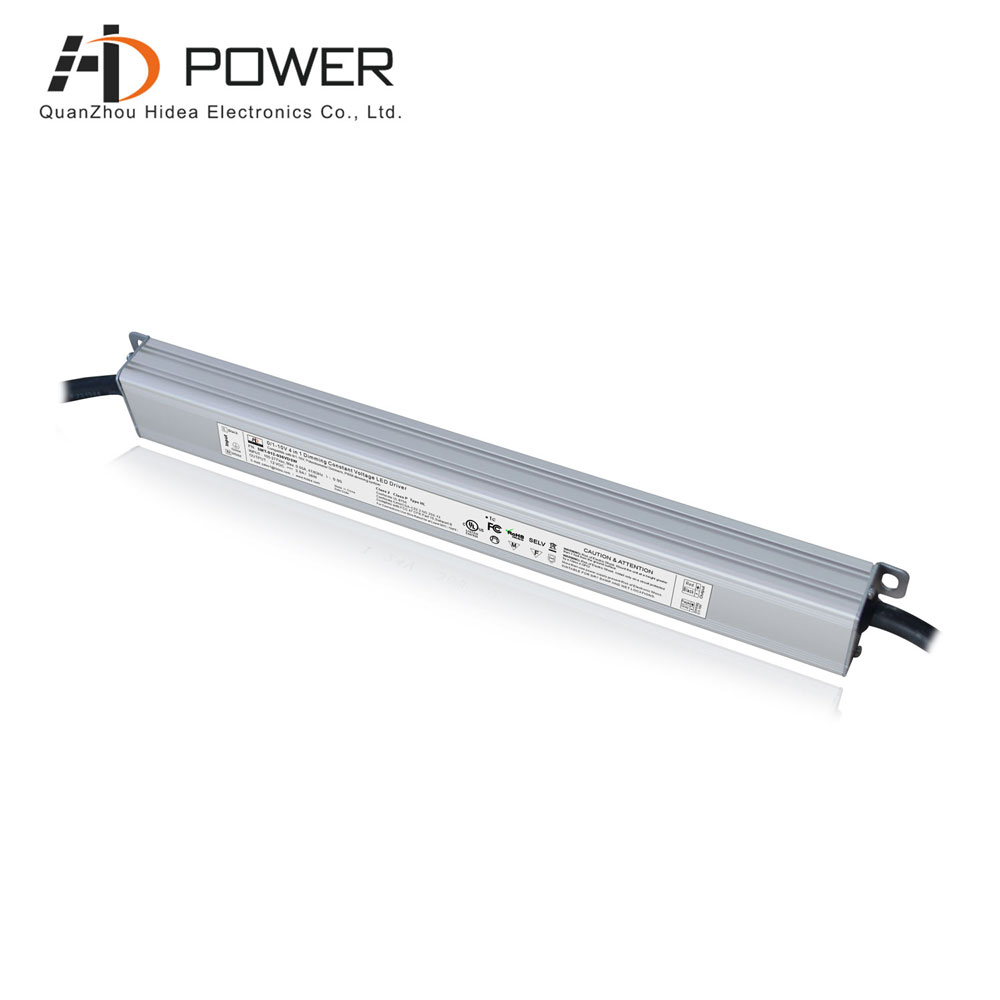

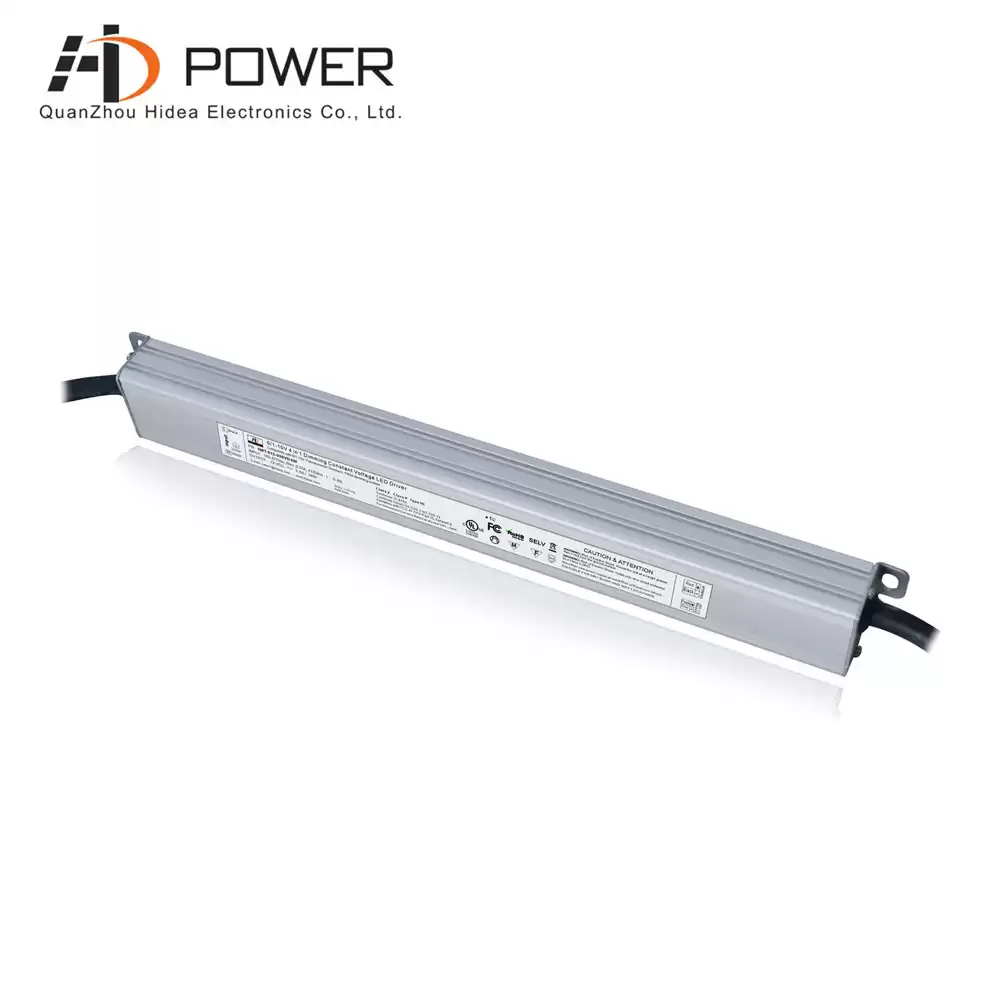

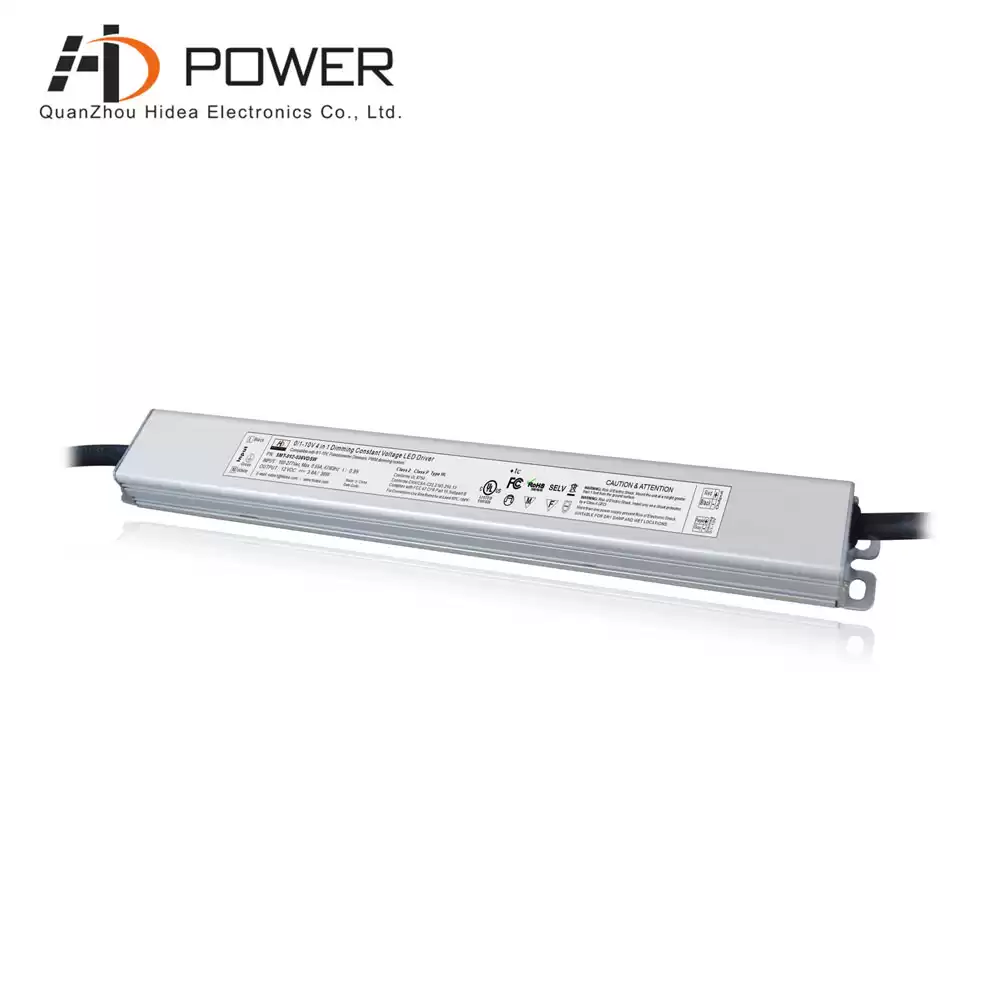

led driver 24v 36w is constant voltage type with 0-10v dimming signal, PWM output, SMT electronic led driver has 7 years warranty. ECO light led strips 12v are work well with it.
Label
Specification
|
model
|
SMT-012-036VDSW
|
SMT-024-036VDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated power
|
36W
|
36W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency(Typ.)
|
85%@120VAC ,86%@277VAC
|
86%@120VAC, 87%@277VAC
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
AC Current(Typ.)
|
0.55A
|
|
Inrush Current(Typ.)
|
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
290*270*160mm, 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
UL listed 12v 36 watt led drivers got aluminum case IP67 rated. Its dimmable with any standard 0-10v or PWM dimmer. It also operates well with LED Montreal 12v led strips.
Related Products
|

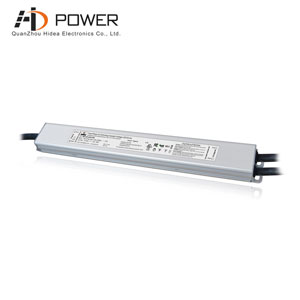

 IP67 waterpoof power supply 12vdc 36w 3amp with leading edge and trailing edge dimming, UL listed.
Mode：SMT-012-036VTSW
Dimming Mode : Triac Dimming
Output Power : 36W
input voltage：100~277V AC
Size：262*32*20MM （L*W*H）
|
