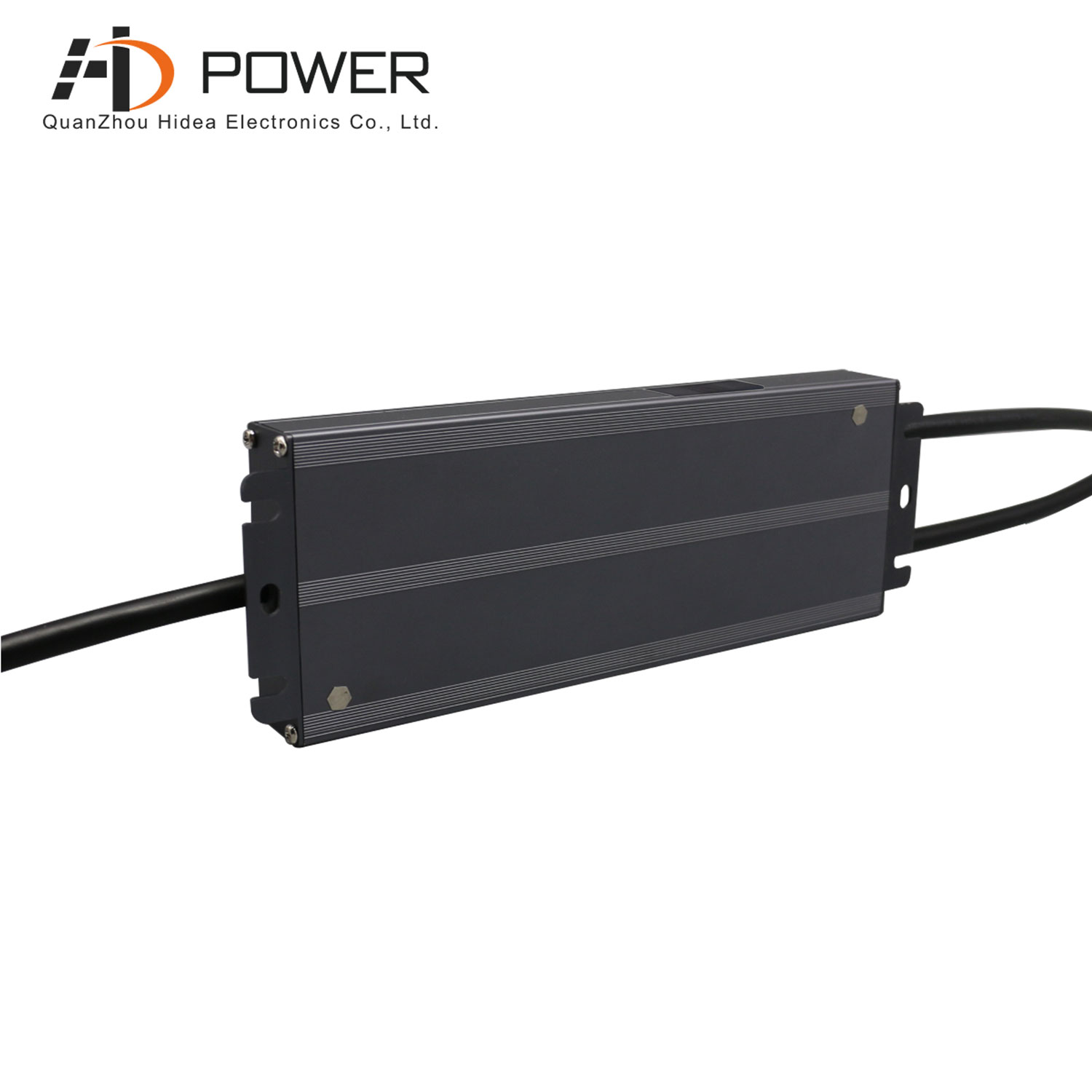

Dimmable led driver 12v 100w led power supply

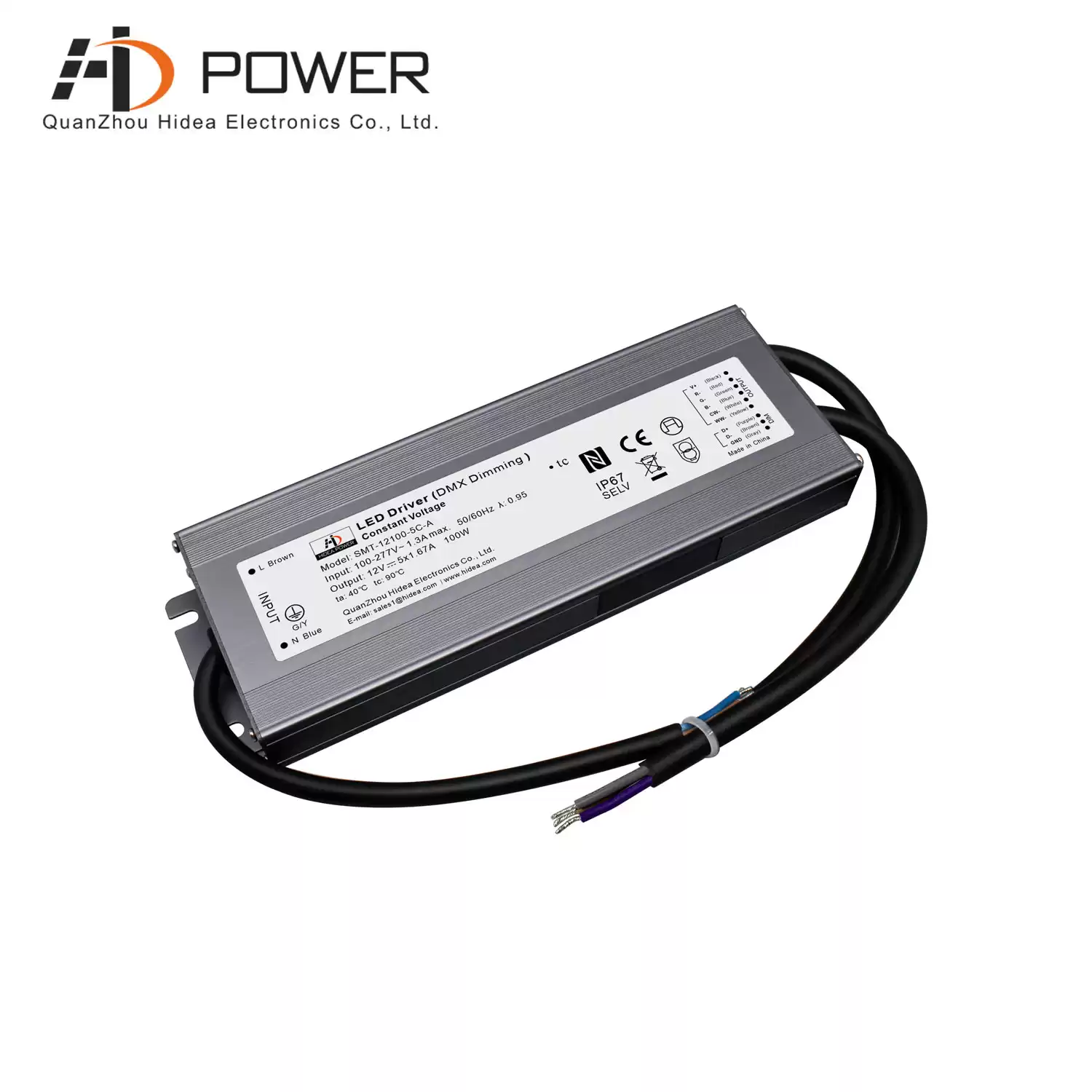

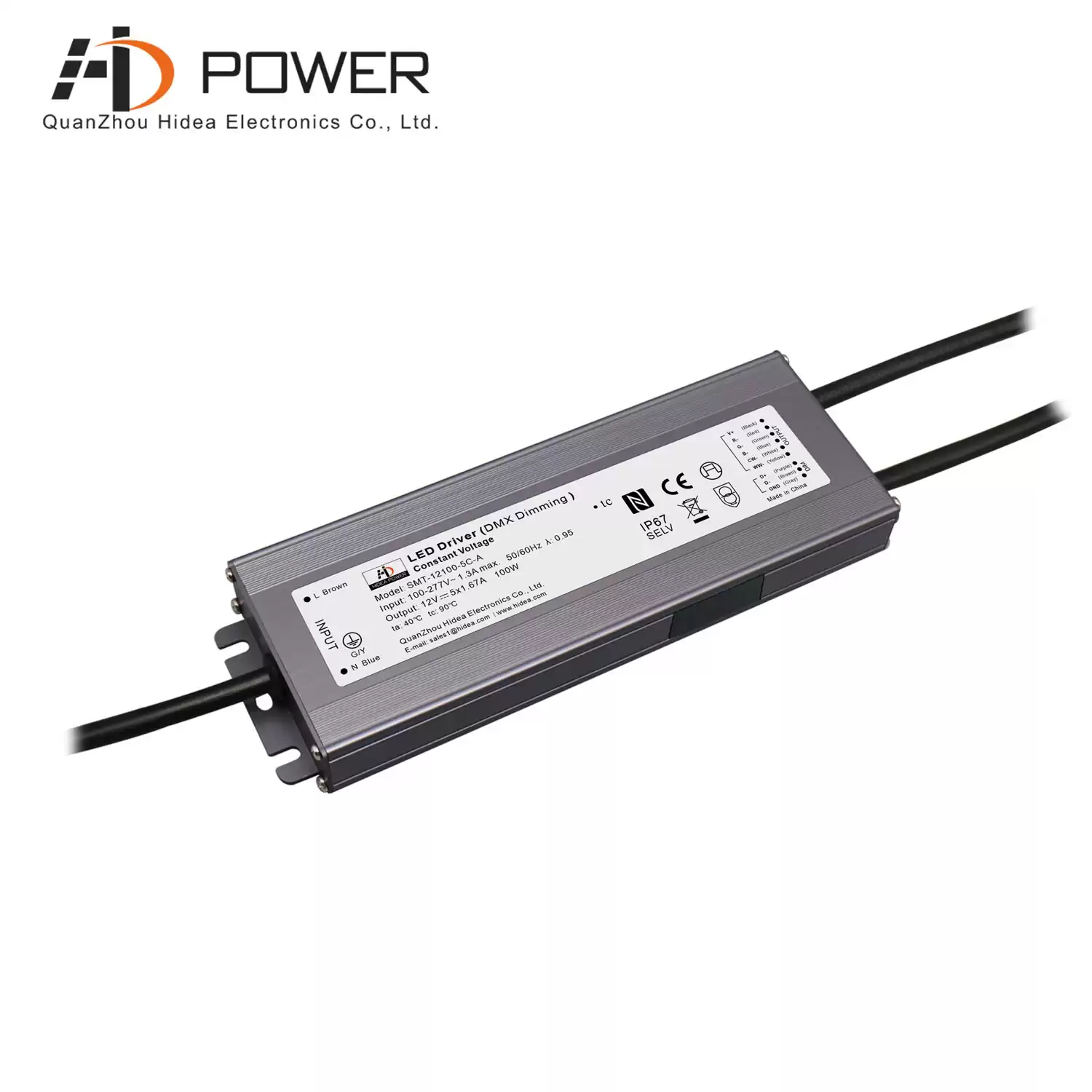

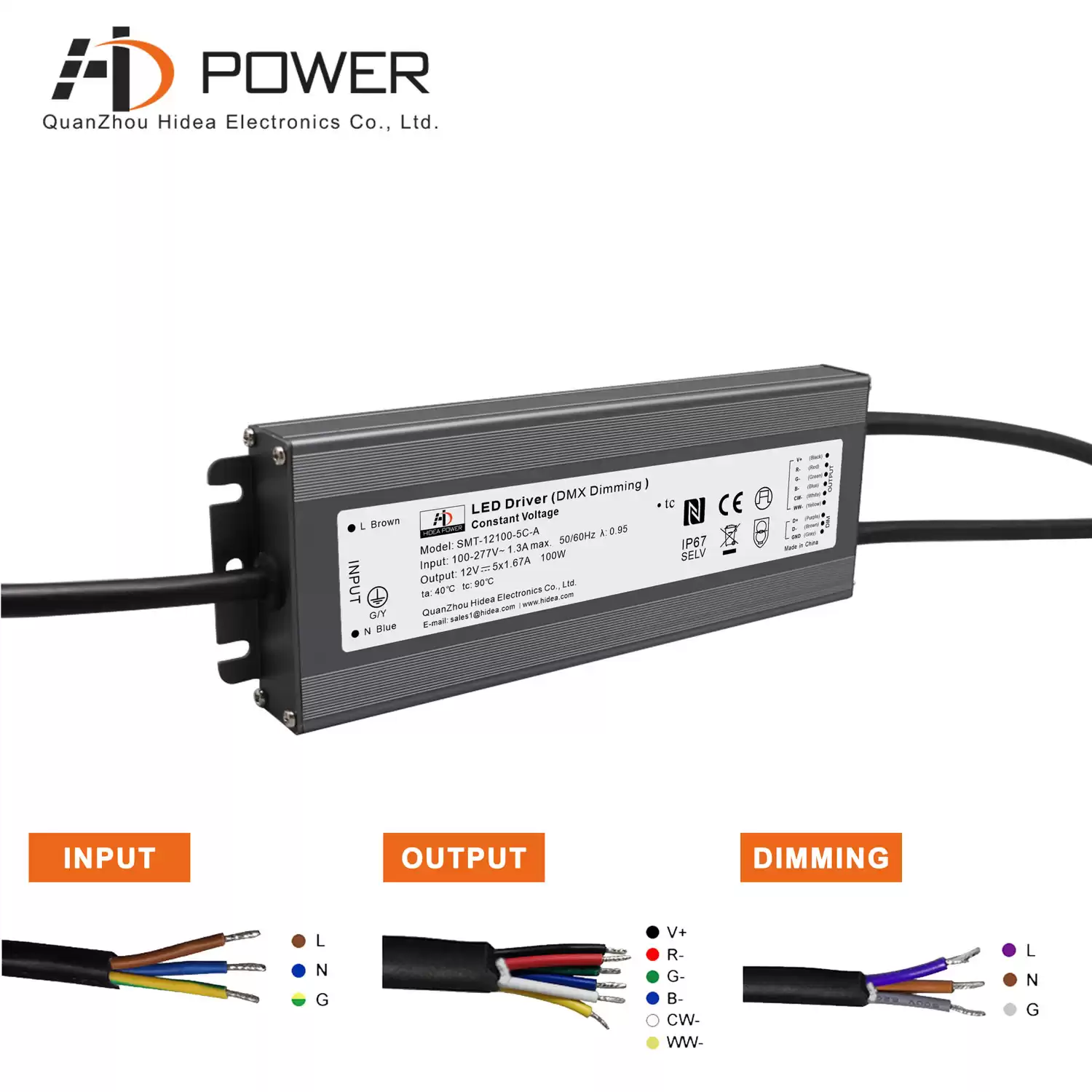

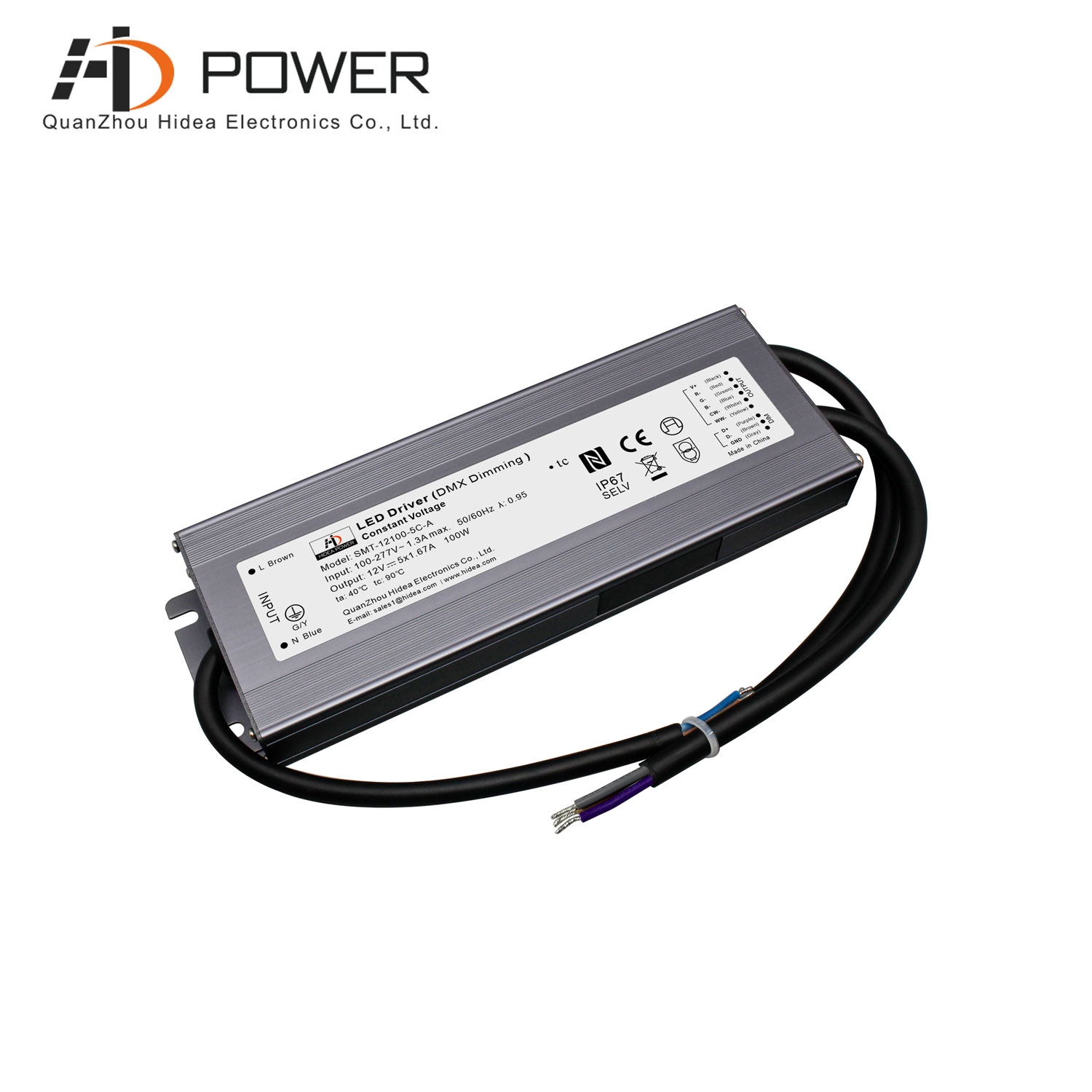

12v 100w led driver in DMX512 dimming mode, 1~5 channels for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW) dimming, compatible with LTECH DMX driver 100w.
|
|
Specification
|
Model
|
SMT-12100-XC-A
|
SMT-24100-XC-A
|
|
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
CH1+CH2+CH3+CH4+CH5=8.3A
|
CH1+CH2+CH3+CH4+CH5=4.17A
|
|
Rated power
|
100W
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.@ full load
|
PF≥0.98/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<15%
|
|
Efficiency(Typ.)@full load
|
89% @230VAC
|
89%@230VAC
|
|
AC Current(Max.)
|
1.3A
|
1.3A
|
|
Inrush Current (Typ.)
|
48.5A,164us@50%Ipeak
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% ,hiccup model, recover automatically after fault condition is removed
|
|
Over temperature
|
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
|
|
Protection Class
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH ,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Net Weight
|
0.90KG
|
|
Dimension
|
230*78*25mm (L*W*H)
|
|
packing
|
10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
DMX dimming led driver are avalible in wattage from 30w to max. 300w, all are constant voltage working mode, work with Matthew McCormick Studio line lights.

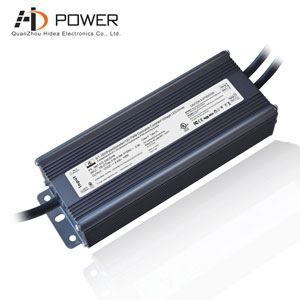

Related Products
|
 12v 100w PWM output 10v PWM , 0-10v dimmable constant voltage driver, 100-277vac input voltage.
Mode：SMT-012-100VDHW
Dimming Mode : 0-10V Dimming
Output Power : 100W
intput voltage：100-277VAC
Size：230*68*45MM （L*W*H）
|
