dimmable power 12v supply 180w

dimmable power supply 12v;dimmable power supply 180w;12v 180w waterproof power supply



dimmable power 12v supply 180w

Product Description

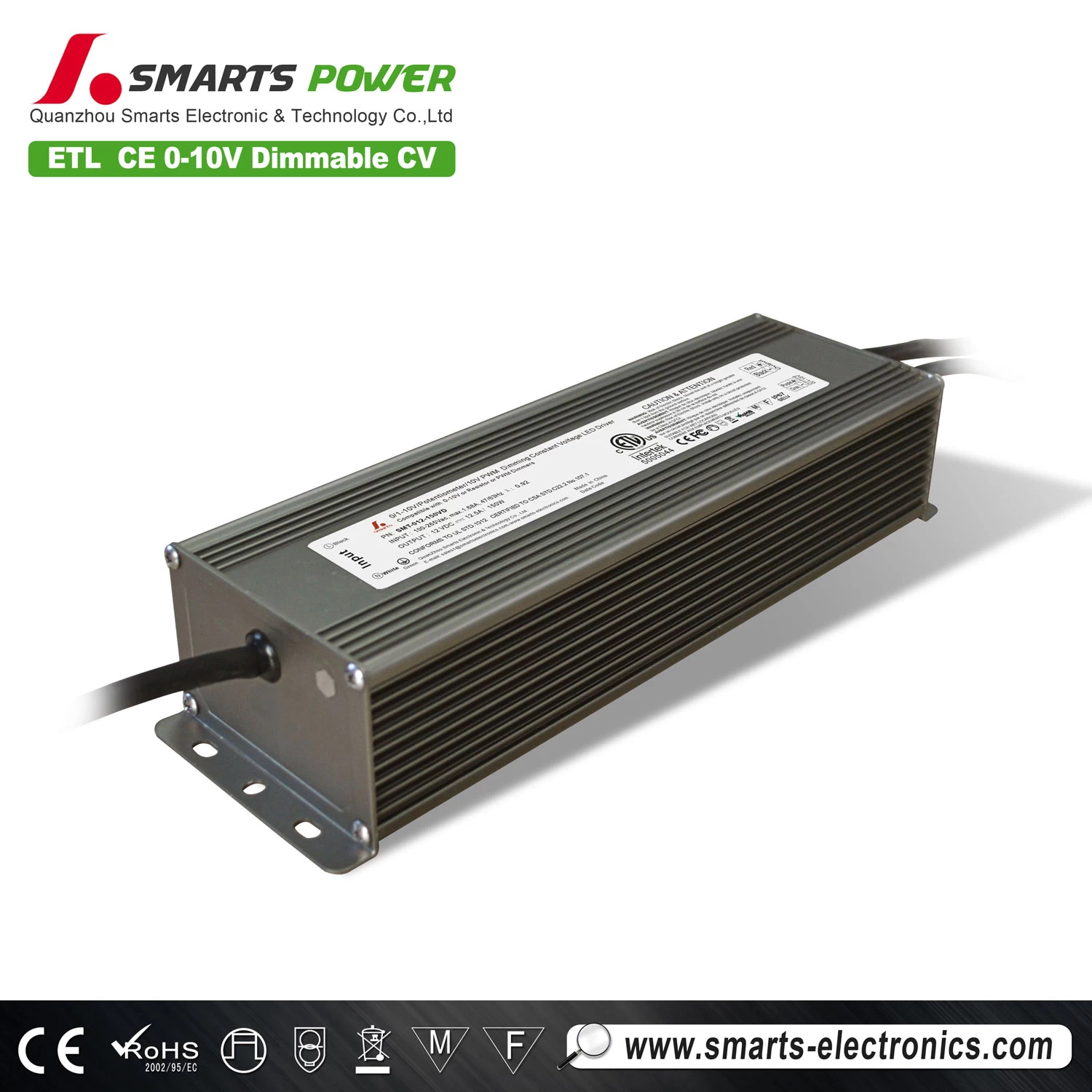

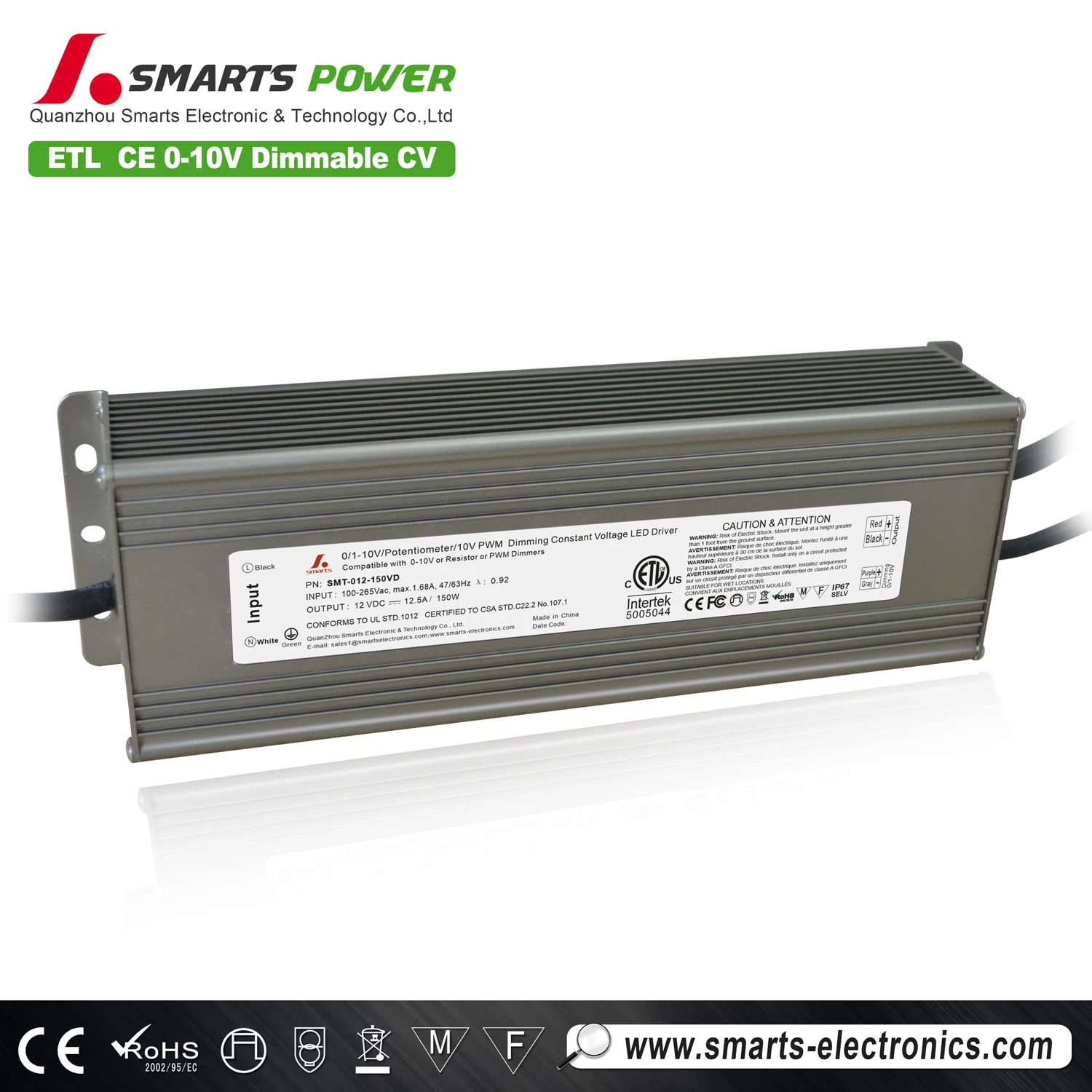

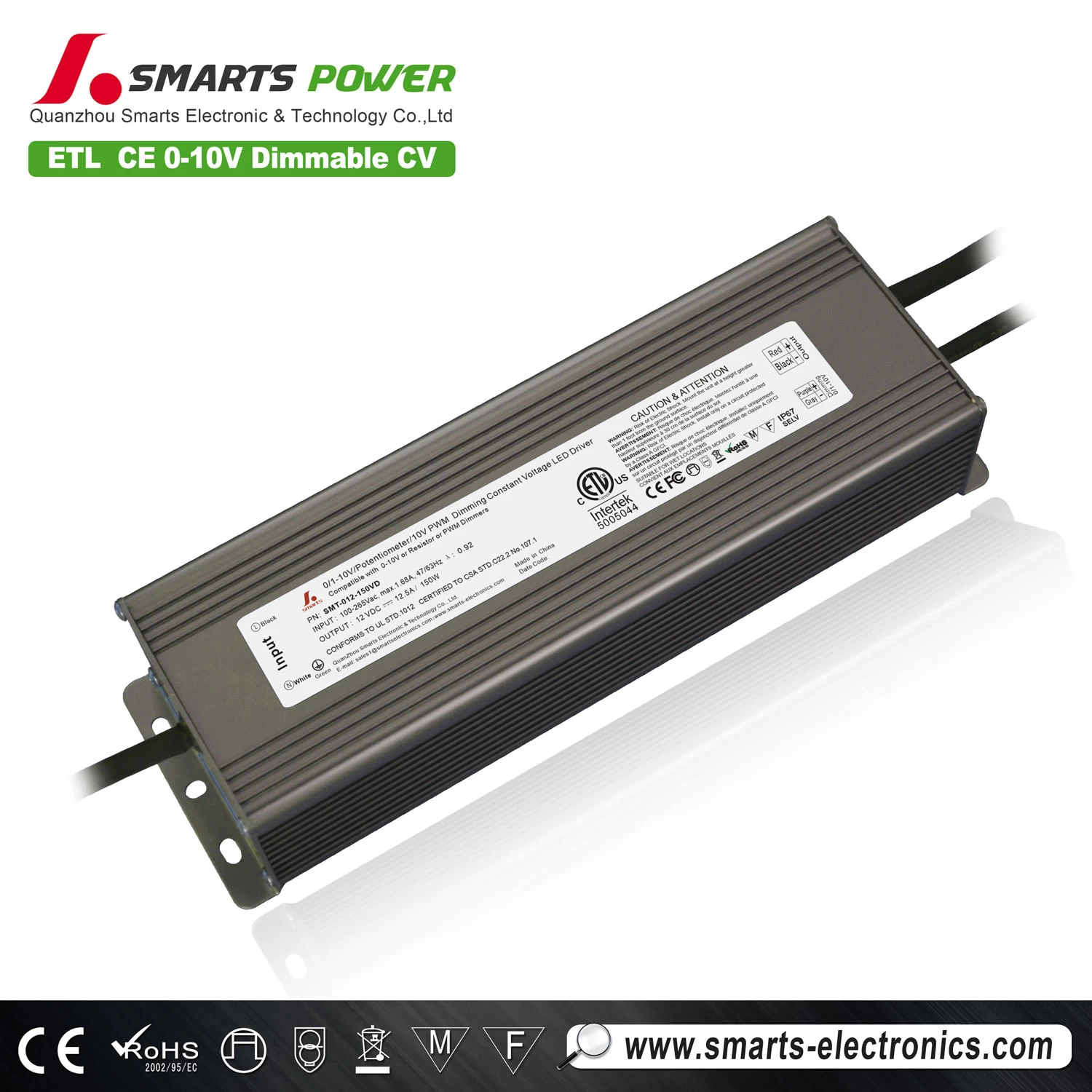

0-10v Dimmable LED Driver.png

Product parameters:

Model  SMT-012-180VD SMT-024-180VD
Single Output features Constant voltage 12vDC   24vDC



output current 15Amp 7.5Amp
output power 180watt 180watt
Ripple & Noise 250mV
Current Regulation ±3%
Starting time 1000mS/230Vac, 3000mS/110Vac
Input Voltage range 100Vac-265Vac
Frequency range 47Hz-63Hz
Power factor PF>0.93/230Vac,PF>0.92/110Vac
Efficiency 87%/110Vac , 86%/230Vac
Inrush Current 20A/110Vac, 40A/230Vac
Leakage Current <1mA/120Vac,240Vac
Protection short circuit
Single Protection,Hiccup ,recovery after the fault removed.
Over voltage Protection mode:Limit highest voltage, recovery after the fault removed.
Over temperature 105oC±5 oC ( Internal radiator's temperature)
over load Protection mode:Closed Output voltage,recovery after temperature automatic recovery.

  • Three years warranty(We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  • High efficiency,save energy ,protected environment
  • Constant voltage design with high accuracy.
  • International wide input voltage.
  • output voltage 12v/24vselectable.
  • Wattage: 20w-200w.
  • High efficiency, save energy, protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC.
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Cooling by free air convection.
  • 100% full load burn-in test.
  • Brand electrotronic components.
  • ROHS material.
  • Suitable for LED lighting

Environment:

24v 180w CE UL RoHS list dimmable led driver for LED Neon

Safety:

24v 180w CE UL RoHS list dimmable led driver for LED Neon

 Application:

  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

24v 180w CE UL RoHS list dimmable led driver for LED Neon

Packaging & Shipping



Packing
N.W./pcs G.W/ctn Qty/ctn Carton Size(mm)
dimmable power 12v supply 180w
1.8kg/pcs 15kg/ctn 10pcs 414*308*174mm

Packing
