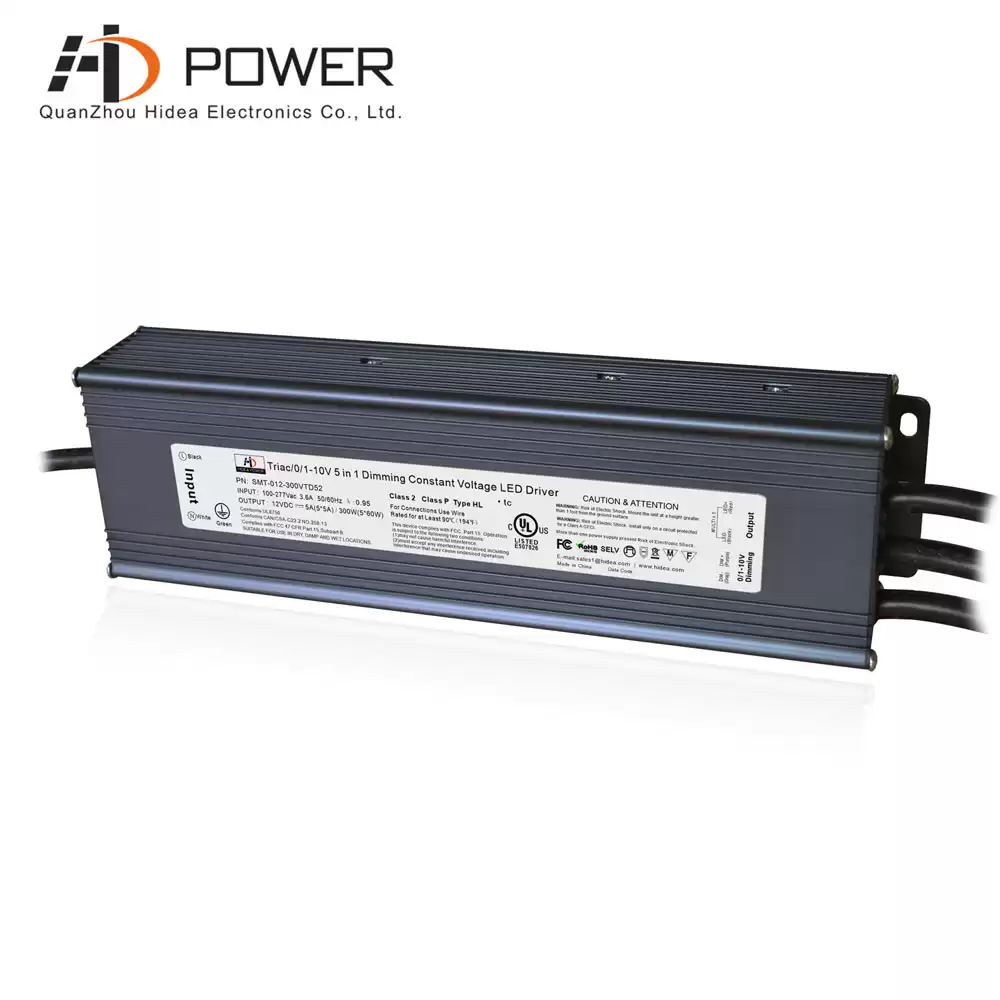

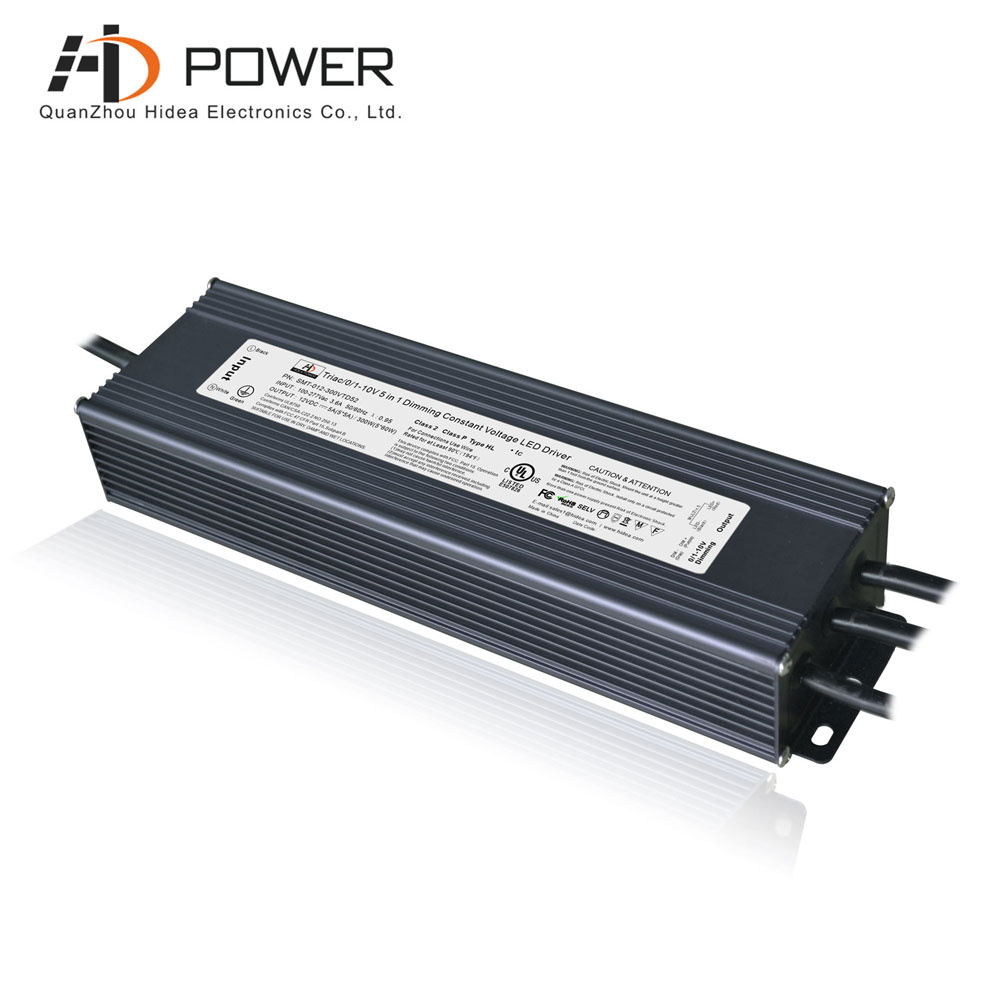

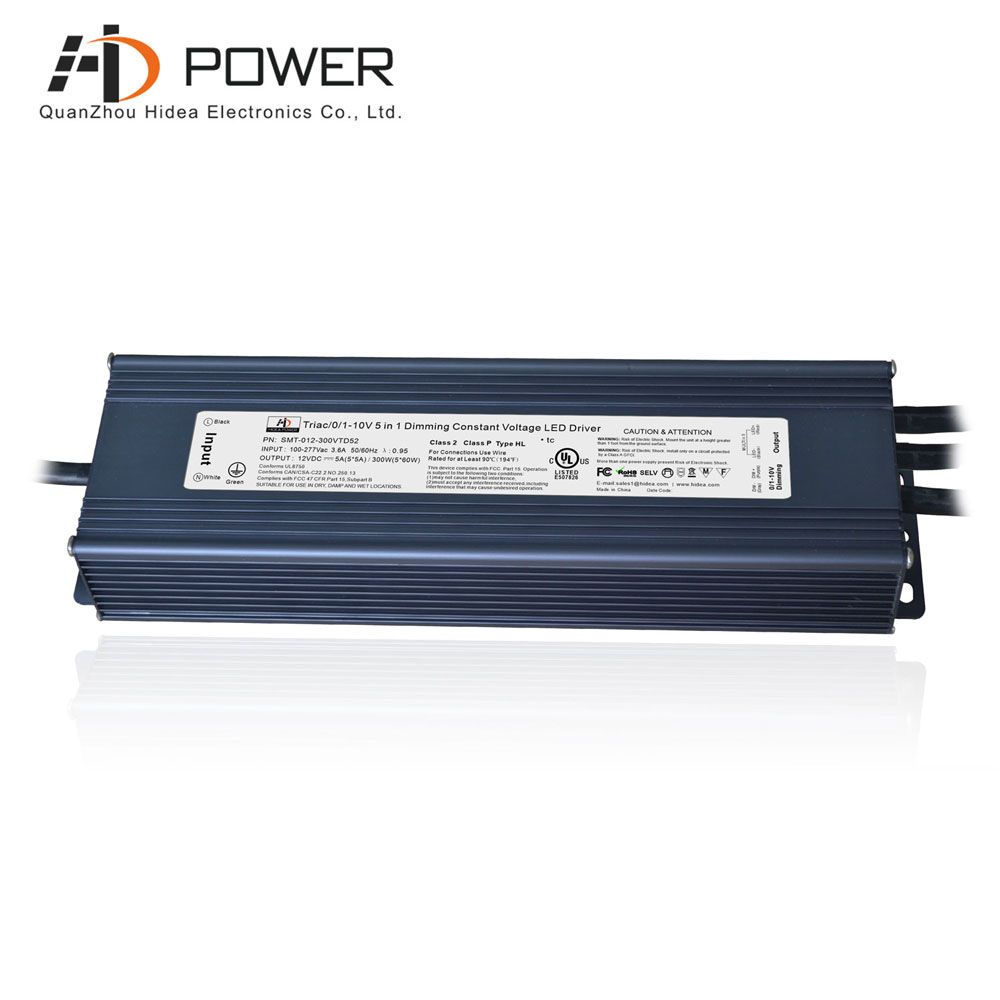

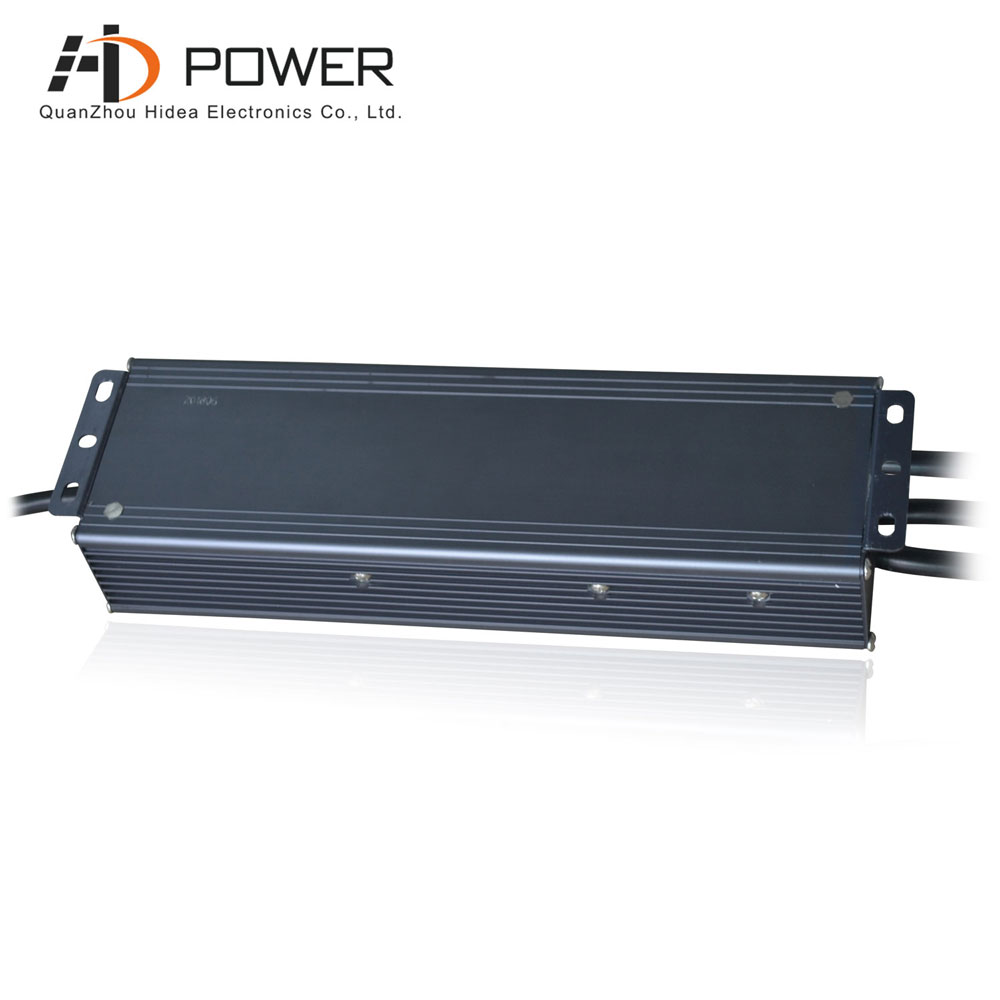

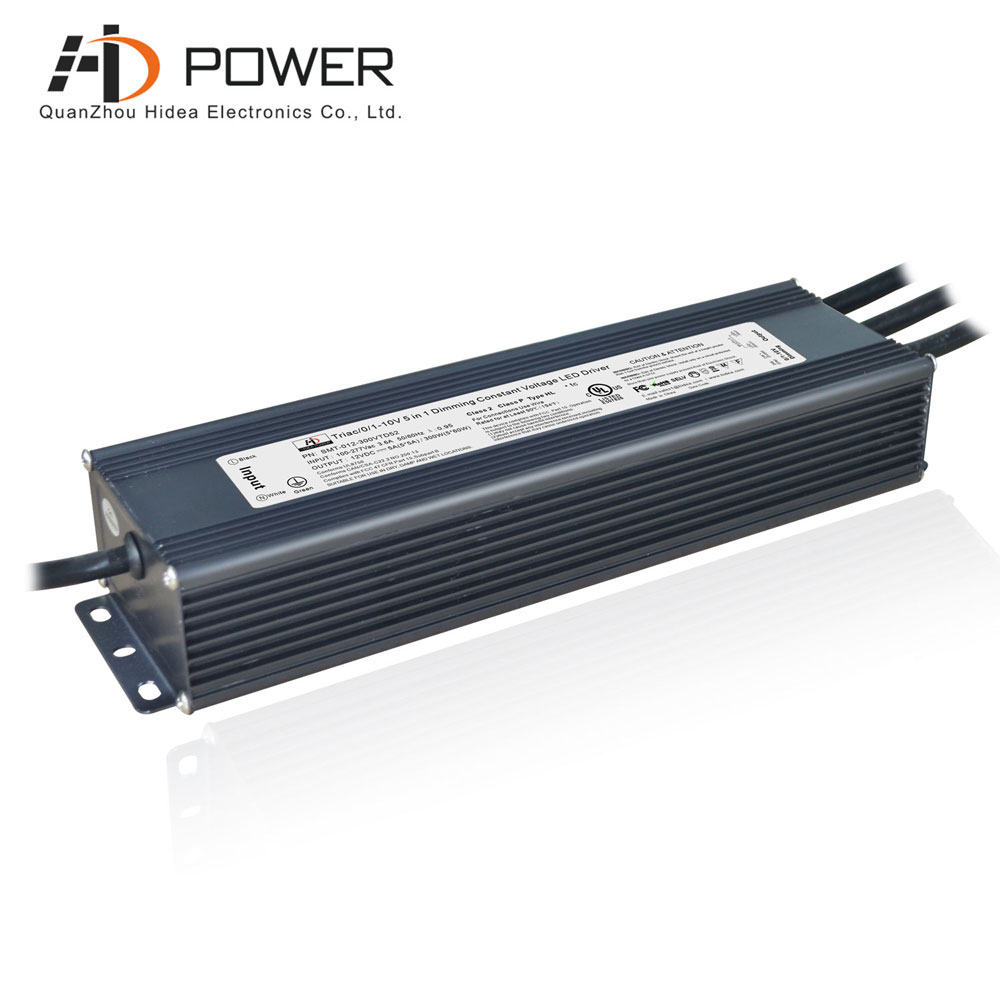

Dimmbale Multiple output 12V 300 watt led driver UL listed IP67 design
The multiple output 300 watt led driver combines triac dimming and 0 -10V dimming in one type. The Dimming LED Drivers not only compatible with Magnetic low voltage/trailing edge dimmers like Lutron, but also match well with 0 10V dimmer.
- Size303*78*47mm
- Shape & SizeStandard Size
- Output Voltage12/24Vdc
- Output Power(Watt)300W
- Input Voltage100-277Vac
- Working ModeConstnat Voltage LED Driver
- Dimming Mode5 in 1 Dimming
- Weight1900g
- CertificationUL/CUL
- Warranty7 Years
This triac dimmable led driver 12v can be paired with junction box if necessary. Conforms to UL FCC ROHS approval. With high quality and excellent good after-sales service.
Specification
| Model | SMT-012-300VTD52 | SMT-024-288VTD52 | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Voltage Tolerance | ±0.5V | ||
| Load Regulation | ±1% | ±1% | |
| Rated current | 12.0A (3*4A) | 25.0A (5*5A) | |
| Rated power | 288W (3*96W) | 300W (5*60W) | |
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47~63HZ | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.94@277VAC | 0.99@120VAC 0.94@277VAC | |
| THD(Typ.)@ full load | <20% | ||
| Inrush Current (Typ.) | 35A ,50%,960us @120VAC ; 43A,50%,1ms @277VAC | ||
| Full Load Efficiency(Typ.) | 87%@120V 91%@277VAC | 85%@120V 90%@277VAC | |
| AC Current(Typ.) | 3.4A@100VAC | 3.6A@100VAC | |
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over load | ≤120% constant current limiting, auto-recovery | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60℃ | |
| Working Humidity | 20~90%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes | ||
| Safety standards | UL8750+UL1310 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Safety&EMC | Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | |
| EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
| Others | Weight | 1.90Kg | |
| Size | 303*78*47mm (L*W*H) | ||
| packaging | 10PCS/CTN 385*335*200mm 20PCS/CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature. | ||
| 2..Tolerance:includes set us tolerance,line regulation and load regulation. | |||
Compatible Light Type

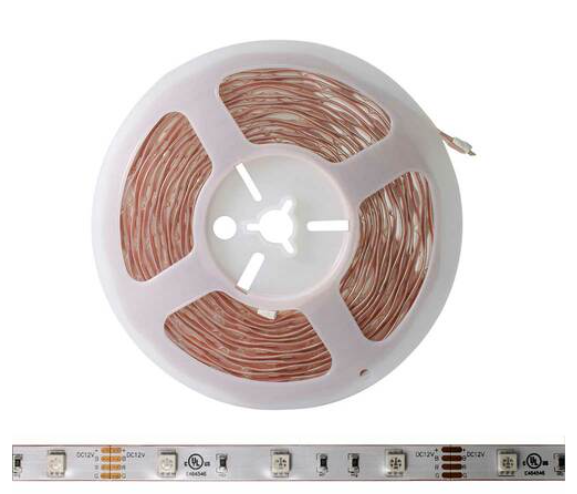

Smarts led driver waterproof dimmable is design for indoor or outdoor installations. It delivers smooth and flicker dimming for 12v LED Lighting projects such as LED strips, modules, puck light, and other LED neon lights. AQ under cabinet tape light shows good result with that.
Related Products
|

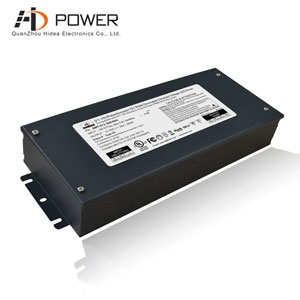

Mode：SMT-012-300VDH
