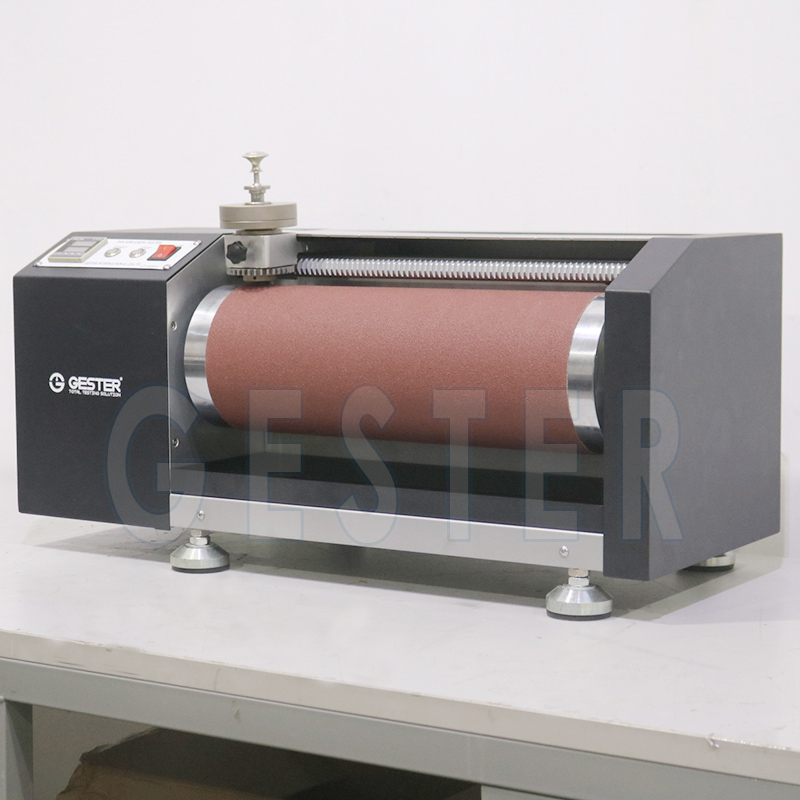

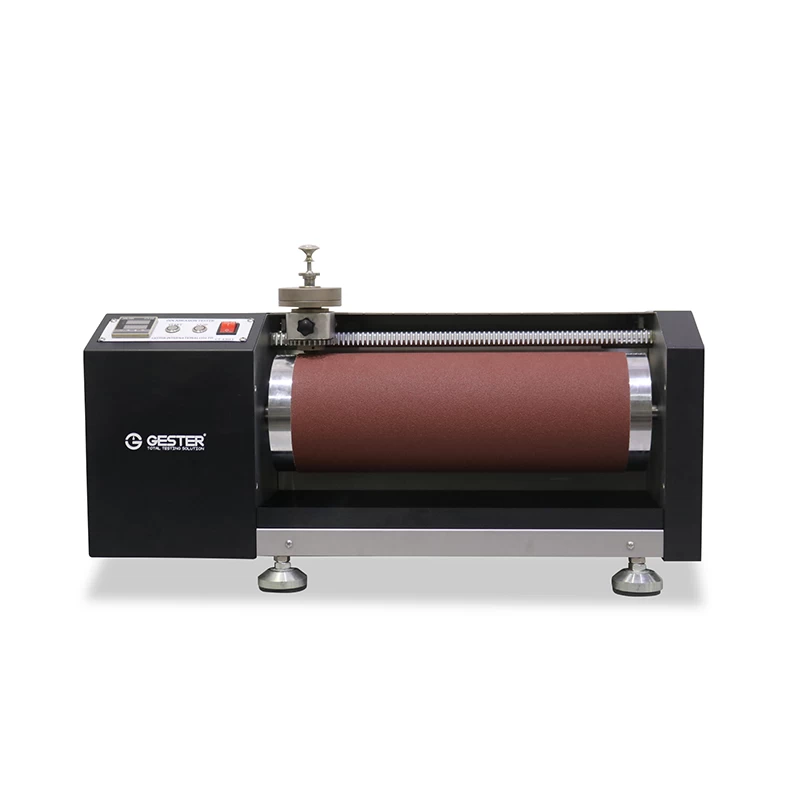

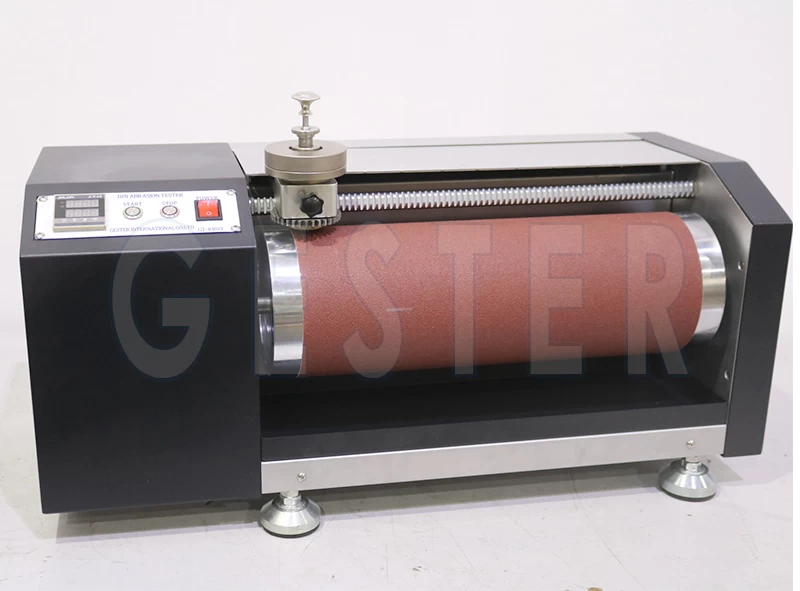

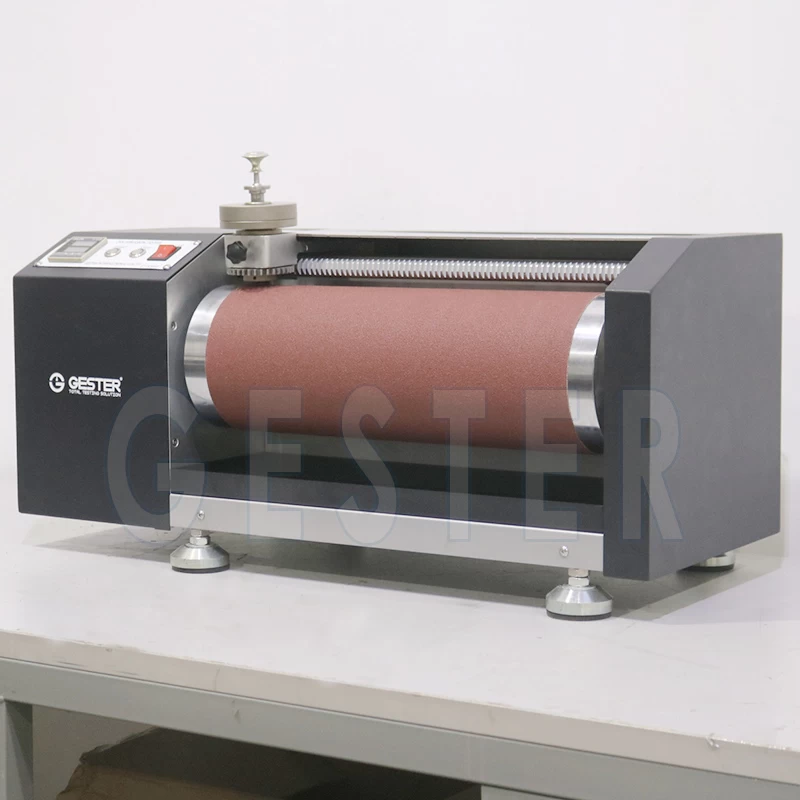

DIN Abrader, DIN Abrasion Tester GT-KB03
Product Introduction of DIN abrasion tester
| Application of din abrasion tester:
DIN Abrasion Tester is used to determine wear performance test & din abrasion test of materials like elastic material, rubber, tires, conveyor belts, conveyor belts, shoe soles.
Standards of din abrasion tester:
DIN-53516, JIS-K6369, JIS K6264-2,GB/T 20991 section 8.3,GB/T 20265, GB20266-2006, GB/T 9867, EN ISO 20344 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A, ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, EN 12770
|

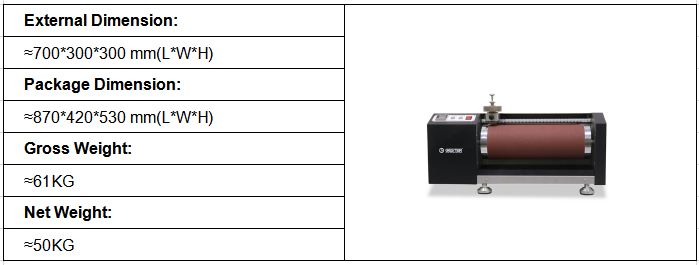

Dimensions of DIN abrasion tester
Feature of DIN abrasion tester
1. Body paint baking processed, easy for maintenance.
2. Equip with digital counter, automatically stop after test finished.
3. Under certain touching pressure and contact area, sample becomes a certain angle with sandpaper and determine its abrasion performance caused by a certain level of sandpaper. Pack sandpaper outside the surface of roller.

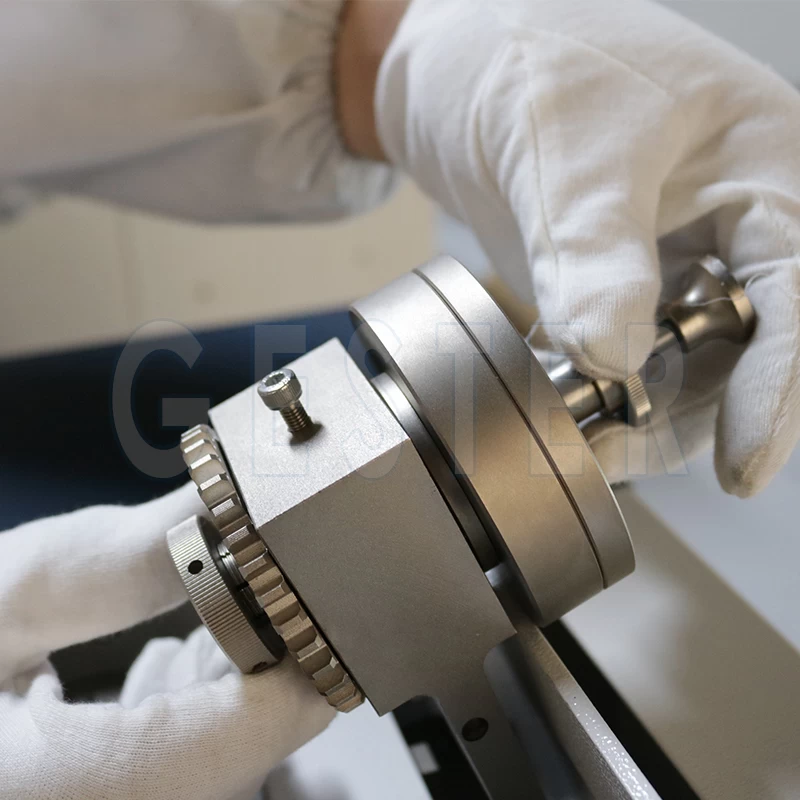

4. The sample is pressed against the roller with sandpaper, which makes sample lateral moving along roller.

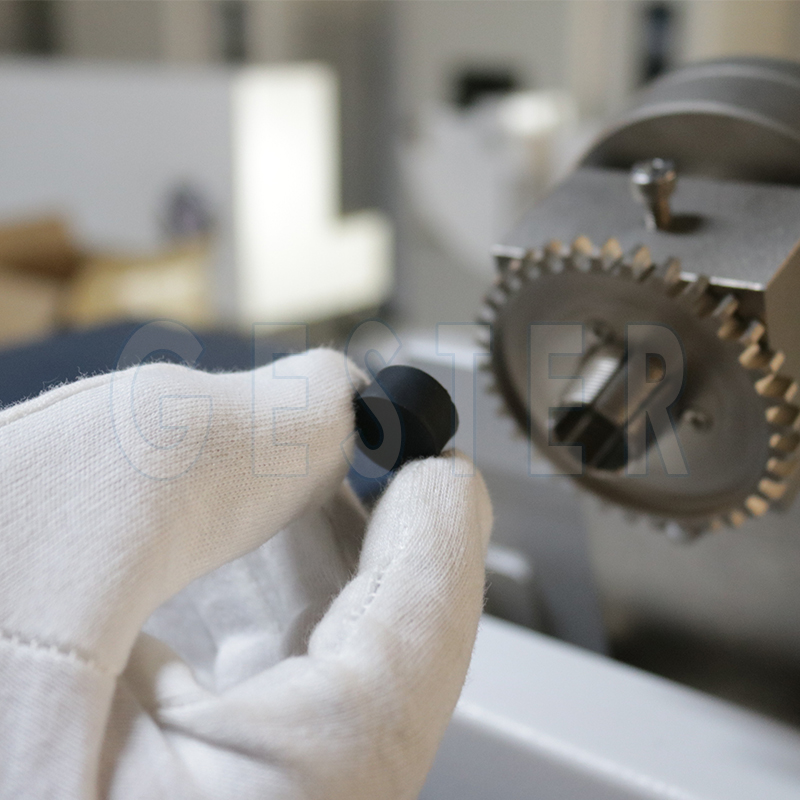

5. Abrasion is caused under the other side of cylindrical specimens measuring the mass loss of sample value and count the wear amount by sample density.

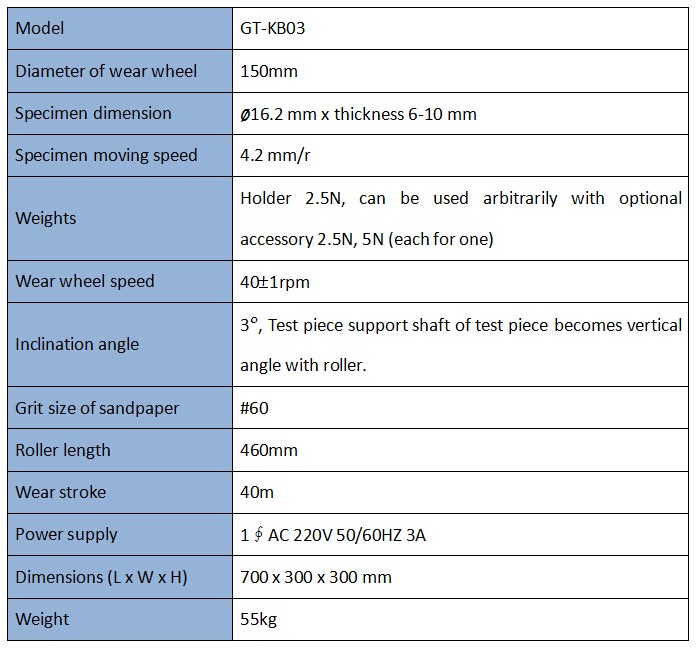

Key Specifications of DIN abrasion tester
Application Industry of DIN abrasion tester
All the rubber material blow can be tested on the GT-KB03 DIN Abrasion Tester
Product Video of DIN abrasion tester
