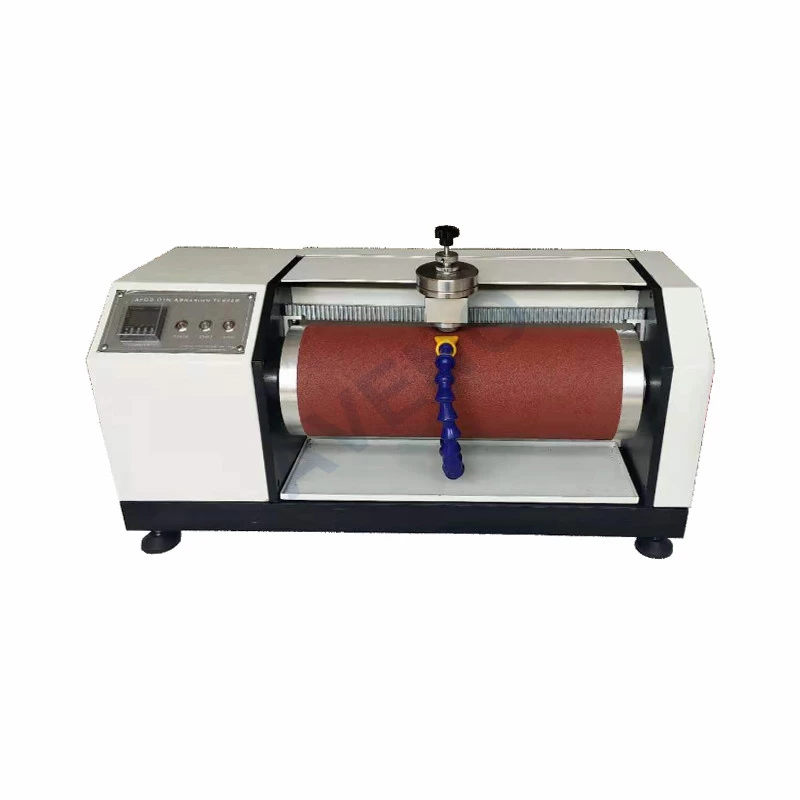

AF02B-DIN Abrasion Tester (vacuum cleaner mode)
Application Of DIN Abrasion Tester (vacuum cleaner mode)
DIN Abrasion Tester is suitable to determine the wear resistance of elastic material, rubber, tires, conveyor belts, shoe soles, soft synthetic leather and other materials.

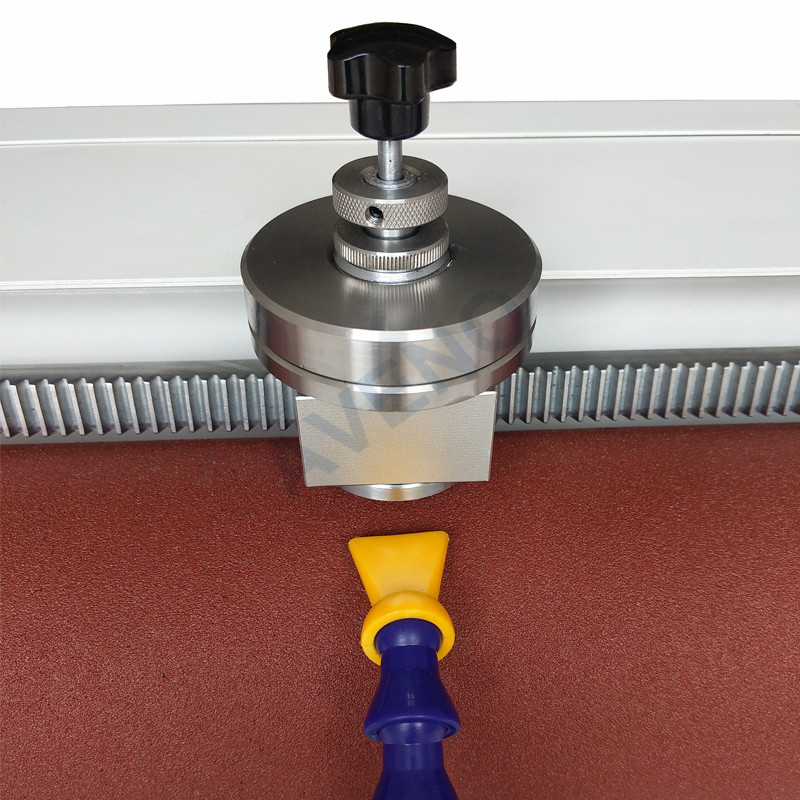

This model with a vacuum cleaner interface can be connected to a vacuum cleaner. During test, the vacuum port will move with sample, clear the dust generated during the test, keep machines and labs clean.
Standards Of DIN Abrasion Tester (vacuum cleaner mode)
BS-903, GB/T 9867, ISO-4649, JIS-K6264, SATRA TM174, TM193, ASTM-D5963, QB/T 2884-2007, ISO 20871:2001, BS EN 12770:2000, DIN 53516, EN ISO 20344
Key Specification Of DIN Abrasion Tester (vacuum cleaner mode)
|
Model
|
AF02B DIN
Abrasion Tester (vacuum cleaner mode)
|
|
Wear wheel diameter
|
150mm
|
|
Sample dimension
|
ø16.2 mm x thickness 6-10 mm
|
|
Moving speed of the sample
|
4.2 mm/r
|
|
Load Weight
|
5N, 10N
|
|
Wear wheel speed
|
40rpm
|
|
Incidence angle
|
3°, Vertical angle between the supporting shaft of the test
sample and the roller
|
|
Grit size of sand paper
|
#60
|
|
Rolling length
|
460mm
|
|
Wear stroke
|
40m
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimensions
|
70*30*30cm
|
|
Weight
|
55kg
|
Accessories Of DIN Abrasion Tester (vacuum cleaner mode)
|
Standard
Accessories
|
2.5N weight
|
1pc
|
|
5N weight
|
1pc
|
|
P60# standard
abrasive paper
|
1pc
|
|
Standard
cutting die
|
1pc
|
|
Grinding head
|
1pc
|
|
Germany
standard rubber
|
1pc
|
|
Power line
|
1pc
|
|
Option
Accessories
|
Standard
rubber
|
|
|
Vacuum
cleaner
|
|
