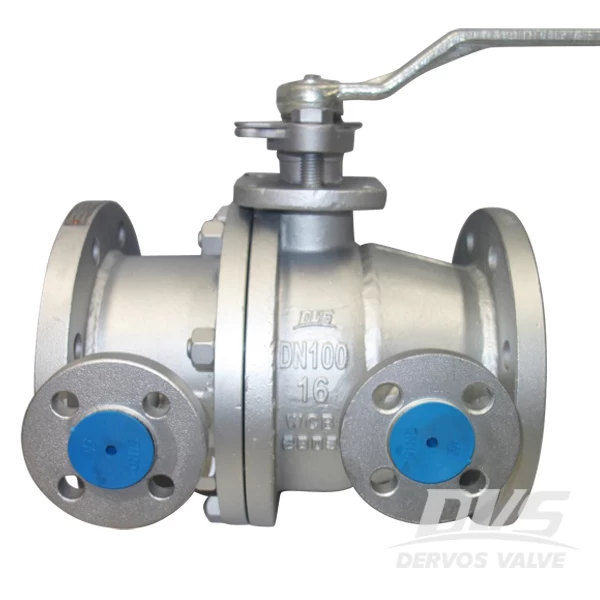

DIN Ball Valve DN100 PN16 WCB Floating Ball Heating Jacket


  • MaterialCast Steel
  • Method of OperationLever

DIN Ball Valve Full Pore RF Floaing Ball Fire Proof anti-static Lever WCB Body A105+ENP Ball 17-4PH Stem F304+Ni55 Seat X750 Spring Welding Flange Heating Jacket DN100 PN16


Quick Detail

Type

Ball Valve

Size

DN100

Design Pressure

PN16

Construction

Floating ball valve

ConnectionType

Raised Face Flange

OperationType

Lever

Body Material

WCB

BallMaterial

A105+Ni60

Stem Material

17-4PH

SeatMaterial

F304+Ni55

Design Code

EN12516-1

Face to Face Dimension

EN558-1

End Connection

EN1092-1 B1

Pressure & Temp

EN12266

Medium

Water, Oil and Gas

Origin

China


Product Tags ball valve and float          ball float valve          float valve with ball          floating ball valve          28mm ball valve and float          floating type ball valve          ebco ball float valve          pneumatic floating ball valves          cryogenic floating ball valves
