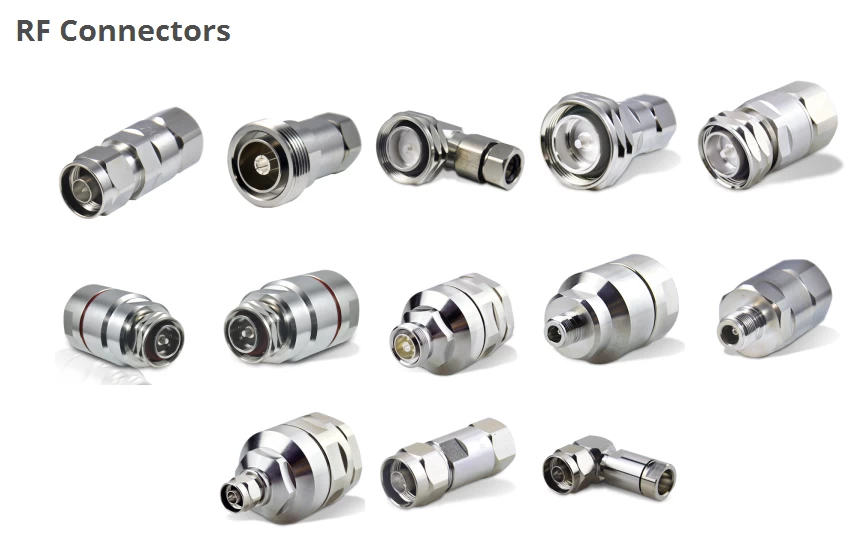

Product Name

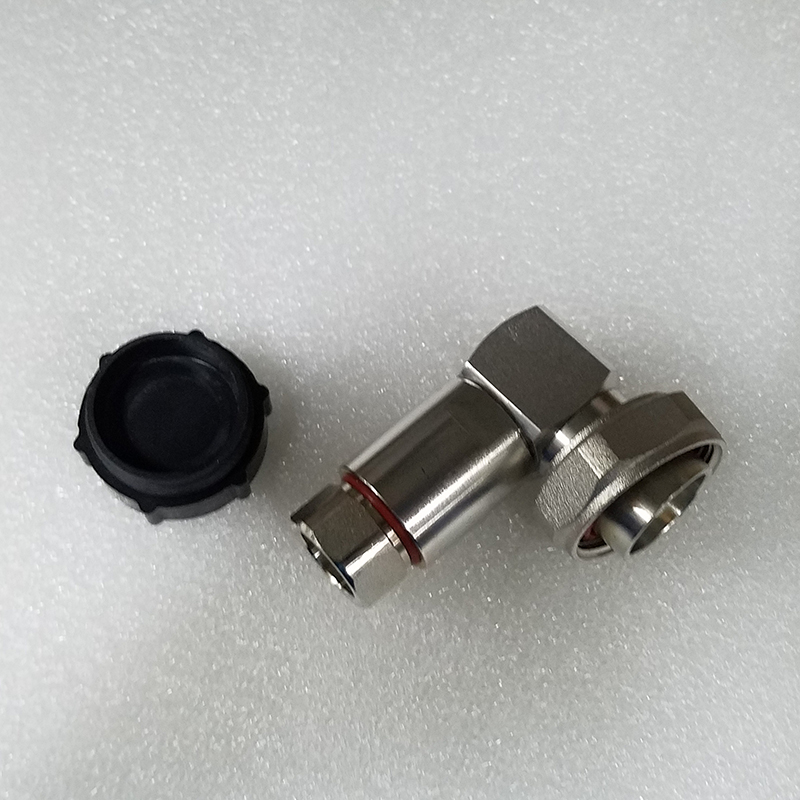

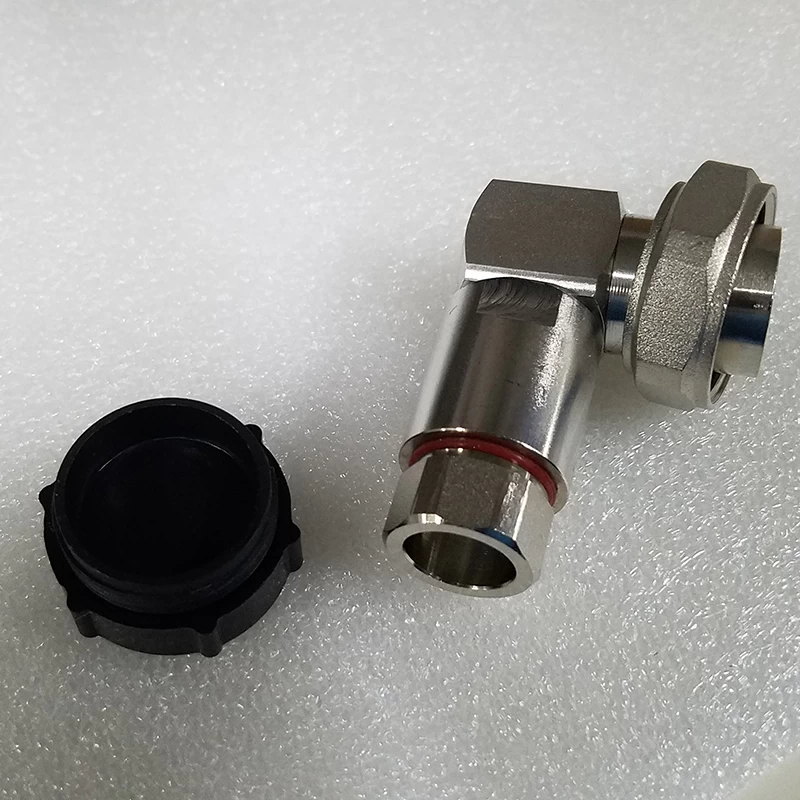

DIN type 7/16 RF Connector is one kind of thread coupling RF coaxial connector. Characteristic impedance is 50ohm. The characteristic of connector is in big power, low VSWR, less attenuation, low intermodulation, excellent nature of airtight. They are used in connection with feeder cables in broadcast, Television,ground launch system, monitoring of radar, microwave communication fields etc.7/16 connectorsare especially suitable for base stations and broadcast communication systems.
Product Features
1. Multiple-Band Frequency
2. Good shielding performance
3. Low VSWR;Low attenuation
4. Low PIM
5. High Reliability
6. Economic price
Technical &Mechanical Specifications
|
Model No.
|
MNRC-1/2-DM
|
|
Interface
|
According to IEC 60169-4
|
|
Electrical
|
Characteristic Impedance
|
50 ohm
|
|
Frequency Range
|
DC-3GHz
|
|
Dielectric Withstanding Voltage
|
≥4000V RMS,50Hz,at sea level
|
|
Dielectric Resistance
|
≥10000M ohms
|
|
Contact Resistance
|
Center Contact≤1.0M ohms
Outer Contact≤0.30M ohms
|
|
VSWR
|
≤1.10
|
|
Mechanical
|
Durability
|
Mating cycles≥500
|
|
Material and plating
|
Body
|
Brass Ni or Tri-Alloy
|
|
Insulator
|
PTFE
|
|
Center Conductor
|
Phosphor Bronze or Ag
|
|
Coupling Nut
|
Brassi Ni
|
|
Temp
|
-40~+85
|
Mechanical Drawing (mm)
