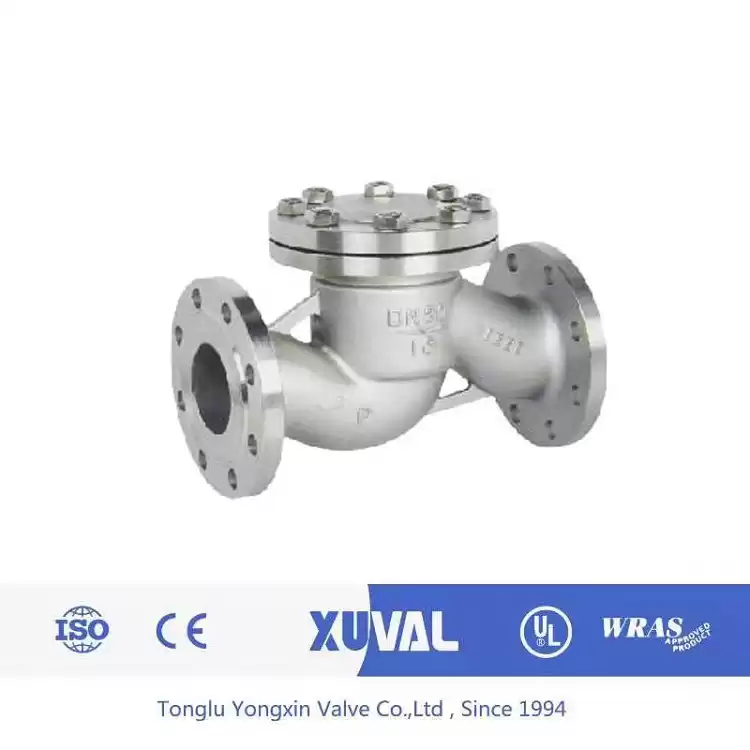

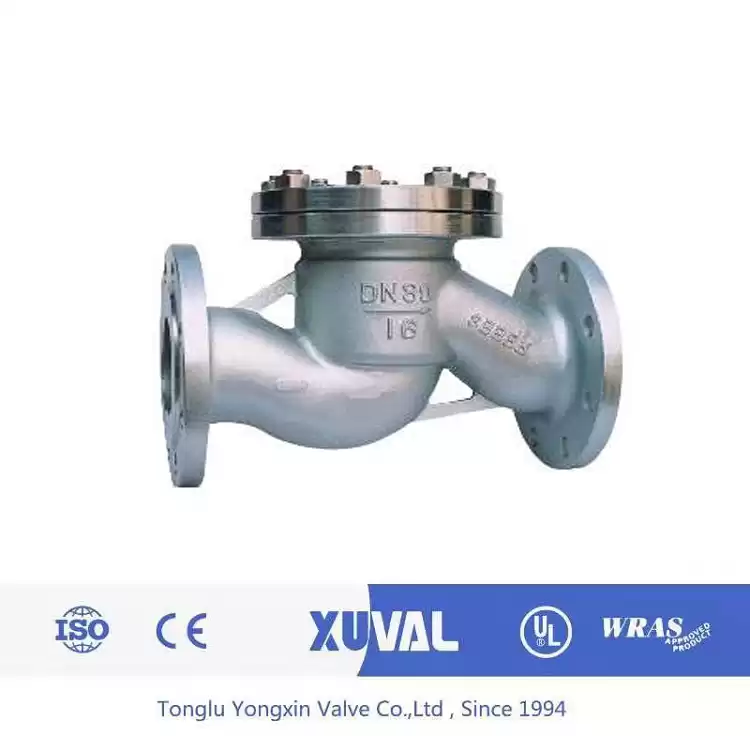

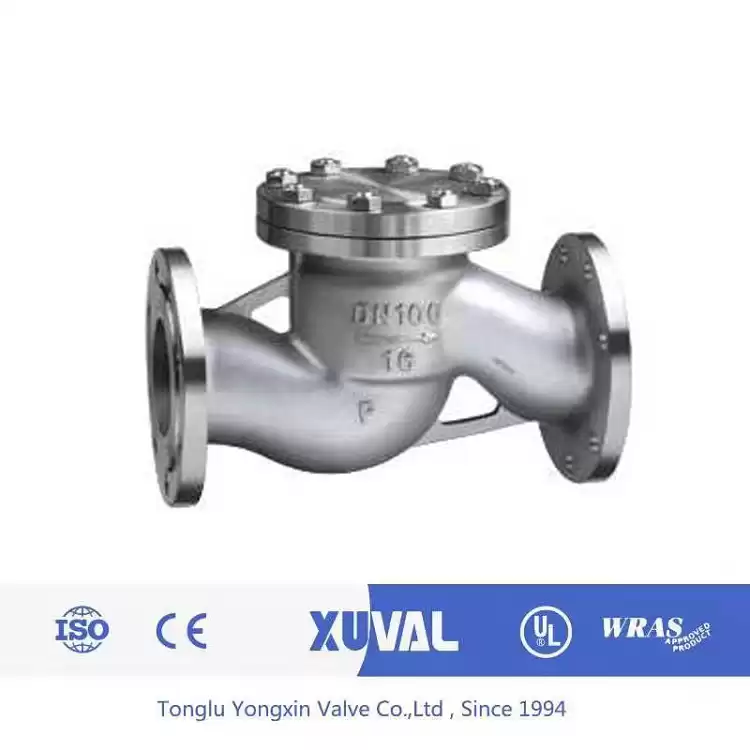

DIN PN16 ANSI 150LB JIS 10K Lift Check Valve Flange End
Features:
Size:1/2"~12"(DN15~DN300)
W.P.:PN16 Class 150 10K
W.T.:-20℃~180℃
Material List
|
|
No.
|
PARTS
|
MATERIAL
|
|
1
|
BODY
|
WCB+13Cr
|
CF8
|
CF8M
|
|
2
|
DISC
|
WCB+13Cr
|
CF8
|
CF8M
|
|
3
|
GASKET
|
PTFE/304+GRAPHITE
|
|
4
|
BONNET
|
WCB
|
CF8
|
CF8M
|
|
5
|
BOLT
|
35CrMo
|
304
|
304
|
|
6
|
NUT
|
45
|
304
|
304
|
Dimensions PN16 Unit:mm
Nominal Diamrter
|
L
|
d
|
D2
|
D1
|
D
|
b
|
f
|
n-φd1
|
H
|
|
15
|
1/2“
|
130
|
15
|
45
|
65
|
95
|
14
|
2
|
4-14
|
65
|
|
20
|
3/4”
|
150
|
20
|
55
|
75
|
105
|
14
|
2
|
4-14
|
68
|
|
25
|
1"
|
160
|
25
|
65
|
85
|
115
|
14
|
2
|
4-14
|
73
|
|
32
|
1-1/4"
|
180
|
32
|
78
|
100
|
135
|
16
|
2
|
4-18
|
78
|
|
40
|
1-1/2"
|
200
|
40
|
85
|
110
|
145
|
16
|
3
|
4-18
|
85
|
|
50
|
2"
|
230
|
50
|
100
|
125
|
160
|
16
|
3
|
4-18
|
103
|
|
65
|
2-1/2"
|
290
|
65
|
120
|
145
|
180
|
18
|
3
|
4-18
|
117
|
|
80
|
3"
|
310
|
80
|
135
|
160
|
195
|
20
|
3
|
8-18
|
132
|
|
100
|
4"
|
350
|
100
|
155
|
180
|
215
|
20
|
3
|
8-18
|
147
|
|
125
|
5"
|
400
|
125
|
185
|
210
|
250
|
22
|
3
|
8-18
|
162
|
|
150
|
6"
|
480
|
150
|
210
|
240
|
285
|
22
|
3
|
8-22
|
188
|
|
200
|
8"
|
600
|
200
|
265
|
295
|
340
|
24
|
3
|
12-22
|
222
|
|
250
|
10"
|
750
|
250
|
320
|
355
|
405
|
26
|
3
|
12-26
|
265
|
|
300
|
12"
|
850
|
300
|
375
|
410
|
460
|
28
|
3
|
12-26
|
316
|
Dimensions CLASS 150 Unit:mm
Nominal Diamrter
|
L
|
d
|
D2
|
D1
|
D
|
b
|
f
|
n-φd1
|
H
|
|
15
|
1/2“
|
130
|
15
|
35
|
60.3
|
95
|
12
|
2
|
4-16
|
65
|
|
20
|
3/4”
|
150
|
20
|
43
|
70
|
100
|
12.5
|
2
|
4-16
|
68
|
|
25
|
1"
|
160
|
25
|
51
|
79.4
|
110
|
12.5
|
2
|
4-16
|
73
|
|
32
|
1-1/4"
|
180
|
32
|
63.5
|
88.9
|
115
|
13.2
|
2
|
4-16
|
78
|
|
40
|
1-1/2"
|
200
|
40
|
73
|
98.4
|
125
|
14.7
|
2
|
4-16
|
85
|
|
50
|
2"
|
230
|
50
|
92
|
120.7
|
150
|
16.3
|
2
|
4-19
|
103
|
|
65
|
2-1/2"
|
290
|
65
|
105
|
139.7
|
180
|
17.9
|
2
|
4-19
|
117
|
|
80
|
3"
|
310
|
80
|
127
|
152.4
|
190
|
19.5
|
2
|
4-19
|
132
|
|
100
|
4"
|
350
|
100
|
157
|
190.5
|
230
|
24.3
|
2
|
8-19
|
147
|
|
125
|
5"
|
400
|
125
|
185
|
216
|
255
|
24.3
|
2
|
8-22
|
162
|
|
150
|
6"
|
480
|
150
|
216
|
241.3
|
280
|
25.9
|
2
|
8-22
|
188
|
|
200
|
8"
|
600
|
200
|
270
|
298.5
|
345
|
29
|
2
|
8-22
|
222
|
|
250
|
10"
|
750
|
250
|
324
|
362
|
405
|
30.6
|
2
|
12-25
|
265
|
|
300
|
12"
|
850
|
300
|
381
|
431.8
|
485
|
32.2
|
2
|
12-25
|
316
|
Dimensions 10K Unit:mm
Nominal Diamrter
|
L
|
d
|
D2
|
D1
|
D
|
b
|
f
|
n-φd1
|
H
|
|
15
|
1/2“
|
130
|
15
|
51
|
70
|
95
|
12
|
1
|
4-15
|
65
|
|
20
|
3/4”
|
150
|
20
|
56
|
75
|
100
|
14
|
1
|
4-15
|
68
|
|
25
|
1"
|
160
|
25
|
67
|
90
|
125
|
14
|
1
|
4-19
|
73
|
|
32
|
1-1/4"
|
180
|
32
|
76
|
100
|
135
|
16
|
2
|
4-19
|
78
|
|
40
|
1-1/2"
|
200
|
40
|
81
|
105
|
140
|
16
|
2
|
4-19
|
85
|
|
50
|
2"
|
230
|
50
|
96
|
120
|
155
|
16
|
2
|
4-19
|
103
|
|
65
|
2-1/2"
|
290
|
65
|
116
|
140
|
175
|
18
|
2
|
4-19
|
117
|
|
80
|
3"
|
310
|
80
|
126
|
150
|
185
|
18
|
2
|
8-19
|
132
|
|
100
|
4"
|
350
|
100
|
151
|
175
|
210
|
18
|
2
|
8-19
|
147
|
|
125
|
5"
|
400
|
125
|
182
|
210
|
250
|
20
|
2
|
8-23
|
162
|
|
150
|
6"
|
480
|
150
|
212
|
240
|
280
|
22
|
2
|
8-23
|
188
|
|
200
|
8"
|
600
|
200
|
262
|
290
|
330
|
22
|
2
|
12-23
|
222
|
|
250
|
10"
|
750
|
250
|
324
|
355
|
400
|
24
|
2
|
12-25
|
265
|
|
300
|
12"
|
850
|
300
|
368
|
400
|
445
|
24
|
3
|
16-25
|
316
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45days.
