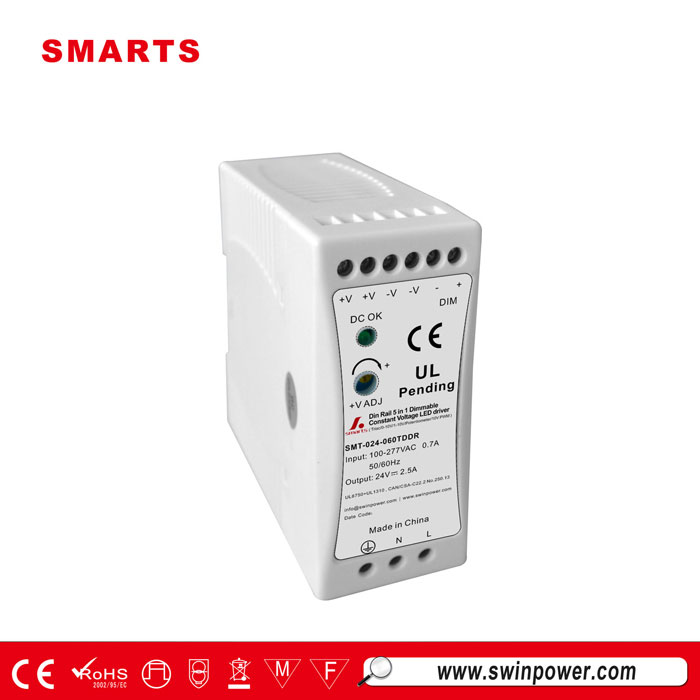

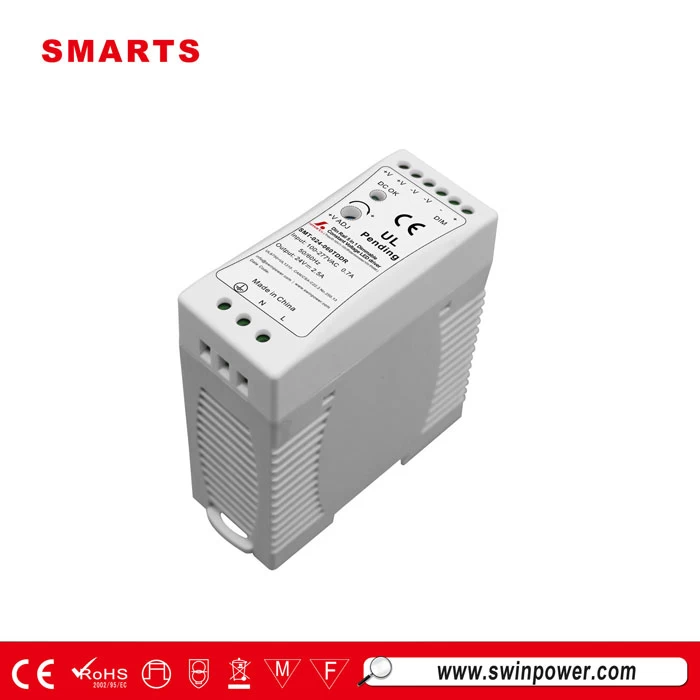

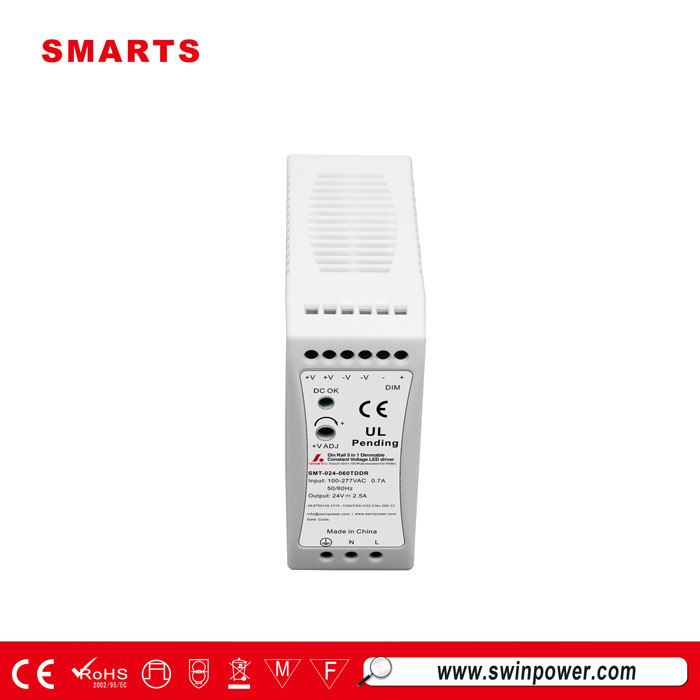

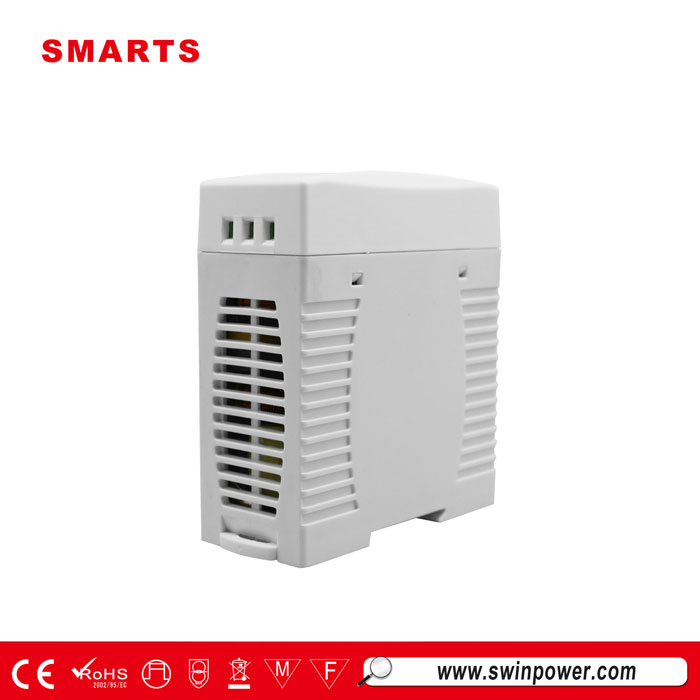

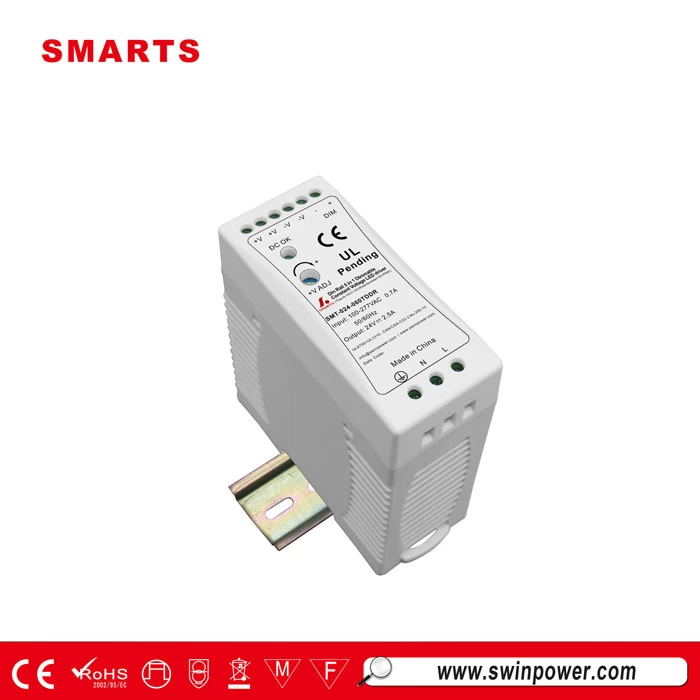

Din Rail 5 in 1 dimmable constant voltage led driver with 5 years warranty

Din Rail 5 in 1 dimmable constant voltage led driver. SMT-024- 060TDDR is 24v 60w dimmable led driver with UL cUL. FCC Pending Class 2 .RoHs listed


  • Size40*90*100m
  • Dimming modeTriac,0-10V,1-10V,Potentiolmeter,10V PWM types dimming mode
  • Working Modeconstant voltage
  • Output Current2.5amp
  • CertificationUL cUL. FCC Pending Class 2 .RoHs
  • Output Voltage24vdc
  • Input Voltage100-277VAC

Din Rail 5 in 1 dimmable constant voltage led driver with 5 years warranty

The  Din Rail 5 in 1 dimmable led driver SMT-024- 060TDDR is 24vdc 2.5amp 60w constant voltage which could met thees Dimming mode: firstly, forward phase /leading edge ,MLV and Reverse .secondly, phase /trailing edge ,ELV,TRIAC dimmers.0-10V/1-10V/Potentiometer/10V PWM 4 in 1 available.


  Specification


model

SMT-012-060TDDR

SMT-024-060TDDR

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

5.0Amp

2.5Amp

Rated power

60W

60W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.98@120VAC ,0.95@277VAC

0.98@120VAC ,0.95@277VAC



THD(Typ. ) @ full load

<20%@120VAC & 277VAC

Full Load Efficiency(Typ.)

83%@120VAC, 85%@277VAC

83%@120VAC, 84%@277VAC

AC Current(Typ.)

0.9A

Inrush Current(Typ.)

14A, 50%, 780us @120VAC;   15A, 50% , 660us @277VAC

Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310 , CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Weight

0.3Kg

Size

40*90*100mm(L*W*H)

packing

50PCS/CTN ,  carton size:330*330*130mm



Notes

1.Do you need special Dimmer for LED lights?

Answer: The less electricity drawn, the dimmer the light. ... If you'd like your LED to be dimmable, you need to do one of two things: find LED bulbs compatible with traditional dimmers, or replace your current dimming switch with a leading-edge (LED-compatible) dimmer.



 Using one dimming ---TRIAC/Phase cut dimming

Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

Ø Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers

Ø Min loading is about 10%

Ø Please try to use dimmers with power at least 1.5 times as the output power of the driver.
