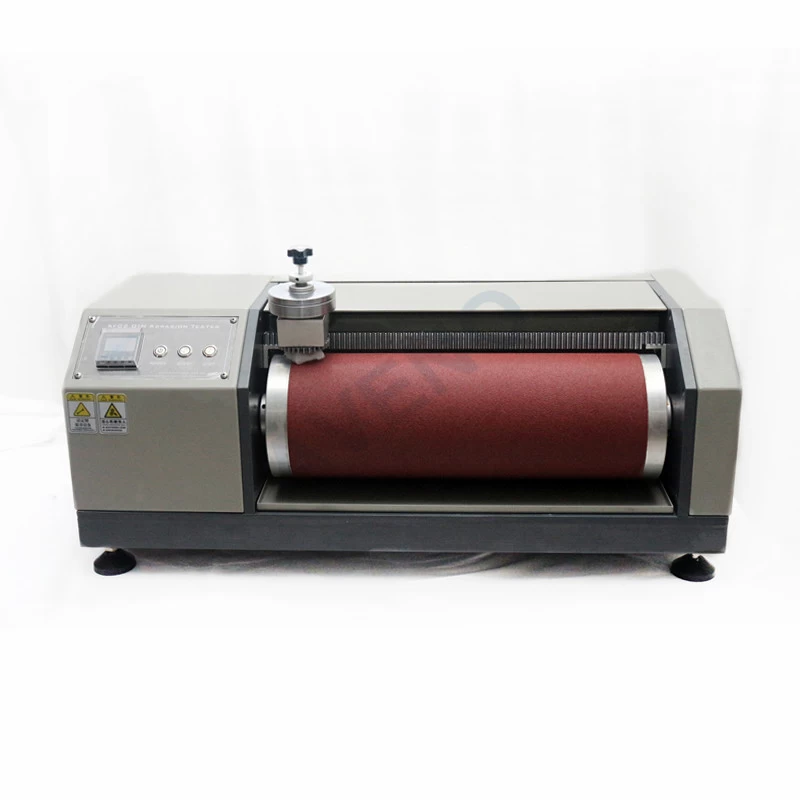

AF02 DIN Rubber Abrasion Tester
Application Of DIN Abrasion Tester
DIN Rubber Abrasion Tester is suitable to determine the wear resistance of elastic material, rubber, tires, conveyor belts, shoe soles, soft synthetic leather and other materials.
Standards Of DIN Abrasion Tester
BS-903, GB/T 9867, ISO-4649, JIS-K6264, SATRA TM174, TM193, ASTM-D5963, QB/T 2884-2007, ISO 20871:2001, BS EN 12770:2000, DIN 53516, EN ISO 20344
Key Specification Of DIN Abrasion Tester
|
Model
|
AF02 DIN Abrasion Tester
|
|
Wear
wheel diameter
|
150mm
|
|
Sample
diamension
|
ø16.2 mm x
thickness 6-10 mm
|
|
Moving
speed of the sample
|
4.2 mm/r
|
|
Load
Weight
|
5N, 10N
|
|
Wear
wheel speed
|
40rpm
|
|
Incidence
angle
|
3°, Vertical
angle between the supporting shaft of the test sample and the roller
|
|
Grit
size of sand paper
|
#60
|
|
Rolling
length
|
460mm
|
|
Wear
stroke
|
40m
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimensions
|
70*30*30cm
|
|
Weight
|
55kg
|

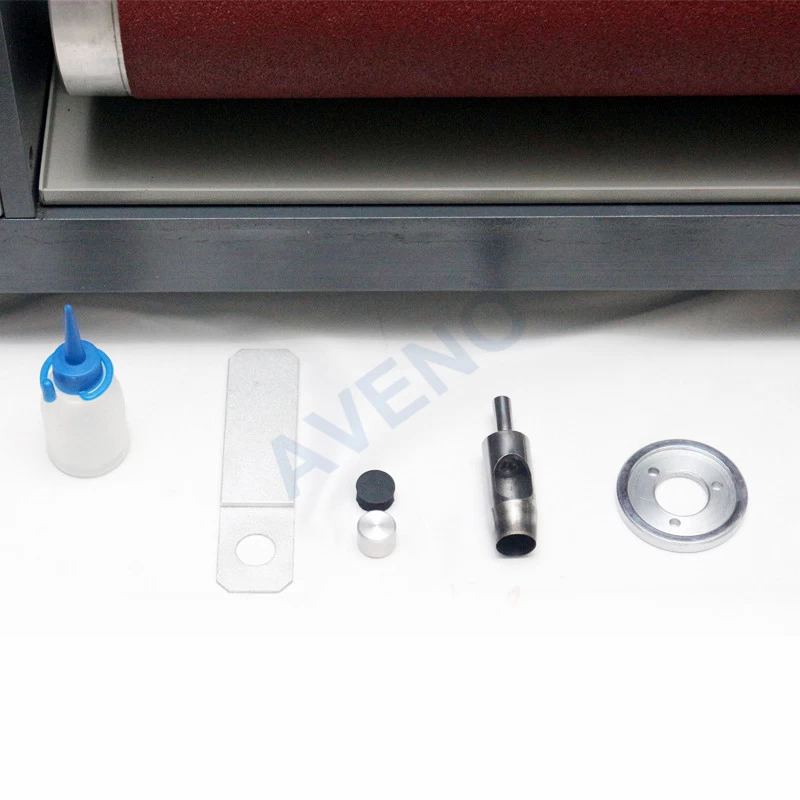

Accessories Of DIN Abrasion Tester
|
Standard Accessories
|
2.5N weight
|
1pc
|
|
5N weight
|
1pc
|
|
P60# standard abrasive paper
|
1pc
|
|
Standard cutting die
|
1pc
|
|
Grinding head
|
1pc
|
|
Germany standard rubber
|
1pc
|
|
Power line
|
1pc
|
|
Option Accessories
|
Standard rubber
|
|
Related products

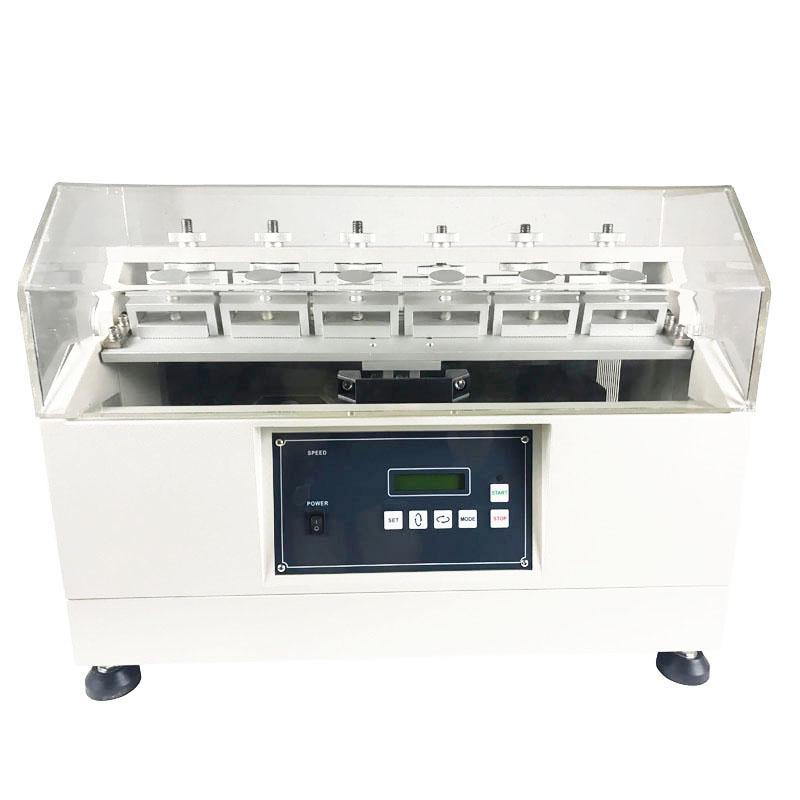

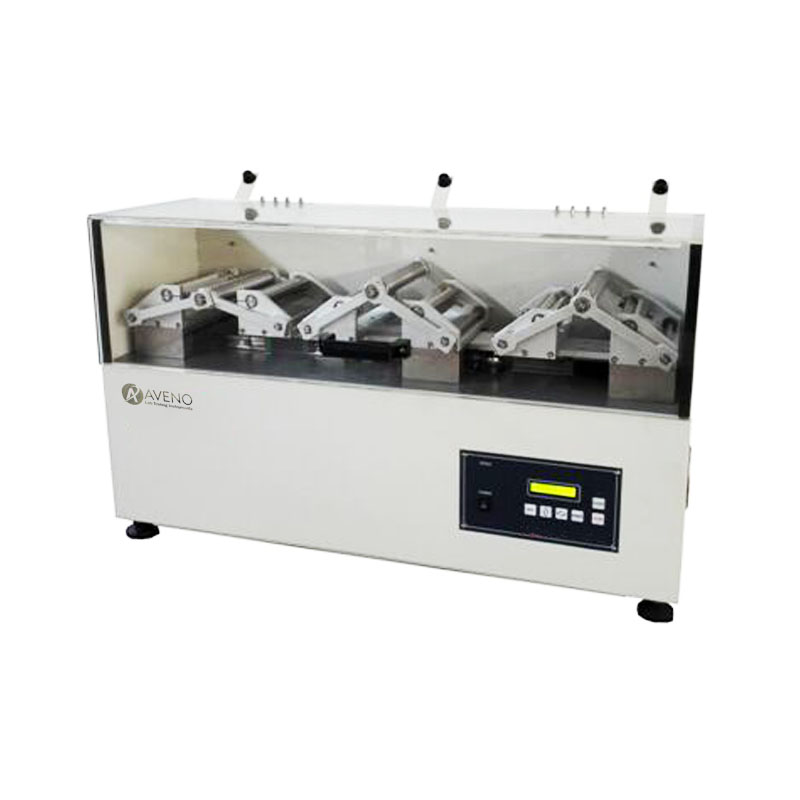

ROSS Flexing Tester Bally Leather Flexing Resistance Tester Outsole Flexing Tester
