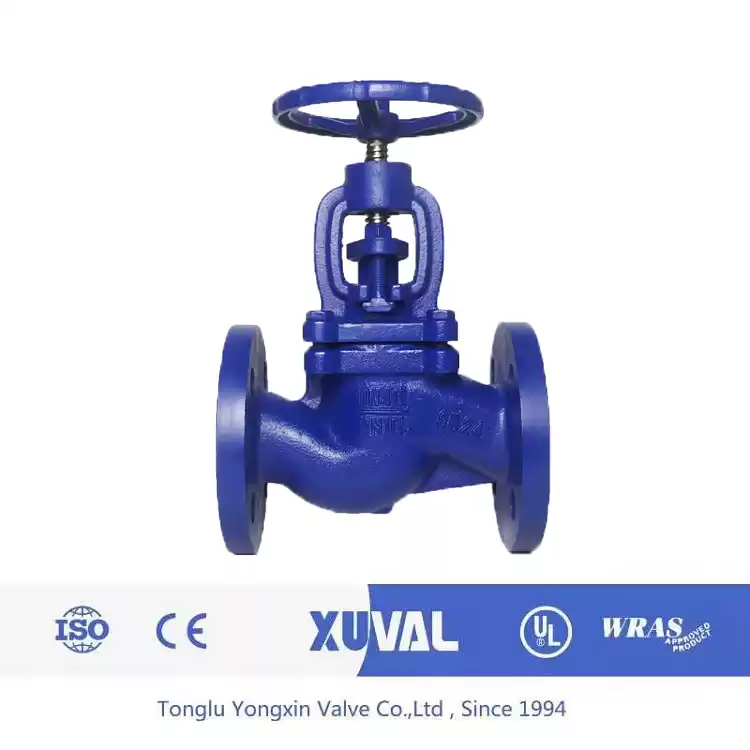

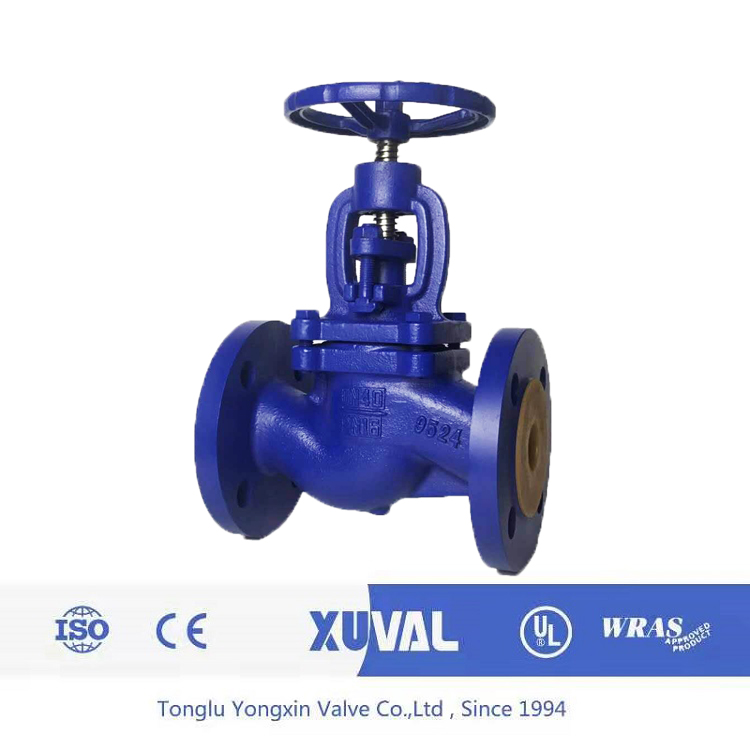

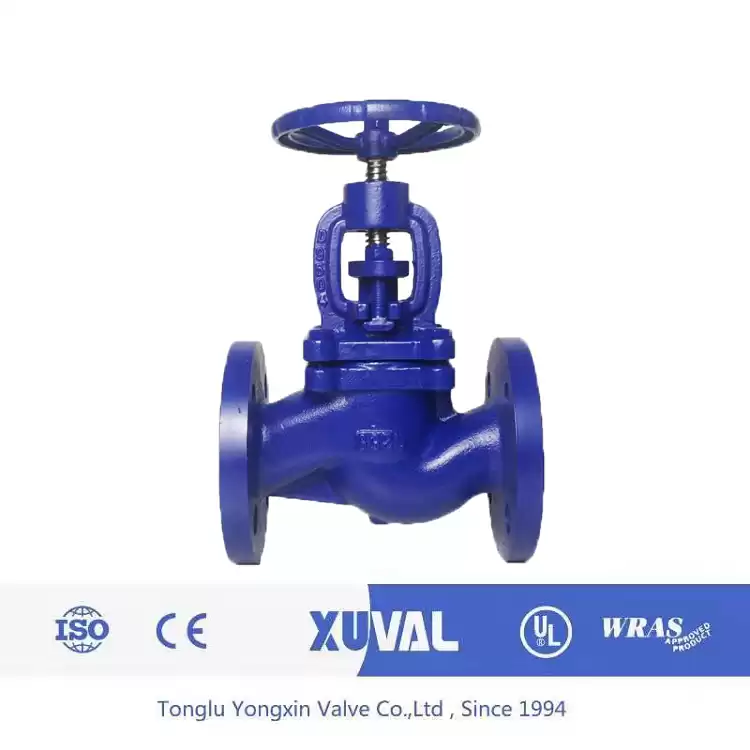

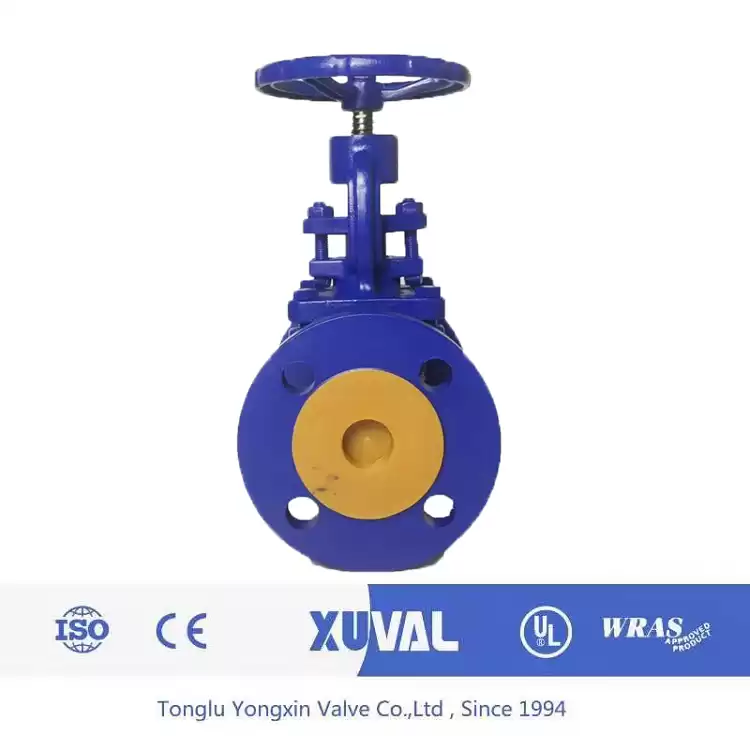

DIN S pattern Cast iron globe valve
Globe valve is also called Stop valve,The opening and closing part of the stop valve is a plug-shaped disc. The sealing surface is flat or conical. The disc moves linearly along the center of the fluid. There are two types of valve rod movements: lift rod type (valve rod lift, hand wheel lift), and lift rotary rod type (hand wheel rotates with the valve stem to lift and lower, and the nut is set on the valve body). Shut-off valves are only available in fully open and fully closed, and are not allowed to be adjusted and throttled.
Cast iron globe valve Description :
Main Parts and Materials
|
|
Number
|
Part Name
|
Material
|
|
1
|
Body
|
GG25
|
2
|
Seat ring
|
Stainless steel
|
|
Brass
|
3
|
Disc Ring
|
Brass/Bronze
|
|
Stainless steel
|
|
4
|
Disc
|
GG25/Carbon steel
|
|
5
|
Stem
|
SS AISI 420
|
|
6
|
Bonnet Gasket
|
Graphite with soft steel
|
|
8
|
Bonnet
|
GG25
|
|
9
|
Packing
|
Graphite
|
Main Dimensions
|
|
Size
|
L
|
D
|
D1
|
D2
|
b
|
n-d1
|
H
|
w.t
|
|
DN40
|
200
|
150
|
110
|
84
|
18
|
4-19
|
270
|
10.5
|
|
DN50
|
230
|
165
|
125
|
102
|
20
|
4-19
|
130
|
12.5
|
|
DN65
|
290
|
185
|
145
|
122
|
20
|
4-19
|
140
|
17.3
|
|
DN80
|
310
|
200
|
160
|
138
|
22
|
8-19
|
150
|
24.5
|
|
DN100
|
350
|
220
|
180
|
158
|
24
|
8-19
|
160
|
37.5
|
|
DN125
|
400
|
250
|
210
|
188
|
26
|
8-19
|
190
|
41
|
|
DN150
|
480
|
285
|
240
|
212
|
26
|
8-23
|
210
|
46.2
|
|
DN200
|
600
|
340
|
295
|
268
|
30
|
12-23
|
250
|
120
|
|
DN250
|
730
|
405
|
355
|
320
|
32
|
12-28
|
310
|
198
|
|
DN300
|
850
|
460
|
410
|
378
|
32
|
12-28
|
340
|
282
|
Application :
1. Desin according to DIN3202-F32
2.Flange end DIN2532/2533
Test
|
|
Working pressure
|
PN10
|
PN16
|
|
Shell pressure
|
1.5MPa
|
2.4MPa
|
|
Shell pressure
|
1.1MPa
|
1.76MPa
|
