Main Features:
l Low insertion loss
l High isolation between each input port
l Modularity: Single Unit
l Available for all indoor and outdoor applications
l Connectors: 4.3-10 type female
|
Electrical Specifications
|
|
Port
|
Band 1
|
Band 2
|
|
Frequency Range
|
698-960MHz
|
1710-2700MHz
|
|
Return loss (dB)
|
≥22
|
≥22
|
|
Insertion Loss
|
≤0.2dB
|
≤0.4dB
|
|
Power Handling
|
300W
|
300W
|
|
Isolation
|
≥50dB@1710-2700MHz
|
≥50dB@698-960MHz
|
|
DC Pass
|
3A
|
3A
|
|
PIM
|
≤-155dBc@2*20W
|
|
Impedance
|
50Ω
|
|
Mechanical Specifications
|
|
Weight
|
3.50kg
|
|

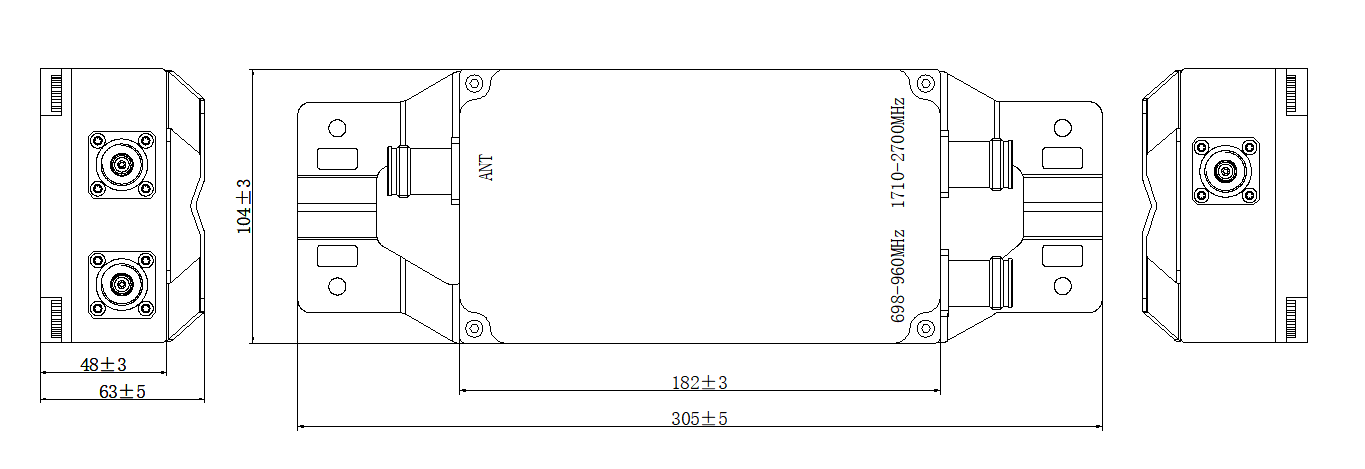

Dimensions
|
182*104*48mm (Single Unit)
|
|
Connector
|
4.3-10 female
|
|
Colour
|
Grey or customized
|
|
Operating Humidity
|
0-95%
|
|
Operating Temperature
|
0 to 55ºC
|
|
Application
|
Outdoor
|
|
Mounting
|
Pole or Wall Mount
|
|
Waterproof grade
|
IP65
|
